The Physics of LISA: How a 1.5-Million-Mile Laser Triangle Will Hear the Universe

For over a century, Albert Einstein’s general theory of relativity has successfully predicted the macroscopic behavior of the cosmos, but one of its most profound implications—gravitational waves—remained purely theoretical until 2015. When the ground-based Laser Interferometer Gravitational-Wave Observatory (LIGO) first detected these ripples in spacetime, it opened an entirely new sensory window into the universe. Yet, terrestrial detectors are inherently limited by the Earth itself. Seismic rumblings, atmospheric disturbances, and the physical curvature of the planet restrict ground-based facilities to measuring high-frequency waves generated by relatively small, stellar-mass black holes. To hear the deepest, most resonant bass notes of the cosmos, astrophysicists realized they needed to leave the planet entirely.[1][6]

Enter the Laser Interferometer Space Antenna (LISA), a flagship mission led by the European Space Agency (ESA) in partnership with NASA, slated for launch in 2035. LISA is not a single spacecraft, but an observatory of unprecedented scale: a constellation of three identical satellites flying in a vast equilateral triangle. This formation will trail the Earth by approximately 50 million kilometers as it orbits the Sun. The distance between each spacecraft will be a staggering 2.5 million kilometers—more than six times the distance between the Earth and the Moon.[1][2]

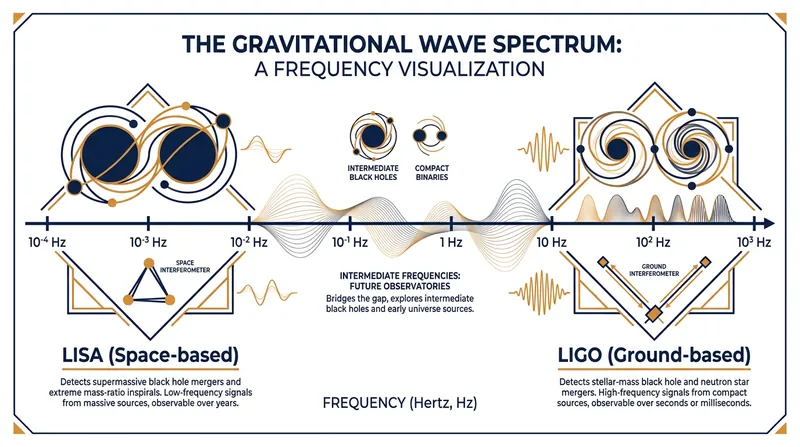

By expanding the arms of the interferometer to millions of kilometers, LISA will be sensitive to a completely different regime of the gravitational wave spectrum. While LIGO detects waves in the audio frequency band (roughly 10 to 10,000 Hertz), LISA is tuned to the millihertz band, spanning from 0.1 mHz to 1 Hz. This low-frequency window is where the universe’s most massive and violent events broadcast their signals.[3][4]

The primary targets for LISA are the mergers of supermassive black holes—monsters weighing millions to billions of times the mass of our Sun—lurking at the centers of colliding galaxies. When these titans spiral inward and merge, they churn spacetime so violently that the resulting gravitational waves can be detected from across the observable universe. LISA will also hunt for extreme mass ratio inspirals (EMRIs), events where a small stellar-mass black hole or neutron star is slowly swallowed by a supermassive black hole, mapping the spacetime geometry of the giant in exquisite detail before the final plunge.[1][5]

To capture these signals, LISA relies on a mechanism of almost incomprehensible precision. At the heart of each of the three spacecraft float two identical test masses: 46-millimeter solid cubes made of a gold-platinum alloy, each weighing roughly two kilograms. These cubes are the true instruments of the mission. Once in space, the spacecraft will release the cubes, allowing them to float completely freely in a state of perfect free-fall, shielded from the solar wind, micrometeorites, and the radiation pressure of sunlight.[1][4]

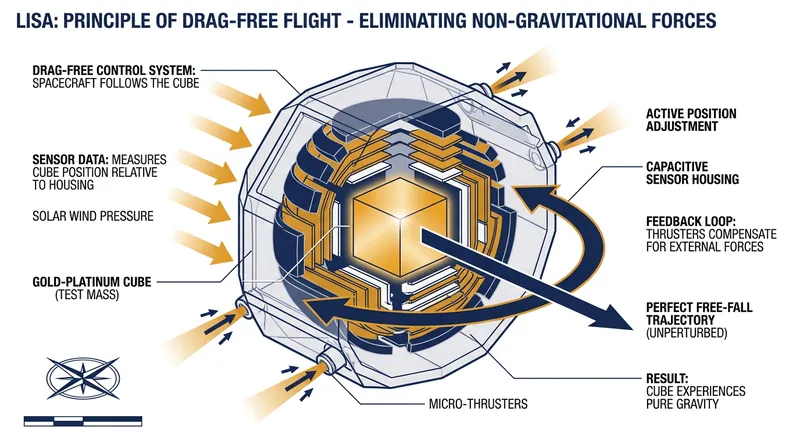

This concept, known as drag-free flight, requires the spacecraft to act as a highly intelligent shield. The satellites do not physically hold the test masses; instead, they fly around them. Using sensitive capacitive sensors, the spacecraft constantly monitors the position of the cubes relative to its own chassis. If the solar wind pushes the spacecraft even a fraction of a millimeter off course, micro-thrusters fire to recenter the satellite around the undisturbed cubes. This ensures that the only force acting on the gold-platinum masses is gravity itself.[5][6]

With the test masses in perfect free-fall, the next step is measuring the distance between them across the 2.5-million-kilometer void. Each spacecraft houses two telescopes and two highly stable infrared lasers. The lasers are fired from one spacecraft to the other two, where they are received, amplified, and sent back. By combining the incoming laser light with a local oscillator beam—a technique known as interferometry—scientists can measure the phase shift of the light.[3][4]

When a gravitational wave passes through the solar system, it stretches space in one direction while compressing it in the perpendicular direction. This distortion will cause the distance between the free-floating test masses in the LISA constellation to change. The precision required to detect this change is staggering. The lasers must measure fluctuations in the 2.5-million-kilometer arms down to a few picometers—a distance smaller than the diameter of a single helium atom.[2][5]

Achieving this level of precision requires overcoming immense engineering hurdles. The laser beams, despite being highly focused, will spread out over the vast distance between the spacecraft. By the time a beam emitted by one satellite reaches another, it will have expanded to a diameter of roughly 20 kilometers. The receiving telescope, which is only about 30 centimeters across, captures just a tiny fraction of a watt of the original light. This faint signal must then be seamlessly integrated into the interferometric measurement without introducing noise.[1][3]

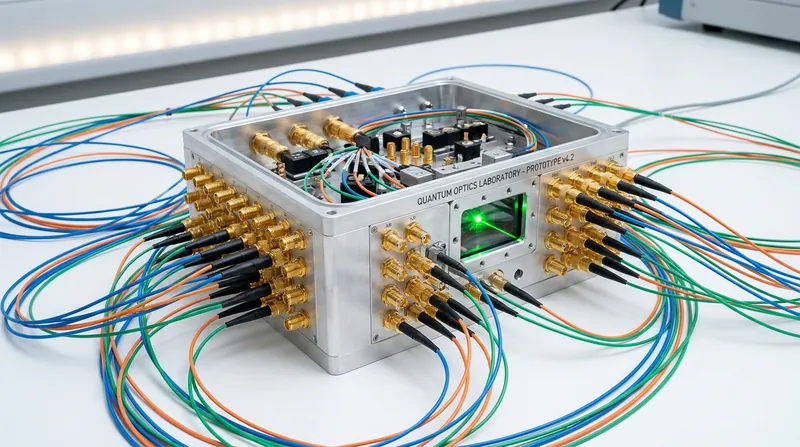

NASA’s Goddard Space Flight Center is playing a crucial role in developing several of these highly sensitive components. Among the American contributions are the laser systems, the telescopes, and the charge management devices. The latter is particularly critical: cosmic rays and high-energy particles from the Sun can cause static electricity to build up on the gold-platinum test masses. If left unchecked, this electrical charge would create electromagnetic forces that could nudge the cubes, mimicking or masking a gravitational wave. NASA’s charge management system uses ultraviolet light to continuously bleed off this static charge without physically touching the masses.[2][4]

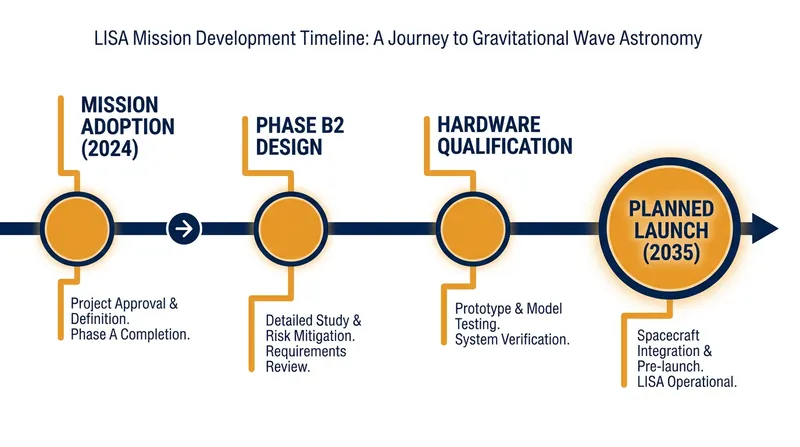

Despite the technical brilliance of the design, the mission faces significant programmatic and financial headwinds. In early 2024, ESA formally adopted the mission, moving it from the study phase into full-scale construction. However, the international partnership has recently experienced turbulence. In May 2025, the White House proposed a NASA budget that sought to severely cut the agency's science funding, effectively zeroing out support for LISA. Although the U.S. Congress later rejected the proposal and restored $80.5 million for the mission, the uncertainty prompted ESA to initiate risk mitigation strategies.[5][6]

To protect the 2035 launch date, ESA awarded a €26.1 million contract to Thales Alenia Space in May 2026 to begin developing European alternatives for the mission's telescopes. This four-phase development process allows ESA to build a breadboard model and a qualification unit, ensuring that if NASA is ultimately forced to withdraw its hardware contributions, the European consortium will have a viable backup plan. NASA representatives have maintained that the agency remains committed to delivering the telescopes and lasers, but the dual-track development highlights the fragility of decades-long international space collaborations.[5][6]

Assuming the engineering and funding hurdles are cleared, the scientific payoff of LISA promises to be transformative. Beyond supermassive black holes, the observatory will detect thousands of compact binary star systems within our own Milky Way. These pairs of white dwarfs and neutron stars orbit each other so tightly that they continuously radiate gravitational waves, creating a steady background hum that LISA will use to map the structure of our galaxy in a way that light never could.[1][3]

Cosmologists are also holding out hope for even more exotic discoveries. Because gravitational waves interact very weakly with matter, they can travel unimpeded across the universe. This means LISA could potentially detect the primordial gravitational waves generated in the first fractions of a second after the Big Bang, during the epoch of cosmic inflation. Such a discovery would provide a direct observational window into the birth of the universe, probing energy scales far beyond the reach of any particle accelerator on Earth.[1][6]

The data processing required to extract these signals will be a monumental challenge in its own right. Unlike ground-based detectors, which typically see one transient event at a time against a quiet background, LISA will be operating in a source-rich environment. The observatory will simultaneously hear the overlapping signals of millions of galactic binaries, massive black hole mergers, and extreme mass ratio inspirals. The LISA Science Team, a joint group of ESA and NASA researchers, is currently developing advanced algorithms to untangle this cacophony, separating the individual instruments from the cosmic symphony.[3][4]

As the mission moves deeper into its construction phase, the global astrophysics community is preparing for a paradigm shift. For millennia, humanity has studied the universe almost exclusively by looking at it—gathering photons across the electromagnetic spectrum. LISA represents the maturation of a new sense entirely. By the late 2030s, we will no longer just be watching the cosmos; we will be listening to the deep, structural vibrations of spacetime itself.[1][6]
