The Non-Linear Shannon Limit: Why Increasing Power in a Fiber Optic Cable Eventually Decreases Its Data Capacity

The absolute capacity of the global internet is not decided by the speed of the lasers at the ends of the cable, but by the physical structure of the glass in the middle. When the intensity of a light pulse crosses a specific threshold, the electromagnetic field actually alters the refractive index of the silica fiber itself. This is the step that determines the ceiling of global data transmission: the moment the medium stops being a passive pipe and becomes an active, distorting participant.[7][8]

For decades, the telecommunications industry operated under the standard Shannon-Hartley theorem, formulated by Claude Shannon in 1948. The theorem states a simple, intuitive rule: to push more data through a noisy channel, you either need more bandwidth or more signal power. Under this linear model, capacity scales logarithmically with the signal-to-noise ratio. If a signal gets too weak over a long distance, engineers simply add optical amplifiers to boost the light, raising the signal power back above the background thermal noise.[6]

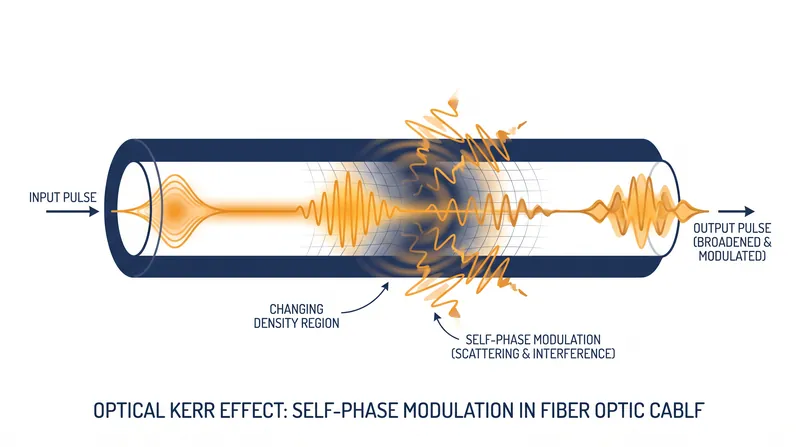

However, this linear assumption breaks down in optical fibers due to a phenomenon known as the optical Kerr effect. Discovered in 1875 by Scottish physicist John Kerr, the effect describes how the refractive index of a material changes in response to an applied electric field. In a fiber optic cable, that electric field is provided by the intense electromagnetic waves of the laser light itself. When signal power is low, the fiber acts linearly. But as engineers pump more power into the fiber to increase the signal-to-noise ratio, the intense light begins to change how the glass bends light.[4][7]

This creates a suite of non-linear penalties. The most prominent are self-phase modulation, where a pulse alters its own phase; cross-phase modulation, where pulses in different channels interfere with each other; and four-wave mixing, where multiple frequencies interact to spawn ghost signals. The critical problem is that this non-linear noise does not scale linearly. While the signal power increases by a factor of one, the non-linear interference scales roughly with the cube of the signal power.[1][4][5]

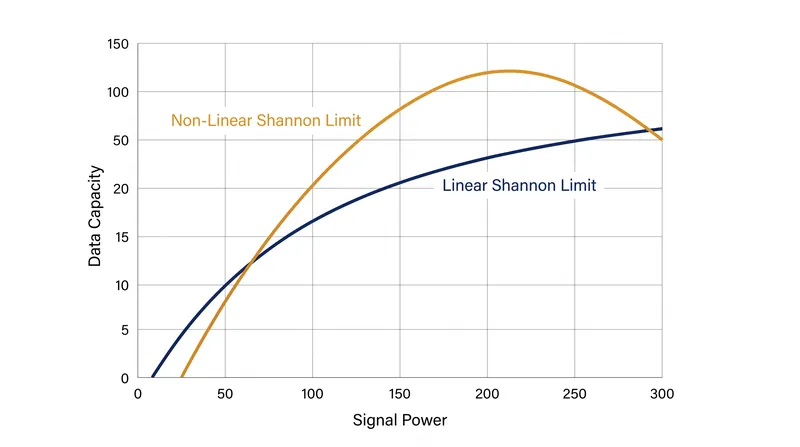

This mathematical reality creates the "Non-Linear Shannon Limit." If you plot data capacity against launch power, the curve initially rises, following Shannon's classic logarithmic prediction. But eventually, it hits an inflection point. Beyond this peak, every additional milliwatt of laser power generates so much non-linear noise that the overall signal-to-noise ratio actually drops. You cannot simply shout louder to be heard; shouting louder creates an echo that drowns out the message.[1][4]

The result is a fundamental physical ceiling on how much data a single strand of standard single-mode fiber can carry. Researchers estimate this limit at roughly 100 terabits per second over transoceanic distances. This is why the telecommunications industry cannot solve the exponential growth in data demand simply by upgrading the amplifiers on existing cables. The glass itself has a hard limit, and the industry is rapidly approaching it.[2][3][5]

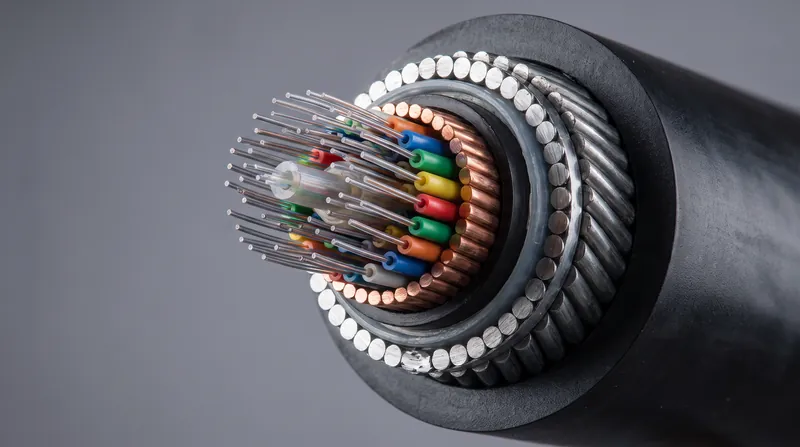

To bypass this wall, the strongest counter-argument from optical engineers is that we can change the spatial dimensions of the transmission. This means deploying multi-core fibers—putting multiple separate glass cores in one cable—or using few-mode fibers that transmit light in different spatial patterns. By dividing the power across different physical or spatial paths, engineers can keep the intensity in any single path below the Kerr threshold.[2][3]

The non-linear Shannon limit stands as a stark reminder that physical infrastructure cannot be infinitely optimized through software or brute force. The internet is ultimately bound by the atomic properties of silica glass. Overcoming this boundary requires laying new physical pathways and redesigning the geometry of the fiber itself, proving that the future of global communication relies just as much on materials science as it does on information theory.[3][8]
