The Mad2-BubR1 Checkpoint: How the Spindle Assembly Checkpoint Ensures Accurate Chromosome Segregation

In 1995, classic experiments by researchers Li and Nicklas established that mechanical tension guides chromosomes into their proper bi-oriented state during cell division, but the biochemical mechanism that enforced this rule remained elusive. Today, we know that human kinetochores bind up to 20 microtubules, and a single unattached kinetochore is sufficient to halt the entire cell cycle.

The stakes of this process are absolute. During mitosis, a cell must duplicate its genetic material and distribute exactly 46 chromosomes—23 pairs—to its two daughter cells. If the sister chromatids separate prematurely, the resulting daughter cells will be aneuploid, a condition found in the vast majority of solid tumors.[10]

To prevent this catastrophic outcome, eukaryotic cells employ a surveillance mechanism called the spindle assembly checkpoint (SAC). The SAC acts as a molecular brake, delaying the onset of anaphase until every chromosome is properly attached to the mitotic spindle and under appropriate mechanical tension.

As researchers at the Hubrecht Institute note, "Error-free chromosome segregation relies on stable connections between kinetochores and spindle microtubules." The core of this braking system relies on a group of proteins first identified in budding yeast in 1991 by the Hoyt and Murray labs, including the Mitotic Arrest Deficient (MAD) and Budding Uninhibited by Benzimidazoles (BUB) families.[9][10]

Among these families, Mad2 and BubR1 are the primary effectors that translate physical attachment status into a biochemical signal. The process begins at the kinetochore, a massive proteinaceous structure assembled at the centromere of each chromosome. When a kinetochore is unattached to spindle microtubules, it acts as a catalytic hub, recruiting SAC proteins from the cytoplasm to its outer layer, specifically a region known as the KMN network.[2][10]

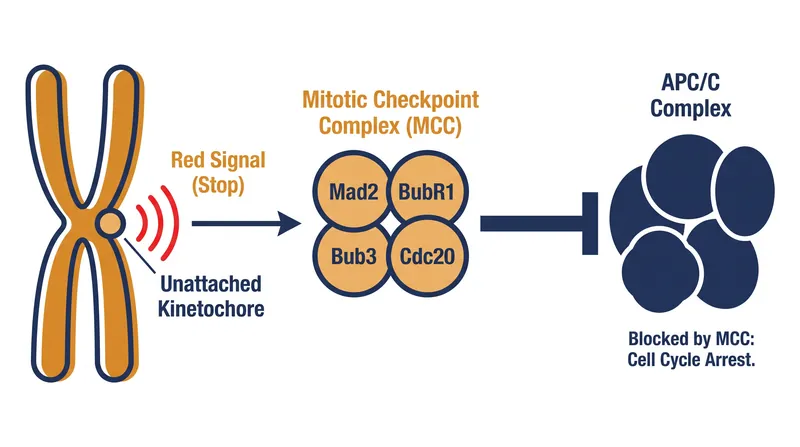

Here, the unattached kinetochore catalyzes the formation of the mitotic checkpoint complex (MCC). The MCC is a diffusible inhibitor composed of four key proteins: Mad2, BubR1, Bub3, and Cdc20. Its primary target is the anaphase-promoting complex/cyclosome (APC/C), a massive E3 ubiquitin ligase that orchestrates the final stages of cell division.[6][9]

To understand how the brake works, one must understand what it stops. When active, the APC/C tags the proteins securin and cyclin B with ubiquitin chains, marking them for destruction by the cell's waste disposal system. The degradation of securin releases an enzyme called separase, which cleaves the cohesin rings holding sister chromatids together, triggering the irreversible onset of anaphase.[2][9]

The MCC prevents this cascade by binding directly to the APC/C. Research published in Molecular Biology of the Cell demonstrates that BubR1 alone can bind and inhibit the APC/C at much lower concentrations than Mad2. BubR1 possesses a higher affinity for Cdc20 and acts as a highly potent inhibitor of the complex.[1]

However, BubR1 does not work alone. The addition of Mad2 stimulates the inhibition of the APC/C by BubR1. Mad2 and BubR1 act synergistically; Mad2 alters the conformation of Cdc20, exposing binding sites that allow BubR1 to lock the complex down completely. This synergistic relationship ensures a quantitative inhibition of the APC/C and a complete arrest of mitotic progression.[1][8]

The checkpoint is exquisitely sensitive to environmental and mechanical disruptions. Experiments in PtK1 cells demonstrated that under hypothermic conditions of 23°C, cells remained in metaphase for an average of 101 minutes, compared to just 21 minutes at 37°C. This prolonged delay was abrogated by the injection of Mad2 inhibitors, proving that the SAC was actively holding the cell cycle in check.[1]

The SAC monitors two distinct but related physical properties: microtubule attachment and mechanical tension. While Mad2 is primarily sensitive to the presence or absence of kinetochore microtubules, BubR1 is sensitive to the tension generated when microtubules pull from opposite poles. This dual-sensor system ensures that attachments are not just present, but correctly oriented.[3][4][5]

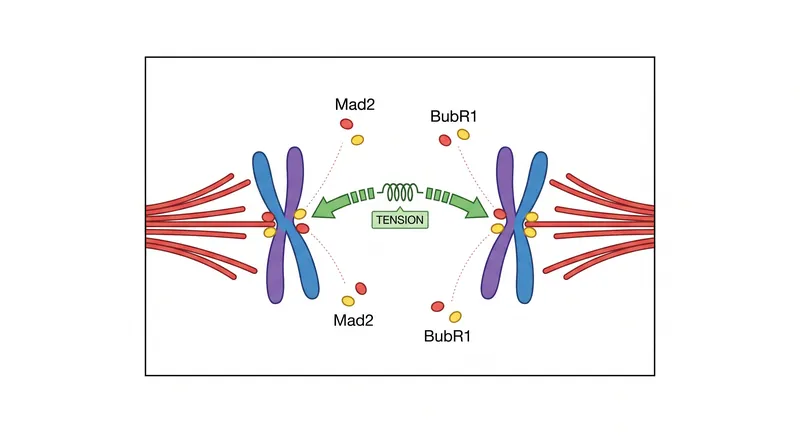

When a chromosome achieves bi-orientation—meaning its two kinetochores are attached to microtubules from opposite spindle poles—the resulting tension physically alters the kinetochore. This mechanical change halts the production of the MCC, cutting off the supply of the inhibitory signal at its source.[10]

Silencing the checkpoint is just as critical as activating it. Once stable attachments are formed, SAC proteins are rapidly stripped from the kinetochore. Motor proteins like dynein physically transport Mad1 and Mad2 away from the kinetochore along the microtubules, moving them out of the catalytic zone.[10]

Simultaneously, phosphatases such as PP1 and PP2A-B56 are recruited to the kinetochore. They remove the activating phosphate groups placed by kinases like Aurora B and Mps1, effectively extinguishing the "wait anaphase" signal and resetting the kinetochore's biochemical state.[10]

With the MCC no longer being produced, the existing complexes are disassembled. The APC/C is freed to bind Cdc20, triggering the rapid degradation of securin and the synchronous separation of all 46 chromosomes in a matter of minutes.[2][9]

The clinical implications of the Mad2-BubR1 checkpoint are profound. Because cancer cells frequently exhibit chromosomal instability, they rely heavily on the SAC to survive their own chaotic division processes. Without this checkpoint, their rampant segregation errors would quickly become lethal.[6][9]

Researchers are now exploring SAC inhibitors as potential cancer therapies. By forcing cancer cells to bypass the checkpoint and divide before their chromosomes are properly aligned, these drugs induce catastrophic segregation errors that selectively kill the tumor cells while sparing healthy tissue.[9]

The exact architecture of the MCC and its interaction with the APC/C continue to yield surprises. Recent structural biology studies have revealed that the MCC can even inhibit a second Cdc20 molecule that has already bound and activated the APC/C, explaining the checkpoint's rapid responsiveness to sudden attachment failures.[8][10]

Ultimately, the Mad2-BubR1 checkpoint represents a masterpiece of cellular engineering. It is a system that translates the microscopic physical forces of tension and attachment into a binary biochemical switch, ensuring the faithful transmission of life's genetic blueprint across generations.[7][11]
