The 13-Gigawatt Ramp Rate That Defines the California Duck Curve and Dictates Grid Storage Needs

Grid skeptics and some policymakers frequently argue that California's primary renewable energy problem is midday overgeneration—the sheer volume of solar power that must be curtailed when the sun is highest. But data from the California Independent System Operator (CAISO) demonstrates that the system's actual breaking point is a matter of velocity, not volume. The defining metric of the modern grid is the 13-gigawatt evening ramp rate: the requirement to dispatch 13,000 megawatts of flexible capacity within a three-hour window as solar production collapses and evening demand peaks.[1][5]

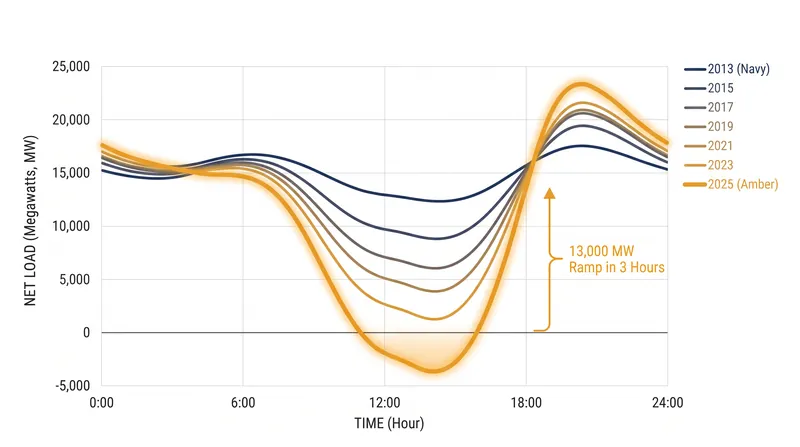

The "duck curve" was first modeled by CAISO in 2013 to visualize net load—the total electricity demand minus wind and solar generation. The chart's shape resembles a duck, with the "belly" representing low net load at midday and the "neck" showing the steep evening ramp. By October 2016, analysts at ScottMadden projected that this evening ramp would require the grid to add 13,000 megawatts of generation in just three hours.[1][5]

While the technical documentation from CAISO, Stanford, and the other cited research groups does not contain direct quotations from named officials, the engineering parameters speak for themselves. That 13-gigawatt figure represents a physical engineering constraint. It is equivalent to powering up roughly 13 large nuclear reactors or 26 average-sized natural gas plants between 4:00 PM and 7:00 PM every single day.

As California added more solar capacity, the curve deepened faster than initial models predicted. By May 2014, the midday net load was dropping, but by May 2023, it frequently dropped below zero, prompting RenewEconomy to describe the phenomenon as a "canyon" rather than a duck. This deepening belly directly steepens the neck, accelerating the required ramp rate.[3]

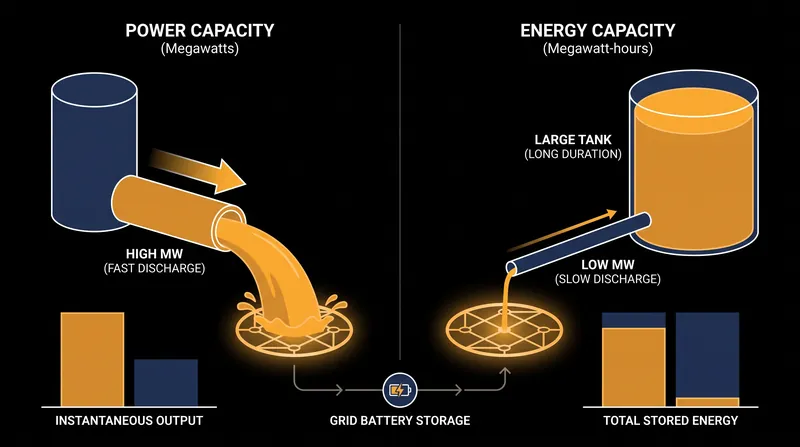

The physics of this transition dictate the grid's storage requirements. Battery systems are defined by two metrics: power capacity, measured in megawatts, which determines how fast they can discharge; and energy capacity, measured in megawatt-hours, which determines how long they can run. To manage a 13-gigawatt ramp, the grid requires storage systems optimized for high power output over a specific three-to-four-hour duration.[2]

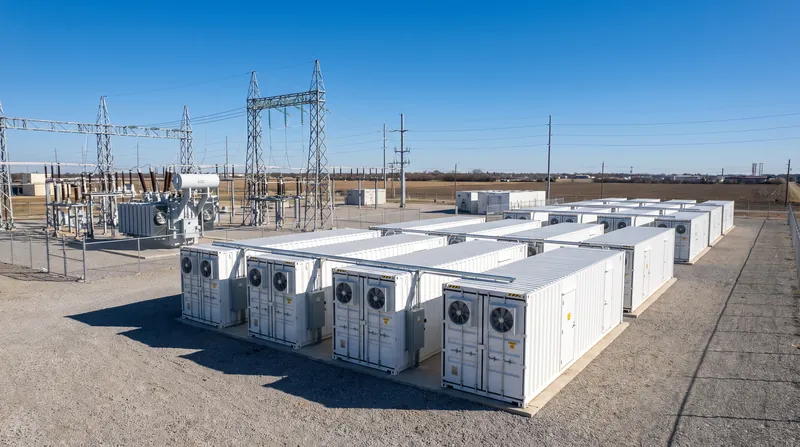

Stanford University researchers analyzing the duck curve highlight that traditional baseload power plants, such as nuclear or coal facilities, cannot adjust their output quickly enough to meet this ramp. Consequently, the grid relies heavily on fast-responding natural gas peaker plants and, increasingly, utility-scale lithium-ion batteries to maintain a 60-hertz frequency.[2]

FactSet data from August 2025 confirms that the load profile has permanently evolved. The evening peak now consistently requires rapid dispatch capabilities that exceed the historical design parameters of the transmission system. This shift forces grid operators to procure resources based on their ramp rate capabilities rather than their total energy yield.[4]

The Clean Coalition argues that local solar and battery storage can flatten this curve by managing load at the distribution level. By storing solar energy locally during the midday peak and discharging it during the evening ramp, distributed energy resources reduce the 13-gigawatt burden on the bulk transmission system.[6]

However, the evidence supporting the scalability of distributed solutions remains mixed. While local storage reduces transmission losses, coordinating millions of distributed residential batteries to reliably offset a 13,000-megawatt ramp requires advanced software and communication infrastructure that is not yet fully deployed across the state.[6]

The 13-gigawatt ramp rate also exposes the limitations of regional energy markets. California frequently imports power from neighboring states to meet its evening peak. But as states like Arizona and Nevada deploy their own solar fleets, their net load profiles begin to mirror California's, reducing the availability of surplus power during the critical 4:00 PM to 7:00 PM window.[4]

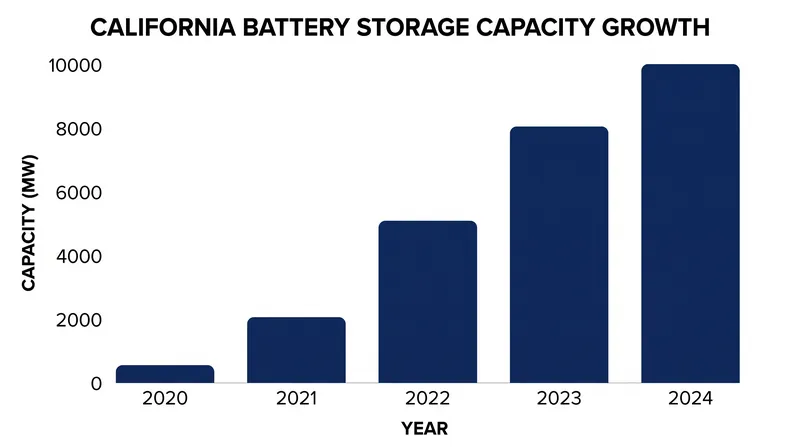

This synchronization of regional duck curves means California must increasingly rely on internal storage capacity. The state has aggressively procured battery storage, growing its fleet from roughly 500 megawatts in 2020 to over 10,000 megawatts by 2024, specifically targeting the evening ramp requirement.[3]

The transition from a duck to a canyon alters the economic incentives for power generators. Wholesale electricity prices frequently drop to zero or negative during the midday belly, while spiking during the evening neck. This price spread creates a strong market signal for four-hour battery systems, which can charge at negative prices and discharge during the lucrative evening peak.[3][4]

Yet, the four-hour duration standard for batteries is a direct artifact of the 13-gigawatt, three-hour ramp. If the ramp steepens further—requiring 15,000 or 18,000 megawatts in a two-hour window—the optimal battery configuration would shift toward higher power-to-energy ratios, changing the chemistry and design of future grid storage.[2]

The uncertainty lies in the impact of electric vehicle charging. If millions of Californians plug in their vehicles when they return home at 5:00 PM, the evening peak will grow taller, exacerbating the ramp rate. Conversely, if automated charging systems shift vehicle load to the midday belly, the duck curve could flatten significantly.[1][5]

The 13-gigawatt metric serves as the foundational design parameter for the next decade of grid investments. It dictates not only how many batteries must be built, but where they must be located, how fast they must discharge, and how the software that controls them must be engineered. The physics of the evening ramp remain the ultimate arbiter of grid reliability, setting the pace for the broader energy transition.
