The Volumetric and Gravimetric Energy Density Trade-Offs That Dictate Hydrogen Storage Methods

On October 13, 2015, the U.S. Department of Energy finalized its revised onboard hydrogen storage targets for light-duty vehicles, establishing a hard physical baseline that the industry has spent the subsequent decade attempting to clear. The mandate required a system to hold 4.5 percent hydrogen by weight and 30 grams of hydrogen per liter of system volume. This dual requirement formalized the central physical conflict of hydrogen as a fuel: it is the most energy-dense chemical fuel by mass, but the least energy-dense by volume.[9]

The Department of Energy defines the core problem plainly in its foundational storage literature: "Hydrogen has the highest energy per mass of any fuel; however, its low ambient temperature density results in a low energy per unit volume, therefore requiring the development of advanced storage methods." At ambient temperature and pressure, a kilogram of hydrogen gas occupies roughly 11,000 liters—the volume of a large commercial delivery van. While that single kilogram contains 120 megajoules of lower heating value energy, nearly three times that of gasoline at 44 megajoules per kilogram, its volumetric energy density is a mere 0.01 megajoules per liter.[1][5]

The most mature method for increasing that volumetric density is mechanical compression. Modern fuel cell vehicles utilize Type IV composite overwrapped pressure vessels to store hydrogen gas at 700 bar, or approximately 10,000 pounds per square inch. At this extreme pressure, the volumetric density improves to 39 grams per liter, allowing a passenger vehicle to carry enough fuel for a 300-mile range within a standard chassis.[6][7]

However, containing 700 bar of pressure requires thick walls of carbon fiber and high-density polymer liners. The mass of the tank itself severely degrades the system's overall gravimetric density. A typical 700-bar system achieves a gravimetric capacity of roughly 4.2 to 5.3 weight percent, meaning that for every kilogram of hydrogen stored, the vehicle must carry roughly 20 kilograms of tank infrastructure.[6]

To bypass the limits of compression, hydrogen can be cooled to a cryogenic liquid state at minus 253 degrees Celsius, or 20 Kelvin. Liquid hydrogen achieves a volumetric density of 71 grams per liter at ambient pressure, nearly double that of 700-bar compressed gas. This method is standard for aerospace applications, where volume is constrained but extreme cooling infrastructure can be accommodated within the fuselage.[7][8]

The trade-off for liquefaction shifts from tank mass to energy penalty and thermal management. Cooling hydrogen gas to 20 Kelvin consumes roughly 30 percent of the energy contained within the hydrogen itself. Furthermore, the cryogenic tanks require heavy, vacuum-jacketed insulation to prevent ambient heat from boiling the liquid back into a gas. Even with advanced insulation, liquid hydrogen systems lose 1 to 2 percent of their volume per day to boil-off, making them unsuitable for long-term parking in passenger vehicles.[7]

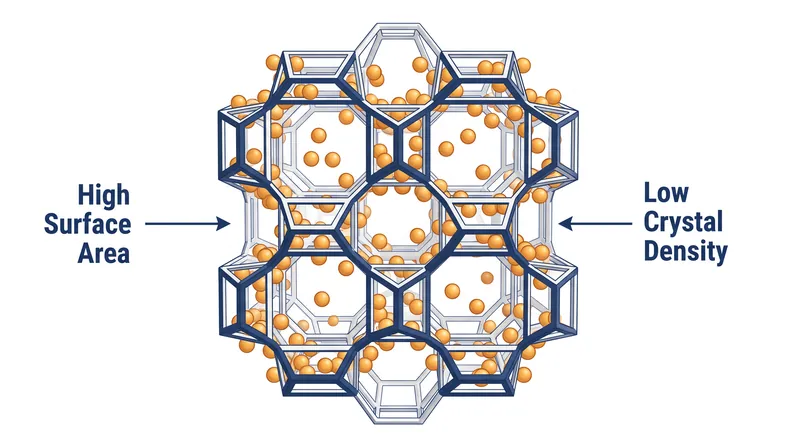

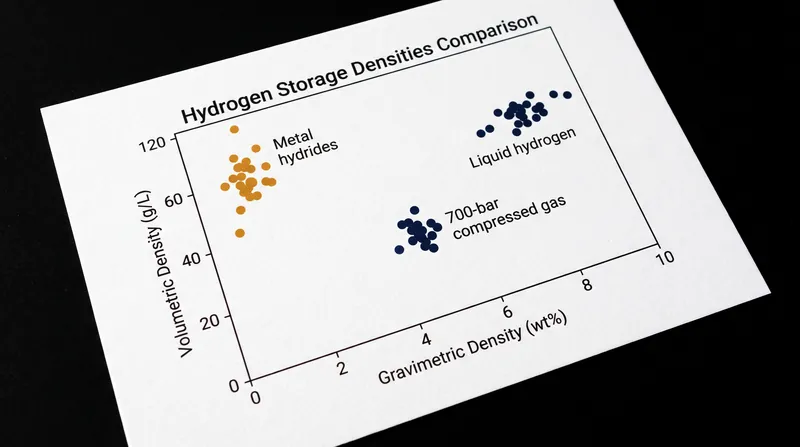

Because physical compression and liquefaction face rigid thermodynamic limits, materials science has focused on solid-state storage. Metal-Organic Frameworks are highly porous synthetic materials that can adsorb hydrogen molecules onto their vast internal surface areas. A single gram of a well-designed framework can possess a surface area exceeding 7,000 square meters.[2][3]

The structural mechanics of these frameworks reveal a strict inverse relationship between volumetric and gravimetric capacity. To maximize gravimetric density—the mass of hydrogen per mass of material—chemists design frameworks with larger pores and lighter metal clusters. However, increasing the pore size inherently decreases the crystal density of the material.[3]

As the crystal density drops, the volumetric capacity collapses. A 2017 analysis published by the Royal Society of Chemistry demonstrated that while highly porous frameworks can achieve exceptional gravimetric capacities exceeding 10 weight percent at cryogenic temperatures, their volumetric capacities peak at intermediate surface areas before sharply declining.[2]

This inverse relationship creates a physical bottleneck. When normalizing the theoretical maximums of current framework architectures against the Department of Energy's system-level targets, a mathematical shortfall emerges. While specific materials can clear the 4.5 weight percent gravimetric target, or the 30 grams per liter volumetric target in isolation, the geometric constraints of crystal density prevent any currently synthesized framework from simultaneously meeting both targets at ambient temperatures.[3][9][10]

An alternative solid-state approach utilizes metal hydrides, where hydrogen chemically bonds with metals like magnesium or complex intermetallic alloys. Metal hydrides offer exceptional volumetric densities, often exceeding 100 grams of hydrogen per liter. This is denser than liquid hydrogen itself, because the hydrogen atoms are packed tightly into the metal's crystalline lattice.[5]

The penalty for this volumetric efficiency is severe gravimetric mass. The host metals are inherently heavy. A typical intermetallic hydride system achieves a gravimetric density of only 1.5 to 2.0 weight percent. A tank holding 5 kilograms of hydrogen would require over 250 kilograms of metal alloy, rendering the system too heavy for light-duty passenger vehicles, though highly effective for stationary grid storage or maritime shipping where mass is less constrained.[5][8]

The theoretical capacities of these materials represent only the active storage medium. A functional onboard system requires a balance of plant—the surrounding infrastructure of valves, heat exchangers, and containment vessels. Because hydrogen adsorption is an exothermic process that releases heat, and desorption is endothermic, requiring heat, solid-state tanks must integrate heavy thermal management systems that further degrade system-level density.[4][9]

The physical reality of hydrogen storage dictates that there is no universal solution, only application-specific compromises. Aviation engineers accept the energy penalty of liquefaction to minimize mass, while heavy trucking standardizes on 700-bar compression to balance volume and refueling speed. Until a material breakthrough fundamentally alters the geometry of molecular adsorption, the mass-to-volume ratio remains the defining constraint of the hydrogen economy.[7][10]
