Particle Size vs. Sensor Type: Why Your Smoke Detector Might Ignore a Smoldering Couch Fire

Property managers and homeowners frequently operate under a dangerous assumption: a smoke detector is a smoke detector, and as long as the battery works, the home is protected. The National Bureau of Standards and modern fire safety researchers set the evidence directly against that claim. The physical size of the smoke particle generated by a fire dictates whether a specific ceiling sensor will trigger an alarm in three minutes or remain completely silent until the room flashes over.[1][3]

The discrepancy stems from two fundamentally different detection technologies that divide the residential market: ionization and photoelectric sensors. According to testing by the National Bureau of Standards, the performance gap between these two mechanisms is not a matter of brand quality, but of basic physics. "The response of smoke detectors is highly dependent on the aerosol particle size," the NBS technical note states, establishing that no single sensor type universally catches every fire profile.[1]

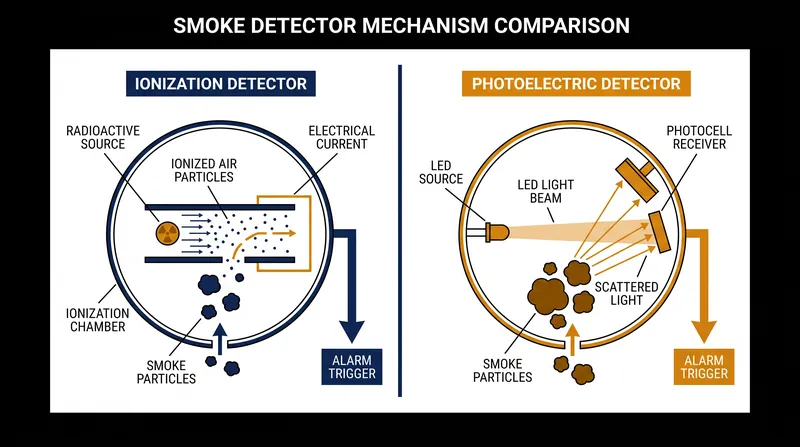

Ionization detectors, which currently account for the majority of installed residential alarms in the United States, rely on a microscopic amount of radioactive material, typically Americium-241. This material ionizes the air inside a sensing chamber, creating a steady electrical current. When microscopic smoke particles—specifically those smaller than one micron—enter the chamber, they bind to the ions and disrupt the current, triggering the alarm.[6]

This mechanism makes ionization sensors highly sensitive to fast-flaming fires, such as a grease fire in a kitchen or burning paper in a wastebasket. These fires consume fuel rapidly and produce massive quantities of tiny, nearly invisible combustion particles. However, this same sensitivity makes them prone to nuisance alarms from burnt toast or shower steam, leading many frustrated renters to permanently remove the batteries.[3][5]

Photoelectric detectors operate on an entirely different optical principle. Inside the device, an LED light beam shoots across a dark chamber, intentionally missing a light-sensitive photocell. When smoke particles enter the chamber, they scatter the light beam, reflecting it onto the photocell and activating the siren.[5][6]

Because of this light-scattering requirement, photoelectric sensors are optimized for larger combustion particles—those greater than one micron in diameter. These heavy, visible particles are the hallmark of slow, smoldering fires, such as a cigarette dropped on a polyurethane couch or an overloaded electrical outlet melting inside a wall.[1][6]

The distinction between fast-flaming and slow-smoldering fires is where the sensor trade-off becomes a life-or-death variable for a family sleeping in a modern home. A randomized controlled trial published in PubMed evaluated the functionality of both alarm types in real-world residential scenarios. The researchers found a stark divergence in failure rates depending on the fire's origin.[3]

In the PubMed trial, ionization alarms frequently failed to alert occupants to smoldering fires within the safe egress window. Because modern residential furnishings are heavily reliant on synthetic materials like polyurethane foam, contemporary house fires tend to smolder longer and produce highly toxic gases before breaking into open flames. By the time an ionization alarm detects the smaller particles of a flaming synthetic fire, the occupants may already be incapacitated by carbon monoxide and hydrogen cyanide.[3][6]

The vulnerability of ionization alarms to smoldering fires is a critical safety gap, emphasizing that the escape time in a modern home fire has dropped from 17 minutes in the 1970s to roughly three minutes today. This compressed timeline means a detector that waits for open flames is often too late.[3]

The Framingham Fire Department and other municipal safety agencies have recognized this technological divide. In their official guidance, the department explicitly breaks down the difference, noting that photoelectric alarms are "more responsive to fires that begin with a long period of smoldering." Many local building codes across Massachusetts and other states now mandate photoelectric sensors near kitchens and bathrooms specifically to reduce nuisance alarms while catching the most lethal fire types.[5]

Recognizing the shifting chemistry of residential fires, Underwriters Laboratories (UL) overhauled its manufacturing standards. As detailed by Code Red Consultants, the new UL 217 and UL 268 editions introduced rigorous new testing criteria that went into effect in 2021.[4]

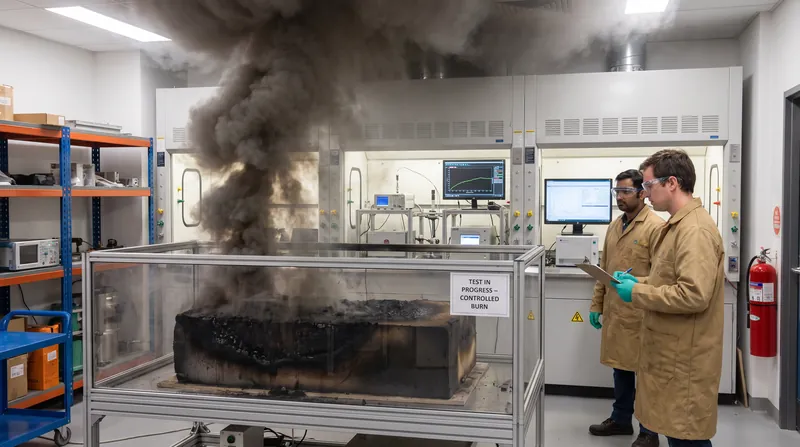

"The new standards require smoke alarms and detectors to pass a new polyurethane foam smoldering test and a polyurethane foam flaming test," Code Red Consultants explains. This regulatory update forces manufacturers to engineer devices that can detect the heavy, toxic smoke of modern furniture without being overly sensitive to the minor cooking smoke that causes homeowners to disable their units.[4]

AI

UL's own fire experts conducted extensive research to validate these new standards. According to Fire Apparatus Magazine, UL's testing demonstrated that advanced algorithms and multi-criteria sensors are necessary to meet the dual challenge of early detection and nuisance mitigation. The industry is moving away from single-sensor reliance toward smart detectors that combine both photoelectric and ionization technologies, or pair one with a carbon monoxide sensor.[2]

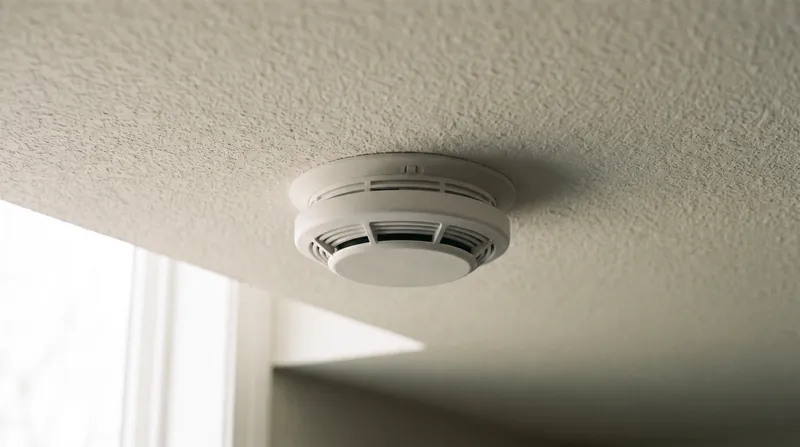

For a buyer closing on a house or a renter moving into a new apartment, abstract market trends about UL standards translate into an immediate weekend task: taking the existing detectors off the ceiling and reading the back label. If the label mentions Americium-241, it is an ionization unit. If it has a "P" or mentions photoelectric, it is optical.[6]

Fire safety professionals currently recommend installing dual-sensor alarms that house both ionization and photoelectric mechanisms in a single unit. If dual sensors are not financially feasible, the consensus heavily favors photoelectric alarms for bedrooms and hallways, as they provide the earliest warning for the smoldering fires most likely to kill sleeping occupants. The next verifiable checkpoint for residential fire safety will be the complete phase-out of legacy single-sensor units as the updated UL-certified models fully saturate the retail market over the next five years.[4][5][6]
