How Millimetre Perforations in Microwave Doors Block 12.2-Centimetre Radiation

The moment a homeowner presses start on a kitchen microwave, a high-voltage magnetron begins blasting 2.45-gigahertz electromagnetic radiation into the cooking cavity. This invisible energy easily penetrates water-rich food, rapidly raising its temperature. Yet, this same intense radiation stops dead at the transparent front door, keeping the person standing in the kitchen completely safe.[1]

The barrier protecting the kitchen is not the glass or plastic viewing panel, which microwaves pass through effortlessly. Instead, the true shield is the perforated metal screen sandwiched between the glass panes. This simple-looking mesh is a precisely engineered electromagnetic filter.[1]

The screen allows cooks to watch their food heat, preventing boil-overs and burning without requiring them to open the door. At the same time, it traps the high-power cooking energy inside the appliance. How a sheet of metal full of holes can protect a household while remaining transparent comes down to the physics of wave propagation.[2]

The Scale of Microwave Energy

To understand the mesh, one must first understand the physical size of the energy it contains. Microwaves and visible light are both forms of electromagnetic radiation, differing only in their frequency and their corresponding wavelength.[1]

Since the countertop microwave was introduced to residential kitchens in 1967, household ovens have operated within the Industrial, Scientific, and Medical radio band, specifically at a frequency of 2.45 gigahertz. At this frequency, the electromagnetic waves oscillate 2.45 billion times per second.[1]

Because all electromagnetic radiation travels at the speed of light, this frequency translates to a specific physical length. Dividing the speed of light by 2.45 gigahertz yields a wavelength of exactly 12.2 centimetres, or about 4.8 inches.[2]

This 12.2-centimetre dimension is the defining characteristic of the oven's internal environment. Every component a buyer looks at, from the cooking cavity to the rotating glass turntable, is designed around the physical size of this specific wave.[1]

Waveguides Below Cutoff

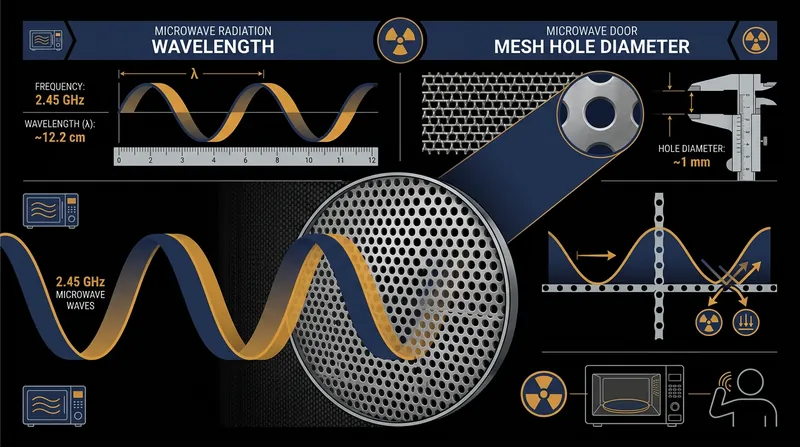

The perforations in the door's metal screen are typically stamped to a diameter of one to two millimetres. In the realm of radio frequency engineering, a hole in a conductive metal sheet acts as a circular waveguide—a channel through which electromagnetic energy can travel.[2]

However, waveguides have strict dimensional limits. For a wave to propagate freely through a circular opening, the diameter of that opening must be roughly half the size of the wave's length. This critical threshold is known as the cutoff dimension.[6]

For a 12.2-centimetre microwave, the cutoff dimension is approximately six centimetres. Because the one-millimetre holes in the door mesh are roughly 60 times smaller than this required diameter, the wave simply cannot fit through the aperture.[6]

When the 2.45-gigahertz radiation encounters the tiny perforations, it enters a state known as a waveguide below cutoff. Instead of passing through, the wave's amplitude decays exponentially within the thickness of the metal screen.[6]

This rapid attenuation creates an evanescent wave that dies out before it can exit the other side of the hole. The metal mesh effectively acts as a solid, continuous mirror to the microwaves, reflecting the energy back into the cooking cavity to continue heating the food.[2]

Why Visible Light Escapes

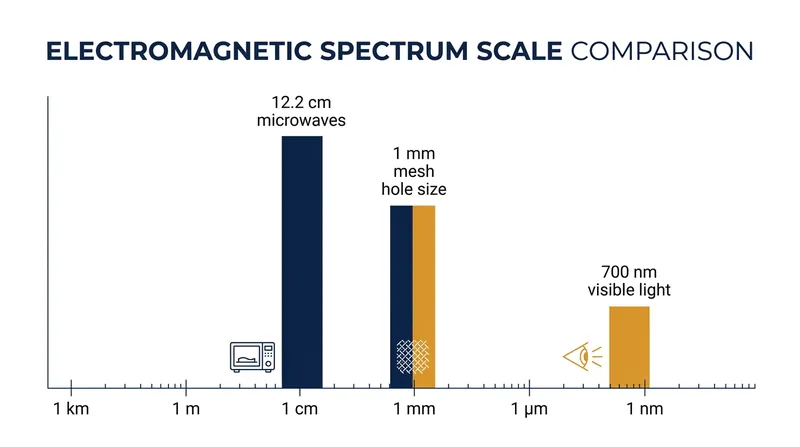

While the metal screen acts as an impenetrable wall to the 12.2-centimetre microwaves, it behaves like an open window to the kitchen. The light illuminating the interior of the oven is also an electromagnetic wave, allowing the user to check on their meal, but its physical dimensions are vastly different.[1]

Visible light spans a frequency range far higher than microwaves, resulting in microscopic wavelengths. The light we see ranges from roughly 400 nanometres for violet to 700 nanometres for red.[6]

Compared to these nanometre-scale dimensions, a one-millimetre perforation is enormous. The hole is more than 1,400 times wider than the longest wavelength of visible light, presenting absolutely no barrier to propagation.[6]

This massive disparity in scale means that visible light photons pass through the mesh completely unobstructed. The screen effectively filters the electromagnetic spectrum by physical size, trapping the long, high-energy cooking waves while transmitting the short visual ones.[6]

Securing the Door Perimeter

While the perforated mesh secures the viewing window, the perimeter of the door presents a different engineering challenge. The seam where the door meets the oven chassis is a long, continuous gap that could theoretically allow radiation to leak out.[4]

Because this gap is much longer than the 12.2-centimetre wavelength, it cannot act as a waveguide below cutoff. If left unmitigated, the high-pressure microwave energy inside the cavity would easily escape through the unbonded edges.[4]

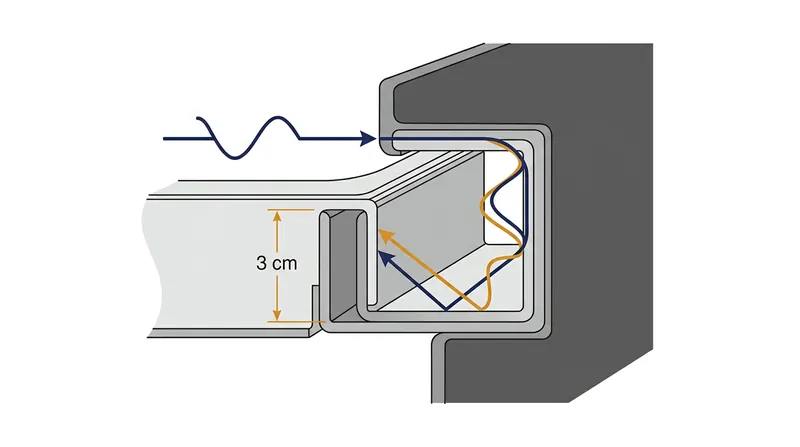

To prevent this, engineers utilize a choke flange around the inner edge of the door. This is a precisely machined metallic slot, typically one-quarter of a wavelength deep—about three centimetres—designed to trap and neutralize the escaping energy.[4]

When microwave radiation enters the choke flange, it travels to the back of the slot and reflects forward. Because the round trip equals exactly half a wavelength, the reflected wave meets the incoming wave perfectly out of phase, cancelling it out through destructive interference.[4]

Regulatory Leakage Limits

Together, the waveguide mesh and the choke flange keep emissions strictly contained. The US Food and Drug Administration mandates that microwave ovens leak no more than five milliwatts of microwave radiation per square centimetre at a distance of five centimetres from the surface.[3]

In practice, a properly functioning oven emits only a fraction of that regulatory limit. Testing by consumer organizations typically finds leakage levels between 0.1 and 0.5 milliwatts per square centimetre at the standard testing distance.[3]

"Despite good shielding, a small quantity of leakage radiation occurs in the vicinity of the mesh screen and doors," notes the German Federal Office for Radiation Protection. However, the agency found during comprehensive testing that "on average, the level of leakage radiation was 1% of the specified limit value at the appliance surface."[5]

Furthermore, the intensity of any escaping electromagnetic radiation drops off rapidly according to the inverse-square law. For a homeowner, standing just a few feet away from an operating microwave reduces exposure to near-background levels, ensuring the appliance remains a safe, reliable fixture in the modern kitchen.[3]
