Dishwasher Salt Recharges Water-Softening Resin Beads in an Isolated Cycle That Drains Away Before Washing Begins

Every homeowner facing a flashing indicator light or cloudy glassware must decide whether to pour coarse salt into the hidden reservoir at the bottom of their dishwasher. They can either ignore the warning and accept permanent mineral etching, or fill the chamber and calibrate the machine's internal dial. They make this choice the moment they load their next wash cycle.

That decision dictates how the appliance manages the invisible dissolved minerals flowing through the municipal supply line. Hard water contains high concentrations of calcium and magnesium ions, which precipitate out under heat to form stubborn white scale. This scale binds to heating elements and etches into the microscopic pores of drinking glasses.[1]

To prevent this, modern European and high-end North American dishwashers feature a built-in water softening unit. This system intercepts the incoming tap water before it ever touches the dishes. It relies on a hidden chamber packed with millions of microscopic, negatively charged polystyrene resin beads.

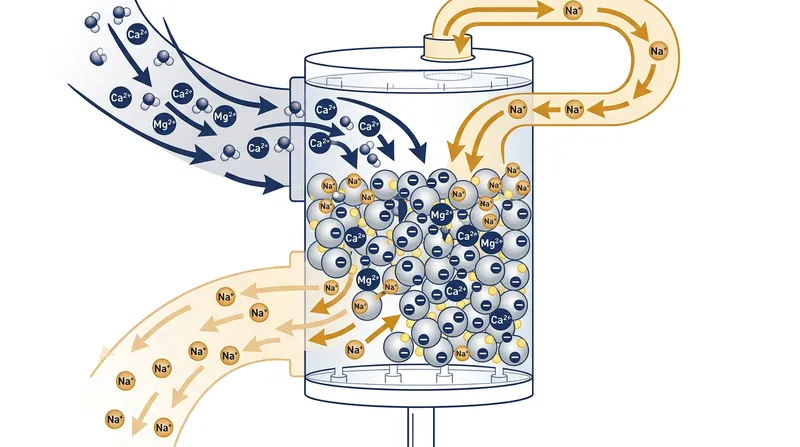

These resin beads act as a chemical tollbooth for incoming water. When the machine is first installed, the beads are saturated with positively charged sodium ions. As hard water flows through the chamber, the stronger positive charge of the calcium and magnesium ions forces the sodium out of the way.[2]

The Ion Exchange Mechanism

This process, known as ion exchange, traps the hard minerals inside the resin bed while releasing harmless sodium into the wash water. The newly softened water then enters the main tub, allowing detergents to lather fully and rinse cleanly. Without calcium interfering, the surfactants in the soap can properly break down grease.[2]

However, the resin bed has a finite physical capacity. A standard residential dishwasher contains roughly 300 cubic centimeters of resin, which can only hold a specific volume of hard minerals. Once every binding site on the beads is occupied by calcium or magnesium, the softener becomes completely exhausted.[2]

If the machine continues to run with an exhausted resin bed, hard water bypasses the filter and enters the wash tub directly. The detergent immediately binds with the calcium instead of the food soil, creating a useless scum. This is the exact moment the glassware begins to emerge with a cloudy, white film.[4]

To restore the system, the dishwasher must forcefully evict the trapped calcium and magnesium from the resin beads. This requires a massive, overwhelming concentration of sodium ions to reverse the initial chemical swap. This is precisely where the dedicated dishwasher salt reservoir comes into play.

The Isolated Brine Flush

The salt reservoir sits entirely separate from the main washing tub, holding a highly concentrated brine solution. When the dishwasher's internal computer determines the resin is nearing exhaustion, it triggers a regeneration cycle. This critical maintenance phase happens in complete isolation from the actual dishwashing process.[3]

Before the main wash even begins, the machine opens a valve to flood the resin chamber with the dense saltwater brine. The sheer volume of sodium ions in the brine overpowers the calcium and magnesium, forcing them to detach from the polystyrene beads. The resin is effectively reset to its original state.[3]

Crucially, this heavily mineralized, salty wastewater never enters the main tub where the dishes are stacked. The dishwasher routes the spent brine and the displaced calcium directly down the drain line. A subsequent flush of fresh water rinses the resin bed clean of any lingering salt residue.

Only after this isolated regeneration and rinse cycle is complete does the machine allow water to flow into the main tub. This mechanical separation guarantees that the dishes are never exposed to the corrosive brine. It is the reason a freshly washed plate never tastes like seawater, despite the machine consuming kilograms of salt.

Why Table Salt Destroys the System

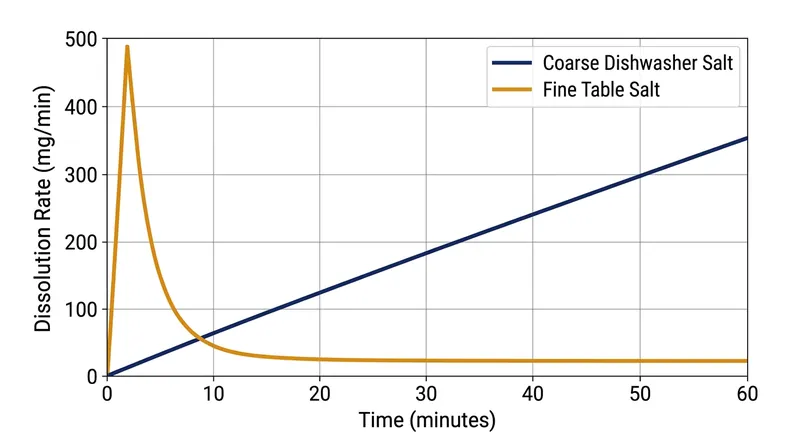

While dishwasher salt is chemically identical to standard sodium chloride, substituting table salt or cooking salt will permanently destroy the softening unit. Table salt is milled into fine crystals that dissolve too rapidly in the reservoir. This creates a solid, impenetrable block of salt mush at the bottom of the chamber.

Furthermore, food-grade table salt contains anti-caking agents, such as sodium aluminosilicate or magnesium carbonate, designed to prevent clumping in humid environments. In a dishwasher's water softener, these insoluble additives accumulate rapidly. They clog the microscopic pores of the resin beads, permanently blinding the ion exchange sites.[5]

Dishwasher salt, by contrast, is manufactured with a massive, coarse grain size and zero chemical additives. The large granules dissolve slowly and predictably, ensuring a consistent brine concentration over weeks or months of use. This controlled dissolution prevents the reservoir from choking on its own supply.

The purity requirement is absolute; even trace amounts of iron or manganese found in some rock salts can foul the resin bed. Manufacturers specify a minimum purity of 99.5 percent sodium chloride for appliance use. Using anything less voids the warranty and guarantees a costly repair bill for a replacement softener unit.[5]

Calibrating the Hardness Dial

The frequency of this regeneration cycle is not arbitrary; it is dictated by a manual setting that the homeowner must configure during installation. Dishwashers feature a water hardness dial or digital setting, typically ranging from zero to seven. This tells the machine's logic board exactly how much calcium is in the local water supply.

If the setting is too low, the machine will not regenerate the resin frequently enough, leading to scale buildup and cloudy dishes. If the setting is too high, the dishwasher will flush the resin with brine unnecessarily. This wastes water, burns through salt inventory, and accelerates the physical degradation of the resin beads.

To find the correct setting, residents must test their tap water using a chemical drop kit or consult their municipal water authority's annual quality report. The hardness is usually expressed in grains per gallon or milligrams per liter of calcium carbonate. This specific number translates directly to the manufacturer's recommended dial position.[1]

In regions with naturally soft water, such as the Pacific Northwest or parts of New England, the dial is set to zero. The machine bypasses the salt reservoir entirely, and the resin bed remains dormant. In these homes, adding salt to the machine provides no benefit and simply sits unused in the chamber.

The Chemistry of Clean Glassware

The visible difference between a functioning water softener and a bypassed one is most apparent on clear glassware. When hard water evaporates in the heated drying cycle, it leaves behind microscopic jagged crystals of calcium carbonate. Over time, these crystals physically scratch the surface of the glass, causing irreversible cloudiness known as etching.

Softened water eliminates this abrasive residue entirely. Because the sodium ions left in the water are highly soluble, they do not precipitate out as solid crystals when the water evaporates. Any trace sodium left on the glass is easily washed away by the final rinse aid application.

The efficiency of the detergent also skyrockets when the water is properly softened. Modern enzymatic dishwashing pods are engineered to work in a specific chemical environment. When they do not have to fight dissolved calcium, the enzymes can focus entirely on breaking down proteins and starches on the plates.[4]

Ultimately, the hidden salt reservoir is the defining feature that separates a commercial-grade wash from a frustrating, spotty result. By managing the invisible chemistry of the water before it ever touches a plate, the machine ensures the mechanical spray arms and chemical detergents can perform their intended jobs without interference.
