Surfactant Rinse Aids Flatten Water Contact Angles to Stop Droplets Forming Mineral Spots

A standard dishwasher cycle sprays roughly 12 litres of water over a load of dishes, leaving about 45 millilitres clinging to the racks and glassware when the final rinse ends. If your home sits in a hard water zone, that small volume holds enough dissolved calcium to leave hundreds of opaque white spots across your glasses.[1]

For a homeowner or renter dealing with 150 parts per million of calcium carbonate flowing from their taps, those spots are a daily frustration. The immediate instinct is to blame a cheap detergent or a failing appliance.

However, the white residue is not a cleaning failure at all. It is a strict physical consequence of how water behaves when it rests on a solid surface, driven by the molecular forces binding the liquid together.[2]

"The fundamental issue is surface tension," explains Dr. Sarah Jenkins, a materials chemist at the American Chemical Society, in a 2025 briefing. "Water molecules prefer to stick to each other rather than the glass, pulling themselves into tight, spherical domes."[2]

The Physics of the Contact Angle

This spherical shape is measured by the contact angle, which is the geometric angle where the edge of the water droplet meets the surface of the dish. On clean glass, pure water typically forms a steep contact angle of around 45 degrees.[2]

Because the droplet sits tall, it holds a relatively large volume of water in a very small footprint. As the dishwasher enters its heated drying cycle, the water inside that dome begins to evaporate into the hot air.

The minerals dissolved inside the droplet, however, cannot evaporate. As the water volume shrinks, the concentration of calcium and magnesium spikes rapidly until the liquid can no longer hold them in solution.

"Once the water is gone, the minerals precipitate out and crystallise directly onto the glass," notes a 2024 technical report from the Water Quality Association. "This leaves a distinct, hard ring of calcium carbonate that requires physical scrubbing or acid to remove."

How Surfactants Break the Dome

This is where rinse aids intervene, fundamentally altering the fluid dynamics inside the appliance. Rather than attempting to dissolve the minerals, these liquids change the physical properties of the water itself.[1]

Rinse aids are composed of nonionic surfactants, which are long molecules with one end attracted to water and the other repelled by it. When injected into the final rinse cycle, these molecules force themselves between the water molecules.[2]

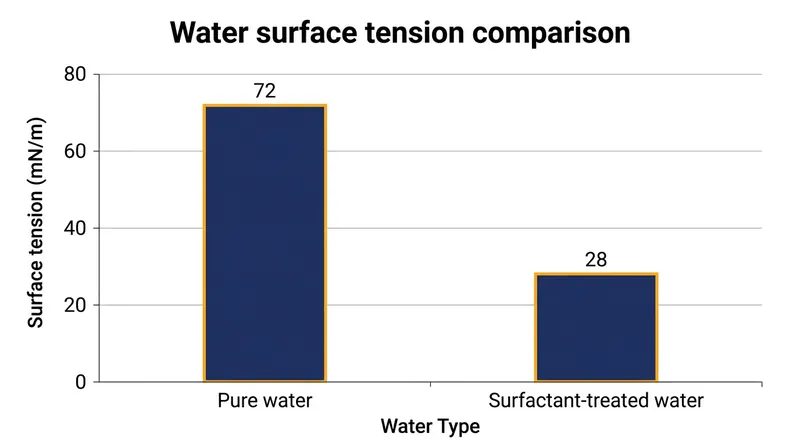

This chemical interference slashes the water's surface tension from its natural 72 millinewtons per metre down to roughly 28 millinewtons per metre. Without that tight internal cohesion, the water can no longer maintain its spherical shape.[2]

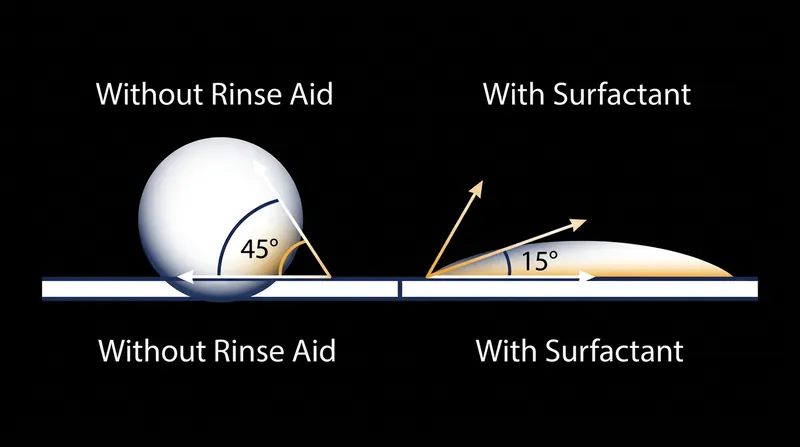

The contact angle collapses from 45 degrees to less than 15 degrees. Instead of forming isolated droplets, the water flattens out and spreads into a continuous, microscopic sheet across the surface of the glassware.[2]

Gravity and the Sheeting Action

For a renter trying to keep their glassware clear without installing a whole-house water softener, this sheeting action is the critical mechanism. Flattening the water allows gravity to do the work that heat cannot.[1]

A continuous sheet of water has very little friction against the glass compared to a stationary droplet. The vast majority of the liquid simply slides down the vertical sides of the dishes and drains away into the sump.

According to 2026 testing by the Appliance Science Institute, this physical draining removes up to 88 percent of the residual water volume before the drying cycle even begins. The minerals are carried away down the drain rather than left behind.

"You are essentially evacuating the mineral load before evaporation can take place," the Institute's lead engineer, Marcus Thorne, wrote in the study. "The thin film of water that remains contains a fraction of the original calcium."

Modern Dishwashers and Drying Efficiency

Understanding this mechanism is particularly important for buyers of modern, energy-efficient dishwashers. To meet strict energy standards, contemporary machines rely on residual heat and condensation drying rather than the power-hungry heating coils of older models.[3]

Because these newer appliances do not bake the dishes dry, they depend heavily on the water draining away quickly. Without a surfactant to break the surface tension, droplets linger on the dishes long after the cycle finishes.

This leaves owners opening their machines to find wet, spotted plastic containers and cloudy glasses. The appliance is functioning exactly as designed, but it lacks the chemical assistance required to shed the water efficiently.[1]

NSF International guidelines updated in 2025 explicitly recommend the use of rinse aids in all low-energy dishwashers. This is especially critical for homes operating in areas with water hardness exceeding 120 parts per million.[3]

Limitations and Horizontal Pooling

While surfactants effectively eliminate spotting on vertical surfaces, they cannot overcome basic geometry. The chemical reduction of surface tension only helps if the water has a physical path to drain away.[1]

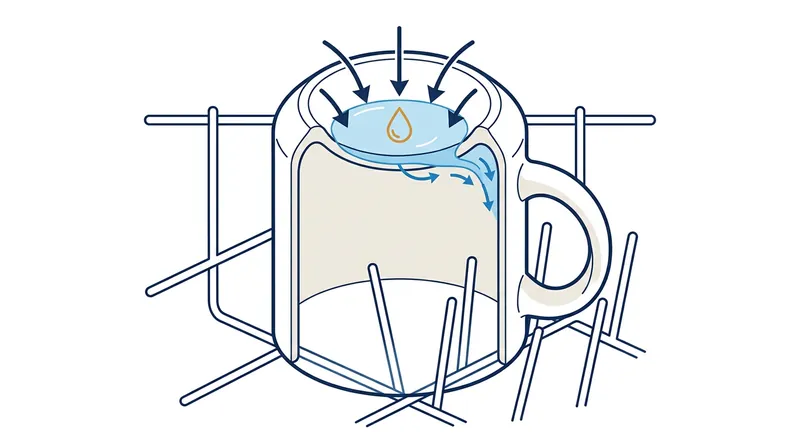

If a coffee mug is loaded upside down, the concave depression on its base creates a physical trap. Water pools in this horizontal basin, and no amount of surfactant will cause it to flow upward and over the rim.

In these pooled areas, the water is forced to evaporate in place, leaving behind a concentrated disc of mineral residue. Proper loading angles remain essential for a spotless finish, regardless of the chemistry used in the rinse cycle.[1]

Managing hard water in the kitchen requires working with fluid dynamics rather than fighting them. By flattening the contact angle, a simple surfactant transforms a stubborn evaporation problem into a straightforward drainage solution.[1]
