Soda-Lime Glass Expands at Triple the Rate of Borosilicate, Causing Tempered Bakeware to Shatter

That glass baking dish that just exploded on the kitchen counter did not fail because it was old or defective. It shattered because modern American bakeware is manufactured from a fundamentally different material than the dishes sold a generation ago. When a hot pan meets a cold surface, the physics of thermal expansion take over, and the glass tears itself apart.[4]

For decades, the name Pyrex was synonymous with indestructible kitchenware. The original formula, introduced by Corning Incorporated in 1915, relied on a highly specialized material known as borosilicate glass. This glass contained boron trioxide, an additive that fundamentally altered how the molecular structure responded to extreme heat.[1][2]

The origin of this kitchen staple actually began in the railway industry. Corning had developed a heat-resistant glass called Nonex for railway lanterns, which frequently shattered when exposed to cold rain. In 1913, physicist Jesse T. Littleton brought home a sawed-off Nonex battery jar, and his wife Bessie successfully baked a sponge cake in it, proving its culinary potential.[1]

In 1998, Corning spun off its consumer products division, and United States production shifted away from the original borosilicate formula. The new manufacturers, eventually known as Corelle Brands, transitioned the American Pyrex line to tempered soda-lime glass. This change lowered production costs and created a product that was significantly more resistant to being dropped on a hard floor.[1][4]

The Chemistry of Thermal Expansion

However, the switch to soda-lime glass introduced a severe vulnerability to rapid temperature changes. The core issue lies in a material property known as the coefficient of thermal expansion. This metric defines exactly how much a material changes in volume as its temperature rises or falls.[3]

Borosilicate glass boasts an exceptionally low thermal expansion coefficient of approximately 3.3 × 10⁻⁶ K⁻¹. When exposed to oven heat, the material barely changes size, maintaining its structural integrity. This dimensional stability is why borosilicate remains the global standard for laboratory beakers, test tubes, and scientific equipment.[2]

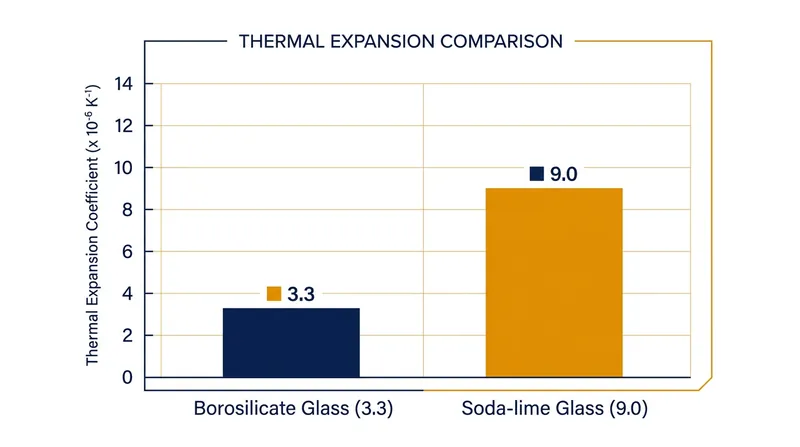

Tempered soda-lime glass, by contrast, has a thermal expansion coefficient of roughly 9.0 × 10⁻⁶ K⁻¹. It expands and contracts at nearly three times the rate of borosilicate glass per degree of temperature change. In a kitchen environment, this significant difference in physical movement becomes a structural liability.[1][4]

Ordinary glass relies on sodium oxide and calcium oxide as network modifiers to lower the melting point of the silica. These modifiers disrupt the continuous silica bonds, creating a structure that expands significantly when heated. Borosilicate glass replaces most of these alkali modifiers with boron, creating a tighter, more robust covalent structure.[2]

The Physics of Thermal Shock

Glass is an inherently poor conductor of heat, meaning thermal energy moves very slowly through the material. When a cook removes a hot soda-lime glass dish from a 200°C oven and places it on a cold granite countertop, the heat does not dissipate evenly. The bottom surface of the dish cools rapidly, while the interior and upper walls remain hot.[3]

As the bottom surface cools, it immediately attempts to contract. However, the hotter surrounding glass remains expanded and unyielding. The rapidly shrinking section pulls against the rigid structure, generating immense internal tensile stress along the steep temperature gradient.[3]

Because glass is a brittle material, it offers no plastic deformation. It cannot stretch, bend, or yield to relieve the mounting tension. Once the internal stress exceeds the tensile strength of the soda-lime glass, the material fails catastrophically, initiating a fracture that propagates at the speed of sound.[3]

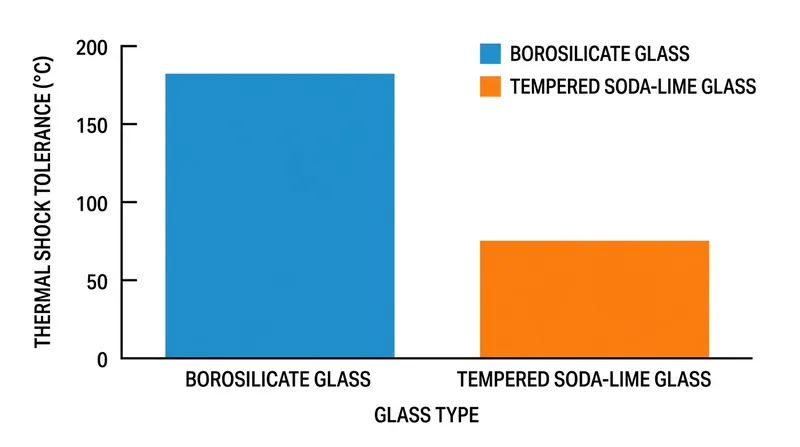

This sudden, catastrophic failure is known as thermal shock. While borosilicate glass survives these gradients because it barely expands in the first place, soda-lime glass moves too much and too fast. The resulting stress multiplier guarantees that the modern dish will tear itself apart under conditions the vintage dish would survive.[3][4]

The Role of the Tempering Process

The failure of a modern baking dish manifests as a sudden, violent shatter, often described by consumers as an explosion. This explosive quality is a direct result of the tempering process used to manufacture the soda-lime glass. Tempering is designed to make the glass safer against blunt impacts, but it alters the internal stress profile.[1][4]

During manufacturing, the glass is heated to near its softening point and then rapidly cooled with air drafts. The outer surface cools and contracts first, while the core remains hot. As the core eventually cools, it pulls the rigid surface into a state of permanent compression, while the core itself remains under permanent tension.[1][4]

This compressive outer envelope makes the glass highly resistant to being dropped, as an impact must overcome the compression before it can initiate a crack. However, this process essentially stores kinetic energy inside the walls of the dish. The glass exists in a state of balanced, high-energy tension long before it ever enters an oven.[4]

When thermal shock initiates a crack that penetrates the protective compressive layer, the delicate balance is broken. The internal tension releases all at once, tearing the entire dish apart instantly. The glass dices into thousands of small, round chunks rather than breaking into large, sharp shards, which is the intended safety feature of tempered glass.[1][3]

Identifying and Managing Kitchen Glassware

Consumers can often identify the composition of their glassware through a simple visual inspection of the logo. Vintage American Pyrex, manufactured before 1998, typically features the brand name stamped in all capital letters. These older, borosilicate dishes can safely transition from a refrigerator directly into a hot oven.[1]

Modern American Pyrex, made from tempered soda-lime glass, usually displays the logo in lowercase letters. While these dishes are highly durable against drops, they require strict adherence to thermal safety guidelines. Manufacturers explicitly warn against placing hot dishes on wet towels, cold counters, or damp surfaces.[1][4]

The transition to soda-lime glass was primarily a North American phenomenon. European manufacturers, operating under the Pyrex brand license, continue to produce borosilicate glass bakeware today. Consequently, the exact same brand name represents entirely different material properties depending on the continent of origin.[1]

Mitigating the Risk of Failure

To prevent thermal shock in soda-lime bakeware, cooks must manage the temperature differentials manually. Hot dishes should always be placed on a dry cloth potholder, a wooden cutting board, or a silicone cooling rack. These materials act as thermal insulators, slowing the rate of heat transfer from the hot glass.[4]

Adding cold liquids to a hot pan is another common trigger for thermal shock. Pouring refrigerated broth into a hot roasting pan to deglaze it creates a localized temperature drop that initiates the fracture sequence. Liquids should always be warmed before being added to a hot glass dish.[3][4]

Furthermore, soda-lime glass should never be placed directly on a stovetop burner or under an intense broiler. The localized, uneven heat source creates the same destructive temperature gradients as a cold countertop. The oven must be fully preheated before the dish is inserted, ensuring the glass warms evenly from all sides.[1][3][4]

The shift from borosilicate to soda-lime glass represents a calculated engineering trade-off between impact resistance and thermal stability. Understanding the physical limitations of modern bakeware allows cooks to adapt their habits. By managing thermal gradients, consumers can prevent a routine dinner from ending in a shower of shattered glass.[4]
