The Cryptographic Chain of Trust: How Offline Root CAs Validate Billions of Daily Web Connections

On September 1, 2020, Apple and Google fundamentally altered the operational rhythm of the internet by enforcing a strict 398-day maximum lifespan for all new leaf certificates. This mandate forced website operators to automate their cryptographic renewals, but it left the underlying architecture of trust entirely intact. That architecture does not rely on a single digital signature to verify a website's identity. Instead, it utilizes a strict three-layer hierarchy to bridge the gap between a browser's local trust store and a remote server.[5]

The core problem this architecture solves is digital identity. When a user navigates to a banking portal, the browser requires mathematical proof that the server on the other end is legitimate. "A Public Key Infrastructure (PKI) is a framework that creates, issues, manages, distributes, uses, stores, and revokes digital certificates," according to the US government's Identity, Credential, and Access Management division. This framework prevents attackers from intercepting traffic by presenting a fraudulent identity.[2]

The modern implementation of this framework is defined by the Internet Engineering Task Force (IETF) in RFC 5280, published in May 2008. The specification outlines the X.509 version 3 certificate format, which relies on a chain of trust. Rather than a single entity vouching for a website, the trust is delegated down a highly structured chain, isolating the most critical cryptographic keys from the public internet.[1]

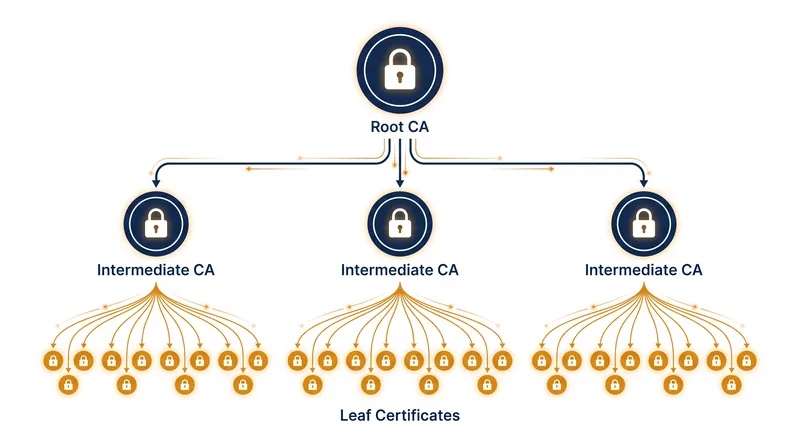

At the absolute top of this hierarchy sits the Root Certificate Authority (CA). The root is the ultimate trust anchor, and it is entirely self-signed—meaning its cryptographic signature vouches for its own authenticity. Because a compromised root certificate would allow an attacker to forge identities for any website on the internet, these keys are never connected to a network.[4]

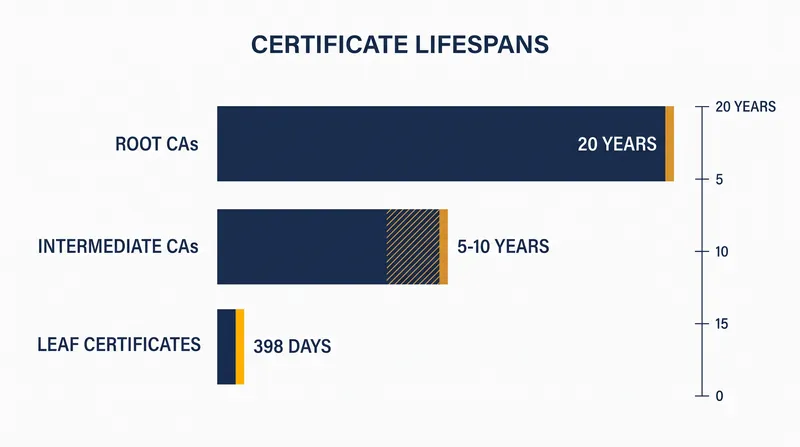

Security vendors often market "military-grade encryption," but the actual security of a Root CA relies on physical isolation. The private keys are generated and stored inside Hardware Security Modules (HSMs)—tamper-resistant computers locked in heavily guarded data centers. A typical Root CA is generated with a 4096-bit RSA key and is granted a lifespan of 20 to 25 years, minimizing the number of times the physical vault must be opened.[2][4]

Because the root is kept offline, it cannot be used to sign the millions of certificates requested by websites every day. This operational bottleneck necessitates the second layer: the Intermediate CA. To create an intermediate, administrators must physically access the offline root, use it to sign the intermediate certificate, and then return the root to cold storage.[4]

The Intermediate CA acts as the operational middleman. It lives on networked servers and handles the daily volume of cryptographic signing. These certificates typically carry a lifespan of five to ten years. By delegating authority, the PKI architecture creates a firewall: if an intermediate is compromised by a network intrusion, the root remains safe. The root can simply revoke the compromised intermediate and issue a new one, without requiring every device on earth to update its trust store.[3][4]

The final layer is the Leaf Certificate, also known as the end-entity certificate. This is the file installed on a web server to secure a specific domain. Unlike the root or the intermediate, a leaf certificate has no authority to sign other certificates. Its sole purpose is to prove the identity of a single server to a connecting client.[5]

It is at this leaf layer where the 398-day limit imposed in 2020 applies. By forcing rapid expiration, browser vendors ensure that if a leaf certificate's private key is stolen, the window of vulnerability is narrow. Automated issuers like Let's Encrypt have pushed this window even tighter, defaulting to 90-day lifespans and forcing the industry to adopt automated renewal protocols.[5]

When a browser connects to a secure server, it receives both the leaf certificate and the intermediate certificate. The browser must then perform a process called path building, detailed in RFC 4158, published in September 2005. The algorithm works backward, verifying the cryptographic signature of the leaf against the intermediate, and the intermediate against the root.[6]

The browser does not download the root certificate from the server. Instead, it checks the intermediate's signature against a local trust store—a database of roughly 150 to 200 trusted Root CAs pre-installed by the operating system or browser vendor. If the chain leads to a root in that local store, the connection is approved. If the chain is broken, or leads to an unknown root, the browser throws a severe security warning.[3][5]

The fragility of this system lies in revocation. If a certificate is compromised before it expires, it must be added to a Certificate Revocation List (CRL) or flagged via the Online Certificate Status Protocol (OCSP). However, browsers often fail soft on revocation checks to prevent the internet from breaking when an OCSP server goes offline, meaning a revoked certificate can sometimes still be accepted.[1][5]

As the CA/Browser Forum debates further reducing leaf certificate lifespans to 90 days across the board, the operational burden will shift entirely to automated renewal protocols. The cryptographic math remains unchanged, but the window for an attacker to exploit a stolen leaf certificate is rapidly closing. The three-layer architecture ensures that while the edges of the network iterate rapidly, the core anchors of internet trust remain locked in silent, offline vaults.[5][7]
