The 40-PSF Snow Load Penalty: How the IRC Calculates Deck Ledger Bolt Spacing for 14-Foot Joists

Inside the structural testing laboratories at Virginia Tech, hydraulic presses push downward on a simulated deck frame until the half-inch lag screws holding the wood to the house literally shear in half. This controlled destruction is where the International Residential Code (IRC) derives the exact mathematical tables that dictate how a deck must be attached to a home. When a homeowner steps out onto a second-story deck, they are trusting a single piece of horizontal lumber and a handful of steel fasteners to hold thousands of pounds suspended in the air. The code leaves nothing to chance, replacing traditional carpentry rules of thumb with strict engineering formulas.[2][5]

The ledger board—a single piece of pressure-treated lumber bolted directly to the house's band joist—carries exactly half the weight of the entire deck structure. The outer posts carry the other half. If the ledger fasteners fail, the deck pulls away from the house and collapses instantly, a scenario that remains the leading cause of catastrophic deck injuries in the United States. To prevent this, the IRC publishes Table R507.9.1.3(1), a strict matrix that dictates exactly how far apart those bolts or lag screws can be placed to guarantee structural integrity under maximum stress.[1][3]

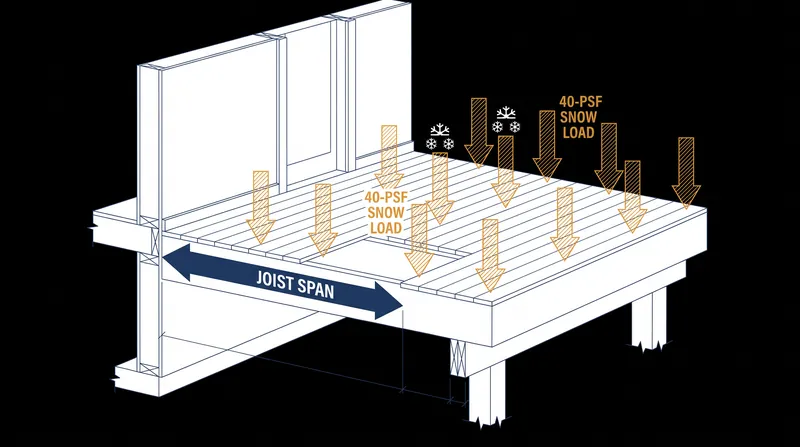

The code relies on two primary variables to calculate this critical fastener spacing: the joist span and the regional snow load. The joist span is the horizontal distance from the house ledger to the main support beam. A deck extending 14 feet from the house transfers significantly more weight to the ledger connection than a deck extending only eight feet. As the joist span increases, the leverage and downward force applied to the ledger board multiply, requiring the steel fasteners to be placed closer together to distribute the massive shear forces safely across the band joist.[1][4]

The second variable, snow load, is dictated entirely by local climate data and geography. A 40-psf (pounds per square foot) snow load represents a massive, sustained dead weight that transient live loads—like a summer barbecue with twenty people—simply do not match. When cross-referencing the IRC 2024 fastener spacing tables against engineering calculators, a distinct mathematical penalty emerges for snow. The code treats frozen precipitation as a fundamentally different type of structural threat than human occupancy, altering the required fastener density even when the nominal weight rating appears identical on paper.[1]

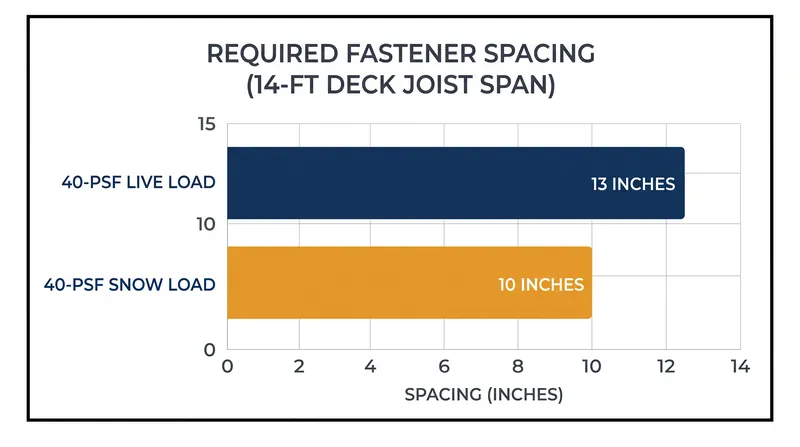

For a standard 14-foot joist span using half-inch lag screws, a standard 40-psf live load requires fasteners to be spaced every 13 inches along the ledger board. However, if the local building department dictates a 40-psf snow load for that specific region, that spacing tightens significantly to 10 inches. This 30 percent reduction in spacing for the exact same nominal weight exists because snow is classified as a "duration load." It sits on the wood for weeks or months at a time, causing the wood fibers around the lag screw threads to slowly crush and deform under the sustained pressure.[1]

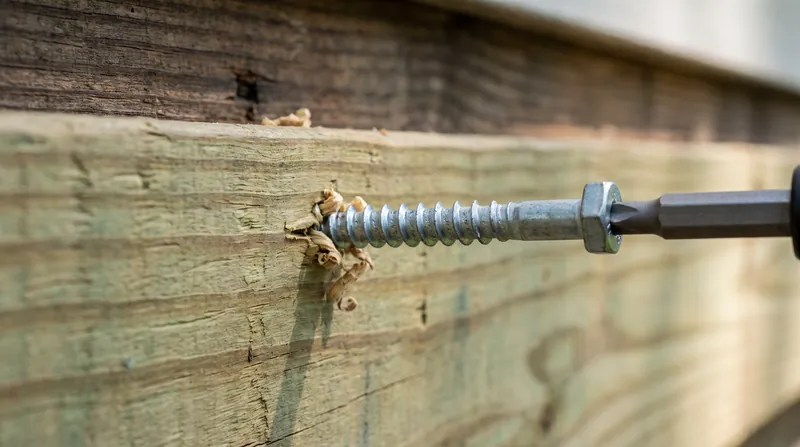

The IRC allows for two primary types of fasteners to make this critical connection: half-inch lag screws and half-inch through-bolts. Lag screws are driven into the wood like massive wood screws, relying entirely on the bite of their threads into the house's band joist to resist pulling out. Through-bolts, by contrast, pass entirely through the ledger and the house's band joist, securing with a heavy steel nut and washer on the inside of the basement or crawlspace. Because they physically clamp the two pieces of wood together, through-bolts offer vastly superior shear strength and pull-out resistance.[1][3]

Because of this superior mechanical strength, the IRC allows through-bolts to be spaced much further apart than lag screws. Returning to that same 14-foot joist span in a 40-psf snow load region, half-inch through-bolts can be spaced at 19-inch intervals, compared to the tight 10-inch requirement for lag screws. For a 20-foot wide deck, this difference means drilling and installing 13 through-bolts versus 25 lag screws. The labor savings are significant, provided the contractor has clear access to the inside of the band joist to install the nuts and washers.[1]

The ledger board can only be attached to a specific structural component of the house: the band joist, sometimes called the rim joist. This is the solid piece of lumber resting directly on the foundation sill plate, forming the outer perimeter of the home's floor system. The IRC 2024 explicitly states in section R507.9.1.3 that "deck ledgers shall not be supported on stone or masonry veneer." These materials simply cannot handle the concentrated shear forces generated by a loaded deck, and attaching to them guarantees an eventual structural failure.[1][4]

Beyond the fasteners themselves, the code mandates strict flashing details to protect the connection point. Water trapped behind a ledger board will inevitably rot the house's band joist. If the band joist rots, it renders even the strongest lag screws or through-bolts completely useless, because they are anchored into decaying, spongy wood that has lost all of its structural holding power. Proper galvanized or stainless steel flashing must be integrated behind the house's siding and over the top of the ledger board to direct all bulk water away from the critical fastener penetrations.[5]

The fasteners cannot simply be placed in a straight line along the center of the board. The IRC requires a staggered "W" pattern, keeping bolts at least two inches from the top edge, two inches from the bottom edge, and five inches from the ends of the ledger board. This staggered placement prevents the wood from splitting along the grain under heavy loads. If all the bolts were installed in a single horizontal line, the ledger board could easily cleave in half, leaving the top half bolted to the house while the bottom half—and the deck—falls to the ground.[1][4]

Regional variations further complicate the engineering math. The California Residential Code, for example, incorporates strict seismic requirements that demand additional lateral tension ties to prevent the deck from pulling away from the house during an earthquake. These lateral ties, often required in pairs capable of resisting 1,500 pounds of tension each, address the horizontal forces that standard ledger bolts are simply not designed to handle. While lag screws provide excellent vertical shear strength, they are notoriously weak against horizontal pull-out forces generated by seismic activity or high winds.[6]

The evolution of the IRC over the last two decades reflects a growing understanding of wood science and structural dynamics. The 2021 and 2024 iterations of the code have grown increasingly specific, moving away from the "three nails per joist" rule-of-thumb carpentry of the 1980s toward strict, engineered load paths. Every update to the code is written in response to real-world failures, translating collapsed decks and forensic engineering reports into the precise fastener spacing tables that govern modern residential construction.[2][5]

For homeowners planning a deck renovation, understanding these variables is critical when reviewing contractor bids. A contractor who plans to use lag screws spaced every 24 inches on a large deck in a snowy climate is not just cutting corners; they are building a structure that fundamentally violates the laws of physics as codified by the IRC. The fastener spacing is the invisible skeleton of the deck, and verifying that it matches the code tables for the specific joist span and local snow load is the single most important quality control check a homeowner can perform.[3]

The type of wood used for the ledger board also plays a subtle but important role in the fastener math. The IRC tables are calibrated for standard sawn lumber species like Hem-Fir, Douglas Fir, and Southern Pine, which possess specific specific gravities and shear strengths. If a builder attempts to use a different material, or if the house's band joist is constructed from an older, more brittle species of wood, the standard tables may no longer apply, requiring a licensed structural engineer to calculate a custom fastener schedule to ensure safety.[5]

The ledger connection represents the most highly stressed single component in residential outdoor construction. The next time a contractor marks out the staggered bolt pattern on a piece of pressure-treated lumber, they are not guessing or relying on intuition. They are executing a precise mathematical formula dictated by the length of the joists, the shear strength of half-inch steel, and the crushing weight of the winter sky. Ensuring that formula is followed to the letter is the only way to guarantee the deck remains safely anchored to the home for its entire lifespan.[2]

Modern building departments have become increasingly rigid about enforcing these specific ledger attachment rules during framing inspections. An inspector will physically measure the distance between the lag screws, verify the staggered pattern, and check the flashing integration before signing off on the permit. If the spacing is off by even an inch compared to the IRC tables for the home's specific snow load and joist span, the contractor will be forced to drill new holes and add additional fasteners, a costly delay that underscores just how seriously the engineering community takes this single structural connection.[1][6]
