Galvanic Corrosion: Why Copper and Galvanized Steel Pipes Destroy Each Other

For a battery to destroy a plumbing system from the inside out, three conditions must hold simultaneously: an anode, a cathode, and an electrically conductive fluid connecting them. In millions of older homes undergoing partial renovations, that binding constraint is met the moment municipal water flows through a joint where a new copper pipe is threaded directly into an old galvanized steel line. The resulting electrochemical reaction quietly degrades the steel until the pipe fails.[2]

This process, known as galvanic corrosion, occurs whenever two dissimilar metals are placed in physical contact within an electrolyte. In a residential plumbing system, the drinking water acts as the electrolyte, carrying dissolved minerals that facilitate the transfer of electrons. The less noble metal in the pairing becomes the anode and sacrifices itself, while the more noble metal becomes the cathode and remains protected.[1]

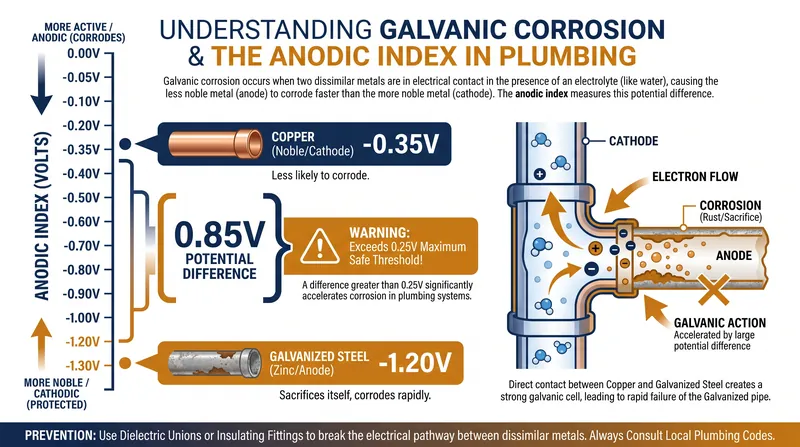

The severity of this reaction is dictated by the anodic index, which measures a metal's electrochemical potential in volts. Copper, a highly noble metal, carries an anodic index of −0.35V. Hot-dip galvanized steel, which relies on a zinc coating for protection, sits much lower on the scale at −1.20V.[3]

When these two materials are joined, they create a galvanic potential difference of 0.85V. In engineering applications, a voltage difference of 0.25V is generally considered the maximum safe threshold for mixed metals in a controlled environment. The copper-to-galvanized connection exceeds that safety limit by more than three times, ensuring that the zinc coating will rapidly dissolve into the water.[4]

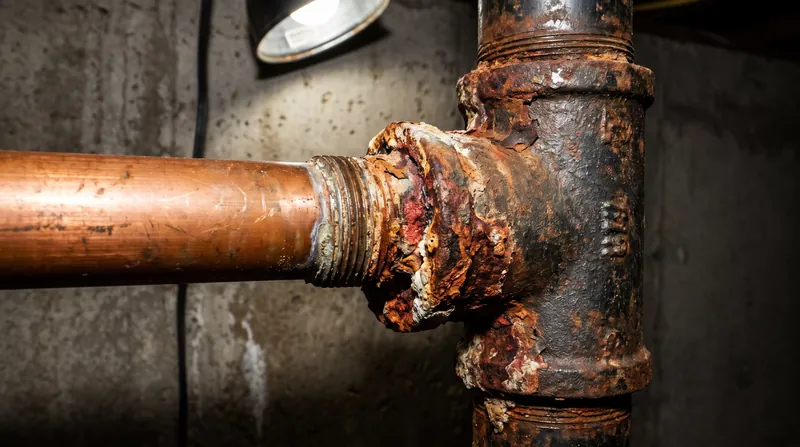

Once the protective zinc is stripped away, the underlying carbon steel is exposed directly to the copper. "The most severe attack occurs at the joint between the two dissimilar metals," notes Branch Investigations, an inspection firm that routinely encounters the issue in homes built before 1960. The steel pipe rusts from the inside, eventually creating a pinhole leak or causing the threaded connection to snap entirely.

The ratio of the two metals also accelerates the failure. If a homeowner replaces a large section of galvanized plumbing with copper but leaves a few steel fittings in place, the massive copper cathode demands electrons from a very small steel anode. This concentrated current causes the remaining steel to corrode much faster than it would if the proportions were reversed.

Because the physics of this failure are absolute, modern building standards intervene to break the circuit. The 2021 editions of both the Uniform Plumbing Code (UPC) and the International Plumbing Code (IPC) explicitly prohibit the direct connection of dissimilar metals. To comply with these codes, plumbers must install a dielectric union conforming to the American Society of Sanitary Engineering (ASSE) 1079 standard.[1]

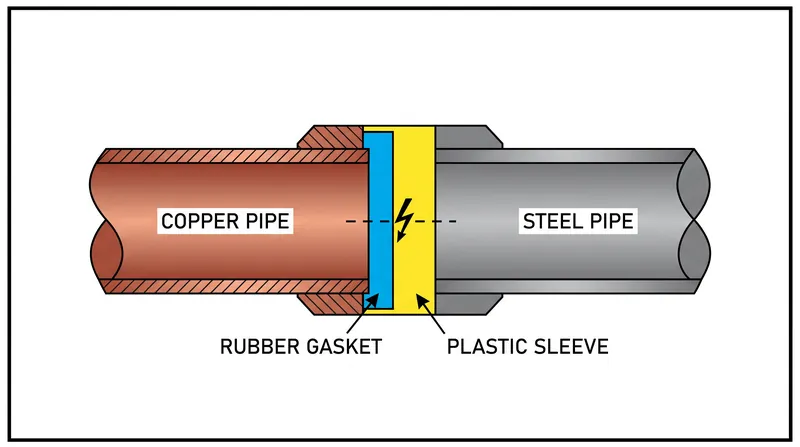

A dielectric union solves the problem through physical isolation. The fitting consists of a brass or copper end, a steel end, and an electrically non-conductive gasket—typically made of EPDM rubber or a hard plastic polymer—sitting between them. By preventing metal-to-metal contact, the union stops the flow of electrons, effectively unplugging the battery.[1]

Water heaters represent the most common residential application for these fittings. Most modern water heaters feature steel inlet and outlet nipples. If a plumber solders copper supply lines directly to those nipples, the tank's connections will rust out long before the appliance reaches the end of its expected lifespan.[1]

The danger is particularly acute in retrofits. "In reality, connecting copper directly to steel without dielectric unions creates the ideal environment for galvanic corrosion," writes David Wiley of NuFlow Midwest, noting that the practice is surprisingly common in buildings constructed before the 1980s. Homeowners can identify active corrosion by looking for crusty white or red rust blooming around a pipe joint, accompanied by a gradual drop in water pressure.[2]

Breaking the electrical connection is the only way to ensure a mixed-metal system survives its expected 40-to-50-year lifespan. A $15 dielectric union is the difference between a permanent plumbing repair and a flooded basement two years later.
