The Science of Uncoupling Membranes: Why Crack Isolation Fails on Bouncy Floors

One camp of residential contractors insists that laying a premium uncoupling membrane over an old plywood subfloor is the ultimate insurance policy against cracked tile, pointing to thousands of flawless bathroom renovations. Across the aisle, structural engineers argue that these engineered mats are dangerously misunderstood, often deployed as a magical cure-all for fundamentally weak framing.[4]

Both positions are rooted in how modern building materials behave under stress, but they are talking about two entirely different directions of movement. The debate hinges on a physical distinction that determines whether a $5,000 floor replacement survives its first winter or shatters under the weight of a cast-iron tub.[4]

For a homeowner navigating a renovation, the distinction between horizontal shear and vertical deflection is not just academic. It dictates where the budget must be spent—on the visible surface materials, or on the invisible structural joists hidden beneath the ceiling below.[4]

The Mechanics of Horizontal Movement

Wood and ceramic tile react to environmental changes in completely incompatible ways. When the humidity in a home rises, a standard 3/4-inch plywood subfloor swells and expands horizontally across the room.[3]

Ceramic and porcelain tiles, however, are inert and do not expand with moisture. If the tile is bonded directly to the plywood with rigid thin-set mortar, the expanding wood pulls the mortar apart, transferring that horizontal stress directly into the tile and grout.[3]

This lateral pulling force is known in building science as in-plane shear. Before the invention of modern membranes, installers mitigated this by pouring thick, heavy mortar beds reinforced with wire lath, physically separating the tile from the wood's movement.

In 1987, Schluter Systems introduced the DITRA membrane, fundamentally changing residential tile installation. The system replaced the heavy mortar bed with a lightweight plastic grid that achieves the same separation through geometry rather than mass.[1]

The membrane features a fleece backing that bonds to the wood subfloor, while the top surface consists of hollow, dovetail-shaped cavities. The installer fills these cavities with mortar, creating a mechanical lock with the tile above.[1]

The Anatomy of an Engineered Void

The genius of the uncoupling membrane lies in the empty space between the fleece and the plastic grid. As the plywood subfloor expands and contracts, the fleece backing stretches and moves with the wood.[1][4]

Because the plastic grid is flexible and not rigidly attached to the fleece across its entire surface, it absorbs that horizontal movement. The tile layer floating above remains completely stationary, isolated from the in-plane shear forces below.[1]

The American National Standards Institute quantifies this capability in the ANSI A118.12 standard. To qualify as a high-performance crack isolation membrane, the material must successfully bridge a horizontal gap of up to 1/8 inch without transferring the crack to the tile.[2]

"The geometric configuration allows for in-plane movement that effectively neutralizes the differential movement stresses between the substrate and the tile," explains the 2024 Schluter-DITRA Installation Handbook. This mechanism has saved countless floors from seasonal humidity swings.[1]

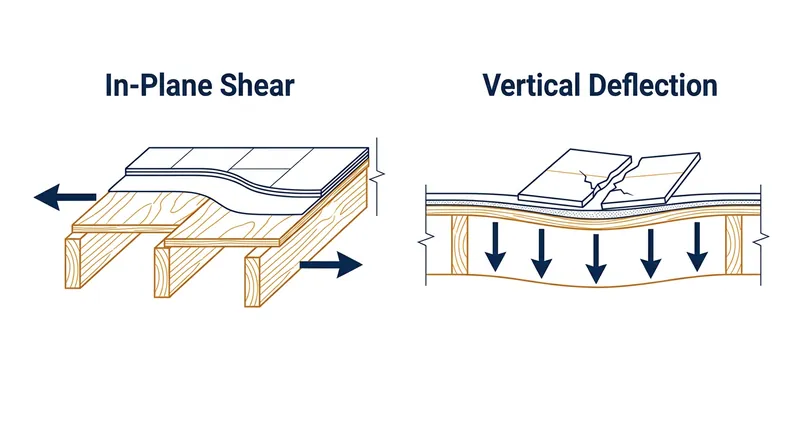

However, this horizontal flexibility is exactly where the misunderstanding begins for many DIY renovators and inexperienced contractors. A membrane's ability to stretch sideways provides absolutely no resistance to bending downwards.[3][4]

The Vertical Deflection Blind Spot

Vertical deflection occurs when a load—such as a person walking, a kitchen island, or a filled bathtub—causes the floor joists to bend downward. Unlike horizontal shear, this is a structural issue dictated by the size, spacing, and span of the lumber.[3]

Uncoupling membranes are made of flexible polyethylene plastic, usually no more than 1/8 to 1/4 inch thick. They possess zero structural rigidity and cannot stiffen a floor that bounces underfoot.[1][4]

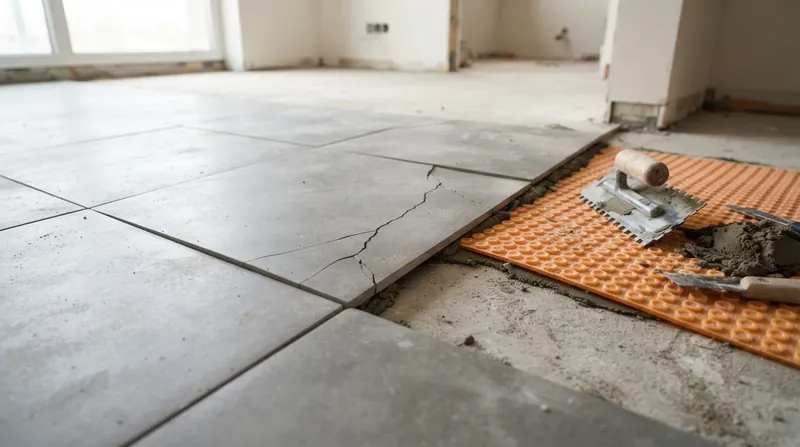

"Uncoupling membranes do not contribute to the structural stability of the floor assembly," the Schluter technical guide explicitly warns. If the joists bend, the plywood bends, the membrane bends, and the rigid tile on top snaps.[1]

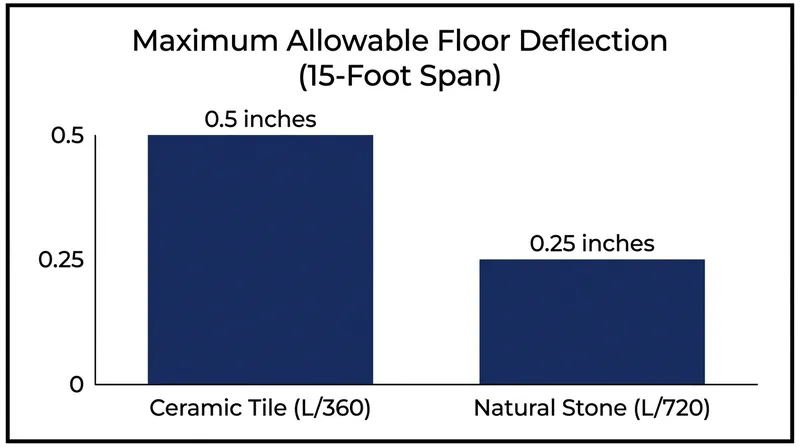

The Tile Council of North America (TCNA) sets strict limits on how much a floor is allowed to bend. For standard ceramic or porcelain tile, the TCNA Handbook mandates a minimum deflection limit of L/360.

The L/360 formula means the length of the joist span (L) divided by 360. For a typical residential floor spanning 15 feet (180 inches), the maximum allowable vertical bounce under a 50-pound-per-square-foot live load is exactly 0.5 inches.[3]

Calculating the Structural Threshold

If a homeowner is installing natural stone tile, which is more brittle than porcelain, the requirement doubles to L/720. Over that same 15-foot span, the floor cannot deflect more than 0.25 inches without risking a catastrophic failure.

Many older homes built in the mid-20th century feature 2x8 floor joists spaced 16 inches apart. While this framing meets basic safety codes for supporting weight, it often flexes well beyond the L/360 limit, making it fundamentally unsuitable for tile.[3][4]

A contractor who attempts to solve this bounce by simply rolling out a $150 roll of premium uncoupling membrane is treating a symptom with the wrong medicine. The membrane will isolate the seasonal wood expansion, but the first heavy footstep will crack the grout.[4]

Correcting vertical deflection requires structural intervention, not surface products. This usually involves sistering new lumber alongside the existing joists, adding blocking between the bays, or installing a secondary layer of exterior-grade plywood over the subfloor.[3]

Adding a second layer of 1/2-inch or 5/8-inch plywood significantly increases the floor's stiffness, reducing the vertical bounce. Only after this structural rigidity is achieved does the uncoupling membrane enter the equation to handle the horizontal shear.[1]

The Cost of Structural Misdiagnosis

The financial stakes of this distinction are severe for property owners. A failed tile installation cannot be patched; the cracked tiles, the mortar, and the membrane must be entirely demolished down to the subfloor.[4]

Forensic tile inspectors frequently trace these failures back to the initial assessment of the subfloor. When a floor fails due to vertical deflection, the manufacturer's warranty on the uncoupling membrane is immediately voided, as the product was installed outside of its specified structural parameters.[1][3]

Understanding the difference between in-plane shear and vertical deflection empowers a homeowner to ask the right questions during a contractor's bid. If a floor feels bouncy, the conversation must center on joist spans and plywood thickness, not membrane brands.[4]

The modern uncoupling membrane is a triumph of building science, engineered to solve one specific, highly destructive force. Recognizing its boundaries ensures that a renovation investment rests on a genuinely solid foundation, rather than a misunderstood sheet of orange plastic.[4]
