The Science of Roof Ventilation: How Soffit, Ridge, and Gable Vents Actually Prevent Ice Dams and Attic Moisture

There is a persistent disagreement among homeowners and even some contractors about how a house should handle extreme weather. One camp insists that a house should be sealed tight like a submarine to trap heat, while the other argues that a house needs to "breathe" through a porous envelope. When it comes to the attic, sealing it tight without proper conditioning is a recipe for disaster. The resolution to this tension lies in controlled, intentional airflow: the living space must be meticulously sealed, but the cold, dark space above it must be continuously flushed with outside air.[6]

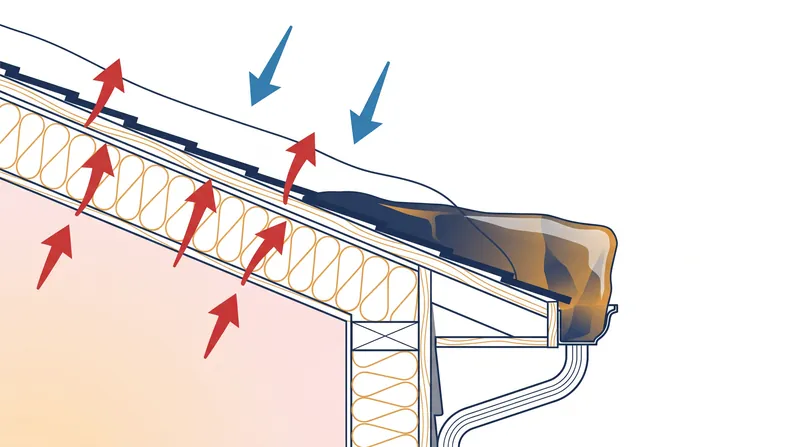

For a homeowner staring up at their roof in January, the stakes are immediate and highly visible. When heat escapes from the living space into the attic, it warms the underside of the roof deck. This thermal bypass melts the snow resting on the shingles. The meltwater runs down the slope until it hits the eaves—the overhangs that extend past the exterior walls. Because the eaves are exposed to the freezing outside air on both sides and lack the escaping heat from the house, the water refreezes, forming a wall of solid ice known as an ice dam.[2]

As more snow melts, the water backs up behind this ice dam. Shingles are designed to shed water flowing downward, not standing water pooling upward. The water creeps under the shingles, soaking the roof deck, ruining the insulation, and eventually dripping through the ceiling drywall into the living room. The solution to this winter nightmare is not adding more heat to the attic; counterintuitively, the solution is engineering a colder attic.

In the summer, the threat shifts from ice to vapor. Everyday activities—showering, cooking, and even breathing—generate moisture. This warm, humid air naturally rises and bypasses ceiling drywall through recessed lights, attic hatches, and bathroom exhaust fans that are improperly vented. Once trapped in a hot, stagnant attic, this moisture condenses on the cooler roof framing at night, creating an ideal environment for wood rot and mold.[1]

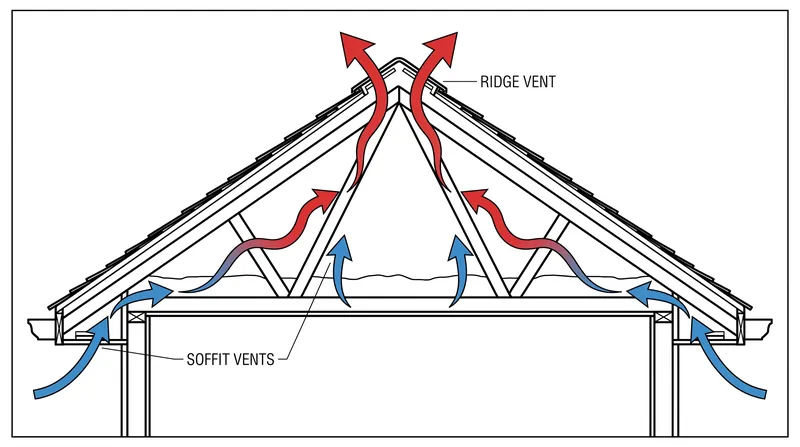

The physics of preventing both ice dams and moisture accumulation rely on a principle called the stack effect. Hot air is less dense than cold air, so it naturally rises. A properly designed roof ventilation system harnesses this passive thermal buoyancy to create a continuous, unpowered engine of airflow that flushes the attic space without requiring mechanical intervention.[1][3]

The engine begins at the bottom. Soffit vents are installed under the eaves of the roof. They act as the intake valves for the system. For a homeowner looking to upgrade their roof or add insulation, ensuring that these soffits are unblocked by blown-in fiberglass or cellulose is the single most critical step. If the intake is choked, the entire ventilation system fails before it even begins.[4]

The exhaust valve sits at the very peak of the roof. Ridge vents run continuously along the apex, covered by a cap of shingles that blends into the roofline. As the air inside the attic warms up—either from solar radiation baking the shingles in the summer or heat loss from the living space in the winter—it rises and escapes through this continuous ridge vent.[5]

This rising action creates a slight negative pressure lower down in the attic, which physically pulls fresh, cold outside air in through the soffit vents. This continuous wash of outside air keeps the underside of the roof deck cold in the winter, preventing snowmelt, and flushes out humid air in the summer, keeping the structural wood dry and intact.[1][5]

Building codes typically require 1 square foot of net free ventilating area (NFVA) for every 300 square feet of attic floor space, provided the ventilation is split evenly between intake and exhaust. However, building science reveals a crucial nuance for the homeowner: it is always better to have slightly more intake capacity at the soffits than exhaust capacity at the ridge.[3]

If a roof has massive exhaust capacity—like large powered gable fans or oversized ridge vents—but inadequate soffit intake, the rising air will still try to pull replacement air from somewhere. If it cannot get it from the outside, it will pull conditioned, expensive air from the living space through the ceiling. This depressurizes the house, driving up heating bills and actually pulling more moisture into the attic.[1][4]

Older homes often rely on gable vents—louvered openings on the triangular ends of the house—or spinning wind turbines. While these can provide exhaust, they are highly dependent on wind direction and speed. Furthermore, combining gable vents with a ridge vent can short-circuit the system. Air might enter the gable and exit the ridge, entirely bypassing the lower sections of the roof and leaving the eaves vulnerable to ice dams.[4]

It is worth noting that modern building science does offer an alternative: the unvented, conditioned attic. By spraying closed-cell polyurethane foam directly to the underside of the roof deck, the attic becomes part of the conditioned living space. This eliminates the need for ventilation entirely, but it is a costly retrofit that requires meticulous air sealing. For the vast majority of existing homes, passive ventilation remains the most robust and cost-effective strategy to protect the structure.[1][6]
