Polymer Bonds and Burst Pressure: Why PEX-A and PEX-B Plumbing Behave Differently Behind the Drywall

The moment that determines whether a residential water pipe will survive a hard winter freeze happens long before it reaches the hardware store. It occurs inside an industrial extruder at temperatures exceeding 200 degrees Celsius, during a chemical reaction called cross-linking. When high-density polyethylene (HDPE) is melted down, its long polymer chains naturally slide past one another. If left in this state, the plastic would simply melt when exposed to hot water. To create a pipe capable of handling domestic plumbing pressures, manufacturers must force those independent chains to bond together into a permanent network. This cross-linking process transforms the plastic from a thermoplastic that melts into a thermoset that holds its shape. How and when those molecular bridges are formed dictates the pipe's ultimate flexibility, its burst pressure, and its ability to expand when the water inside it turns to ice.[1]

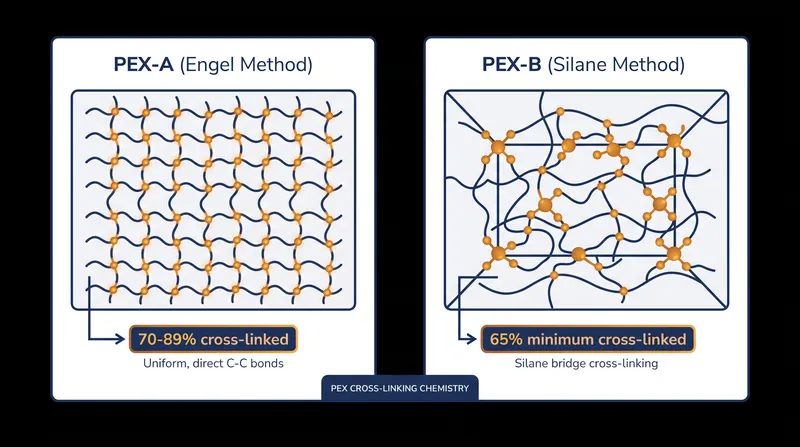

The plumbing industry divides these cross-linked polyethylene pipes into three main categories. As piping manufacturer Viega notes, "PEX-A, PEX-B and PEX-C are manufacturing classifications, not quality grades. The letters describe how the polyethylene is cross-linked during production" [2]. The two most common variants in American residential construction, PEX-A and PEX-B, achieve their strength through fundamentally different chemical pathways. PEX-A utilizes the Engel method, a hot cross-linking process patented in 1968 where peroxide is introduced to the polyethylene base before it is extruded into a pipe [1][2]. Because the chemical reaction occurs while the plastic is still a molten liquid above its crystal melting temperature, the resulting carbon-to-carbon bonds form a highly uniform, two-dimensional network [1].[1]

This peroxide method yields a pipe with a cross-linking degree typically between 70 and 89 percent, the highest of any PEX variant [1][2]. That dense, uniform molecular network gives PEX-A its defining characteristic: thermal memory. If a plumber accidentally kinks a PEX-A line during installation, they can simply apply a heat gun to the damaged section, and the molecular bonds will pull the pipe back into a perfect cylinder [4]. The material actively wants to return to the shape it held when those chemical bonds were first forged in the extrusion factory.[1]

PEX-B, conversely, is manufactured using the silane method [1]. In this process, the polyethylene is extruded into its final pipe shape first, and the cross-linking happens afterward. The extruded tubing is exposed to a silane chemical agent and then cured in a hot water or steam bath [1][2]. This moisture-cure method creates a three-dimensional body structure, inserting a silane bridge molecule between the polyethylene chains [1]. The resulting cross-linking degree is lower—typically meeting the ASTM F876 minimum of 65 percent—but the three-dimensional bonds create a noticeably stiffer final product [1][2].[1]

That stiffness gives PEX-B a higher baseline burst pressure at room temperature [4]. Because the material is more rigid, it resists the outward force of pressurized water slightly better than the softer PEX-A under normal operating conditions. However, this rigidity comes at the cost of the thermal memory that defines the Engel method [4]. A kink in a PEX-B pipe permanently damages the structural integrity of the wall; it cannot be healed with a heat gun and must be cut out and replaced entirely [4].

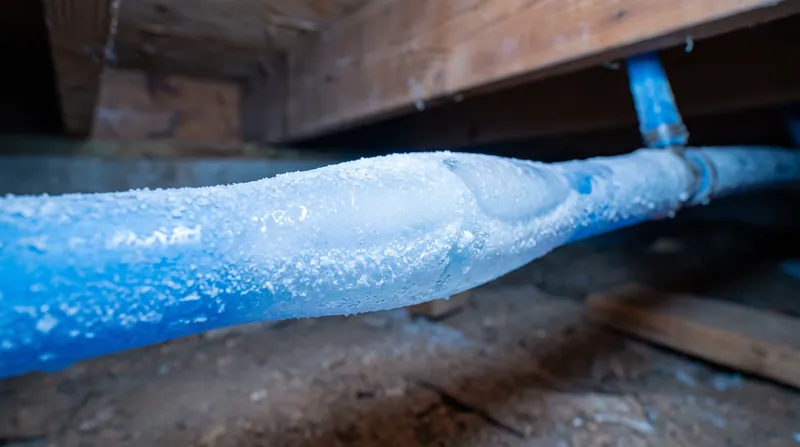

The practical difference between these two molecular structures becomes critical when the temperature in an unconditioned crawlspace drops below freezing. When water turns to ice, it expands by approximately 9 percent by volume. In a rigid copper or CPVC system, that expansion has nowhere to go. The ice plug forms, the pressure spikes exponentially, and the pipe wall ruptures [3]. Both PEX-A and PEX-B are vastly superior to rigid piping in this scenario because their polymer structures allow the pipe walls to stretch outward, accommodating the ice without breaking [3][5].[2]

However, the two materials handle that extreme stress differently. When an ice plug forces PEX-A to expand, its two-dimensional peroxide bonds stretch uniformly [1][4]. The pipe balloons outward to hold the frozen water, and once the ice thaws, the material's thermal memory pulls the wall back to its original diameter [4]. As plumbing contractor Will Plumb explains, "PEX A's expansive material can handle up to 500 PSI, which makes it reliable in extremely cold temperatures" [4]. PEX-A can survive multiple freeze-thaw cycles in the same location without suffering a catastrophic failure, making it the mathematically safer choice for attics and exterior walls in cold climates [4][7].[1][3]

PEX-B will also expand to accommodate an ice plug, but its three-dimensional silane bonds are less forgiving [1][4]. The pipe is more prone to micro-tearing along the inner wall when forced to stretch beyond its normal diameter [4]. While a PEX-B pipe is highly unlikely to burst during its first freeze, repeated freeze-thaw cycles in the exact same spot will progressively weaken the silane bridges [4][6]. Eventually, the degraded pipe wall will fail under standard domestic water pressure once the ice melts [6].[1]

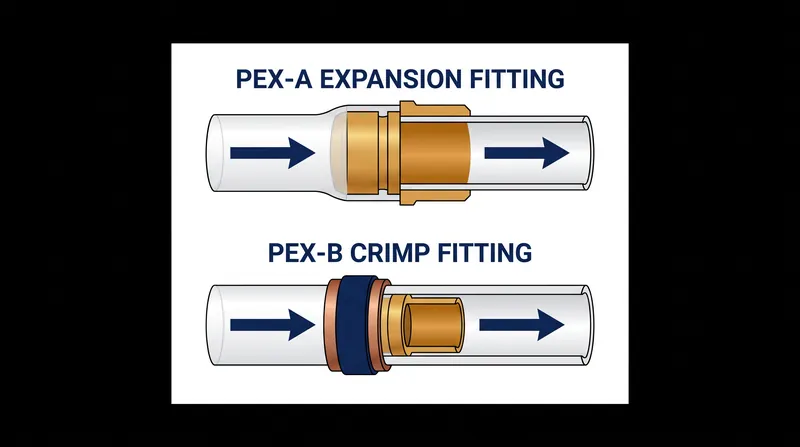

The manufacturing methods also dictate how the pipes are joined to fittings, which impacts the overall flow rate of the plumbing system. Because PEX-A possesses thermal memory, it utilizes expansion fittings [4]. A specialized tool stretches the end of the pipe, a fitting of the exact same internal diameter is inserted, and the pipe shrinks back down to create a watertight seal [4]. This method ensures that the fitting does not restrict the flow of water [4]. PEX-B, lacking that expansive memory, relies on crimp or clamp fittings that must be inserted inside the pipe before a metal ring is crushed over the exterior [4]. These insert fittings reduce the internal diameter of a standard 0.5-inch pipe by nearly 20 percent at every joint, marginally lowering the water volume delivered to the fixture [4].

Neither manufacturing method produces a pipe that is entirely immune to winter weather [5][6]. If the ambient temperature drops low enough for long enough, the water inside any pipe will freeze, halting flow and stressing the system [6]. The defense against a flooded basement remains proper insulation, heat tape, and keeping the ambient temperature above 55 degrees Fahrenheit [6]. But when those preventative measures fail, the molecular bonds forged in the extrusion factory determine whether the homeowner faces a temporary loss of water or a major renovation [7].[2][3]
