The 80% Adjustment Factor: Why Bundling 4-6 Electrical Wires Reduces Their Current Capacity

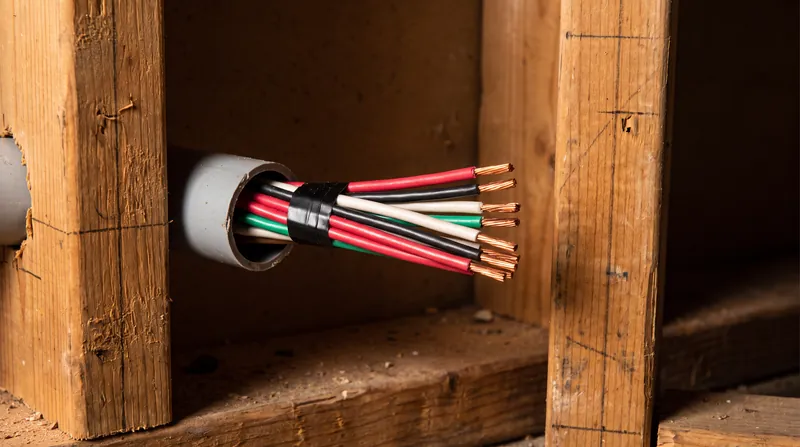

In the 2023 National Electrical Code, Table 310.15(C)(1) contains a single row that routinely invalidates DIY electrical upgrades: bundling four to six current-carrying wires together instantly strips away 20 percent of their safe capacity. For a homeowner finishing a basement or upgrading a kitchen, this mathematical penalty is entirely invisible. A standard spool of 12-gauge copper wire is sold at hardware stores with a clear 20-amp rating, and it connects seamlessly to a standard 20-amp circuit breaker in the basement panel. But the moment an installer pulls two of those circuits—comprising four current-carrying conductors—through the same PVC conduit or tightly groups them across a ceiling joist, the physical environment changes. The wires can no longer dissipate heat at the rate the manufacturer intended, triggering the 80 percent adjustment factor and fundamentally altering the safety margins of the entire electrical system.[1][2]

The underlying mechanism driving this rule is thermal, not electrical. As alternating current pushes electrons through a copper conductor, the metal's natural resistance generates friction, which radiates outward as heat. Electrical engineers refer to this phenomenon as I²R loss, where the heat produced scales with the square of the current. In an open wall cavity or a loosely run single cable, the ambient air absorbs this thermal energy efficiently, keeping the wire's thermoplastic insulation well below its melting point. The system relies entirely on this passive cooling to maintain the integrity of the plastic jacket separating the live copper from the home's wooden framing.[1]

When multiple wires are grouped tightly inside a raceway or cable assembly, they begin heating each other instead of shedding that heat to the surrounding air. The Anixter engineering reference manual notes that as the number of individually insulated conductors in a bundle increases, the overall ability to shed heat drops precipitously. The inner surfaces of the bundle become a thermal trap, forcing the temperature of the copper to climb even if the electrical load remains perfectly constant. Without adequate airflow between the individual sheaths, the combined thermal output of four or more active wires overwhelms the passive cooling capacity of the conduit.[1]

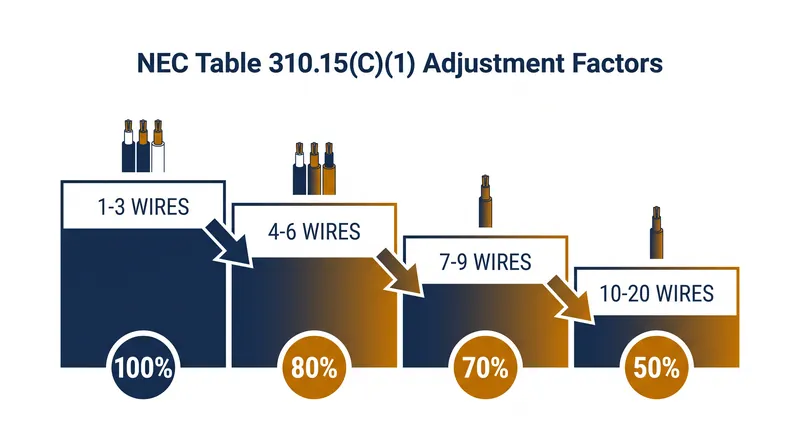

To prevent the insulation from reaching its critical failure threshold, the National Fire Protection Association mandates a strict derating schedule for bundled conductors. According to the Turn2Engineering ampacity charts, while one to three wires operate at 100 percent of their baseline rating, introducing a fourth current-carrying wire drops the entire bundle to 80 percent of its capacity. Seven to nine wires drop the capacity to 70 percent, and massive bundles of 10 to 20 wires are slashed in half. This sliding scale ensures that as the thermal density of a conduit increases, the allowable electrical load decreases proportionally to prevent a catastrophic heat buildup.[2]

The math behind this 80 percent adjustment factor reveals why seemingly safe circuits can pose a severe fire hazard when installed incorrectly. A standard 12 AWG THHN copper wire has a baseline ampacity of 30 amps when operating at its maximum 90-degree Celsius (194-degree Fahrenheit) temperature limit. Applying the 80 percent bundling penalty reduces that safe carrying capacity to 24 amps. At first glance, a 24-amp capacity appears perfectly adequate for a standard 20-amp kitchen or bathroom circuit, which is why many amateur installers assume they can pack multiple circuits into a single pipe without consequence.[2]

However, residential wiring rarely exists in a thermal vacuum, and the 24-amp adjusted limit leaves very little margin for environmental factors. The Training Center's electrical curriculum highlights a second, compounding penalty that must be calculated alongside the bundling rule: ambient heat. The baseline 30-amp rating assumes a comfortable room temperature of 30 degrees Celsius (86 degrees Fahrenheit). If that bundled conduit runs through a hot space—such as an uninsulated garage, a sun-baked exterior wall, or a cramped utility chase—the wire's ability to shed its internal heat is further compromised, requiring a secondary mathematical reduction.

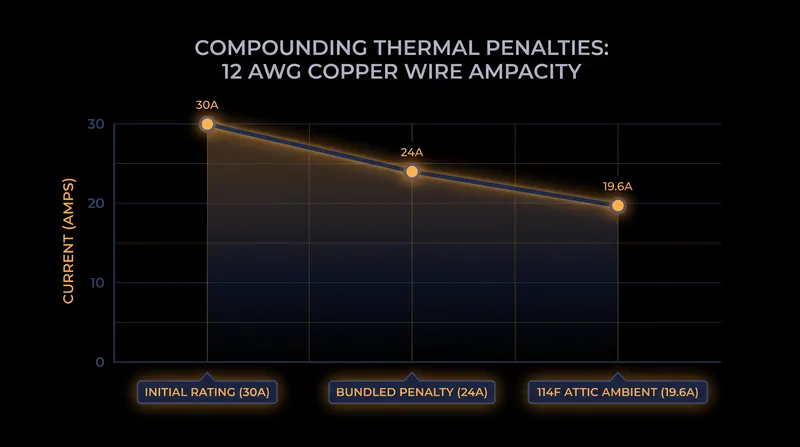

Consider a New Jersey attic in mid-July, where temperatures routinely reach 45 degrees Celsius (114 degrees Fahrenheit) during the afternoon peak. The National Electrical Code requires an ambient temperature correction factor of 0.82 for that specific environment. When combined with the 0.80 bundling adjustment, the wire's safe capacity is multiplied by 0.65. The 12-gauge wire, originally capable of carrying 30 amps in a laboratory setting, is now legally and physically rated for just 19.6 amps. The dual penalties of bundling and ambient heat have stripped away more than a third of the conductor's capacity.[1]

This creates a highly dangerous mismatch between the wire and the safety hardware protecting it. As the instructional material from The Training Center explicitly warns electrical apprentices: 'If a wire's ampacity is lower than the breaker's rating, the wire becomes a heating element, creating a fire hazard.' The homeowner's two new circuits are wired to standard 20-amp breakers, but the copper conductors can only safely handle 19.6 amps. If a portable air conditioner and a heavy-duty vacuum cleaner run simultaneously on those lines, pulling 19.8 amps, the breaker will view the load as perfectly safe and allow the current to flow indefinitely. Inside the attic conduit, however, the wire is officially overheating, operating beyond the thermal limits of its plastic insulation.

The degradation of the wire's jacket is rarely immediate, which makes the hazard particularly insidious. Modern THHN insulation is composed of polyvinyl chloride (PVC) coated with a thin, protective layer of nylon. When subjected to temperatures exceeding 90 degrees Celsius over a period of months or years, the chemical plasticizers in the PVC begin to bake out. The insulation slowly loses its flexibility, becomes brittle, cracks along the bends, and eventually flakes off entirely, exposing the bare, energized copper inside the crowded pipe.[1]

Once the bare copper touches a neighboring wire or the grounded metal casing of a junction box, it triggers a dead short. If the homeowner is fortunate, this sudden surge of current simply trips the breaker with a loud pop, cutting the power before any further damage occurs. If the exposed wires arc against a combustible material—such as dry attic dust or wooden framing—before the breaker reacts, the result is an electrical fire hidden behind drywall or beneath insulation, far from the reach of a standard smoke detector.

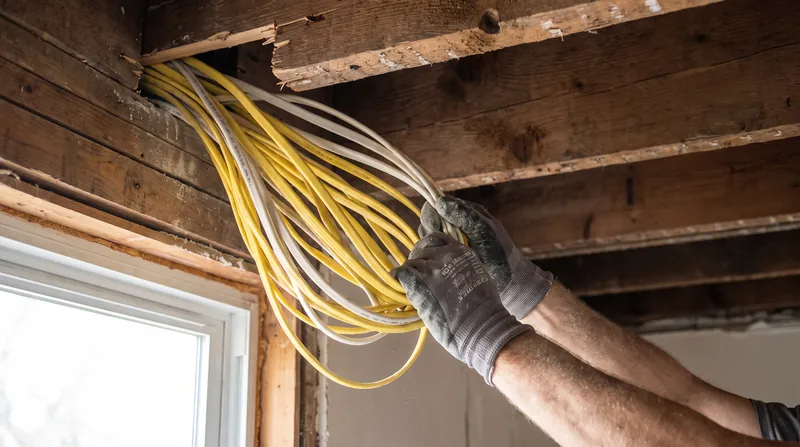

The electrical code does offer a specific, highly utilized exemption to the bundling rule, known in the trade as the 24-inch exception. If the bundled wires remain grouped for a continuous length of less than 24 inches—such as passing through a single drilled hole in a wooden top plate or running through a short protective PVC sleeve entering the main breaker panel—the 80 percent penalty does not apply. The short distance allows the concentrated heat to conduct laterally along the copper core into the cooler, unbundled sections of the wire, preventing a localized meltdown.[2]

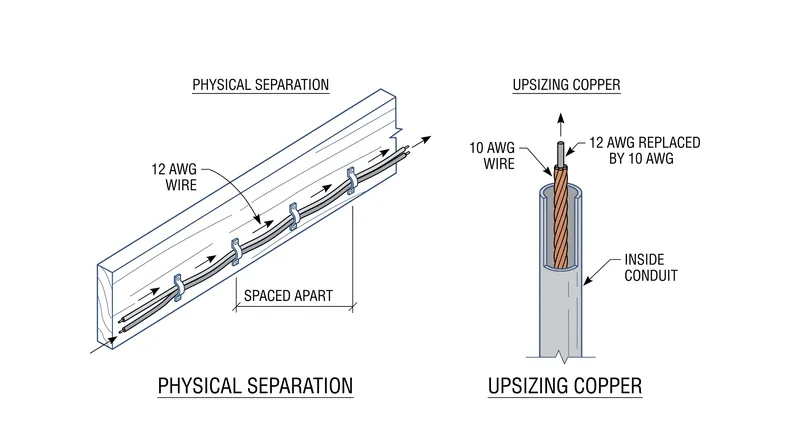

For longer runs where the 24-inch exception cannot be applied, homeowners and electricians have two primary methods to maintain full electrical capacity. The first and most common solution is physical separation. By running separate conduits for each circuit or maintaining deliberate physical spacing between non-metallic sheathed cables (Romex) as they cross the attic joists, the wires are treated as individual installations. This allows the ambient air to circulate freely around each cable, avoiding the 80 percent thermal penalty entirely and preserving the full 30-amp baseline rating of the 12-gauge copper.[1]

The second solution is upsizing the copper conductors to brute-force the math. If a homeowner insists on running four to six wires through a single underground conduit to power a detached garage or a backyard workshop, a licensed electrician will upgrade the wire from 12-gauge to 10-gauge. A 10 AWG THHN wire starts with a massive baseline capacity of 40 amps. Even after applying the 80 percent bundling penalty and a severe ambient heat reduction for an outdoor run, the thicker wire remains safely above the 20-amp threshold required by the breaker.[2]

This physical reality explains a common frustration for property owners reviewing competitive bids for a major renovation. A contractor who quotes a significantly higher price for a kitchen remodel might be factoring in the cost of thicker 10-gauge wire or the extensive labor required to drill separate, spaced pathways for multiple dedicated appliance circuits. A lower bid might reflect an installer planning to cram four or five circuits into a single pipe, ignoring the thermal physics entirely and leaving the homeowner with a system that technically functions but violates the safety code.

The 80 percent adjustment factor serves as a hard physical boundary between a system that merely works and a system that is genuinely safe. Electricity will flow through an undersized, overheated bundle just as easily as it flows through a compliant one, offering no immediate warning signs, flickering lights, or tripped breakers to alert the homeowner. The code's derating tables exist specifically to account for the trapped heat that the homeowner cannot see. The next time a contractor pulls multiple circuits through a single pipe, the longevity of the home's wiring depends entirely on whether they did the math.[1][3]
