Why Closed-Cell Foam Backer Rods Are the Secret to Silicone Caulking That Never Tears

Stretch a rubber band between your thumb and forefinger, and it expands effortlessly to double its length. Now glue that same rubber band flat against a table and try to stretch it—it will snap almost immediately.

This is the exact mechanical difference between a weather seal that lasts decades and one that fails in a single season. When homeowners fill a deep gap around a window or patio entirely with silicone, they are gluing the rubber band to the table.

The solution is a cheap length of closed-cell foam called a backer rod, which stops the sealant from sticking to the back of the joint. By isolating the back wall, the foam ensures the silicone only bonds to the two opposing sides.

This principle is known in construction as preventing three-sided adhesion. It is the single most common reason exterior caulking cracks, tears, or pulls away from brickwork and siding after a cold snap.[1][2]

The Physics of Three-Sided Adhesion

Building materials are never truly static in an outdoor environment. Concrete, timber, and aluminium expand under the summer sun and contract during freezing winter nights, constantly changing the physical dimensions of the gaps between them.

A joint between two different materials, such as an aluminium window frame and a brick wall, experiences constant differential movement. The sealant bridging that gap must act as a dynamic shock absorber, stretching and compressing daily.

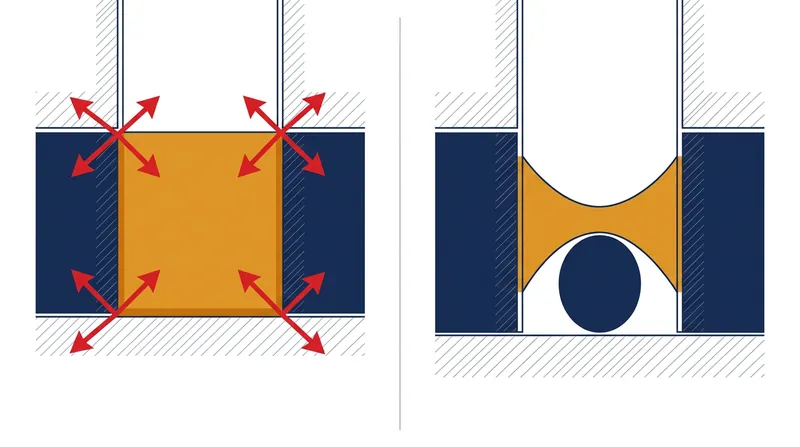

As building envelope specialists note, joint geometry is a functional requirement rather than a cosmetic choice. If a joint is simply pumped full of silicone until it hits the back wall, the sealant bonds to the left side, the right side, and the bottom.

Because the back of the bead is anchored to the substrate, the material cannot elongate. The stress concentrates entirely at the edges, forcing the silicone to either tear down the middle or rip away from the building.

According to industry guidance, the joint base must remain isolated so the sealant bonds only to the opposing faces. This two-sided adhesion leaves the back of the bead free to deform, allowing the silicone to stretch across the gap.[5]

When the sealant fails, it does so through one of two mechanisms. Cohesive failure occurs when the silicone tears internally down its own centre, while adhesive failure happens when the rubber pulls cleanly away from the building substrate.

How Backer Rods Shape the Seal

A backer rod is a flexible, rope-like cylinder made from extruded polyethylene foam. Installers press it firmly into the empty joint before applying any caulking, setting a precise depth for the sealant to follow.

Because silicone and polyurethane sealants cannot chemically bond to polyethylene, the rod acts as a permanent bond breaker. The sealant rests against the foam but remains completely detached from it once fully cured.

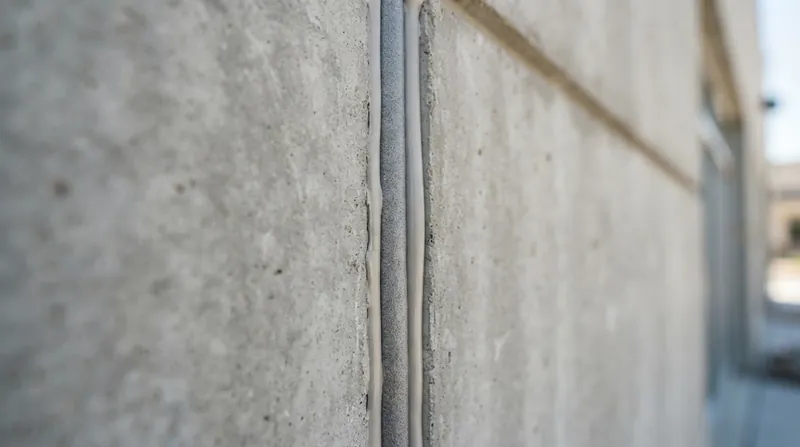

The rod also forces the sealant into a highly specific geometric profile. When the wet silicone is tooled smooth against the round surface of the foam, it forms an hourglass shape inside the joint.

This hourglass profile is thicker where it grips the building materials on the sides, providing maximum adhesion surface. In the centre, the bead thins out into a flexible waist that can easily stretch and compress without pulling at the edges.

The Golden Ratios of Joint Design

For a homeowner repairing a driveway expansion joint, pouring more sealant into the gap feels like the safest approach. In reality, a bead that is too thick becomes rigid and loses its ability to flex.

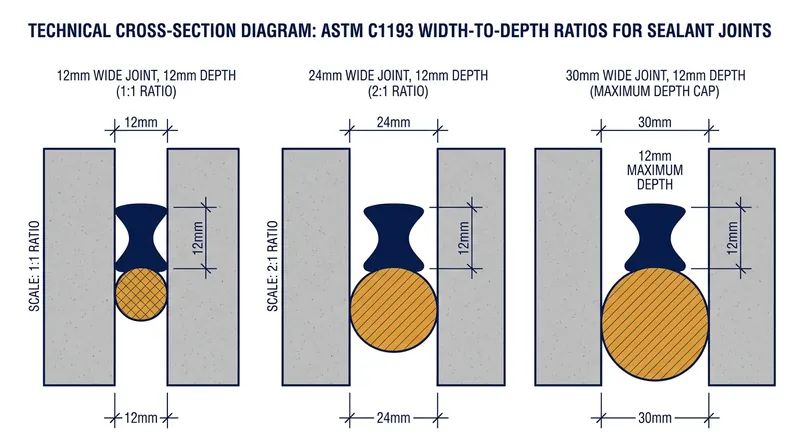

The ASTM C1193 standard, updated in 2025, establishes strict width-to-depth ratios to maintain the hourglass flexibility. For narrow joints up to 12 millimetres wide, the sealant depth should exactly match the width, creating a 1:1 ratio.[1]

As joints grow wider, the rules change to prevent the silicone from becoming a solid, inflexible block. For gaps between 12 and 25 millimetres, the depth should drop to half the width, forming a 2:1 ratio.[1]

Regardless of how wide an expansion joint gets, the maximum depth of the sealant should never exceed 12 millimetres. Any deeper, and the internal stresses during movement will tear the material apart from the inside.[1]

Choosing the Right Foam

Not all foam rods perform the same way in harsh exterior environments. Closed-cell backer rods are manufactured with sealed internal air pockets, making them entirely waterproof and highly resistant to ambient moisture.

This closed-cell structure is vital for outdoor applications like pool decks, patios, and exterior windows. If water breaches the surface, the foam will not absorb it, preventing freeze-thaw damage and rot within the wall cavity.[3]

Open-cell foam, by contrast, acts like a sponge and allows air to pass through its structure. It is highly compressible and useful for interior joints, but using it outdoors traps moisture against the building envelope.[4]

To ensure the rod stays firmly in place while the heavy sealant is applied, it must be sized correctly. The industry guidelines specify that the foam cylinder should be 25 percent wider than the joint itself.[1]

Installing the rod requires careful handling to avoid puncturing the closed-cell skin. If the foam is stretched or pierced with a sharp tool during insertion, the damaged cells can release trapped gas into the wet sealant, causing destructive bubbles to form.

For extremely shallow joints where a 6-millimetre foam rod simply will not fit, installers use a polyethylene bond-breaker tape instead. The tape sits flat against the back wall, preventing three-sided adhesion while taking up zero depth.

The True Cost of Skipping the Rod

Skipping the backer rod to save time is the most expensive mistake a property owner can make during weatherproofing. A premium silicone sealant rated for 50 percent joint movement will fail at just 10 percent if it is bonded on three sides.

When that failure occurs, water bypasses the primary weather seal and enters the building envelope. The resulting damage to framing, insulation, and interior drywall costs exponentially more than the foam rod would have.[4]

A successful weather seal relies far more on geometry than on chemistry. By isolating the back wall and shaping the bead, a simple foam rope allows the sealant to do the exact job it was engineered for.[5]
