The Hardware Fast Path: How the Translation Lookaside Buffer Prevents Virtual Memory from Halting CPU Performance

When a CPU requests data from memory, it uses an isolated virtual address that must be mapped to a physical silicon location before the data can be retrieved. The Translation Lookaside Buffer (TLB) acts as a high-speed hardware cache for these mappings, instantly providing the physical address if it has been used recently, while the page table walk is the slower fallback process that manually traverses memory directories to find the mapping when the TLB fails.

Every modern operating system, from a 2026 smartphone to a massive cloud hypervisor, relies on virtual memory. As detailed in the 2025 Brown University Computer Science curriculum, virtual memory gives each program the illusion that it owns the entire memory space. "The OS and hardware work together to translate virtual addresses to physical addresses," the Brown CS Lecture 17 notes state. This isolation prevents a crashing web browser from overwriting the memory of the operating system kernel.[1]

But this abstraction introduces a severe performance penalty. If the CPU had to manually calculate the physical location for every single instruction and data fetch, it would spend the majority of its clock cycles waiting on memory. To solve this, chip designers implemented the TLB, a specialized cache located directly on the processor core.

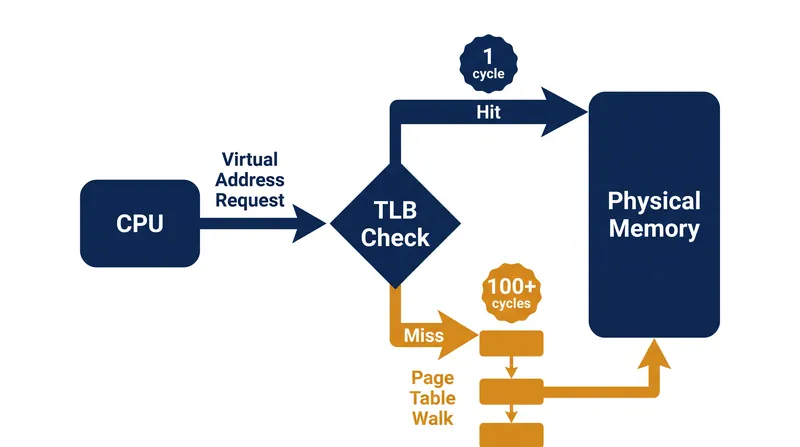

The TLB stores the most recent virtual-to-physical address translations. According to a 2025 analysis by The Coding Gopher, "The TLB is a small, extremely fast cache inside the CPU's Memory Management Unit (MMU)." When an application asks for data at a specific virtual address, the MMU first checks the TLB. If the mapping is present—a TLB hit—the physical address is returned in a single clock cycle, typically taking less than one nanosecond.[5]

Because the TLB is built from expensive, power-hungry static RAM (SRAM), it is strictly limited in size. A typical L1 TLB might hold only 64 to 128 entries. When the CPU requests an address not currently in the TLB, it triggers a TLB miss. This forces the hardware to perform a page table walk, a process that can take hundreds of clock cycles and severely degrade application throughput.

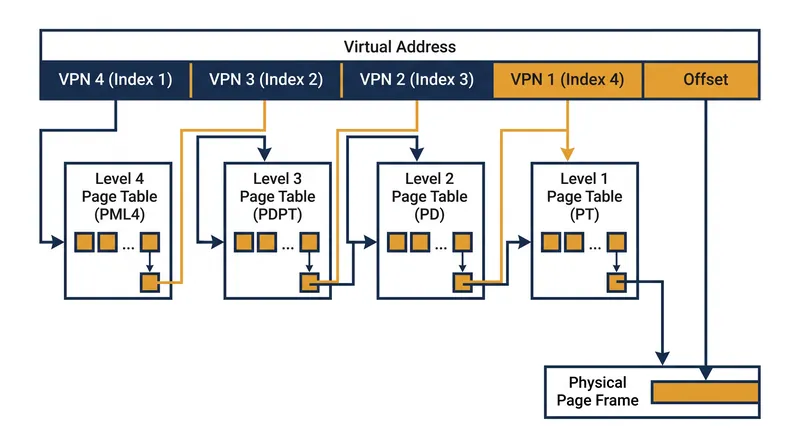

The page table walk is not a single lookup, but a traversal of a hierarchical data structure stored in main memory. As documented in the Linux Kernel documentation, modern systems use multi-level page tables to manage memory efficiently. "Linux uses a 4-level or 5-level page table," the documentation explains, which allows the operating system to map vast amounts of memory without requiring contiguous physical blocks.[3]

During a page table walk, the MMU reads the base address of the top-level directory from a dedicated CPU register, such as CR3 on x86 architectures. It then uses segments of the virtual address as indices to step through the levels. On a 4-level system, this requires four separate memory reads just to find the final physical address.

Arm's System-Level Architecture documentation outlines the general properties of these translation tables. The Arm Developer guide notes that a translation table walk "requires multiple memory accesses to read the translation table descriptors." If the memory is not cached in the L1 or L2 data caches, each of these accesses must reach out to main DRAM, taking roughly 50 to 100 nanoseconds per read.[2]

The performance impact of a page table walk compounds dramatically in virtualized environments, such as cloud computing servers running multiple virtual machines. In these systems, the guest operating system translates its virtual addresses into what it believes are physical addresses, but the hypervisor must then translate those guest physical addresses into actual host physical addresses.

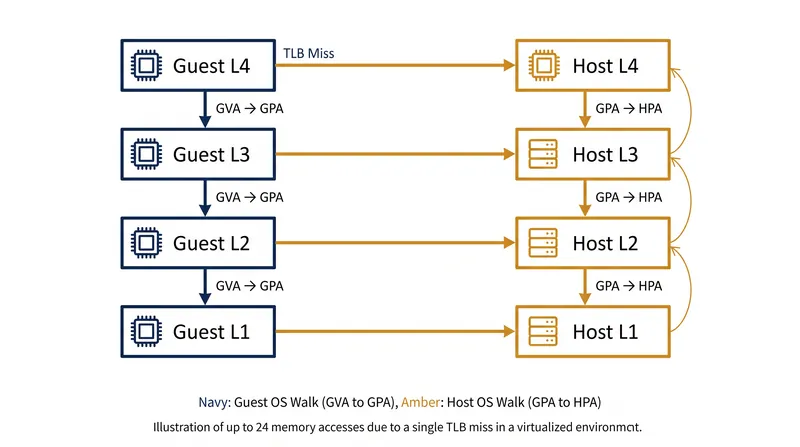

To accelerate this, chipmakers introduced hardware virtualization support, such as Intel's Extended Page Tables (EPT). A 2020 technical breakdown by Reverse Engineering details how EPT operates. "When EPT is enabled, the CPU must perform a 2D page walk," the analysis states. This means that for every step of the guest's page table walk, the CPU must also perform a full host page table walk.[4]

The math behind this nested traversal is brutal. In a worst-case scenario where both the guest and host use 4-level page tables, a single TLB miss can require up to 24 separate memory accesses to resolve the physical address. If each access takes 50 nanoseconds, the total penalty for a single memory fetch can exceed 1,200 nanoseconds—a massive stall for a CPU operating at 4.0 GHz.[6]

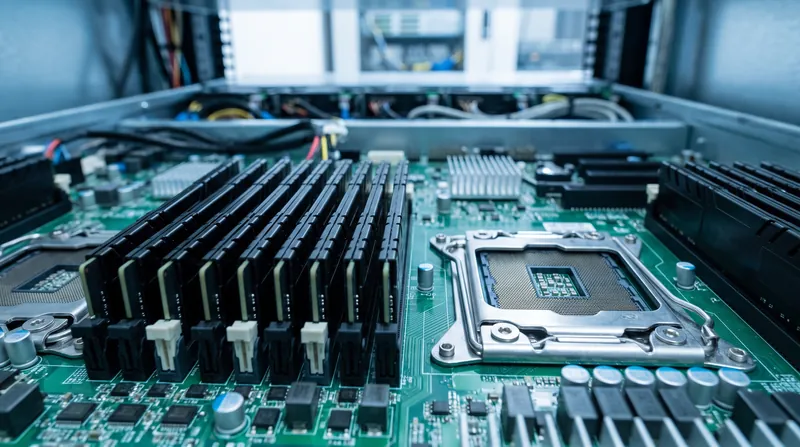

To mitigate this, modern processors employ a hierarchy of TLBs, similar to data caches. A larger, slightly slower L2 TLB might hold 1,500 to 2,000 entries, catching misses from the L1 TLB before they trigger a full page walk. Additionally, operating systems can use "Huge Pages"—allocating memory in 2-megabyte or 1-gigabyte chunks instead of the standard 4-kilobyte pages.

Huge pages drastically reduce the number of TLB entries required to map a given amount of memory. A single TLB entry mapping a 1-gigabyte page covers the same memory footprint as 262,144 standard 4-kilobyte entries. This technique is heavily utilized by database engines and large-scale AI models to keep the TLB hit rate above the critical 99% threshold.

The interaction between the TLB and the page table walk represents a fundamental trade-off in computer architecture. Software demands the flexibility and security of isolated virtual memory, but hardware physics dictates that fast memory must be small. The TLB bridges this gap, but its effectiveness relies entirely on the spatial and temporal locality of the software's memory access patterns.

As cloud providers pack more virtual machines onto single servers and AI workloads demand terabytes of memory bandwidth, the efficiency of the MMU remains a critical bottleneck. Chip designers continue to expand TLB capacities and optimize page walk accelerators, but the fundamental reliance on this hardware fast path is absolute. If the TLB fails to predict the necessary mappings, the fastest processor in the world is reduced to waiting on memory.
