How Parent Zone Glue Records Resolve Circular DNS Dependencies for In-Bailiwick Nameservers

The internet's address system relies on a strict chain of command, but that chain snaps the moment a domain attempts to host its own map. If the server responsible for translating a website's name into an IP address lives inside the very domain it serves, the lookup process hits a mathematical wall.[1]

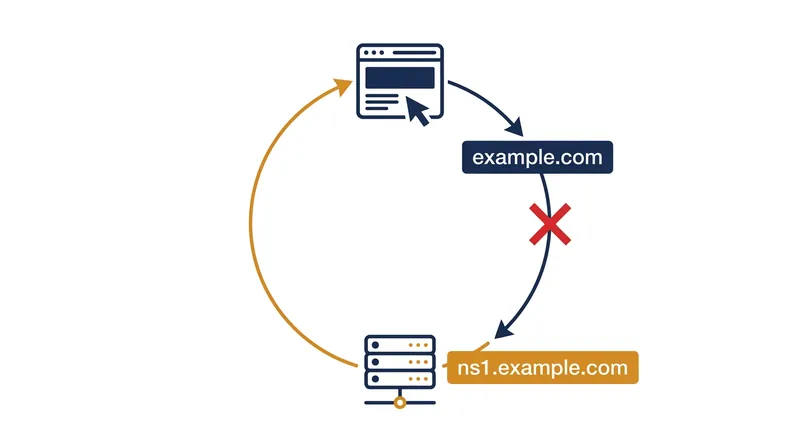

This is the in-bailiwick dependency trap. To find the IP address for a site, a browser must ask the site's nameserver. But if that nameserver shares the site's domain name, the browser cannot reach the nameserver without first knowing the IP address it is trying to look up.

The system requires an external circuit breaker to prevent infinite loops. That breaker is the parent zone glue record, a mechanism designed in 1987 that forces top-level domains to cache the IP addresses of their children's infrastructure.[1]

The anatomy of a circular lookup

When a user types a URL, their device queries a recursive resolver, which walks down the Domain Name System hierarchy. It starts at the root servers, moves to the top-level domain servers like the dot-com registry, and finally asks the authoritative nameserver for the specific site.

For out-of-bailiwick setups, this flow is seamless. If a company uses a third-party provider, the dot-com registry simply returns the name of that provider's server. The resolver then performs a separate, independent lookup for the provider's IP address and connects to it.

In-bailiwick configurations break this sequence entirely. If a company registers a domain and sets its nameserver to a subdomain of that exact same registration, the dot-com registry can only return a name that ends in the domain the resolver is already trying to find.[1]

Without intervention, the resolver would receive the nameserver's address, realize it needs an IP to connect to it, and query the dot-com registry again. The registry would return the exact same nameserver, trapping the resolver in an endless cycle of referrals.

"The resolution process cannot proceed if the nameserver is within the domain being resolved," the Internet Engineering Task Force noted in its foundational architecture documents. The protocol required a way to hand the resolver the IP address before it even asked for it.[1]

How parent zones break the loop

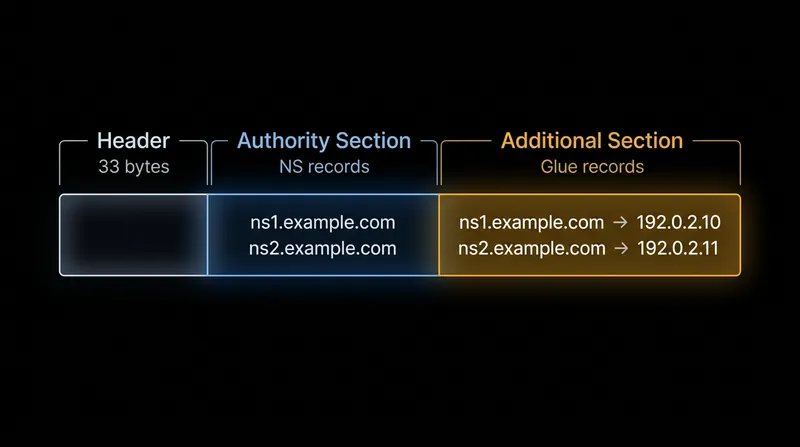

To solve this, the DNS protocol allows parent zones to attach unsolicited information to their responses. When the dot-com registry delegates authority to an in-bailiwick nameserver, it does not just send the name; it appends the IP address in the additional section of the packet.

These appended IP addresses are known as glue records. They act as a bridge, giving the recursive resolver exactly what it needs to bypass the circular dependency and connect directly to the authoritative server on its first attempt.

Glue records are mandatory for in-bailiwick delegations. Domain registrars require administrators to provide these IP addresses during the setup process, passing them up to the registry so they can be served alongside the standard delegation records.

The registry does not verify if these IP addresses are correct or currently online. It simply serves what the registrar provided, meaning a typographical error in a glue record will instantly sever the domain from the internet, as resolvers will be sent to a dead end.

"Glue is essentially a necessary evil in the DNS architecture," Cloudflare engineers explain in their protocol documentation. "It violates the principle that only the authoritative server should provide its own records, but the system cannot function without it."

The byte limits of legacy infrastructure

While glue records solve the logical loop, they introduce a severe physical constraint. The original DNS specification mandated that all responses fit within a 512-byte User Datagram Protocol packet, a limit established when network bandwidth was measured in kilobits.[1]

A standard DNS header and question section consumes 33 bytes. Adding the delegation records and the necessary glue quickly fills the remaining space, especially for domains that deploy multiple nameservers for redundancy.[3]

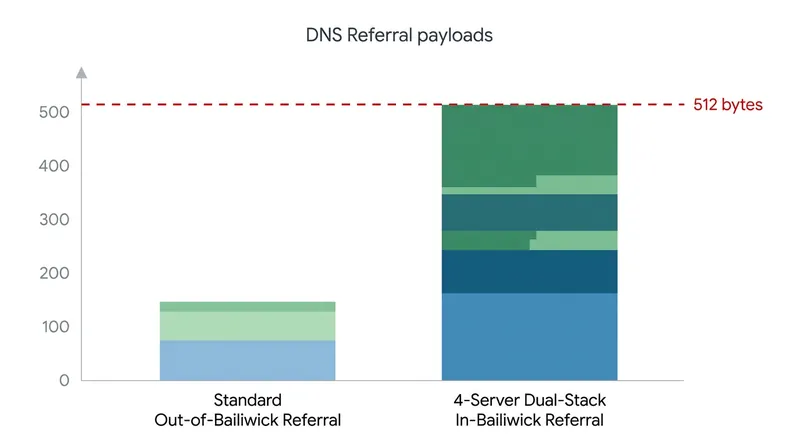

The math becomes precarious when modern requirements are applied. A standard referral response for a domain using four in-bailiwick nameservers with both IPv4 and IPv6 glue records consumes 485 bytes, leaving only a 27-byte margin before breaching the legacy limit.[3]

If a response exceeds 512 bytes, the server sets a truncation flag. This forces the resolver to abandon the lightweight UDP connection and initiate a Transmission Control Protocol handshake, which requires three separate network round-trips before any data is exchanged.[2]

This TCP fallback triples the latency of the initial lookup. To avoid this penalty, administrators must carefully balance their desire for nameserver redundancy against the byte footprint of the glue records required to make those nameservers reachable.

Security risks and cache poisoning

Because glue records are unprompted data, they represent a significant security vulnerability. In the early days of the internet, recursive resolvers would blindly accept and cache any IP address provided in the additional section of a response.

Attackers exploited this trust through cache poisoning. By registering a malicious domain, an attacker could send a resolver a glue record that falsely claimed to be the IP address for a high-value target, like a bank or an email provider.

Once the resolver cached the fraudulent glue record, it would direct all subsequent user traffic to the attacker's server. This fundamental flaw forced the industry to implement strict bailiwick rules for how resolvers handle additional data.

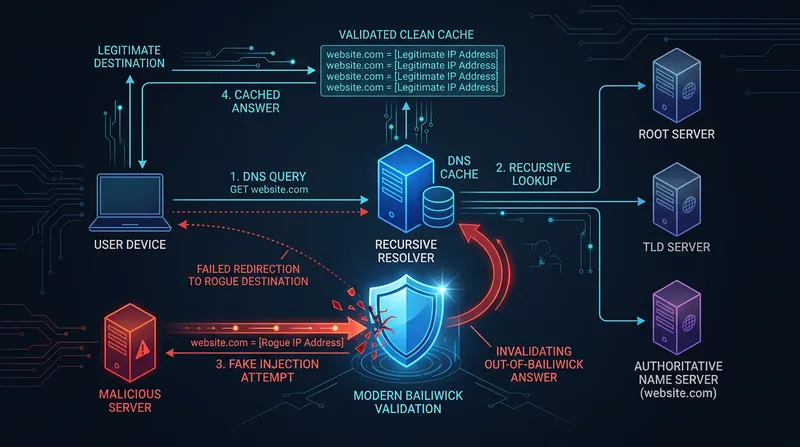

Modern resolvers now perform rigorous validation on all glue records. They will only cache a glue record if the IP address belongs to a nameserver that is strictly a subdomain of the parent zone providing the referral.[2]

If a registry attempts to provide a glue record for an out-of-bailiwick nameserver, the resolver will discard the IP address entirely. It will instead perform a fresh, secure lookup for that nameserver to ensure the routing information is authentic.

Modern standards and IPv6 complications

The transition to IPv6 has forced the Internet Engineering Task Force to update the rules governing glue records. IPv6 addresses are 128 bits long, requiring significantly more packet space than their 32-bit IPv4 counterparts.[2]

In 2023, the IETF published RFC 9471, which redefined how registries must handle referrals when packet space is constrained. The standard mandates that registries must prioritize returning at least one IPv4 and one IPv6 glue record before truncating the response.[2]

"If a name server is unable to include all glue records in a UDP response, it MUST set the TC flag," the RFC states. This explicit directive prevents registries from silently dropping IPv6 glue and stranding modern resolvers.[2]

The standard also addresses the rise of Extension Mechanisms for DNS, known as EDNS0. This protocol upgrade allows modern resolvers to advertise their ability to accept UDP packets up to 4,096 bytes, largely mitigating the legacy 512-byte constraint.

However, EDNS0 relies on intermediate network hardware supporting larger packets. If a firewall or router along the path drops oversized UDP fragments, the resolver will still fail to receive the glue records, causing the resolution to time out.

The operational cost of self-hosting

Despite the complexities, in-bailiwick nameservers remain popular among large enterprises and infrastructure providers. Hosting the nameserver within the primary domain offers complete control over the DNS infrastructure and presents a unified brand identity.

It also reduces the number of distinct top-level domains a resolver must query. If a company uses an out-of-bailiwick provider on a different registry, the resolver must perform a completely separate top-down lookup, adding milliseconds of latency.

But this control requires flawless operational hygiene. Because the registry caches the glue records, any change to the nameserver's IP address must be coordinated simultaneously at the server level and the registrar level.

If an administrator changes the server IP without updating the glue record at the registry, the domain will instantly vanish from the internet. The parent zone will continue serving the old, dead IP address, and the circular dependency trap will snap shut.
