How Append-Only Merkle Trees Force Certificate Authorities to Publicly Log TLS Issuances

Browser vendors dictate the trust boundaries of the internet. When a user navigates to a secure website, Google Chrome and Apple Safari decide whether to accept the cryptographic credential presented by the server. They exercise this power at the exact moment of the TLS handshake, blocking any connection that lacks proof of public logging.[2][4]

This enforcement mechanism is known as Certificate Transparency. It strips Certificate Authorities of their ability to issue trusted credentials in secret. By requiring every new certificate to be permanently recorded in a public ledger, browsers ensure that no authority can silently mint a fraudulent identity.[2]

The requirement fundamentally shifts the web's security model from blind trust to verifiable accountability. "Certificate Transparency provides an open framework for monitoring and auditing TLS certificates in nearly real time," notes the Internet Engineering Task Force in RFC 9162. The standard defines exactly how these public logs must operate.[1]

Before this system existed, the internet relied on hundreds of independent authorities. Any single compromised authority could issue a valid certificate for a major bank or email provider. Because these issuances were private, the legitimate domain owners had no way to know a rogue credential existed until an attack was uncovered.[2]

The limits of blind trust

The catastrophic failure of the Dutch authority DigiNotar in 2011 exposed the fragility of this architecture. Hackers breached the authority's systems and generated fraudulent certificates for Google, Yahoo, and Skype. The attackers used these credentials to intercept the communications of hundreds of thousands of internet users.[2]

The web needed a mechanism to force public disclosure without relying on the honesty of the authorities themselves. The solution was to make the disclosure a strict prerequisite for browser trust. If a certificate does not carry cryptographic proof that it has been logged, the browser simply terminates the connection.[4]

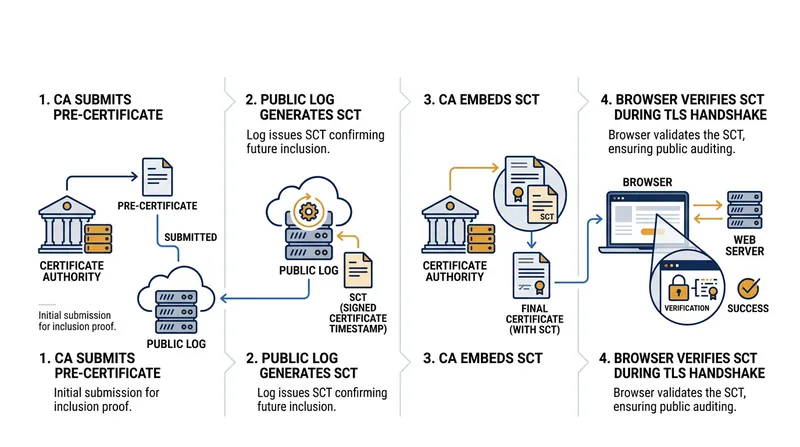

This proof takes the form of a Signed Certificate Timestamp, or SCT. When an authority issues a new certificate, it first submits the pre-certificate to a public log. The log responds with an SCT, which the authority embeds directly into the final certificate before delivering it to the website owner.[1][3]

During the TLS handshake, the web server presents both the certificate and the embedded SCT to the visitor's browser. The browser verifies the digital signature on the timestamp. If the signature is valid and belongs to a recognized log, the browser proceeds; if it is missing, the site triggers a severe security warning.[2][4]

Cryptographic proof of publication

The public logs that issue these timestamps are not simple databases. They are cryptographic constructs built on append-only Merkle trees. This specific data structure is the mathematical engine that makes Certificate Transparency possible, ensuring that once a record is added, it can never be altered or removed.[1]

A Merkle tree organizes data by pairing records and hashing them together in a hierarchical structure. The bottom layer contains the individual certificates. Each pair of certificates is hashed to create a parent node, and those parents are paired and hashed again, continuing upward until a single root hash remains.[1][2]

This root hash acts as a unique cryptographic fingerprint for the entire database at that exact moment. "The append-only property is guaranteed by the tree's structure," explains Google's Certificate Transparency documentation. If a single bit in an older certificate is changed, every hash above it changes, completely altering the root.[2]

Because the tree is append-only, logs can continuously issue new root hashes as certificates are added. Independent monitors download these root hashes and compare them over time. By requesting a consistency proof, a monitor can mathematically verify that the new tree still contains every single certificate that existed in the older tree.[1]

The mathematics of the Merkle tree

The true power of the Merkle tree lies in its scaling efficiency. Verifying that a specific certificate exists within a massive log does not require downloading the entire database. Instead, the browser or monitor only needs to check a small chain of hashes linking the certificate to the root.[1][5]

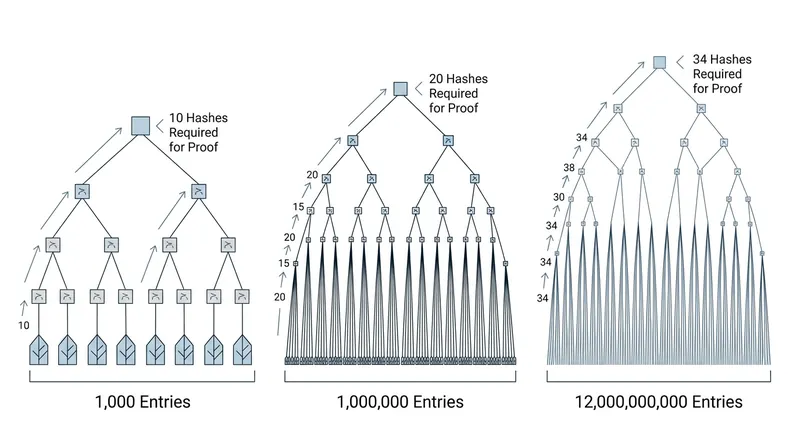

This chain is known as an inclusion proof. Because the tree is binary, the number of hashes required grows logarithmically, not linearly. A log containing a thousand certificates requires an inclusion proof of just 10 hashes. A log containing a million certificates requires only 20 hashes.[1][5]

Today, the largest public logs contain billions of entries. Even in a ledger holding 12 billion certificates, an inclusion proof requires a mere 34 hash operations. This mathematical efficiency is the sole reason real-time transparency does not add crushing computational latency to the TLS handshake.[2][5]

If logs were structured as flat lists, verifying a certificate would require scanning billions of rows, making the system too slow for web browsing. The Merkle tree compresses that global verification into a few dozen bytes of data and a fraction of a millisecond of processing time.[5]

Enforcement at the handshake

Browser vendors enforce strict rules about which logs they trust. Apple's policy for Safari requires that all new TLS certificates be accompanied by SCTs from at least two independent, approved logs. This redundancy ensures that if one log operator suffers an outage, the certificate remains valid.[4]

Google Chrome enforces a similar multi-log requirement. To prevent collusion, the policies often require that the logs be operated by different organizations. If a certificate authority operates its own log, the second SCT must come from a log managed by a completely separate entity, such as Cloudflare or Google.[2][4]

Logs that fail to maintain strict uptime or cryptographic consistency are swiftly penalized. Browser vendors maintain a dynamic list of trusted logs, distributed to users via software updates. If a log operator violates the append-only rule, their log is disqualified, and browsers will no longer accept new timestamps from it.[2][3]

This disqualification process is fatal to a log's utility. "When a log is removed from the trusted list, CAs must immediately stop relying on it for new issuances," notes the Let's Encrypt documentation. The authority must route its pre-certificates to other approved logs to ensure its customers' websites remain accessible.[3]

Auditors and ecosystem monitors

The transparency framework relies on independent monitors to watch the logs for suspicious activity. These automated systems continuously download new certificates as they are appended to the Merkle trees. They scan the incoming data for anomalies, such as a certificate issued for a domain without the owner's permission.[1][2]

Major technology companies and security firms operate these monitoring services. Cloudflare, Meta, and various independent researchers maintain infrastructure that parses millions of log entries daily. When a monitor detects a certificate matching a protected domain, it immediately alerts the domain owner.[2]

This real-time alerting flips the security dynamic. Instead of discovering a rogue certificate months after an attack, a company is notified within hours of its issuance. The domain owner can then contact the issuing authority to have the fraudulent credential revoked before it can be weaponized.[2]

The system also exposes authorities that violate baseline issuance rules. If an authority issues a certificate with a lifespan exceeding the mandated 398-day maximum, the violation is permanently recorded in the public log. Monitors flag the error, and the browser vendors can take disciplinary action against the authority.[4]

Scaling to billions of credentials

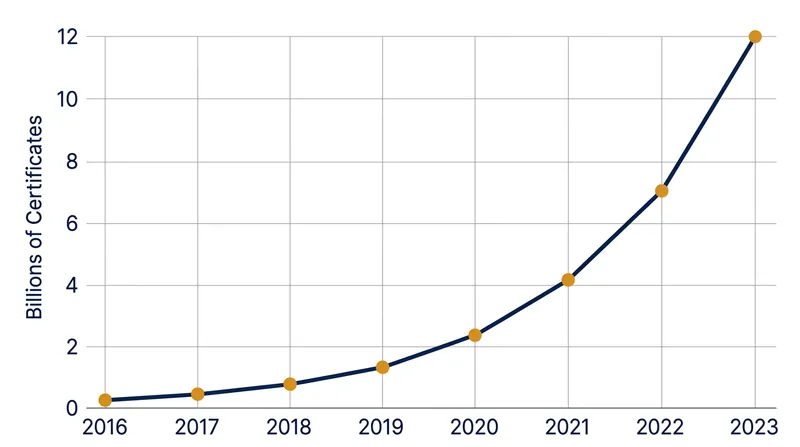

The volume of data processed by the Certificate Transparency ecosystem has grown exponentially. The rise of automated authorities like Let's Encrypt, which issue free, short-lived certificates, has pushed the total number of logged credentials past 12 billion. The Merkle tree architecture absorbs this scale effortlessly.[2][3]

To manage the sheer size of the ledgers, log operators eventually freeze older logs and spin up new ones. A log might be designated to accept only certificates that expire in the year 2026. Once that year passes, the log becomes a static historical record, and monitors shift their focus to the active shards.[1][3]

This temporal sharding prevents any single Merkle tree from growing infinitely large, while preserving the cryptographic integrity of the historical data. The older trees remain publicly accessible, allowing researchers to analyze long-term trends in cryptographic algorithms and certificate lifespans.[1]

By forcing every issuance into the light, Certificate Transparency has effectively eliminated the threat of silent CA compromise. The append-only Merkle tree transformed a fragmented, trust-based ecosystem into a mathematically verifiable ledger, ensuring that the foundation of web security remains visible to everyone.[2][5]
