Two Maximum Segment Lifetimes: Why TCP Holds Closing Sockets in TIME_WAIT to Drain Wandering Packets

The foundational constraint of the internet is that it guarantees neither the path nor the timing of the data it carries. Because packets can take wildly different routes across global routers, a segment of data transmitted right now might arrive minutes later than one sent after it.[10]

To provide the illusion of a reliable, ordered connection over this underlying chaos, the Transmission Control Protocol (TCP) must account for these delayed fragments. The protocol has to assume that ghosts of old data are constantly wandering the network, waiting to disrupt new communications.[1]

This constraint forces TCP to implement a mandatory waiting period at the end of every successful conversation. Known as the TIME_WAIT state, this mechanism intentionally holds network resources hostage to ensure that delayed packets drain from the internet before a connection's identifiers are reused.[7]

Without this quarantine period, modern web infrastructure would routinely corrupt data and abruptly terminate active sessions. Yet, because this state consumes finite server memory and port numbers, system administrators frequently view it as a performance flaw to be disabled rather than a critical safety feature.[2]

The mechanics of hanging up

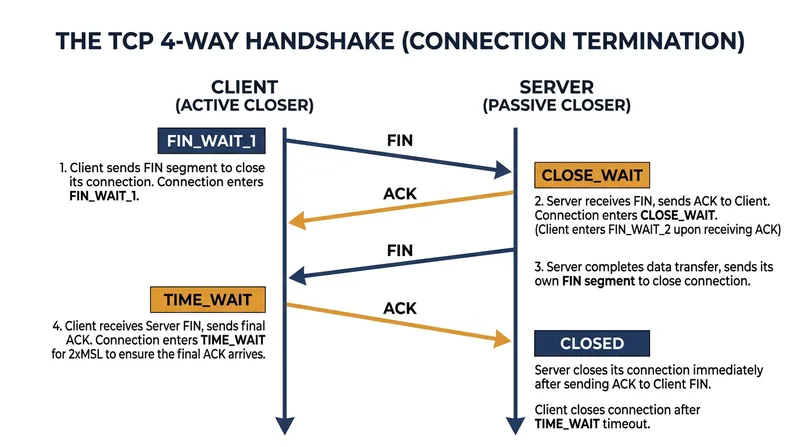

Closing a TCP connection requires a four-way handshake to ensure both sides have finished transmitting data. When a server or client decides to end the session, it sends a Finish (FIN) packet, which the other side acknowledges (ACK) before eventually sending its own FIN.[1]

The party that initiates this closure—the one that sends the first FIN—is said to perform an active close. This active closer is fundamentally responsible for ensuring the remote end successfully receives the final acknowledgment that terminates the session.[7]

If that final ACK is dropped by a congested router, the remote end will assume its own FIN was lost and retransmit it. The active closer must remain available to catch that retransmitted FIN and send another ACK, preventing the remote server from hanging indefinitely.[1]

This requirement forms the first justification for the TIME_WAIT state. The socket must be kept alive in the operating system's memory, fully capable of responding to delayed termination requests, even though the application itself has already moved on to other tasks.[4]

The second, more critical justification involves the concept of a connection incarnation. A TCP connection is uniquely identified by a four-tuple: the source IP address, the source port, the destination IP address, and the destination port.[7]

Draining the wandering packets

If a connection closes and those exact four numbers are immediately reused for a new session, any delayed packets from the previous conversation could arrive and be mistakenly accepted. These wandering packets would silently corrupt the new data stream, injecting old payload into a fresh request.[1]

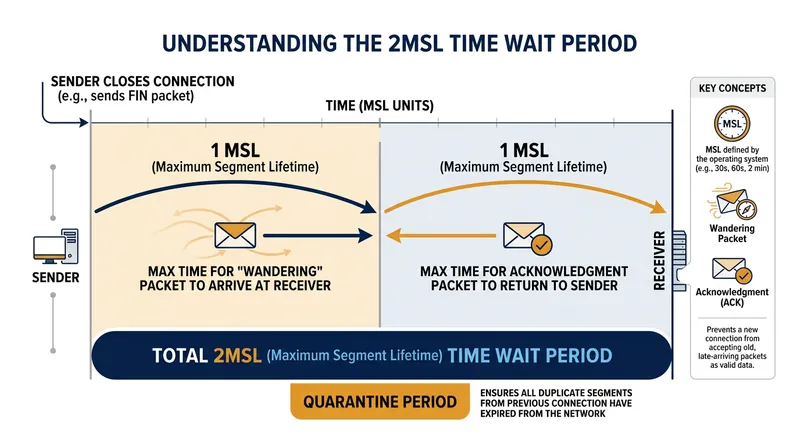

To prevent this data corruption, TCP mandates that the four-tuple cannot be reused until all potential wandering packets have expired in the network. The protocol defines a Maximum Segment Lifetime (MSL), representing the absolute longest time an IP packet can bounce between routers before being discarded.[1]

The official specification, RFC 9293, defines this maximum lifetime as two minutes. Because a packet might take one MSL to reach its destination, and an acknowledgment might take another MSL to return, the required quarantine period is set at twice the Maximum Segment Lifetime, or 2MSL.[1]

Under strict protocol rules, a socket in the TIME_WAIT state must remain locked for exactly four minutes. During this 240-second window, the operating system refuses to allocate that specific combination of IP addresses and ports to any new outbound connection.[1]

While four minutes guarantees absolute data integrity, it creates a severe bottleneck for modern, high-throughput web servers. A load balancer handling thousands of incoming requests per second must continuously open outbound connections to backend application servers, rapidly consuming available port numbers.[2]

The ephemeral port exhaustion limit

An operating system only has 65,535 available network ports, and typically reserves only a fraction of those—often around 28,000—for ephemeral, short-lived outbound connections. If a server opens 500 new connections per second, it will exhaust its entire ephemeral port range in less than a minute.[4]

When all available ports are locked in the TIME_WAIT state, the server simply stops functioning, rejecting new connections with a standard "Cannot assign requested address" error. This port exhaustion crisis forces operating system developers to compromise between strict protocol compliance and practical server performance.[2]

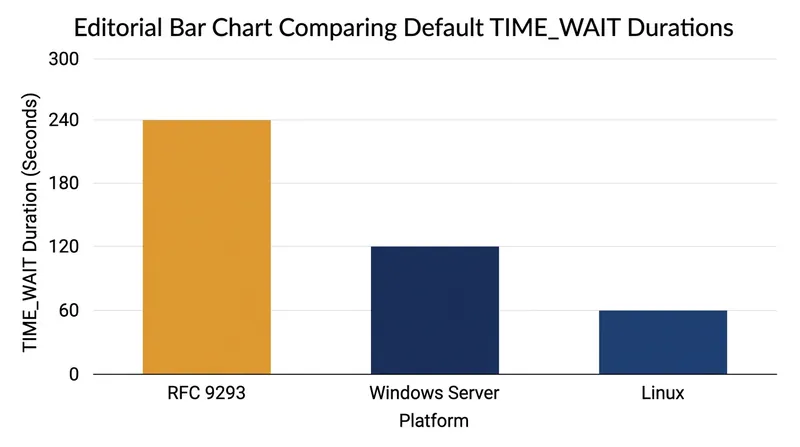

Linux kernel developers chose to abandon the four-minute RFC mandate entirely, hardcoding the TIME_WAIT duration to just 60 seconds. This aggressive reduction, defined by the TCP_TIMEWAIT_LEN constant, quadruples the server's connection capacity while accepting a statistically negligible risk of packet corruption.[2][4]

Windows Server takes a slightly more conservative approach, defaulting the quarantine period to 120 seconds. However, Microsoft provides registry settings that allow administrators to manually reduce this interval to as low as 30 seconds for high-frequency trading or intensive web-caching workloads.[5][9]

Even with these reduced timers, hyper-scale cloud environments frequently hit the port exhaustion wall. This leads administrators to seek out kernel tuning parameters that promise to bypass the TIME_WAIT state entirely, often with disastrous consequences for network stability.[2]

The danger of aggressive recycling

For years, Linux offered a sysctl parameter called tcp_tw_recycle, which aggressively reused quarantined sockets by tracking the timestamps of incoming packets. While it appeared to solve port exhaustion, it fundamentally broke connections originating from behind Network Address Translation (NAT) devices.[2]

Because a NAT router masks multiple users behind a single IP address, their individual device timestamps inevitably drift out of sync. The aggressive recycling mechanism would see these mismatched timestamps, assume the packets were invalid, and silently drop legitimate traffic from entire corporate offices or public Wi-Fi networks.[2]

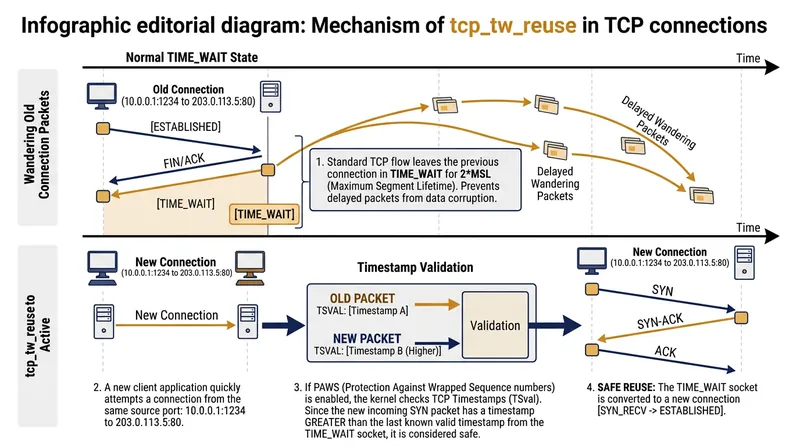

The breakage was so severe that Linux kernel maintainers completely removed the tcp_tw_recycle option in version 4.12, forcing administrators to find safer alternatives. The recommended approach is now tcp_tw_reuse, which allows an outbound connection to claim a TIME_WAIT socket only if it is mathematically proven safe.[2][3]

The tcp_tw_reuse setting relies on TCP timestamps to guarantee that packets from the new connection can be distinguished from wandering packets of the old one. This provides a safe release valve for outbound port exhaustion without risking the data corruption that the 2MSL timer was designed to prevent.[3]

The complexity of managing these states is documented in RFC 1337, which details the "TIME-WAIT Assassination Hazards." This 1992 specification explains how a stray Reset (RST) packet from an old session can prematurely terminate a socket resting in the quarantine state.[8]

If the TIME_WAIT state is assassinated early by such a packet, the protection it offers vanishes instantly. The operating system is then free to reallocate the four-tuple, reopening the door to the exact data corruption and connection instability the mechanism was built to prevent.[8]

Why the quarantine remains necessary

Another common, yet destructive, workaround involves configuring the SO_LINGER socket option with a timeout of zero. This forces the operating system to abort the connection instantly by transmitting an RST packet, bypassing the four-way handshake and skipping the TIME_WAIT state entirely.[2][7]

Aborting a connection with an RST packet destroys any data that was still waiting in the operating system's transmission buffers. It also violates the fundamental reliability guarantee of TCP, treating a normal conversational closure as a catastrophic network error.[7]

The persistence of the TIME_WAIT state highlights the tension between theoretical protocol design and practical internet engineering. The original architects of TCP prioritized absolute data integrity, assuming a network where packets could be delayed for minutes across slow, unreliable satellite links.[10]

Modern fiber-optic networks rarely delay packets for more than a few seconds, making a four-minute quarantine seem absurdly conservative. Yet, the underlying physics of packet switching remain unchanged, and the possibility of a delayed segment arriving out of nowhere can never be entirely eliminated.[10]

Ultimately, the TIME_WAIT state is not a bug to be patched, but a structural load-bearing pillar of internet reliability. It ensures that the ghosts of closed connections fade away quietly, rather than haunting the data streams of the applications that follow them.[10]
