Decoding UTF-8: How Leading Bits Route 140,000 Characters Through a Legacy ASCII Bottleneck

Systems engineers prioritizing memory efficiency argue that text should consume exactly one byte per character, a constraint that keeps databases lean and network payloads small. Internationalization advocates counter that a single byte, capped at 256 possible values, structurally erases the majority of the world's writing systems, demanding a shift to 16-bit or 32-bit fixed-width architectures to accommodate over 140,000 global characters.[7]

In the early 1990s, this architectural standoff threatened to fracture the internet into incompatible regional networks. A fixed 32-bit standard, UTF-32, provided enough room for every language but quadrupled the storage cost for standard English text and introduced null bytes that shattered legacy C programming functions. The solution, formalized in 1993 by Ken Thompson and Rob Pike, was a variable-length encoding scheme that dynamically scales from one to four bytes based on the specific character being rendered.[3][7]

The elegance of UTF-8 lies in its signaling mechanism, explicitly detailed in the Internet Engineering Task Force's RFC 3629. When a system reads a byte of text, it examines the highest-order bits to determine how to process the data. If the first bit is a zero, the system immediately knows it is handling a standard, one-byte ASCII character. As the IETF specification states, "UTF-8 encodes US-ASCII characters in one octet having the usual US-ASCII value," ensuring that any legacy document from 1975 remains perfectly valid in 2026 without a single line of conversion code.[1]

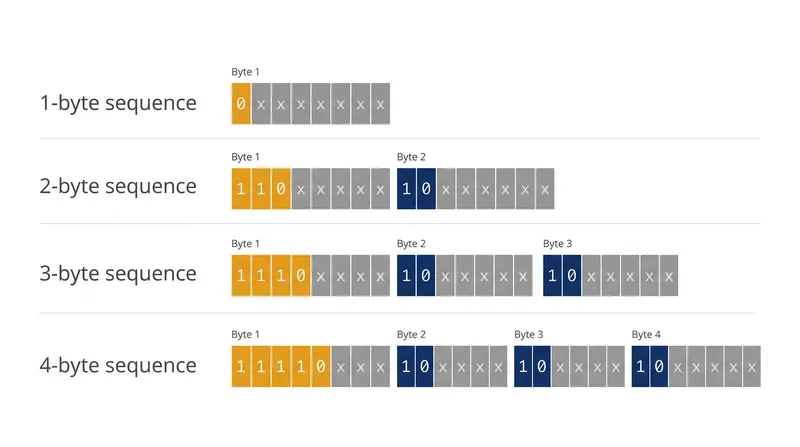

When a character falls outside the 128-value ASCII range—such as a Cyrillic letter, an Arabic consonant, or a modern emoji—the encoding shifts to a multi-byte sequence. The first byte of this sequence acts as a header, broadcasting the total length of the character to the processor. A byte beginning with the bits 110 indicates a two-byte character, 1110 signals three bytes, and 11110 announces a four-byte sequence.[1][8]

To prevent a computer from reading a multi-byte sequence starting in the middle and outputting gibberish, UTF-8 employs a strict structural boundary. Every subsequent byte in a multi-byte character must begin with the bits 10. As mathematician John D. Cook notes in his 2019 analysis of the protocol, this design means "you can start reading a stream of bytes anywhere and immediately know whether you are at the beginning of a character." If a processor lands on a byte starting with 10, it simply steps backward until it hits a valid header.[4]

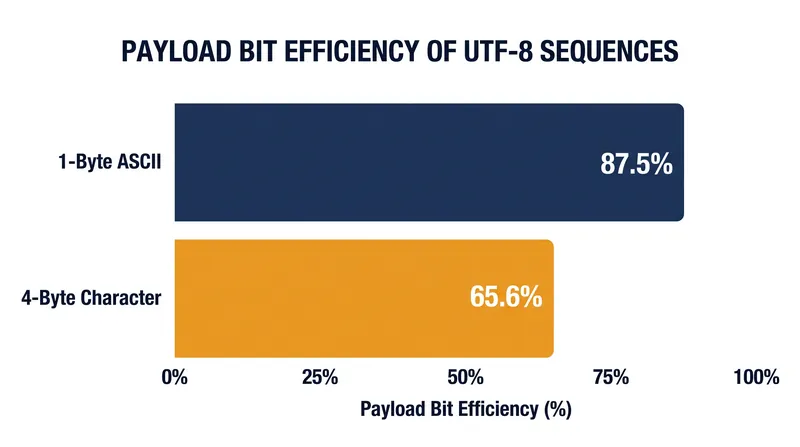

This dynamic routing requires a mathematical trade-off between character space and structural overhead. In a one-byte ASCII character, seven of the eight bits carry actual text data, yielding an 87.5 percent payload efficiency. However, in a four-byte sequence, the system must spend five bits on the header and two bits on each of the three continuation bytes, consuming 11 bits purely for routing. This leaves exactly 21 bits for the character payload out of the 32 bits allocated, dropping the structural efficiency to 65.6 percent.[1][9]

Those 21 bits are not an arbitrary ceiling. The Unicode Consortium caps the maximum valid code point at 10FFFF in hexadecimal, which requires exactly 21 bits to represent in binary. By aligning the four-byte UTF-8 maximum capacity perfectly with the Unicode upper bound, the protocol guarantees it can encode all 1,112,064 possible characters without ever needing a five- or six-byte sequence, a limitation the IETF formally locked into place in 2003.[1][6]

The strict bit-pattern rules also serve as a critical security boundary. Early implementations of UTF-8 allowed "overlong encodings," where a simple ASCII character like a slash could be padded with leading zeros and encoded in two or three bytes. Because legacy security filters only checked for the one-byte version of a dangerous character, attackers used overlong encodings to bypass directory traversal protections. Modern UTF-8 decoders, following the W3C's 2020 encoding guidelines, strictly reject any sequence that uses more bytes than mathematically necessary.[2][5]

The dominance of this protocol is now absolute, underpinning more than 98 percent of all web pages globally. The variable-length architecture proved that global compatibility did not require abandoning legacy infrastructure. The next technical threshold rests not on expanding the byte structure, but on how efficiently natural language processing models tokenize these variable sequences when training on non-Western datasets.[2][9]
