The Equivalent Body of Revolution and the Area Rule That Minimize Transonic Drag

In the spring of 1952, inside the 8-Foot High-Speed Tunnel at the National Advisory Committee for Aeronautics (NACA) Langley Research Center, engineers observed a phenomenon that was stopping the world's fastest jets dead in the air. As new interceptors approached the speed of sound, they encountered an invisible aerodynamic wall. The engines produced immense thrust, yet the aircraft could not punch through Mach 1.0. The culprit was an exponential spike in wave drag, a powerful force that consumed the aircraft's energy and rendered conventional aerodynamic designs entirely obsolete for supersonic flight.[5]

The prevailing wisdom of early aviation dictated that the most efficient shape for an aircraft fuselage was a smooth, uninterrupted cylinder or bullet. Wings, tail fins, and engine nacelles were treated as separate aerodynamic components, bolted onto this central body. However, as flight speeds entered the transonic regime—typically between Mach 0.8 and Mach 1.2—this modular approach to design triggered catastrophic aerodynamic penalties. The localized acceleration of air over the wings created supersonic shock waves, even if the aircraft as a whole was flying below the speed of sound, resulting in massive drag.[2][5]

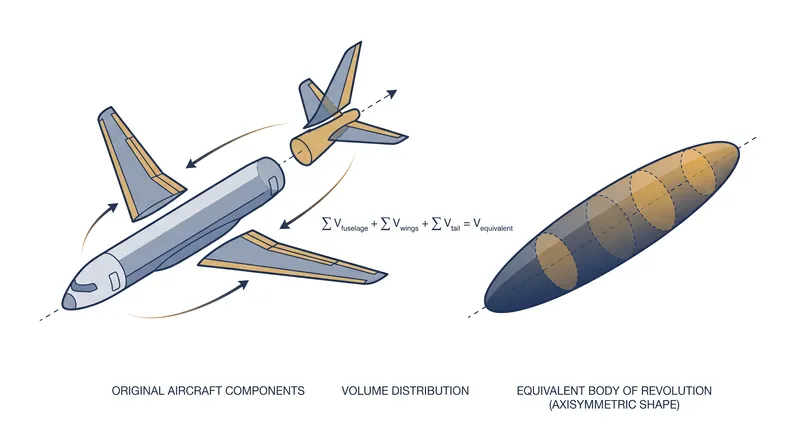

The breakthrough came from rethinking how the air perceives the aircraft. The air rushing past a transonic vehicle does not distinguish between a fuselage, a wing, or a tail. Instead, it reacts to the total cross-sectional area of the entire machine at any given longitudinal slice. This realization birthed the concept of the Equivalent Body of Revolution. By mathematically collapsing the complex, three-dimensional geometry of an airplane into a single, symmetrical cigar shape with the exact same cross-sectional area distribution, engineers could accurately predict the aircraft's wave drag.[1][4]

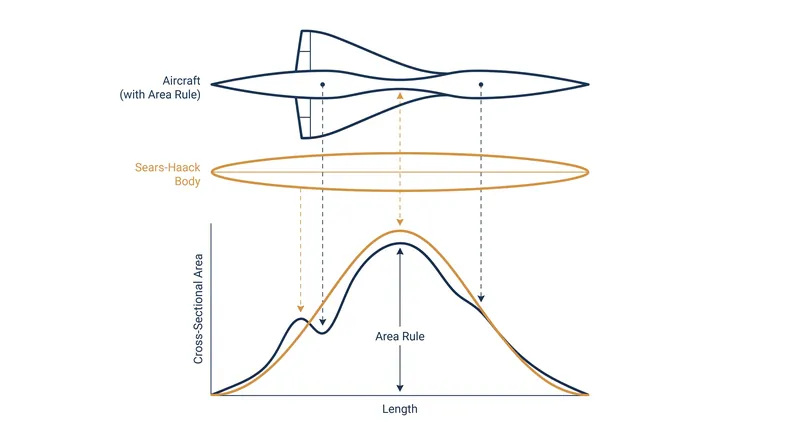

The area rule dictates that to minimize wave drag, this equivalent body of revolution must grow and shrink as smoothly as possible from nose to tail. If the cross-sectional area changes abruptly, strong shock waves form, bleeding energy from the aircraft. The ideal volume distribution for minimizing this drag is known as the Sears-Haack body, a mathematically derived shape that resembles a streamlined teardrop pointed at both ends. Any deviation from this smooth volumetric progression results in an immediate and severe aerodynamic penalty at transonic speeds.[2]

Applying this principle to a real aircraft requires a counterintuitive design choice. Because the wings suddenly add a massive amount of cross-sectional area to the middle of the aircraft, the fuselage itself must be narrowed at the exact point where the wings attach. This compensates for the added volume, keeping the total cross-sectional area of the equivalent body of revolution smooth and continuous. The result is the distinctive wasp-waist or Coke-bottle fuselage that defines early supersonic fighters, a visual hallmark of the area rule in practice.[1][5]

The empirical validation of this theory was striking. In early NACA testing, researchers applied specific fuselage indentations to a basic parabolic body to measure the drag reduction. The basic body had a frontal area equal to 0.0606 of the total wing planform area, paired with a wing featuring an aspect ratio of 3.04 and a taper ratio of 0.394. When tested in the wind tunnel, the results confirmed the area rule's profound impact on transonic performance, proving that holistic volume management was superior to component-level streamlining.[5]

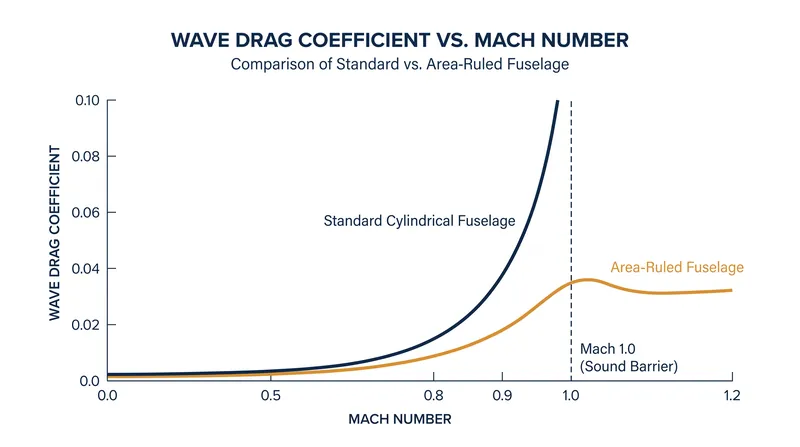

At Mach 1.0, an indentation optimized for Mach 1.10 reduced the drag rise of the basic configuration by 35 percent. A more aggressive indentation, optimized for Mach 1.41, reduced the drag rise by 20 percent at the speed of sound. As noted in the official NACA research report authored by James Rudyard Hall, 'The transonic area rule of reference 1 provides a simple and effective means for designing high-speed aircraft for low wave drag near the speed of sound.' This validation fundamentally altered aerospace engineering.[5]

The area rule's power lies in its lateral independence. The rule states that wave drag is determined by the longitudinal distribution of cross-sectional area, regardless of how that area is distributed laterally. This means that an aerodynamicist can offset the drag penalty of an external fuel tank or a bulky landing gear pod by carving out an equivalent volume from the adjacent fuselage. The air simply flows around the total volume, blind to the specific arrangement of the components, allowing for highly flexible aircraft configurations.[1][2]

While the transonic area rule revolutionized flight near Mach 1.0, its effectiveness diminishes as speeds increase further into the supersonic regime. Wind tunnel data demonstrated that the beneficial effects of fuselage indentation decreased steadily with increasing Mach number. By Mach 1.3, the drag reduction provided by the transonic area rule was significantly reduced, requiring engineers to develop more complex mathematical models to manage wave drag at higher velocities, where the simple transverse slices of the original rule no longer accurately represented the airflow.[3][5]

This limitation led to the development of the Supersonic Area Rule. Unlike the transonic rule, which relies on straight transverse slices through the aircraft, the supersonic rule calculates the equivalent body of revolution using oblique cuts that match the angle of the Mach cones generated at supersonic speeds. This requires a much more computationally intensive approach, as the optimal area distribution changes depending on the specific design Mach number, forcing designers to optimize the aircraft for a very narrow cruising speed window.[3][4]

In the supersonic regime, the design priority shifts. While fuselage shaping remains important, the primary tools for managing wave drag become wing sweep, airfoil thickness, and overall slenderness. The equivalent bodies of revolution generated by the supersonic area rule are used to evaluate the wave drag of various configurations, allowing designers to optimize the aircraft for a specific cruising speed. However, the dramatic fuselage indentations seen on transonic jets become less pronounced as the aerodynamic focus moves toward managing the oblique shock waves of supersonic flight.[3][4]

Today, the application of the area rule is more subtle than the dramatic wasp-waist designs of the 1950s. Modern commercial airliners, which cruise efficiently in the high transonic range, utilize the area rule through the careful positioning of components. Engine nacelles are placed precisely ahead of or behind the wing's maximum thickness, and flap track fairings are shaped to smooth out the area distribution at the rear of the wing, achieving the necessary volumetric balance without compromising the structural integrity of a cylindrical passenger cabin.[2]

Some aircraft employ anti-shock bodies—aerodynamic pods added to the trailing edge of the wing—to artificially smooth the cross-sectional area distribution and prevent the sudden onset of wave drag. These additions paradoxically reduce total drag by adding volume, perfectly illustrating the counterintuitive nature of the area rule. By filling in the volumetric gaps behind the wing, these pods ensure that the equivalent body of revolution tapers smoothly, preventing the abrupt aerodynamic changes that trigger energy-sapping shock waves at high cruising speeds.[1][2]

The transition from physical wind tunnel models to Computational Fluid Dynamics has transformed how the area rule is applied. High-fidelity simulations allow engineers to evaluate the equivalent body of revolution across thousands of design iterations in a matter of hours. However, even with advanced multifidelity comparison methods, the fundamental principle remains unchanged: smooth volume distribution is the key to transonic efficiency. CFD simply provides a sharper tool for achieving the ideal Sears-Haack distribution across increasingly complex, blended-wing-body aircraft architectures.[2][4]

The discovery of the area rule stands as a defining node in the history of aerospace engineering. By shifting the perspective from isolated components to the integrated system of the equivalent body of revolution, researchers unlocked the supersonic era. It is a testament to the power of systems-minded engineering, where understanding the holistic interaction of forces yields solutions that are invisible when looking at the parts in isolation. The area rule remains the invisible geometry governing every high-speed aircraft in the sky today.[1][6]
