The 20kN Major Axis Rating: How UIAA and CE Standards Dictate a Carabiner's Minimum Breaking Strength

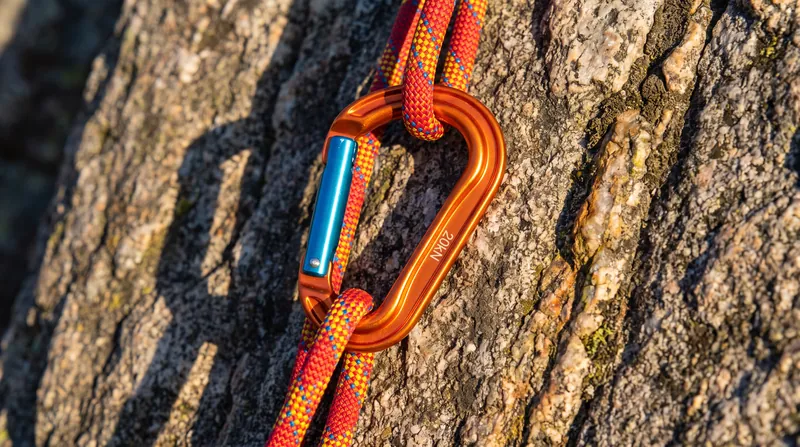

A carabiner stamped with a 20kN major axis rating is certified to withstand approximately 4,500 pounds of static force along its longest dimension before breaking. This minimum breaking strength is dictated by the Union Internationale des Associations d'Alpinisme (UIAA) and European Conformity (CE) standards. As the UIAA 121 document states, the standard "specifies safety requirements and test methods for connectors," ensuring the hardware survives forces far greater than any human body could generate during a fall.[1][9]

The 20-kilonewton (kN) figure provides a massive, non-negotiable safety margin. In physics, one kilonewton equals about 225 pounds of force. When a lead climber falls, the dynamic climbing rope stretches to absorb the impact, limiting the maximum force transferred to the top carabiner to roughly 9 or 10 kN. By mandating a 20kN minimum, standards bodies build in a 2:1 safety factor, ensuring the carabiner will not fail even under severe, worst-case scenario loads.[2][5]

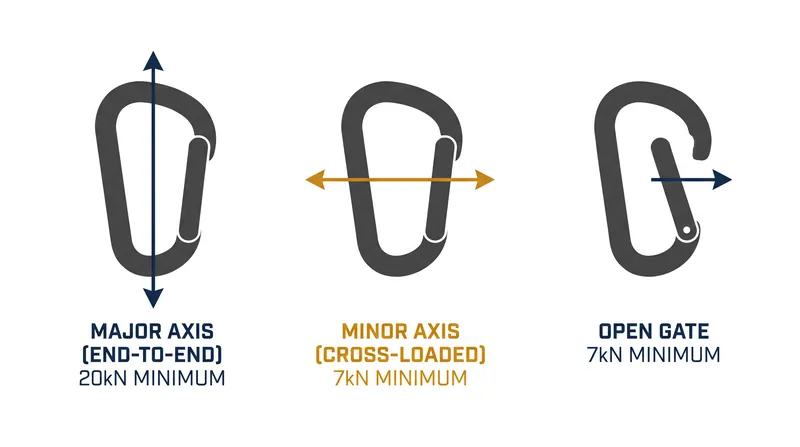

To understand how these ratings apply to real-world use, climbers must look at the three distinct strength values stamped on the spine of every certified carabiner. The first and largest number represents the major axis strength—the carabiner's capacity when loaded end-to-end with the gate fully closed. This is the strongest orientation of the equipment and the one it is designed to maintain during any load-bearing application.[3][10]

The second number indicates the minor axis strength, which measures the breaking point when the carabiner is cross-loaded across its width. UIAA 121 and CE EN 12275 standards dictate a minimum minor axis strength of just 7kN, or about 1,570 pounds. Because the gate and the back of the carabiner are significantly weaker than the solid spine, cross-loading reduces the hardware's overall strength by nearly two-thirds, making it a critical user error to avoid.[1][4]

The third rating is the open-gate strength. If a carabiner is loaded while its gate is open—a situation that occurs if the gate flutters against the rock during a fall or catches on a bolt hanger—its strength also drops to a minimum requirement of 7kN. Without the gate closed to complete the structural loop, the entire load is placed on the hook of the spine, which bends and snaps under forces that a closed carabiner easily holds.[2][9]

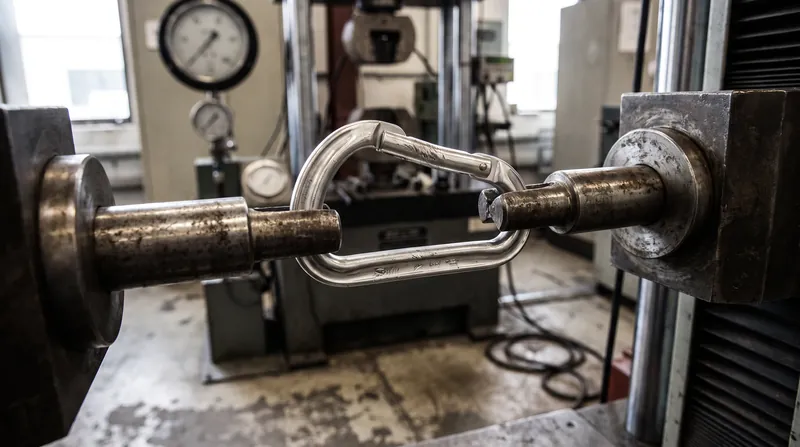

The testing procedures that verify these numbers are highly standardized and destructive. Manufacturers place the carabiner in a hydraulic tensile testing machine, pulling it apart using 12-millimeter or 10-millimeter steel pins. The machine applies a slow, static pull until the metal deforms and eventually fractures. To earn the CE or UIAA certification, every batch of carabiners must statistically prove that no unit will fail below the stamped minimum breaking strength.[5][10]

While the UIAA and CE standards are closely aligned, they serve different administrative roles. The CE mark (specifically EN 12275 for mountaineering equipment) is a legal requirement for selling personal protective equipment in the European Union. The UIAA standard is a voluntary global benchmark. In 2019, the UIAA updated its pictorial presentation of the standard to clarify these overlaps, showing that while the UIAA often adopts the EN baseline, it occasionally adds stricter testing criteria.[1][4][8]

For industrial users, such as arborists or rope access technicians, a different standard applies. The EN 362 standard governs connectors used for fall protection in occupational settings. While EN 362 also requires a 20kN major axis strength, it mandates different gate locking mechanisms—often requiring auto-locking gates that need two or three distinct movements to open, preventing accidental unclipping during extended work positioning.[6][7]

Despite the massive strength of modern aluminum alloys, climbers often worry about micro-fractures—invisible cracks caused by dropping a carabiner on a hard surface. Extensive testing by manufacturers has repeatedly shown that dropped aluminum carabiners do not suffer from hidden micro-fractures that compromise their 20kN rating. If a carabiner shows no visible deformation, deep gouges, or gate malfunction, its structural integrity remains intact.[2][3]

The real threat to a carabiner's strength is long-term wear from rope friction. As a dirty rope runs through a carabiner, the grit acts like sandpaper, eventually wearing a groove into the metal. If this groove becomes deep enough, it sharpens the edge, which can cut the rope during a fall, or it reduces the cross-sectional area of the aluminum, lowering the breaking strength below the certified 20kN threshold.[5][9]

Another critical factor is the shape of the carabiner itself. Standards dictate the minimum strength, but manufacturers use different shapes—such as D-shape, offset-D, oval, and HMS (pear-shaped)—to optimize how the load is distributed. A D-shaped carabiner naturally forces the rope and the anchor point against the solid spine, maximizing strength and making it easier to achieve ratings well above the 20kN minimum, often reaching 24kN or 25kN.[3][7]

Conversely, oval carabiners distribute the load equally between the spine and the gate side. Because the gate side is inherently weaker, oval carabiners must be built with thicker, heavier aluminum to meet the 20kN requirement. This trade-off between shape, weight, and strength dictates why climbers carry a variety of carabiner types, selecting the specific shape that best balances functionality with the mandatory safety margin.[2][10]

The 20kN rating serves as a guarantee of baseline security in a sport defined by risk. By standardizing the minimum breaking strength and enforcing rigorous testing protocols, the UIAA and CE ensure that equipment failure is almost never the cause of a climbing accident. As long as the user understands the limitations of the minor axis and open-gate scenarios, the hardware itself provides a margin of safety that far exceeds the demands of gravity.[1][8][11]
