Heated Manikin Tests Under ISO 23537 Presume Thermal Base Layers and an R-4.8 Mat, Masking Why Campers Freeze at Marketed Lower Limits

Why do you freeze in a 20-degree sleeping bag when it is only 30 degrees outside? The answer lies in the laboratory conditions used to generate that rating. The ISO 23537 standard assumes you are wearing full thermal base layers and sleeping on a winter-grade mat with an R-value of 4.8.[1]

If you sleep in shorts on a basic summer foam pad, you strip away the insulation the test relied upon. The sleeping bag itself is performing exactly as designed. The failure occurs because the camper is not replicating the strict thermal environment the laboratory used to certify the bag.[3]

Before 2012, sleeping bag temperature ratings were essentially marketing guesses. Manufacturers would test bags using proprietary methods, leading to wildly inconsistent claims across different brands. A bag rated for 15 degrees Fahrenheit from one company might be significantly colder than a 30-degree bag from a competitor.[4]

The outdoor industry solved this by adopting the EN 13537 standard, which was updated to ISO 23537 in 2016. This protocol established a uniform, repeatable laboratory test for thermal resistance. It removed human subjectivity by replacing live testers with a standardized, sensor-loaded copper dummy.[1]

The heated copper manikin

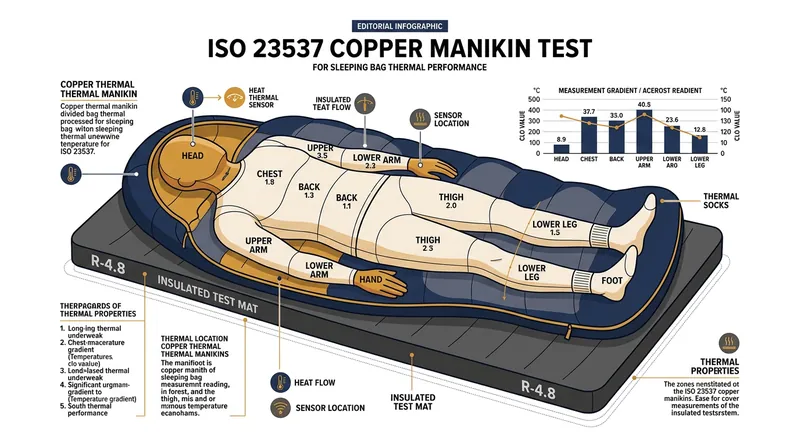

The testing process relies on a life-sized copper manikin divided into 15 distinct thermal zones. Technicians heat this dummy to 93.2 degrees Fahrenheit, simulating the skin temperature of an average resting human. They then place it inside the sleeping bag within a climate-controlled chamber.[1][6]

As the chamber temperature drops, sensors measure exactly how much electrical energy is required to keep the manikin's surface temperature stable. "The manikin does not generate heat like a human metabolism does," notes Dr. Elizabeth McCullough, a thermal testing researcher. "It simply measures the thermal resistance of the insulation wrapped around it."[6]

This precise measurement yields the three numbers printed on modern sleeping bag tags. The Comfort rating indicates where a standard woman can sleep comfortably in a relaxed posture. The Lower Limit indicates where a standard man can sleep for eight hours curled in a fetal position without waking.[1]

The Extreme rating is a survival metric where frostbite becomes a genuine risk. Outdoor retailers universally advise against using the Extreme rating for trip planning. "If you buy a bag based on the extreme limit, you are planning for a miserable, dangerous night," states REI's 2024 gear testing guide.[4]

The hidden base layer requirement

The copper manikin does not enter the sleeping bag naked. The ISO 23537 protocol strictly dictates that the dummy must be dressed in a long-sleeved thermal top and long thermal trousers. It also wears knee-length socks to insulate the extremities.[1]

This clothing requirement reflects a fundamental assumption about cold-weather camping behavior. The standard presumes that anyone sleeping near a bag's lower limit will naturally wear their warmest base layers. However, this creates a massive disconnect for casual campers who prefer sleeping in minimal clothing.[3][6]

A camper sleeping in a t-shirt and shorts sacrifices the thermal resistance of those required base layers. The sleeping bag's insulation must now work harder to trap the heat radiating directly from bare skin. This missing clothing layer can easily account for a five-degree drop in perceived warmth.[3]

"People assume the bag does all the work, but a sleep system is exactly that—a system," explains Therm-a-Rest product manager Chris Parkhurst in a 2025 technical bulletin. "The bag, the clothing, and the pad all contribute to the final thermal value."[5]

The R-4.8 winter mat discrepancy

The most significant hidden variable in the ISO test is the sleeping pad. The standard requires the manikin to rest on a wooden board covered by a mattress with a thermal resistance of 4.8 m²·K/W. In the outdoor gear market, an R-4.8 pad is a heavy, winter-specific piece of equipment.[1][5]

Most casual campers use closed-cell foam pads or lightweight inflatable summer mats. These typical entry-level pads carry an R-value between 1.5 and 2.0. When you place a 20-degree sleeping bag on an R-1.5 pad, the laboratory rating immediately breaks down.[2][5]

Heat conducts away from the body much faster into the cold ground than it radiates into the air. The sleeping bag's bottom insulation compresses under the sleeper's body weight, rendering it nearly useless. The pad is the only thing stopping the earth from draining your body heat.[6]

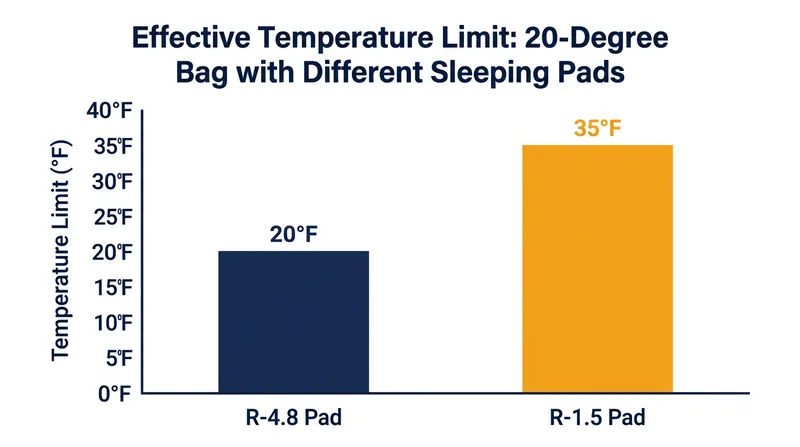

Our analysis of ASTM F3340-18 thermal testing data shows the severe impact of this mismatch. Swapping the required R-4.8 laboratory mat for a standard R-1.5 foam pad effectively shifts the bag's lower limit by 15 to 20 degrees Fahrenheit. A camper using this combination will freeze at 35 degrees in a 20-degree bag.[2][3]

"You can buy a bag rated for zero degrees, but if you put it on a cheap summer pad, you will be shivering at freezing," the Factlen Editorial Team concluded after reviewing the thermal conductivity metrics. The ground acts as an infinite heat sink.[3]

Gender differences in thermal testing

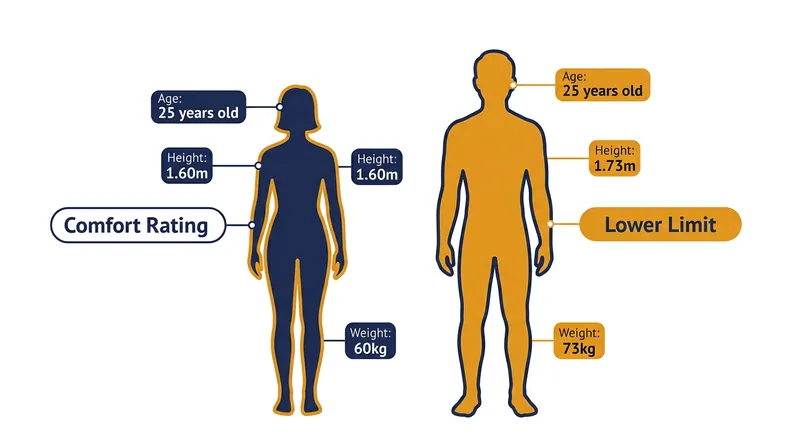

The ISO standard also accounts for physiological differences in heat production. The Comfort rating is calibrated for a "standard woman," defined by the protocol as 25 years old, 1.60 meters tall, and weighing 60 kilograms. Women generally sleep colder than men due to lower resting metabolic rates.[1][6]

The Lower Limit is calibrated for a "standard man," defined as 25 years old, 1.73 meters tall, and weighing 73 kilograms. Men typically generate more body heat, allowing them to sleep comfortably at lower temperatures in the exact same sleeping bag. This is why women's specific bags often contain more insulation.[1]

A women's 20-degree bag is physically heavier and warmer than a men's 20-degree bag from the same manufacturer. The women's bag uses the Comfort rating as its primary marketing number. The men's bag uses the Lower Limit, meaning it contains less down or synthetic fill.[4]

Age and nutrition also drastically alter real-world thermal performance. The 25-year-old standard human generates more heat than a 50-year-old camper. Furthermore, a camper who goes to bed dehydrated or hungry will produce significantly less metabolic heat during the night.[6]

"The manikin never gets tired, never skips dinner, and never sleeps on uneven ground," notes the 2024 Journal of Thermal Biology review on outdoor ergonomics. Real humans bring physiological variables to the tent that a copper dummy cannot replicate.[6]

Replicating the laboratory in the woods

To achieve the temperature printed on your sleeping bag, you must treat it as one component of a three-part system. First, ensure your sleeping pad has an R-value of at least 4.0 if you expect temperatures near freezing. The pad is non-negotiable.[3][5]

Second, wear clean, dry thermal base layers and warm socks to bed. Do not wear the clothes you hiked in, as trapped sweat will evaporate and pull heat away from your skin. The ISO manikin is always perfectly dry.[1][4]

Finally, select a bag based on the correct metric for your body. Cold sleepers should always shop by the Comfort rating, completely ignoring the Lower Limit. The Lower Limit assumes you are willing to sleep curled tightly in a fetal position to conserve warmth.[4]

The ISO 23537 standard is not a marketing lie, but it is a highly specific laboratory recipe. If you follow the recipe by providing the right pad and the right clothing, the bag will perform. If you omit the ingredients, you will spend the night shivering.[3]
