The Mechanism of Loop Closure: How SLAM Algorithms Correct Accumulated Odometry Drift

A robotic system navigating an unknown environment decides its current position by calculating the distance and direction it has moved since its last known location. It relies on wheel encoders, inertial measurement units, and optical sensors to estimate this movement, updating its internal map multiple times per second. But because no physical sensor is perfect, every calculation introduces a microscopic fraction of error.

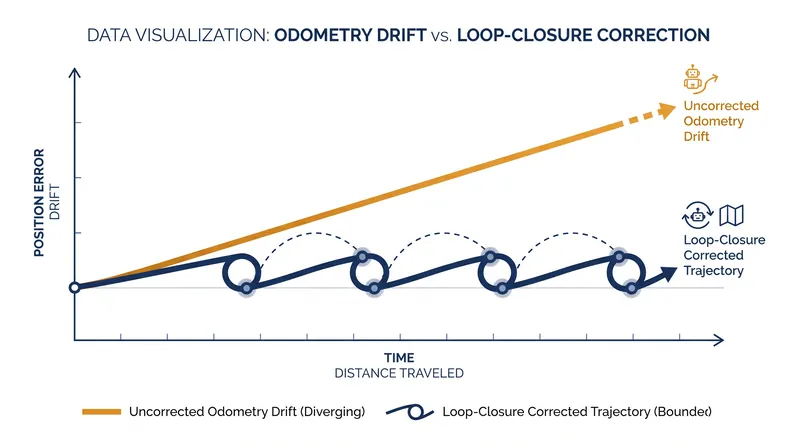

This continuous estimation process is known as odometry, and the inevitable accumulation of its inaccuracies is called odometry drift. According to mapping hardware developer XGRIDS, uncorrected odometry typically drifts by 1 to 2 percent of the total distance traveled. If an autonomous warehouse robot travels 1,000 meters, its internal map might place it 20 meters away from its actual physical location, driving it into a wall.[6]

The solution to this compounding error is a mechanism within Simultaneous Localization and Mapping (SLAM) algorithms known as loop closure. Loop closure is the mathematical equivalent of a human realizing they have walked in a circle and arrived back at a familiar landmark. When the algorithm detects a previously visited location, it calculates the discrepancy between where it currently thinks it is and where the map says it should be.[1]

The commercial robotics industry often markets SLAM as a flawless, real-time spatial awareness system, but the reality is far more iterative. "Loop closure detection is the process of recognizing a previously visited location," explains SLAMTEC, noting its critical role in correcting the accumulated drift in the estimated trajectory. This recognition triggers a retroactive correction, pulling the distorted map back into alignment with reality.[7]

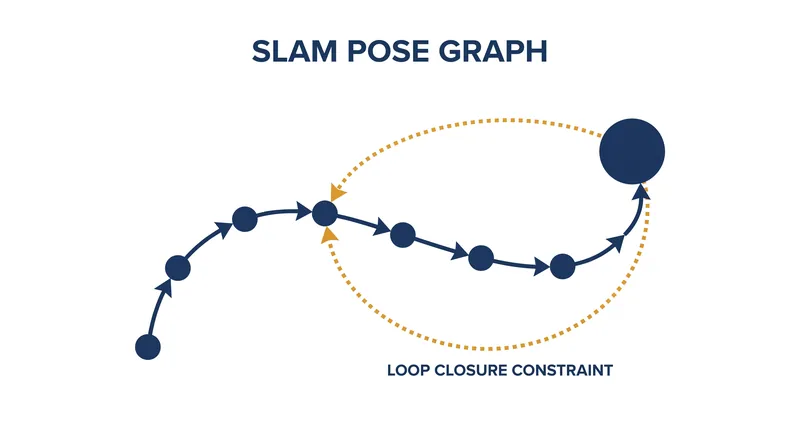

The mechanics of this correction rely on pose graph optimization. As a SLAM system moves, it constructs a graph where each node represents a specific position at a specific time, and the edges between nodes represent the odometry measurements connecting them. MathWorks, the developer of MATLAB, notes that this graph acts as the foundational data structure for the entire mapping process.[1]

When a loop closure event occurs, the system adds a new edge to this graph—a constraint linking the current pose directly to the historical pose of the recognized landmark. Because the system now has two conflicting paths to the same location, it must resolve the mathematical tension.

It does this by running an optimization algorithm, which minimizes the total error across the entire graph. The algorithm retroactively shifts every historical node, distributing the accumulated drift backward along the trajectory. This transforms a bent, overlapping map into a rigid, consistent representation of the physical space.[1]

Detecting that a location has been visited before is computationally demanding, particularly in large-scale environments. A 2014 paper published in IEEE Xplore detailed an online global loop closure detection method for multi-session graph-based SLAM, highlighting the challenge of matching current sensor data against a massive historical database in real-time.[2]

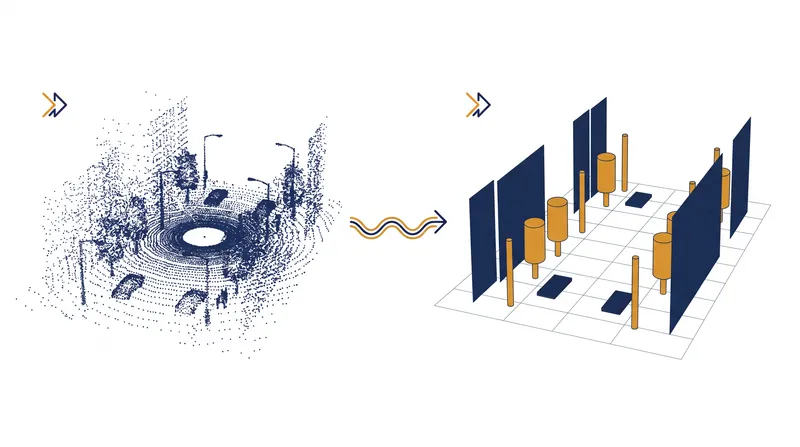

To manage this computational load, modern SLAM systems use feature extraction. Instead of comparing raw images or dense 3D point clouds, the algorithm extracts distinct geometric or visual features—such as the sharp corner of a desk or the specific curvature of a pillar. These features are compressed into mathematical descriptors, allowing the system to search its database efficiently.

In LiDAR-based SLAM, which relies on laser pulses to measure distance, researchers have developed specialized descriptors like Scan Context. A 2024 study published in the National Center for Biotechnology Information demonstrated an enhanced loop closure method for urban environments using Scan Context to improve place recognition accuracy.[4]

The study introduced a 'When-to-Loop' strategy, which evaluates the quality of the surrounding environment before attempting a loop closure. If the robot is in a featureless environment—such as a long, uniform tunnel—the algorithm suppresses the loop closure search to save computational resources and prevent false positive matches.[4]

False positives are the most severe failure mode for a SLAM system. If the algorithm incorrectly identifies a similar-looking but physically different location as a loop closure, the optimization process will violently warp the map, destroying its structural integrity. Researchers at the Australian Robotics and Automation Association have extensively documented the catastrophic effects of perceptual aliasing—when two distinct places look identical to the sensors.[5]

To prevent this, robust SLAM systems employ outlier rejection algorithms. These algorithms verify the geometric consistency of a proposed loop closure before accepting it. If the spatial relationship between the current features and the historical features does not perfectly align, the system discards the match and continues relying on odometry.

Recent advancements in LiDAR SLAM have focused on integrating loop closure more deeply with the initial odometry estimation. A 2026 preprint on arXiv detailed a method for improving map consistency through 'information-aware odometry and retroactive loop closure,' which dynamically adjusts the weight given to odometry versus loop closure based on the confidence of the sensor data.[3]

This dynamic weighting allows autonomous systems to maintain centimeter-level accuracy even in complex environments. By continuously refining the pose graph, the system ensures that its internal representation of the world remains anchored to physical reality, enabling the reliable navigation that underpins modern robotics.[8]
