The End of the Front-Side Era: How Backside Power Delivery is Saving Moore's Law

For over 60 years, the semiconductor industry has followed a strict architectural rule: everything goes on the front. Transistors, the microscopic switches that perform calculations, are etched into the top of a silicon wafer. Above them, a microscopic metropolis of metal wiring is stacked layer by layer to deliver both electrical power and data signals.[3]

But as the industry pushes into the artificial intelligence era, this front-side monopoly has created a catastrophic traffic jam. Modern AI accelerators and mobile processors pack tens of billions of transistors into an area the size of a postage stamp. Feeding electricity to all of them through the same crowded microscopic highways used for data has become the primary bottleneck threatening the continuation of Moore's Law.[1][5]

Enter the Backside Power Delivery Network (BSPDN). In what represents the most radical shift in chip architecture in decades, semiconductor manufacturers are now routing power through the bottom of the silicon wafer.[1][3]

By decoupling the power grid from the data network, BSPDN solves multiple physical limitations simultaneously. It is the engineering triumph that is allowing the industry to break through the so-called "power wall" at the sub-3-nanometer scale, ensuring that the next generation of devices will be faster, cooler, and vastly more energy-efficient.[1][5]

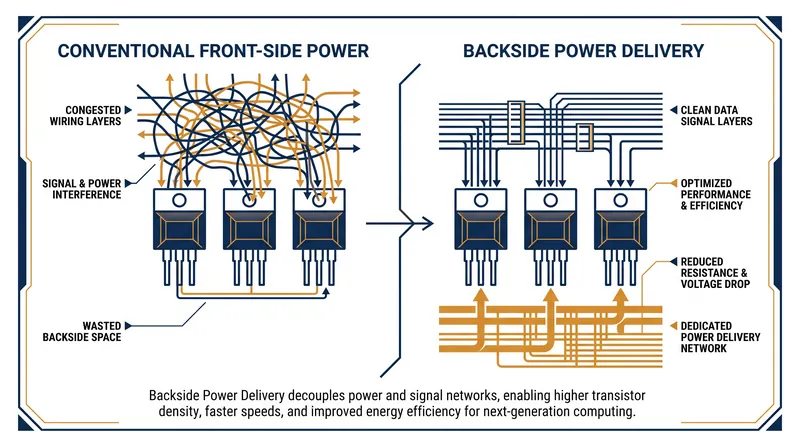

To understand the breakthrough, one must visualize the microscopic congestion it relieves. In a conventional logic chip, up to 15 layers of metal wiring sit above the transistors. The thickest wires at the very top carry power, which must travel down through a maze of vertical connections—called vias—to reach the transistors at the bottom.[3]

Because power and data signals share this same real estate, chip designers have been forced into agonizing compromises. Power rails demand thick, wide wires to carry current without resistance, eating up valuable space that could otherwise be used to route data signals between logic gates.[3][5]

Worse, as power travels down through this labyrinth, it suffers from "IR drop"—a loss of voltage caused by the electrical resistance of the wiring. By the time the electricity reaches the transistor, the voltage can droop significantly, forcing designers to pump more power into the chip just to ensure stability, which in turn generates excess heat.[1][3]

BSPDN flips the script. Instead of forcing power to navigate the front-side traffic jam, engineers now thin the silicon wafer from the back until it is practically transparent. They then drill microscopic holes—nano-Through-Silicon Vias (n-TSVs)—directly into the underside of the transistors and attach the power grid to the back of the chip.[3]

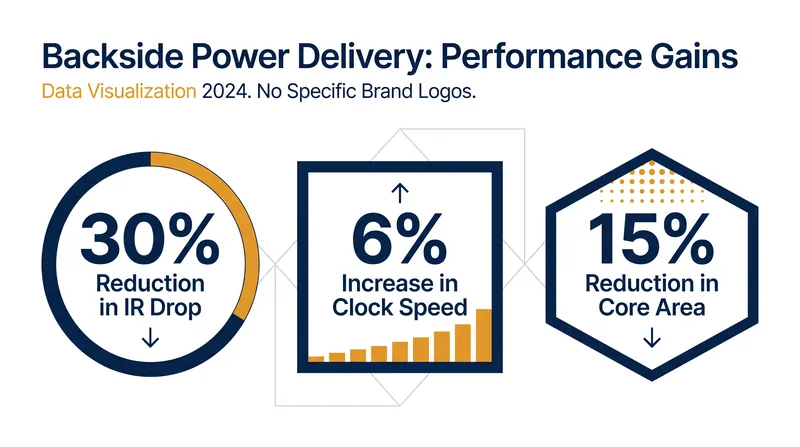

The performance gains are staggering. According to industry benchmarking, moving power to the backside enables a 20% to 30% reduction in IR drop. Because transistors receive a cleaner, more direct supply of electricity, they can operate at higher frequencies, yielding a 2% to 6% increase in maximum clock speeds.[1]

Furthermore, evicting the bulky power rails from the front side frees up massive amounts of routing space. Chip designers report a 5% to 15% reduction in core area, allowing them to pack more logic and memory into the same physical footprint.[1][3]

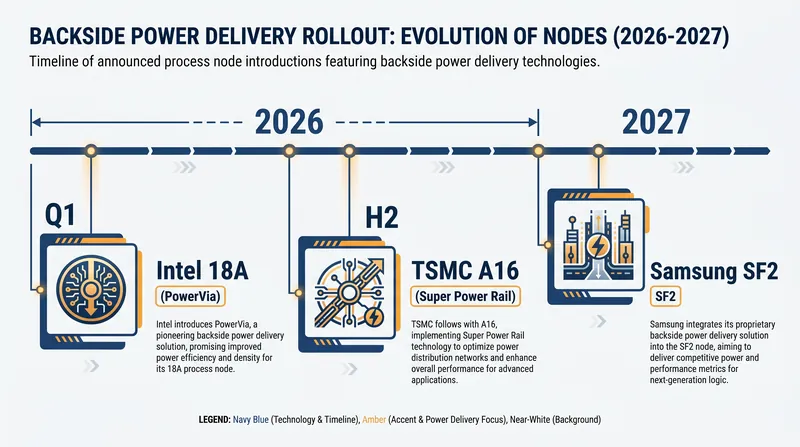

The transition from laboratory concept to mass production is happening right now, marking 2026 as a watershed year for semiconductor manufacturing. Intel has taken an early lead in commercializing the technology, which it brands as "PowerVia."[3][4]

At the Consumer Electronics Show (CES) in January 2026, Intel officially launched its Core Ultra Series 3 processors, code-named Panther Lake. Built on the company's cutting-edge 18A process node, Panther Lake is the industry's first high-volume client platform to feature backside power delivery.[2][4][6]

The results validate the architectural shift. Intel reports that Panther Lake delivers up to a 60% improvement in multi-threaded performance and a 15% improvement in performance-per-watt compared to its predecessor, achieving up to 27 hours of battery life in mobile devices.[6][7]

But Intel is not running this race alone. TSMC, the world's largest contract chipmaker, is preparing its own implementation, dubbed the "Super Power Rail." TSMC plans to introduce the technology in its A16 process node, which is targeted for production in the second half of 2026.[1][3]

Unlike Intel's initial PowerVia, which connects to the transistor via an intermediate layer, TSMC claims its Super Power Rail will connect power directly to the transistor's source and drain, potentially offering even greater efficiency gains for high-performance AI chips. Samsung is also aggressively developing its own BSPDN architecture for its upcoming 2-nanometer (SF2) node.[1][3][5]

Achieving this manufacturing miracle is not without immense challenges. The process requires extreme precision. Wafers must be mechanically ground and chemically polished down to microscopic thicknesses without shattering.[3]

Once thinned, the fabrication equipment must achieve near-perfect alignment between the new backside metal layers and the nanometer-scale transistors on the front side. Even a microscopic misalignment can render the entire chip useless.[1]

Thermal management also presents a new frontier of complexity. In conventional chips, the silicon substrate acts as a heat sink. With BSPDN, the transistors are effectively sandwiched between two thick blankets of metal wiring—the signal network on top and the power network on the bottom—trapping the heat they generate.[1]

To mitigate this, engineers are developing advanced thermal modeling and exploring innovative cooling techniques, including the potential for running liquid coolant directly through the packaging layers of future AI accelerators.[1]

Despite these hurdles, the industry has reached a consensus: the front-side era is over. As artificial intelligence models grow exponentially larger, the demand for denser, more power-hungry silicon will only accelerate. By utilizing the forgotten half of the silicon wafer, backside power delivery ensures that the relentless march of technological progress will continue unabated.[3][5]
