How Launch Azimuth and Orbital Inclination Determine the Instantaneous Launch Window

At Space Launch Complex 40 on Cape Canaveral, the countdown clock for a mission to the International Space Station does not hold for weather. If a stray anvil cloud violates flight rules at T-minus 30 seconds, or if a boat drifts into the downrange exclusion zone, the launch director does not pause the count to wait for the sky to clear. The mission is scrubbed for the day, the cryogenic propellant is drained back into the storage spheres, and the engineering teams reset for a future attempt. This rigid adherence to the clock often frustrates observers accustomed to the flexible departure times of commercial aviation, but it is not a matter of operational preference. It is a hard constraint imposed by the physics of orbital mechanics.

This unforgiving schedule is dictated by what orbital dynamicists call an "instantaneous launch window"—a single second in time when the geometry of Earth's rotation perfectly aligns the launch pad with the target's orbital plane. To understand why this window is so impossibly narrow, one must first look at how a rocket leaves the pad and the mathematical boundaries that govern its ascent through the atmosphere. The trajectory is not drawn freely in the sky; it is strictly bounded by the latitude of the launch site, the rotational speed of the planet, and the specific compass heading the vehicle flies as it clears the tower.[4]

The compass heading a rocket flies during its initial ascent is known as the launch azimuth. Measured clockwise from true north, the launch azimuth is the precise point where local geography writes itself into orbital mechanics. A rocket departing due north flies an azimuth of 000 degrees, while a vehicle heading due east flies at exactly 090 degrees. This heading is programmed into the rocket's guidance computer long before liftoff, dictating the pitch and yaw maneuvers the vehicle will execute as it climbs through maximum dynamic pressure and heads toward the vacuum of space.[1]

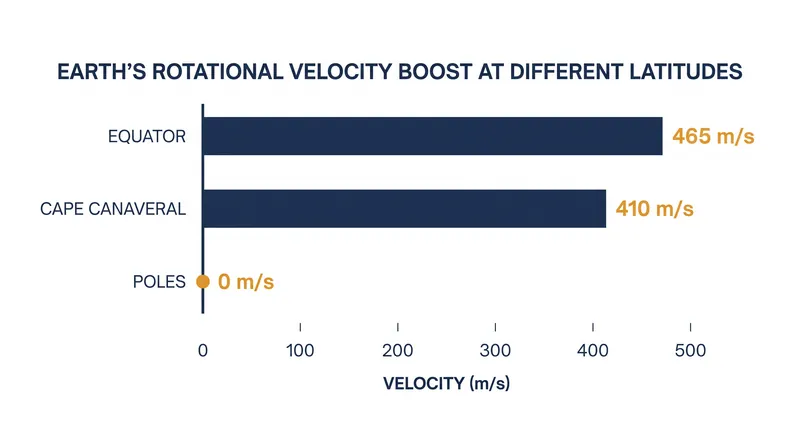

Launching due east is highly prized by mission planners because it allows the vehicle to pocket Earth's rotational velocity as a free performance boost. At the equator, the surface of the planet spins eastward at roughly 465 meters per second. A rocket launching from an equatorial pad harvests that entire velocity without burning a single drop of propellant, significantly reducing the delta-v required to reach the 7,800 meters per second needed for low Earth orbit. This rotational subsidy is the primary reason space agencies prefer to build their launch facilities as close to the equator as geographically and politically possible.[1]

However, the launch azimuth does more than just determine the rotational boost; it directly dictates the resulting orbital inclination. Orbital inclination is the angle between the satellite's orbital plane and Earth's equator. A satellite orbiting directly over the equator has an inclination of zero degrees, remaining perpetually above the tropics. Conversely, a polar orbit that crosses directly over the North and South poles operates at an inclination of 90 degrees, allowing the satellite to eventually overfly every point on the planet's surface as the Earth rotates beneath it.[2]

Spherical trigonometry imposes a rigid, unbreakable rule on this relationship: a rocket cannot reach an orbital inclination that is lower than the latitude of its launch pad without executing a highly inefficient mid-flight maneuver. The achievable inclination is a mathematical function of both the pad's latitude and the sine of the launch azimuth. Because the sine of an angle can never exceed a value of one, the resulting orbital inclination will always be equal to or greater than the latitude from which the rocket departed.[3]

For example, the launch pads at Cape Canaveral sit at a latitude of 28.5 degrees North. A rocket launching due east from the Cape—flying an azimuth of 090 degrees—will enter an orbit with an inclination of exactly 28.5 degrees. This is the absolute minimum inclination a Florida launch can achieve directly. If a telecommunications company wants to place a satellite into a geostationary orbit with a zero-degree inclination from Florida, the rocket must fly to space and then burn a massive amount of propellant to flatten the orbit over the equator.[2]

If mission planners want to reach a higher inclination from that same pad, they must steer the rocket along a steeper azimuth, heading further north or south. As the launch azimuth tilts away from due east, the rocket sacrifices a portion of the Earth's rotational boost. A launch heading northeast to reach a 51.6-degree inclination requires more onboard propellant than a due-east launch, because the vehicle is no longer perfectly aligned with the planet's spin. This payload penalty is a standard trade-off in mission design.[1]

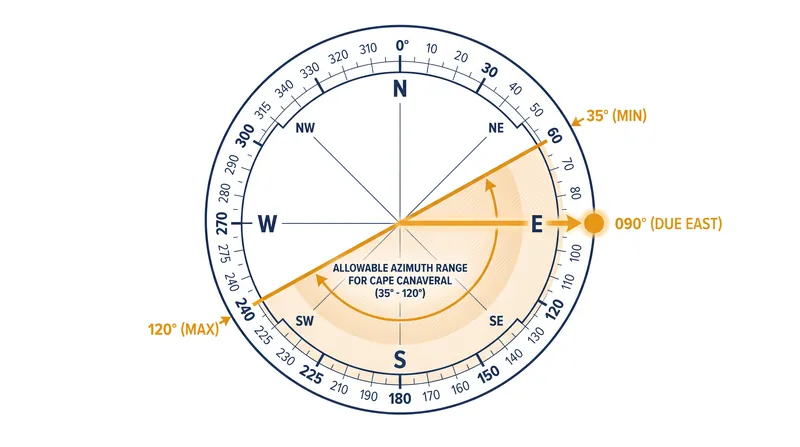

Furthermore, rockets cannot simply fly any azimuth that the math allows. Range safety constraints dictate that ascent corridors must overfly open ocean or unpopulated land to protect the public from falling booster stages, acoustic shockwaves, or catastrophic vehicle failures. Cape Canaveral is restricted to launch azimuths between 35 and 120 degrees. A launch outside this eastern fan would send the vehicle over the populated eastern seaboard of the United States or the landmass of South America, violating federal safety regulations.[1]

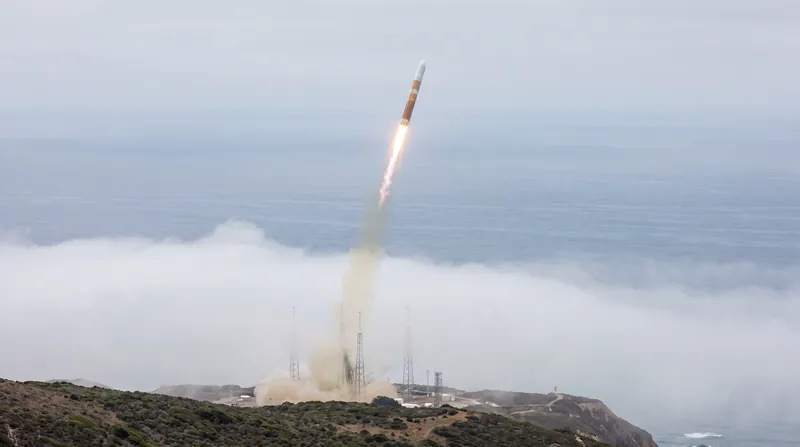

Vandenberg Space Force Base in California operates under a completely different set of geographical constraints. Launching east from Vandenberg would send rockets directly over the continental United States, an unacceptable risk. Instead, the facility launches south over the open expanse of the Pacific Ocean, utilizing allowable azimuths between 170 and 240 degrees. This southern corridor makes Vandenberg the premier United States facility for placing Earth-observation satellites and reconnaissance payloads into polar or sun-synchronous orbits, where high inclinations are required.[1]

When a spacecraft needs to rendezvous with an existing asset, like the International Space Station, the mathematical constraints compound significantly. The ISS orbits at an inclination of 51.6 degrees. This specific angle is a legacy of the Russian space program; it is the lowest inclination that Soyuz rockets can safely reach from the Baikonur Cosmodrome in Kazakhstan without dropping spent rocket stages into the neighboring territory of China. Every vehicle visiting the station, regardless of where it launches from, must match this 51.6-degree plane.[3]

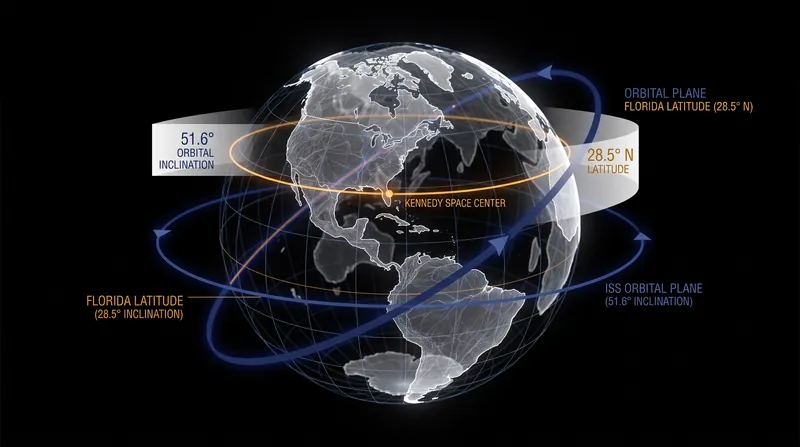

To reach that 51.6-degree plane from Florida, the launch azimuth must be precisely calculated to intersect the station's trajectory. But matching the inclination is only half the battle; the rocket must also launch at the exact moment when the pad physically passes through the station's orbital plane. The orbital plane of the ISS remains relatively fixed in space, while the Earth rotates continuously beneath it. This means the launch site only aligns with the target trajectory once or twice a day.[4]

This alignment defines the Right Ascension of the Ascending Node (RAAN), the specific orientation of the orbit in three-dimensional space. For a successful rendezvous, the ascending node of the rocket's initial parking orbit must perfectly match the ascending node of the space station. As the Earth rotates, the launch pad sweeps through the station's orbital plane. The exact second the pad crosses that invisible line in space is the instantaneous launch window.[4]

If the rocket launches even a few minutes late, the planet will have rotated the pad out of alignment. The vehicle would then launch into an orbital plane that is parallel to, but physically separated from, the space station. To reach the station from this offset plane, the spacecraft would have to perform a plane-change maneuver in the vacuum of space, firing its thrusters perpendicular to its direction of travel to tilt its orbit back into alignment.

Plane-change maneuvers are notoriously inefficient, requiring massive amounts of propellant to alter the spacecraft's momentum vector. A fully loaded cargo freighter or a crewed capsule simply does not have the fuel margins required to correct a launch delay of more than a few seconds. The physics dictate that it is vastly more efficient to wait on the ground for the Earth to rotate the pad back into alignment the following day than it is to attempt a plane change in orbit.

This reality forces launch providers to accept weather scrubs and technical delays rather than pushing a launch back by an hour. As SpaceX principal integration engineer John Insprucker noted during a 2020 Crew Dragon delay caused by poor weather, "In the end we can all look at Isaac Newton and Johannes Kepler for orbital dynamics telling us, 'When do we launch?'" The celestial mechanics are absolute, leaving no room for negotiation with the launch clock.

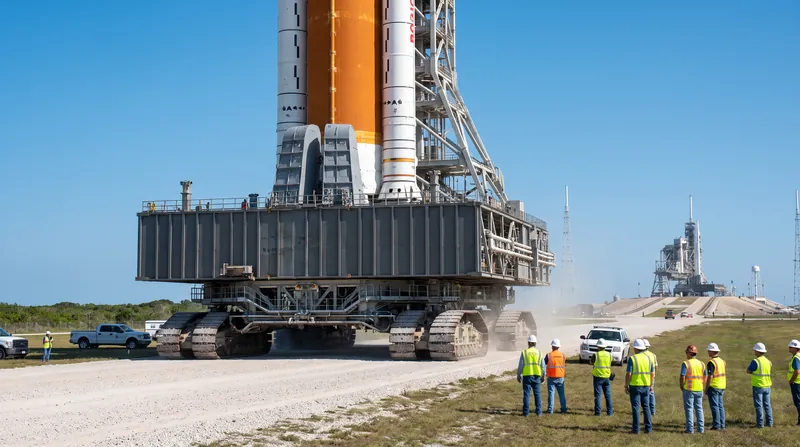

While some launch vehicles can artificially widen their launch windows, they do so at a significant performance cost. The Space Launch System (SLS), for instance, is designed to vary its launch azimuth slightly as a function of time during lunar missions. By dynamically steering the azimuth during ascent, the SLS can trade some of its massive payload capacity for a longer launch window, allowing the vehicle to track the Moon's apparent motion and increase the probability of a successful liftoff on a given day.[5]

For missions bound for the International Space Station, however, the instantaneous launch window remains an absolute, unyielding constraint. It represents the ultimate intersection of terrestrial geography, range safety, and orbital physics—a fleeting moment where the math perfectly aligns, and the rocket must fly. Understanding these mechanics demystifies the frustrating delays of spaceflight, revealing a system where humanity's access to orbit is entirely subservient to the rotation of the planet.[6]
