How Cryogenic Fuel and Milled Channels Keep Rocket Nozzles From Melting at 3,000°C

It is a common assumption among casual observers that orbital rockets survive the intense heat of launch by relying on thick armor plating or heavy ablative shielding. The visual of a spacecraft re-entering the atmosphere behind a thick, melting heat shield reinforces the idea that surviving extreme temperatures requires sacrificing massive amounts of material.

The engineering reality inside a liquid bipropellant rocket engine contradicts that assumption entirely. Instead of thick steel or titanium, aerospace engineers construct the combustion chamber walls from highly conductive copper alloys that are only millimeters thick. They rely entirely on the rocket's own cryogenic fuel to prevent the engine from vaporizing itself during flight.

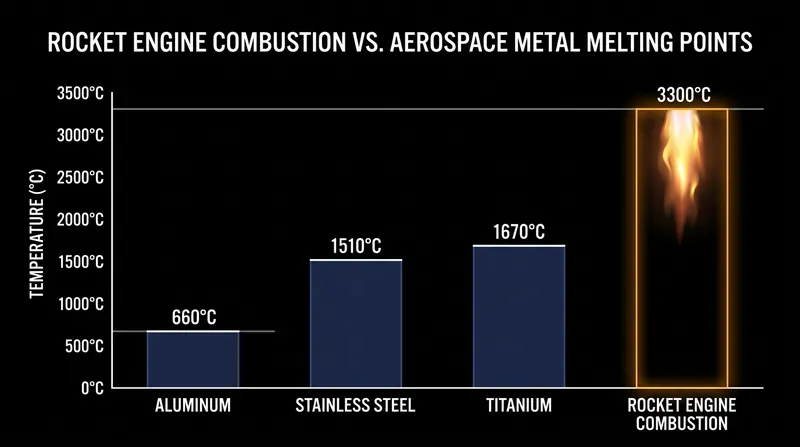

The temperatures inside a modern rocket engine's combustion chamber can reach 3,300 degrees Celsius during launch. That environment is roughly three times hotter than molten lava and exceeds the melting point of almost every known metal. Aluminum melts at 660 degrees Celsius, stainless steel at 1,510 degrees, and titanium at 1,670 degrees.[2]

If a rocket engine were built as a solid metal heat sink, the 3,300-degree combustion gases would melt the nozzle in seconds. To survive a sustained burn, the engine must transfer that thermal energy away from the metal faster than the heat can accumulate, a continuous process known as regenerative cooling.[1][2]

The Regenerative Cooling Mechanism

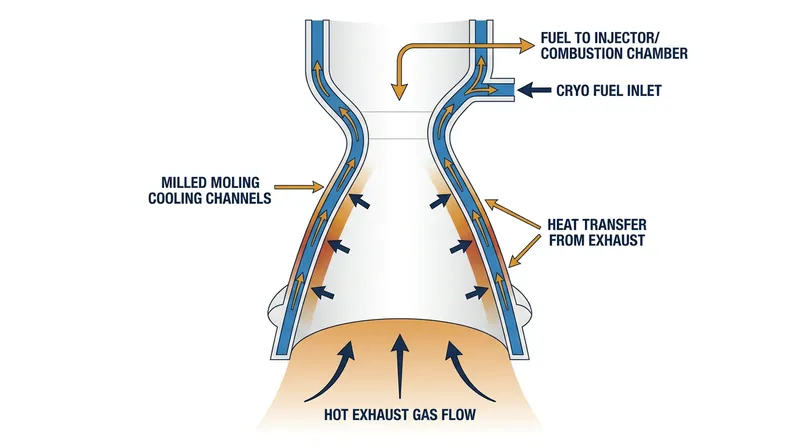

Regenerative cooling remains the predominant method for managing the extreme thermal loads in high-performance thrust chambers. Before the liquid propellant is injected into the combustion zone, it is first circulated through a jacket or a series of milled channels surrounding the nozzle.[1]

The cryogenic fuel, such as liquid hydrogen or liquid methane, acts as a highly effective coolant as it traverses the high-heat throat region. The fuel absorbs the destructive heat from the chamber walls, keeping the metal intact while simultaneously pre-heating the propellant to increase overall combustion efficiency.[1]

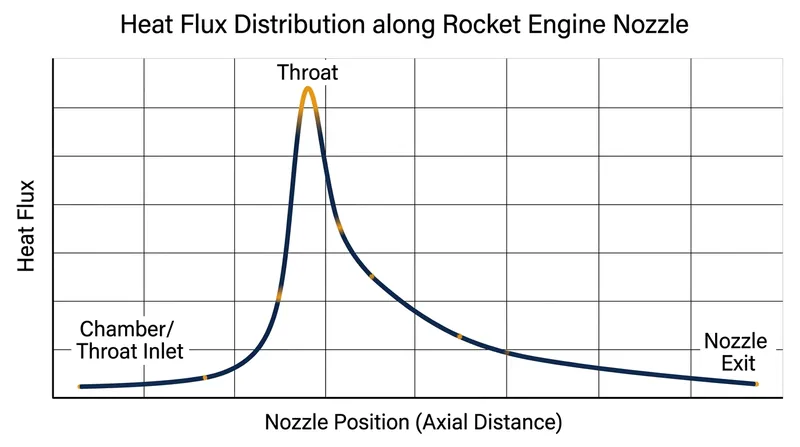

The cross-sections of these cooling passages are intentionally small, which increases the velocity of the coolant and maximizes cooling efficiency in the areas subjected to the highest heat flux. The throat of the nozzle, where the surface area is the lowest, experiences the most intense thermal load and is the most difficult region to cool.[1][2]

The design process requires a precise balance between the width of the cooling channels, the required temperature limits, and the resulting pressure loss. Smaller channels provide greater heat transfer, but they also force the engine's turbopumps to work harder to push the fuel through the restricted space.

"The pressure inside the walls has to be higher than the pressure of the combustion chamber," notes Everyday Astronaut in a 2022 analysis of engine cooling methods. Because the cooling channels feed directly into the injectors, the fluid must maintain a higher pressure than the combustion gases to flow correctly.

Copper Alloys and Additive Manufacturing

To maximize the transfer of heat into the fuel, engineers turn to metals with exceptional thermal conductivity. While pure copper is an excellent conductor, it lacks the mechanical strength required to withstand the immense pressures of a rocket engine at elevated temperatures.

To solve this, NASA developed a specialized family of copper-chromium-niobium alloys, most notably GRCop-42. This dispersion-strengthened alloy offers high thermal conductivity alongside the high-temperature strength necessary to survive the extreme thermal and mechanical loads experienced during engine operation.

GRCop-42 was specifically designed to be resistant to creep and cycle fatigue, making it an ideal choice for reusable rocket engines. The material allows combustion chambers to operate at higher temperatures, which significantly increases the efficiency of expander cycle engines by transferring more energy to the fuel.[1]

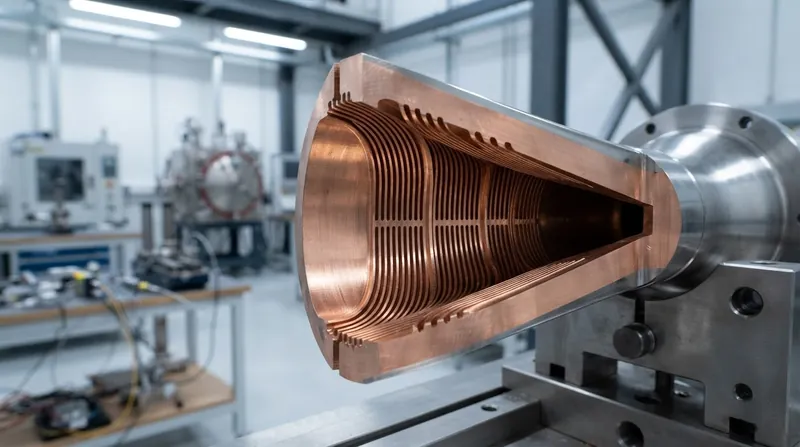

Historically, manufacturing complex regenerative cooling channels required brazing hundreds of individual metal tubes together to form the thrust chamber. Today, aerospace manufacturers utilize additive manufacturing, specifically laser powder bed fusion, to print the entire combustion chamber and cooling jacket as a single continuous component.[1]

Additive manufacturing allows engineers to create intricate channel geometries that are impossible to achieve with traditional machining. By varying the height-to-width aspect ratio of the channels along the nozzle, designers can optimize the heat transfer precisely where the thermal loads are highest.

Managing Thermal and Mechanical Stresses

The interaction between the extreme heat of combustion and the cryogenic cold of the fuel creates massive thermal gradients across the chamber wall. The inner liner of the engine is subjected to severe compression, while the outer wall of the cooling jacket experiences significant hoop stresses.[1]

The metal of the inner liner undergoes significant thermal expansion at the hot inner surface, while the cold-side wall of the liner constrains that expansion. This dynamic sets up significant thermal stresses that can cause the inner surface to crack or craze after multiple firings, particularly at the throat.[1]

The MIT Rocket Team encountered these exact structural challenges while designing their Osiris engine in 2026. "The cooling jacket constrains the thermal expansion of the inner channel walls," the team documented. "As heat flows in from the hot-gas wall, the channels attempt to expand outward, but the jacket restricts this motion."

To mitigate these stresses, engineers often supplement regenerative cooling with film cooling. A thin film of propellant is injected directly onto the inner surface of the chamber, providing a protective thermal boundary layer against the highest heat fluxes.

This combined approach allows modern liquid bipropellant engines to operate reliably for minutes at a time, and to be reused for dozens of flights. The fuel itself becomes the structural savior, absorbing the heat that would otherwise destroy the vehicle before it ever reached orbit.[1]

The Limits of Material Science

The margin for error in a regeneratively cooled system is virtually nonexistent. If the flow of cryogenic fuel through the milled channels is interrupted for even a fraction of a second, the copper alloy will exceed its melting point and the engine will experience a catastrophic burn-through.[2]

The cooling system must maintain a continuous thermal gradient of over 1,600 degrees Celsius across a wall that is only a few millimeters thick. The inner metal surface remains hundreds of degrees below its melting point, while the gas touching it is twice as hot as the metal's failure threshold.[3]

As launch providers push for higher performance and greater reusability, the demands on regenerative cooling systems continue to increase. Higher chamber pressures and hotter combustion temperatures require even more efficient heat transfer to keep the hardware intact.

The development of advanced alloys like GRCop-42 and the precision of 3D-printed cooling channels represent the cutting edge of thermal management. These invisible, microscopic fuel passages are the only thing standing between a successful orbital insertion and the instant vaporization of the engine.[2]
