Why Rockets Throttle Down Mid-Ascent to Survive Max Q

Every orbital launch vehicle must survive its own speed. Before a rocket can reach the vacuum of space, it must accelerate through the dense lower layers of Earth's atmosphere without its airframe buckling. This structural limit dictates the entire ascent profile, forcing flight computers to actively manage velocity to keep crushing forces within a safe margin.[3]

The point where this aerodynamic stress reaches its absolute peak is known as maximum dynamic pressure, or Max Q. It represents the most dangerous phase of the climb, a brief window where the physical forces trying to tear the rocket apart are at their strongest.[1]

If a vehicle were to simply fire its engines at full power continuously from the pad, the resulting pressure would exceed the design limits of its fairing and interstage. To survive this bottleneck, engineers employ a counterintuitive maneuver: they slow the rate of acceleration.[1]

As the rocket approaches the Max Q boundary, the flight computers deliberately throttle the main engines down. This reduces thrust to ease the vehicle through the thickest air. Once the atmosphere thins out sufficiently, the engines are throttled back up to full power to push for orbit.[1]

The Physics of Dynamic Pressure

Dynamic pressure, denoted by the letter "q" in aerospace engineering, is the kinetic energy of the air moving past the vehicle. It is calculated using a strict physical formula: one-half the atmospheric density multiplied by the square of the vehicle's velocity.[1]

This equation means that dynamic pressure is caught in a tug-of-war between two rapidly changing variables during a launch. Immediately after liftoff, the rocket is moving relatively slowly, but the air at sea level is at its thickest.[3]

As the engines continuously accelerate the vehicle, the velocity increases. Because velocity is squared in the dynamic pressure formula, the aerodynamic load climbs exponentially during the first minute of flight, pushing harder against the nose cone and leading edges.[1]

Simultaneously, the rocket is gaining altitude, climbing into progressively thinner layers of the atmosphere. The density of the air drops off exponentially the higher the vehicle goes. For the first several miles, the squared increase in speed vastly outpaces the drop in air density.[3]

Reaching the Crossover Point

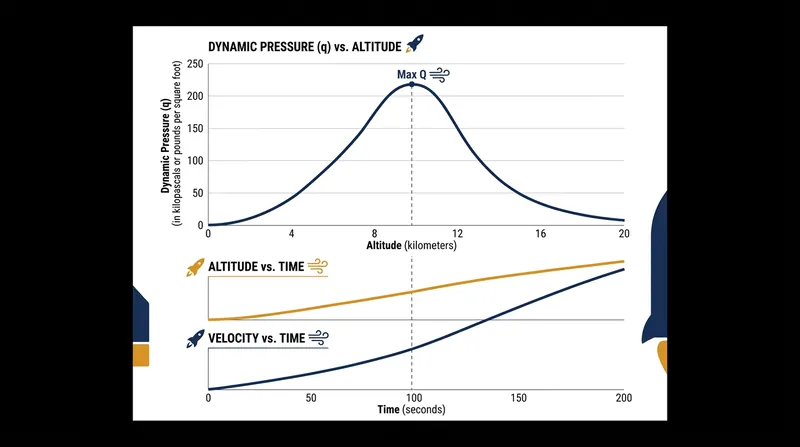

Eventually, the math flips. The rocket continues to accelerate, but the air becomes so thin that the drop in density begins to dominate the equation. The exact moment this crossover occurs is Max Q.[1]

After this point, the dynamic pressure falls away toward zero, even as the rocket pushes to hypersonic speeds. There is simply not enough air left to push back against the vehicle. For most orbital launch vehicles, this critical crossover happens roughly one minute after liftoff.[1]

Max Q typically occurs at an altitude of about 11 to 14 kilometers, while the vehicle is traveling at transonic or low supersonic speeds. The exact timing and altitude depend on the rocket's specific thrust-to-weight ratio and the day's weather conditions, but the physics remain universal.[1]

At Max Q, the aerodynamic forces are immense. A typical orbital rocket experiences a peak dynamic pressure of roughly 30 to 32 kilopascals, which translates to about 0.32 atmospheres. This places nearly five pounds of force per square inch against the front of the vehicle.[1]

The Throttle Bucket Maneuver

Designing a lightweight aerospace structure to withstand this load without adding excessive mass is one of the primary challenges of rocket engineering. Rather than building heavier, thicker rockets that would sacrifice valuable payload capacity, launch providers manage the load through software and engine control.[3]

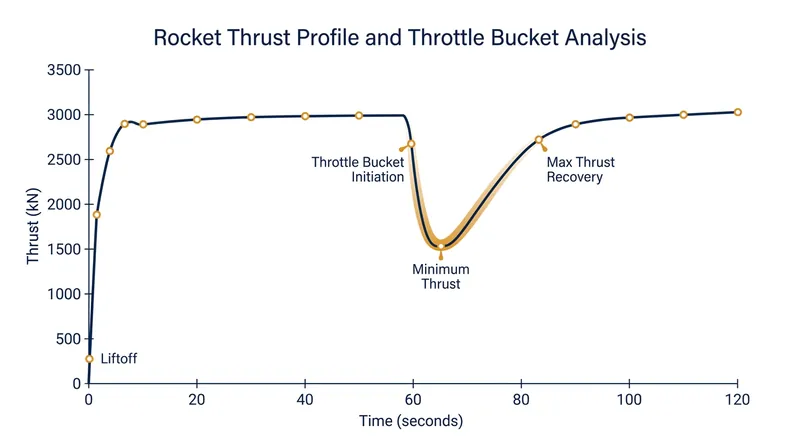

By throttling the engines down just before Max Q, the rocket reduces its acceleration, capping the velocity at the exact moment the air is thickest. This deliberate dip in the thrust profile is known in the aerospace industry as the throttle bucket.[1]

The Space Shuttle program relied heavily on this maneuver. During a nominal ascent, the three Space Shuttle Main Engines were throttled back from 104 percent of their rated performance down to roughly 65 to 72 percent, depending on the specific payload and trajectory.[1]

This reduction, combined with the shaped propellant grains in the solid rocket boosters that naturally reduced thrust at the 50-second mark, kept the peak dynamic pressure at a manageable level. Modern liquid-propellant rockets utilize the exact same load-management strategy today.[1]

Structural Margins and Base Heating

SpaceX's Falcon 9, which is powered by nine Merlin engines on its first stage, executes a throttle bucket maneuver as it approaches the one-minute mark. The flight computers reduce the thrust to limit the aerodynamic load to approximately 30 kilopascals.[1]

This ensures the carbon-fiber interstage and payload fairing remain well within their structural margins. The throttle bucket does more than just protect the nose of the rocket; it also manages the complex aerodynamic environment at the rear of the vehicle.[3]

As a rocket climbs, the expanding exhaust plumes interact with the surrounding airflow, creating a recirculation zone. This can push superheated gases back toward the engine nozzles and base heat shield, a phenomenon known as base heating.[2]

Base heating is highly sensitive to the vehicle's speed and the ambient atmospheric pressure. By controlling the velocity through the Max Q region, engineers can better predict and manage these convective heat loads, protecting the aft section from thermal damage.[2]

Wind Shear and Trajectory Adjustments

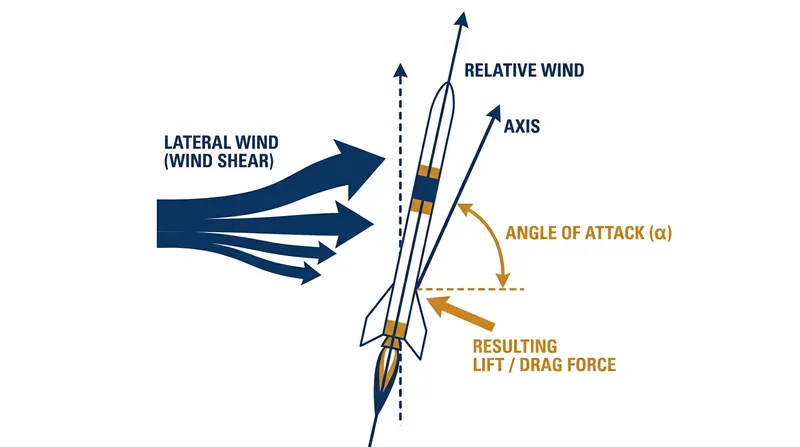

The baseline dynamic pressure is not the only force acting on the rocket during this phase. High-altitude winds, particularly the jet stream, can introduce severe lateral forces known as wind shear.[3]

If a strong gust hits the rocket sideways precisely at Max Q, it alters the vehicle's angle of attack. This multiplies the bending stress on the airframe, threatening to snap the vehicle in half if the combined forces exceed the structural limits.[3]

To mitigate this risk, launch teams release weather balloons in the hours leading up to liftoff to measure upper-level wind speeds and directions. The flight computers use this data to subtly adjust the rocket's pitch and yaw during the ascent.[3]

Steering into the wind keeps the aerodynamic load perfectly aligned with the vehicle's strongest axis. If the upper-level winds are too severe, the launch director will scrub the attempt, as the structural margins at Max Q are absolute.[3]

Ultimately, the throttle bucket represents a precise compromise between gravity and aerodynamics. A rocket must burn its fuel quickly to minimize the energy lost to Earth's gravitational pull, but it must also respect the physical barrier of the atmosphere.[3]

By briefly yielding to the air pressure at Max Q, launch vehicles thread the needle between efficiency and survival. Once the vehicle safely clears the boundary, the engines throttle back up to full power to push for orbit.[1][3]
