Why Orbital Rockets Must Achieve 7.8 km/s Horizontal Velocity and Execute Zero-Lift Gravity Turns

A suborbital sounding rocket operates on a straightforward physical premise: it fires its engines directly toward the zenith, coasts to the edge of space, and falls straight back down. An orbital launch vehicle shares this initial vertical posture, but it differs in one absolute, defining respect. It must completely abandon its upward trajectory to accelerate sideways at 7.8 kilometers per second.[1][4]

This lateral velocity—equivalent to roughly 28,000 kilometers per hour—is the sole mechanism that separates a stable orbit from a catastrophic return to Earth. Altitude alone provides no permanence in the vacuum of space. If a spacecraft merely climbs to 400 kilometers and stops thrusting, planetary gravity will immediately pull it back into the atmosphere.[2]

To survive in low Earth orbit, a vehicle must move horizontally so fast that the Earth's surface curves away beneath it at the exact rate the spacecraft falls. This continuous, missed collision is the mechanical definition of an orbit. Achieving it requires a launch vehicle to transition from a vertical climb to a horizontal sprint while carrying hundreds of tons of volatile propellant.[2][4]

The Horizontal Imperative

The transition from vertical to horizontal flight cannot happen instantaneously. If a rocket attempted to turn 90 degrees immediately after clearing the launch pad, it would plow through the thickest part of the lower atmosphere at hypersonic speeds. The resulting aerodynamic drag would incinerate the vehicle long before it reached space.

Conversely, if the rocket waited until it reached the vacuum of space to begin its horizontal burn, it would waste massive amounts of fuel fighting gravity during the extended vertical climb. This inefficiency, known as gravity loss, severely penalizes any vehicle that lingers in a vertical orientation. Every second spent pointing straight up is a second where the engine must support the rocket's entire weight.[4]

To balance these competing physical constraints, aerospace engineers rely on a highly choreographed maneuver known as a gravity turn. This trajectory optimization technique allows the launch vehicle to use Earth's gravitational pull to gradually bend its flight path. The result is a smooth, continuous arc that minimizes both aerodynamic stress and fuel consumption.[3]

The Mechanics of the Gravity Turn

The sequence begins with a brief, purely vertical ascent to quickly punch through the densest layers of the troposphere. Once the vehicle gains sufficient altitude and momentum, its guidance system commands a slight pitch-over maneuver. The rocket's engines gimbal by just a fraction of a degree, tilting the vehicle slightly downrange.[3][4]

At this precise moment, the rocket stops fighting gravity directly and instead enlists it as a steering mechanism. Because the vehicle's thrust is no longer perfectly aligned with the vertical axis, gravity begins to pull the velocity vector downward. The rocket naturally arcs toward the horizon without requiring further steering inputs from the engines.

This passive rotation is critical for conserving propellant. By allowing gravity to do the work of turning the vehicle, the engines can dedicate their entire output to building velocity. The rocket continuously accelerates along this curving path, shedding its heavy lower stages as they deplete their fuel reserves.[4]

Zero-Lift and Structural Integrity

While the gravity turn saves fuel, it introduces a severe structural vulnerability. As the rocket pitches over, it exposes its elongated, cylindrical fuselage to oncoming supersonic winds. If the vehicle's nose points in a different direction than its actual direction of travel, the surrounding air will generate aerodynamic lift along the rocket's body.[3][4]

Orbital launch vehicles are engineered to withstand immense compressive forces along their vertical axis, but they are incredibly fragile when subjected to lateral bending loads. A significant angle of attack during the ascent would snap the rocket in half under the immense dynamic pressure of the lower atmosphere. To prevent this, flight computers strictly enforce a zero-lift trajectory.[3]

In a zero-lift gravity turn, the rocket's longitudinal axis remains perfectly aligned with its relative velocity vector at all times. The vehicle flies exactly into the oncoming airstream, ensuring that aerodynamic forces only generate drag, never lift or side forces. This alignment protects the thin-walled propellant tanks from catastrophic structural failure.[3][4]

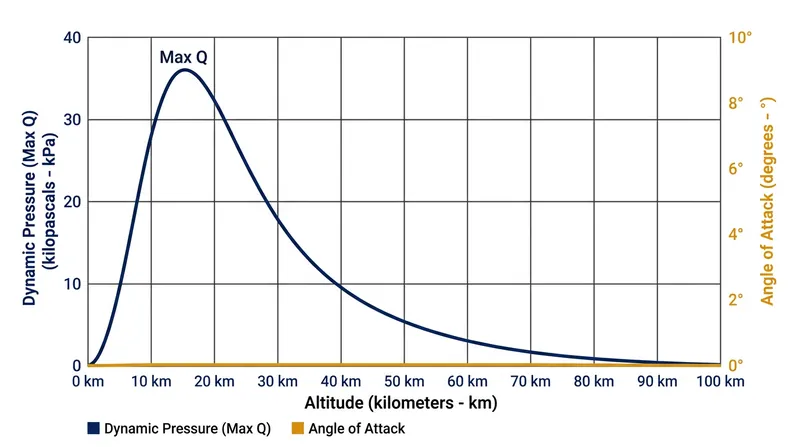

The point of maximum aerodynamic stress, known as Max Q, occurs when the rocket's increasing velocity perfectly intersects with the decreasing density of the atmosphere. During this critical window, the zero-lift constraint is absolute. Even a one-degree deviation between the rocket's heading and its velocity vector could generate enough lateral force to tear the vehicle apart.[4]

Flight computers monitor onboard gyroscopes and accelerometers thousands of times per second to maintain this delicate equilibrium. If high-altitude crosswinds push against the vehicle, the engines gimbal instantly to counteract the drift, keeping the angle of attack pinned at zero. The rocket threads a precise mathematical needle, balancing the need to turn horizontally against the structural limits of its own airframe.[3][4]

The Delta-V Budget

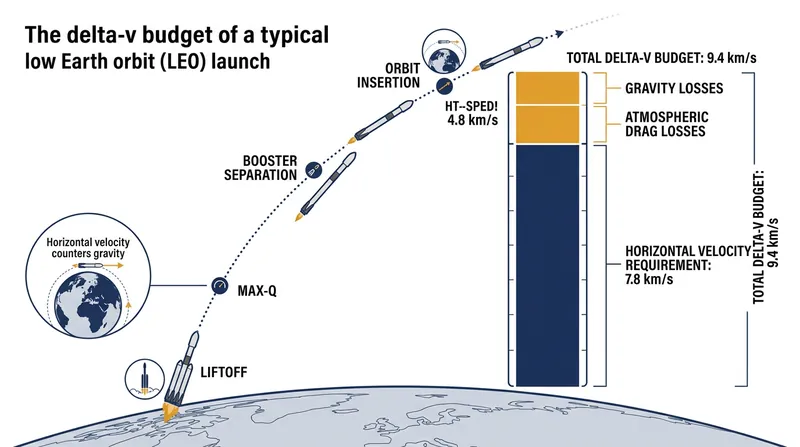

The sheer scale of the horizontal velocity requirement fundamentally dictates the design of every orbital rocket. Aerospace engineers measure a launch vehicle's capability in delta-v, which represents the total change in velocity the rocket can impart to its payload. Reaching low Earth orbit requires a total delta-v budget of approximately 9.4 kilometers per second.[1]

Of this massive energy expenditure, only a small fraction is actually spent climbing out of the atmosphere and overcoming aerodynamic drag. The overwhelming majority of the rocket's propellant is dedicated strictly to lateral acceleration. More than 80 percent of an orbital launch vehicle's total energy budget goes toward building the 7.8 kilometers per second of horizontal speed.[1][4]

This distribution of energy redefines the rocket's primary function. Despite its towering vertical posture on the launch pad, an orbital launch vehicle is not primarily an elevator designed to lift cargo into space. It is, in reality, a horizontal accelerator designed to throw a payload sideways with enough force to perpetually miss the ground.[2][4]

This reality explains why orbital rockets require multiple stages. A single vehicle cannot carry enough fuel to reach 7.8 kilometers per second while dragging the dead weight of empty propellant tanks all the way to orbit. By dropping exhausted stages along the way, the rocket drastically improves its mass fraction for the final horizontal sprint.[3][4]

The upper stage, operating in the vacuum of space, utilizes engines optimized specifically for horizontal acceleration. These vacuum-optimized nozzles feature wide, bell-shaped extensions that extract every possible fraction of thrust from the expanding exhaust gases. They lack the raw power of the first-stage boosters, but their extreme efficiency is what ultimately secures the required orbital velocity.[3][4]

Coasting and Circularization

As the rocket ascends through the thinning upper atmosphere, the zero-lift constraint gradually relaxes. Once the vehicle clears the Kármán line at 100 kilometers, aerodynamic forces become negligible. The upper stage can now pitch independently of its velocity vector, allowing the guidance computer to optimize the final thrust angle for orbital insertion.[1][3]

The main engine cuts off once the vehicle reaches its target apogee, or highest point in the elliptical transfer orbit. The spacecraft then enters a brief coasting phase, drifting silently upward toward the peak of its trajectory. During this coast, the vehicle continues to travel horizontally at immense speed, but its orbit remains highly elliptical and unstable.[3][4]

To finalize the process, the upper stage executes a circularization burn at apogee. This final, purely horizontal acceleration raises the lowest point of the orbit, ensuring the spacecraft will not dip back into the atmosphere on its next revolution. Only when this burn concludes is the 7.8-kilometer-per-second threshold permanently secured.[1][3]
