Auxiliary Ullage Motors Fire Before Upper-Stage Restarts to Settle Free-Floating Propellant and Prevent Turbopump Cavitation

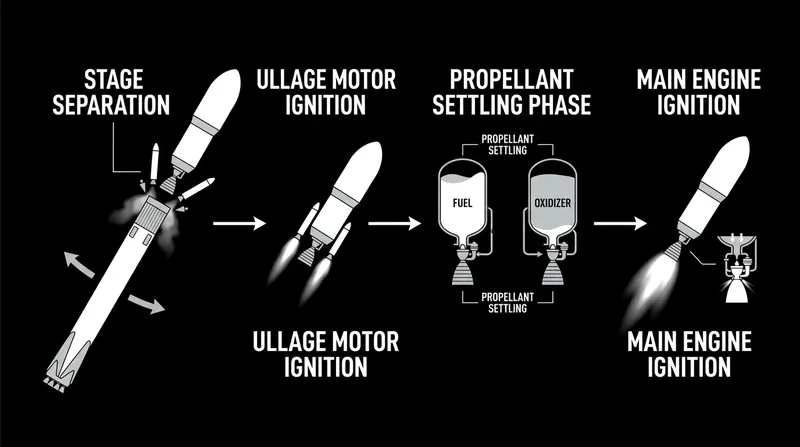

The flight computer initiates the orbital restart sequence. Before the main engine can ignite, the vehicle must solve a fundamental physics problem: in the weightlessness of space, the liquid propellant is no longer resting neatly at the bottom of the tank.[3]

Instead, the fuel and oxidizer float freely within the stage. They form spherical globules, cling to the tank walls, or drift as a chaotic slosh wave. If the main engine's valves open under these conditions, the system will draw in a dangerous mixture of liquid and pressurization gas.[2]

This gas ingestion is catastrophic for a liquid-fueled rocket engine. The propulsion system relies on high-speed turbopumps to force propellant into the combustion chamber at extreme pressures, and these precision pumps are designed exclusively to handle dense, incompressible liquids.[1]

When a rapidly spinning turbopump ingests vapor, it experiences destructive cavitation. The sudden drop in fluid density causes the pump impeller to overspeed, while the collapsing gas bubbles generate violent shockwaves that can shatter the metal blades in milliseconds.[1]

To prevent this mechanical failure, the propellant must be forced back down to the aft end of the tank, completely covering the feed lines. Because gravity cannot do this in orbit, engineers rely on a secondary system: auxiliary ullage motors.[1]

The timing of this sequence is unforgiving. If the main engine ignites before the propellant has fully settled, the resulting cavitation will destroy the vehicle; if the ullage motors fire for too long, they waste mass that could have been used for payload capacity.[1]

The physics of artificial gravity

Ullage motors are small, independent thrusters mounted to the exterior of the upper stage. When commanded by the flight computer, they fire for a few seconds just before the main engine restart sequence begins, providing the necessary physical push.

This firing provides a gentle, continuous forward acceleration to the entire vehicle. According to fluid dynamics research, this settling acceleration typically peaks at around 1 meter per second squared, which is roughly one-tenth the force of Earth's gravity.[1]

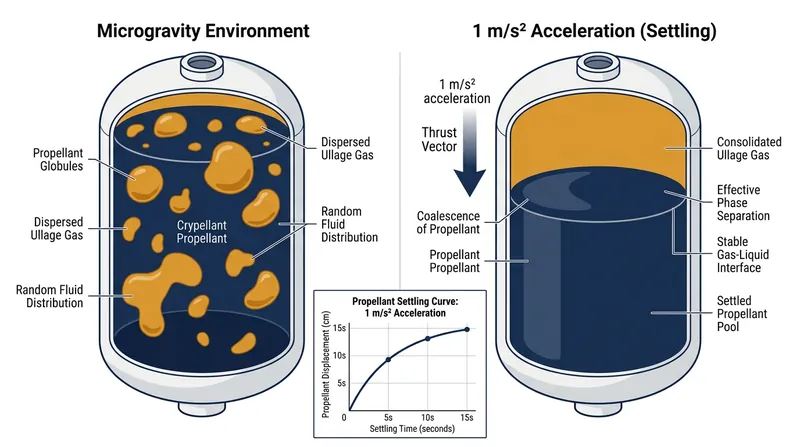

From the perspective of the floating propellant, this acceleration acts exactly like artificial gravity. The liquid is forced toward the rear of the tank, gathering over the sump and displacing the lighter pressurization gases to the forward end.[2]

The process, known as propellant settling, is not instantaneous. After stage separation, atomized droplets of liquid oxygen can drift through the tank at velocities of roughly 0.5 meters per second, requiring sustained ullage thrust to overcome their upward momentum.[1]

Engineers must calculate the exact settling time required for a specific tank geometry. The ullage motors must fire long enough to ensure a completely vapor-free pool of liquid has formed before the main turbopumps begin to spool up.[1][2]

This mathematical relationship between thrust, mass, and settling time dictates the size of the ullage motors. Engineers must balance the need for a rapid restart against the weight penalty of carrying larger auxiliary thrusters into orbit.[1]

Historical solutions and modern applications

The ullage problem has dictated rocket design since the Apollo era. During the Saturn V missions, the S-IVB third stage had to restart its liquid oxygen and liquid hydrogen engine in orbit to perform the critical trans-lunar injection burn.

NASA engineers discovered through drop-tower testing that the S-IVB's small ullage motors were initially insufficient to settle the highly volatile liquid hydrogen. They had to install internal baffles to break up the propellant slosh wave before the motors fired.

Today, ullage thrust remains the standard solution for large cryogenic upper stages. Vehicles like the Falcon 9 and the Space Launch System rely on precise settling burns to ensure their engines ignite safely in the vacuum of space.[1]

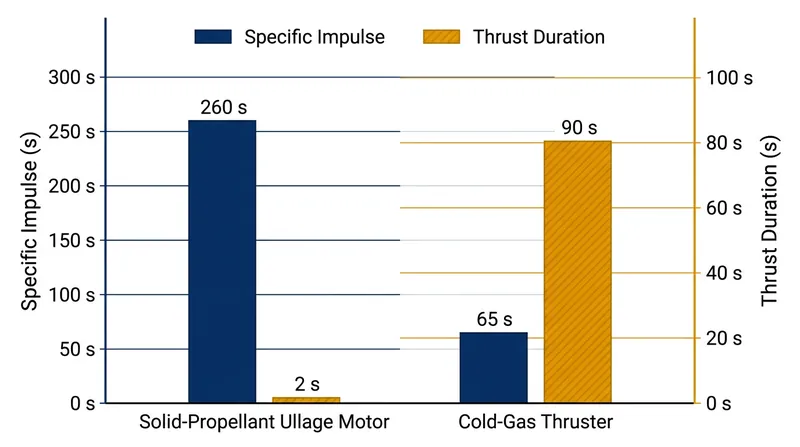

Some launch vehicles use cold-gas thrusters running on compressed nitrogen or helium to provide this acceleration. Others employ small solid-propellant rockets, which offer high reliability and are entirely unaffected by the complexities of the microgravity environment.[1]

However, solid-propellant ullage motors present their own long-term operational challenges. Because they cannot be throttled or shut down, they burn until their fuel is exhausted, and the spent motor casings are often discarded into orbit after the stage separates.

The physical separation of these spent motors is often violent. Pyrotechnic bolts sever the mechanical connection to the main stage, sending the empty casings tumbling away to ensure they do not interfere with the subsequent main engine ignition sequence.

The orbital debris challenge

The legacy of these small motors has created a persistent hazard in low Earth orbit. Russian Proton rockets, for example, utilize a specific type of upper-stage ullage motor known as the SOZ, which translates roughly to Launch Assurance System.

According to space debris trackers, these SOZ motors do not always consume all of their solid propellant during the brief settling burn. Decades after their deployment, the residual fuel can degrade, overpressurize, and spontaneously detonate in the vacuum of space.

In 2022, the U.S. Space Force tracked the explosion of a Proton ullage motor that had been orbiting Earth since a 2007 GLONASS satellite launch. "This debris event was predictable and is well understood; still very unfortunate," noted astrophysicist Jonathan McDowell regarding the fragmentation.

Astrophysicists currently track at least 64 of these intact SOZ motors in orbit. Their presence highlights the trade-offs inherent in aerospace design, where a simple, reliable solution for engine restarts creates a complex environmental problem decades later.

To mitigate this, modern rocket designers are exploring strict passivation techniques. By ensuring that auxiliary motors are fully depleted or safely vented after use, engineers aim to prevent future fragmentation events and comply with international space debris mitigation guidelines.[1]

Active deorbiting is also becoming a standard requirement. Future upper stages are being designed to retain enough propellant to perform a final settling burn and engine restart, deliberately driving themselves into the atmosphere to burn up safely.[1]

Alternatives to active thrust

While large launch vehicles require ullage motors, smaller spacecraft use a different approach. Satellites and deep-space probes often rely on Propellant Management Devices, or PMDs, to control their liquid fuel without the need for active acceleration.[1]

PMDs are complex internal tank structures made of titanium screens, vanes, and sponges. They exploit the physics of surface tension and capillary action, which become the dominant fluid forces in the absolute absence of gravity.[1][2]

These devices passively wick the liquid propellant toward the engine intake, ensuring a continuous supply even when the tank is nearly empty. Because they have no moving parts, PMDs are highly reliable for multi-year orbital missions.[1]

However, capillary action is too weak to manage the massive volumes of cryogenic propellant required by an upper-stage rocket. For these heavy-lift applications, surface tension cannot replace the brute force of artificial acceleration provided by an external thruster.[1]

Cryogenic liquids like liquid oxygen and liquid hydrogen also boil continuously, creating vapor bubbles that PMDs struggle to filter out. Only a sustained physical acceleration can force these bubbles to the top of the tank and away from the critical feed lines.[1]

Ultimately, the next generation of orbital transfer vehicles will still depend on the precise choreography of propellant settling. The flight computer will continue to command that brief, critical burst of thrust, ensuring the fuel is exactly where it needs to be.[3]
