How SpaceX's 'Mechazilla' Tower Catches Rockets Mid-Air — And Why It Matters

Most rockets land. SpaceX’s Starship booster gets caught. That single distinction captures what makes "Mechazilla"—the nickname for the 146-meter-tall launch and catch tower at SpaceX’s Starbase in Texas—one of the most audacious pieces of ground infrastructure ever built. Instead of touching down on a concrete pad or an ocean barge using deployable legs, the 71-meter Super Heavy booster is designed to hover in mid-air while two massive mechanical arms snap shut around it. It is a maneuver that looks like science fiction, but it is driven entirely by the brutal mathematics of orbital mechanics and launch economics.[2]

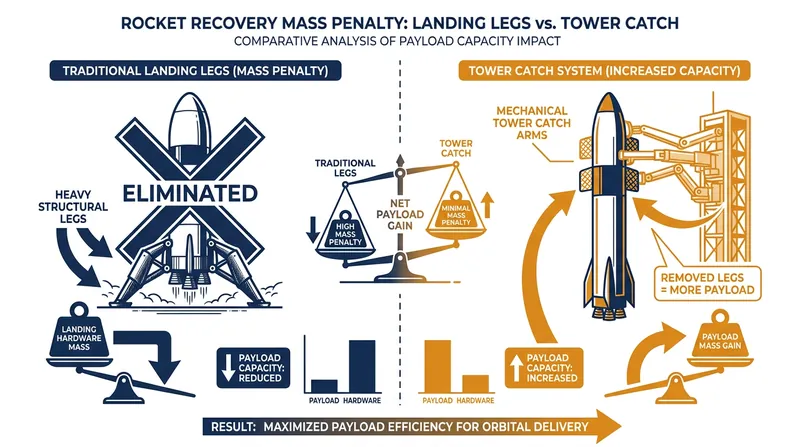

To understand why SpaceX would risk destroying its own launch pad to catch a falling rocket, one must look at the mass penalty of traditional recovery systems. Traditional reusable rockets, including SpaceX’s own Falcon 9, must carry their landing legs throughout the entire mission. In rocketry, mass is the ultimate enemy; every kilogram of structure lifted toward orbit is a kilogram of payload that cannot be carried.[2]

Scaling the Falcon 9’s landing leg architecture up to the size of the Super Heavy booster would add several tons of dead weight to the vehicle. By moving the landing hardware off the rocket and onto the launch tower, SpaceX strips that mass penalty from the vehicle entirely. This allows the Starship system to maximize its payload capacity, which is essential for the massive cargo runs required for lunar bases and Mars colonization.[2][3]

But the deeper argument for Mechazilla is about turnaround time. When a Falcon 9 booster lands on an autonomous drone ship in the ocean, it must be secured, sailed back to port, lifted by a crane, transported to a refurbishment facility, and eventually rolled back out to the pad. Even with SpaceX's highly optimized operations, this process takes days.[3]

Mechazilla eliminates the transport and repositioning phases entirely. The catch tower is positioned directly adjacent to the Orbital Launch Mount (OLM). When the mechanical arms—affectionately dubbed "chopsticks"—catch the booster, they simply swing it over and set it back down on the launch mount.[1][2]

If the hardware passes automated inspections, the vehicle is theoretically ready to be refueled and restacked with a new upper stage almost immediately. SpaceX’s stated ambition is to eventually launch Starship multiple times per day from a single pad. That airline-style cadence is only geometrically possible if the turnaround time is compressed from weeks or days down to mere hours.[3][4]

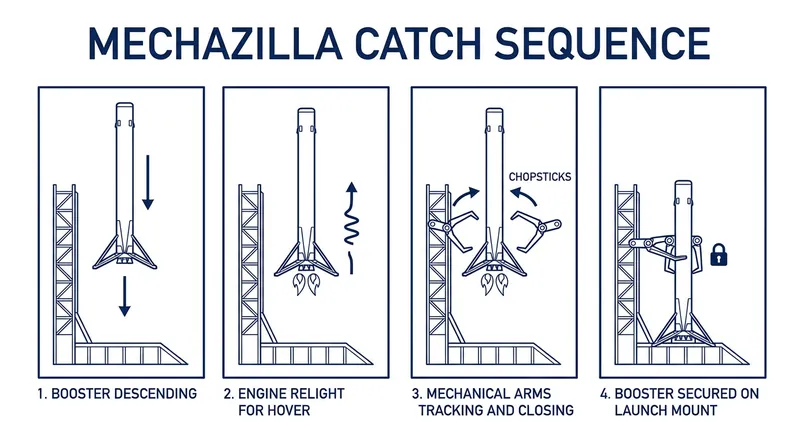

The mechanics of the catch require an astonishing level of precision. As the Super Heavy booster falls back through the atmosphere, it uses steerable grid fins to guide its trajectory toward the launch site. In the final moments of descent, it relights three of its 33 Raptor engines to rapidly decelerate, transitioning into a vertical hover alongside the tower.[1]

At this exact moment, the tower's mechanical arms track the vehicle's position. In recent "V3" upgrades rolled out in mid-2026, SpaceX shortened these chopsticks to allow for faster motion and swapped their main actuators from hydraulic to electromechanical systems. This change significantly improved the arms' speed, redundancy, and reliability during the critical catch window.[1]

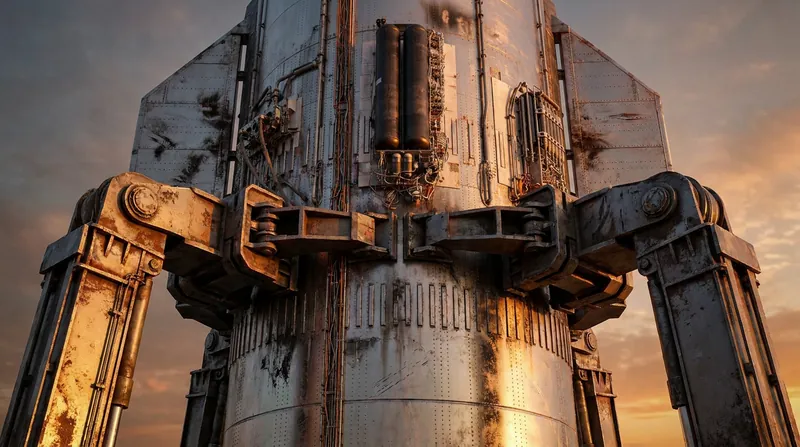

The booster does not just rest anywhere on the arms; it has specific load-bearing catch points. In the latest iterations, SpaceX reduced the number of grid fins on the booster from four to three, but made them 50 percent larger and significantly stronger. These fins are re-clocked and reinforced to serve as the primary structural points that rest on the chopstick arms once they close.[1]

The margin for error is effectively zero. Thousands of distinct vehicle and pad criteria must be met in real-time prior to the catch attempt. If the booster's trajectory is slightly off, or if the engines fail to provide the exact required thrust, the vehicle could crash directly into the tower.

Such a failure would not just destroy the rocket; it would devastate the ground infrastructure, potentially setting the entire Starship program back by months while the pad is rebuilt. This is why SpaceX employs a "hardware-rich" development strategy, building multiple prototypes and testing them to destruction in safe environments before committing to high-stakes maneuvers over the pad.[5]

The catch architecture is also expanding beyond just the first stage. While catching the Super Heavy booster is now a proven concept, SpaceX intends to use the same Mechazilla towers to catch the Starship upper stage as it returns from orbital velocities. This presents a significantly harder thermal and aerodynamic challenge, as the upper stage must survive the searing heat of reentry before maneuvering into the tower's grasp.[4]

Interestingly, not all Starships will rely on Mechazilla. The lunar Starship variant, currently being developed under NASA’s Artemis Human Landing System contract, is a purpose-built configuration that will touch down on the Moon using traditional landing legs. Because there is no catch tower infrastructure on the lunar surface, the vehicle must carry its own landing hardware.[2]

Ultimately, Mechazilla is the physical manifestation of SpaceX’s central economic thesis: that the cost of access to space can only be fundamentally altered through rapid, complete reusability. By shifting the complexity of landing from the rocket to the ground, SpaceX is betting that a complex tower is the key to a simple, frequent launch cadence.[3][5]

As SpaceX scales up its operations, moving from one operational pad to five across Texas and Florida, the sight of a giant metal tower catching a falling rocket will transition from an experimental spectacle to a routine industrial process. If it succeeds at scale, Mechazilla will be remembered as the mechanism that finally opened the bottleneck to low Earth orbit.[1][5]
