The Architecture of Ariane 6: How Europe Restored Its Independent Access to Space

For a modern economy, the ability to place satellites into orbit is not a luxury; it is the invisible foundation of daily life, underpinning navigation systems, weather forecasting, global telecommunications, and national defense. When a continent loses the capacity to launch its own infrastructure, it must rely on foreign commercial or state actors to reach space, introducing severe strategic vulnerabilities. For several years in the early 2020s, Europe faced exactly this crisis. The retirement of the venerable Ariane 5 rocket, the temporary grounding of the smaller Vega-C launcher, and the sudden geopolitical loss of access to Russian Soyuz vehicles left the European Space Agency without a sovereign heavy-lift vehicle. During this gap, critical European payloads had to be contracted out to American commercial providers, highlighting the fragility of relying on external partners for essential infrastructure.[4][5]

The solution to this strategic bottleneck is the Ariane 6 launch system, a modular heavy-lift rocket developed by ArianeGroup under the supervision of the European Space Agency. Designed explicitly to restore and guarantee independent access to space, the vehicle represents a deliberate shift from the bespoke, high-cost architecture of its predecessor to a more flexible, cost-optimized platform. The architecture of Ariane 6 is built around a central core comprising two main liquid-fueled stages, supplemented by strap-on solid rocket boosters. This modularity allows the launch provider, Arianespace, to tailor the vehicle's thrust and payload capacity to the specific demands of each mission, ranging from lightweight scientific probes bound for deep space to massive telecommunications constellations destined for low Earth orbit. By standardizing the core components, the program aims to achieve a launch cadence of up to eleven flights per year.[1][2][5]

The Lower Liquid Propulsion Module, which serves as the main stage, forms the structural and propulsive backbone of the rocket. Measuring 5.4 meters in diameter, the stage carries approximately 140 tonnes of cryogenic propellant—specifically, liquid hydrogen and liquid oxygen—chilled to extreme sub-zero temperatures. Powering this massive stage is the Vulcain 2.1 engine, an evolved and simplified version of the highly reliable engine that powered the Ariane 5. By utilizing advanced manufacturing techniques, including 3D printing and friction-stir welding, European engineers significantly reduced the engine's production costs and assembly time while maintaining a formidable vacuum thrust of 1,370 kilonewtons. This main stage ignites on the launch pad alongside the solid boosters, providing the sustained brute force required to push the heavy vehicle through the thickest and most punishing layers of the Earth's atmosphere.[1][3]

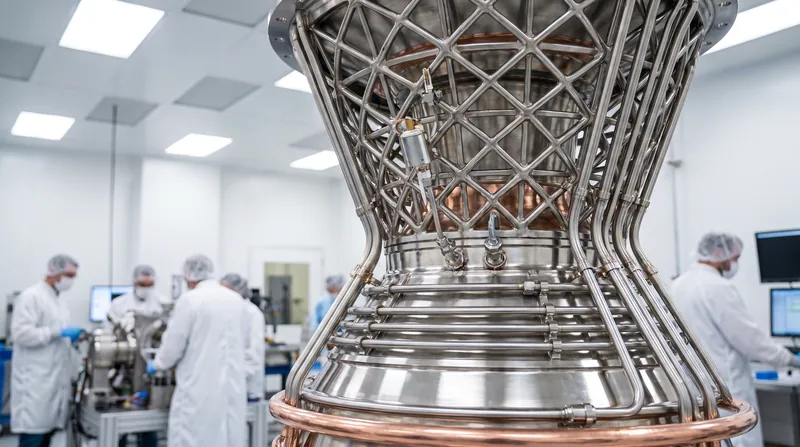

While the main stage provides the raw power needed to escape the atmosphere, the Upper Liquid Propulsion Module provides the precision required for complex orbital deployments. This upper stage is powered by the entirely new Vinci engine, which delivers 180 kilonewtons of thrust and represents one of the most significant technological leaps in the Ariane 6 architecture. The defining characteristic of the Vinci engine is its reignitability. Unlike previous European upper stages that could only fire once, the Vinci engine can be shut down and restarted up to five times during a single mission in the vacuum of space. This capability is absolutely critical for deploying modern satellite constellations, as it allows the rocket to drop individual payloads into entirely different orbits before executing a final, controlled burn to deorbit itself, thereby mitigating the creation of hazardous space debris.[1][2][3]

To support the Vinci engine's multiple restarts, the upper stage incorporates an innovative Auxiliary Propulsion Unit. In the microgravity environment of space, liquid propellants tend to float freely within their tanks, which can cause the main engine to ingest gas bubbles and fail during a restart. The Auxiliary Propulsion Unit solves this by pressurizing the propellant tanks and providing a small, continuous amount of thrust to settle the cryogenic fuels at the bottom of the tanks before the Vinci engine ignites. This system ensures reliable operation during complex, multi-hour missions, allowing the upper stage to coast in orbit for extended periods before maneuvering to its next deployment target.[1]

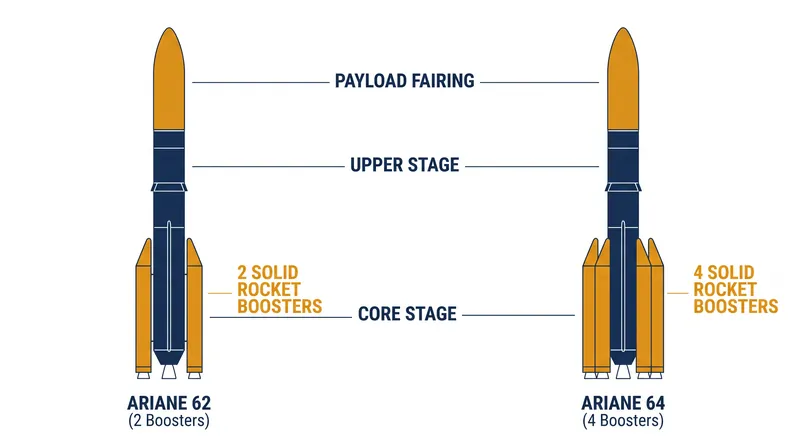

The modularity of the Ariane 6 system is primarily achieved through its strap-on solid rocket boosters, allowing the vehicle to scale its lifting power based on customer requirements. The rocket is offered in two distinct configurations: the Ariane 62, equipped with two boosters, and the heavy-lift Ariane 64, which utilizes four. The Ariane 62 variant is optimized for institutional and scientific missions, capable of lifting up to 10.3 tonnes to low Earth orbit or 4.5 tonnes to geostationary transfer orbit. Conversely, the heavier Ariane 64 variant is designed for commercial dual-satellite launches and large broadband constellations, doubling the low Earth orbit capacity to 21.6 tonnes. Initially, the rocket utilized P120C solid boosters, which were developed jointly for Ariane 6 and the Vega-C launcher to achieve economies of scale. In 2026, the system was upgraded with the P160C boosters, which are extended by one meter to carry an additional 14 tonnes of solid propellant, increasing the overall payload capacity by approximately 10 percent.[1][2][3]

Payload accommodation is another area where the Ariane 6 architecture emphasizes operational flexibility and cost efficiency. The rocket features a composite-material Dual Launch System, a specialized structure that allows two large satellites to be stacked on top of each other and deployed independently during the same mission. This dual-launch capability, a hallmark inherited from Ariane 5, effectively halves the launch cost for commercial operators targeting geostationary orbit. Additionally, the vehicle incorporates rideshare adapters that permit smaller satellites, weighing under 200 kilograms, to piggyback on primary missions. This ensures that even as the rocket caters to massive institutional payloads, it remains accessible to universities, smaller space agencies, and private startups looking for cost-effective access to orbit.[1][2]

Despite its technical achievements and successful entry into service, the Ariane 6 program has faced persistent industry criticism regarding its expendable design. In an era where commercial competitors have normalized reusable first stages to aggressively drive down launch costs, Ariane 6 sheds its hardware into the ocean after a single flight. European space officials defend the expendable architecture by pointing to the continent's specific institutional needs and flight volumes. Developing a fully reusable system requires a massive upfront investment and a very high launch cadence to offset the costs of recovery infrastructure and vehicle refurbishment. With a projected cadence of roughly a dozen launches per year, European strategists concluded that an expendable, highly optimized rocket was the most economically viable path to guaranteed sovereign access, avoiding the financial risks of a reusable program that might not see enough flight volume to break even.[3][5]

By streamlining manufacturing processes across 13 European countries and consolidating final assembly at the Guiana Space Centre, the program successfully reduced launch costs by approximately 40 percent compared to its predecessor. The successful operational ramp-up of Ariane 6, culminating in the deployment of its four-booster variant and the integration of upgraded solid motors, marks the definitive closure of Europe's launch capability gap. The system now serves as the primary conduit for the continent's navigation networks, Earth observation platforms, and secure defense payloads. In an increasingly contested orbital environment, the Ariane 6 architecture ensures that European space infrastructure remains firmly under European control, insulating the region from the geopolitical and commercial disruptions of the global launch market.[2][3][4]
