The Physics of Electric Propulsion: How Argon Hall Thrusters Reshaped Satellite Constellations

On February 26, 2023, the baseline architecture for low Earth orbit infrastructure fundamentally shifted when SpaceX deployed the first argon-fueled Hall-effect thrusters in space aboard its V2 mini Starlink satellites. Prior to that deployment, electric propulsion systems relied almost exclusively on xenon or krypton—heavy, rare noble gases that provided excellent orbital efficiency but imposed severe cost bottlenecks at scale. The transition to argon, a gas abundant enough to be used as a standard welding shield on Earth, solved the economic equation for mega-constellations. It marked the moment when electric propulsion transitioned from a specialized tool for deep-space probes to the default industrial engine of the orbital economy.[3][5]

To understand why that shift matters, it is necessary to examine the physical limitations of the technology it replaced. For decades, the workhorse of satellite station-keeping has been the chemical monopropellant thruster, most commonly fueled by hydrazine. In a chemical system, thrust is generated by breaking molecular bonds to create rapidly expanding gases.[1][4]

When liquid hydrazine is injected into a thruster, it contacts a catalyst bed—typically made of iridium supported on alumina. This contact causes the hydrazine to violently decompose into ammonia, nitrogen, and hydrogen gases. The reaction requires no spark or separate oxidizer, making it highly reliable. The resulting hot gases are forced through a converging-diverging nozzle, accelerating to supersonic speeds and producing immediate, forceful thrust.[1][4]

The primary advantage of a hydrazine system is its raw power and immediate responsiveness. A standard commercial 1-Newton hydrazine thruster can execute rapid orbital maneuvers, allowing a satellite to dodge incoming space debris or change its trajectory in a matter of minutes. For military assets or highly maneuverable spacecraft, this ability to rapidly alter a velocity vector is a strict mission requirement.[2][4]

However, that power comes at a steep thermodynamic cost. Chemical propulsion is fundamentally limited by the energy density of its propellant. The efficiency of a rocket engine is measured in specific impulse (Isp)—essentially the fuel economy of the thruster, defined as the amount of thrust produced per unit of propellant consumed over time. A typical hydrazine thruster operates with a specific impulse of roughly 220 seconds.[2][4]

Because the specific impulse is relatively low, a chemical satellite must carry a massive volume of propellant to maintain its orbit, counteract atmospheric drag, and perform end-of-life de-orbiting over a five-to-ten-year lifespan. Every kilogram of hydrazine loaded into a satellite is a kilogram of revenue-generating payload—transponders, antennas, or sensors—that cannot be launched.[1][5]

Furthermore, hydrazine is highly toxic and volatile. Ground crews must use specialized handling equipment, pressurized fueling suits, and rigorous safety protocols to load the propellant before launch. These hazardous operations add significant time and millions of dollars to the cost of a launch campaign, creating a logistical bottleneck for operators attempting to launch dozens of satellites per week.[1][5]

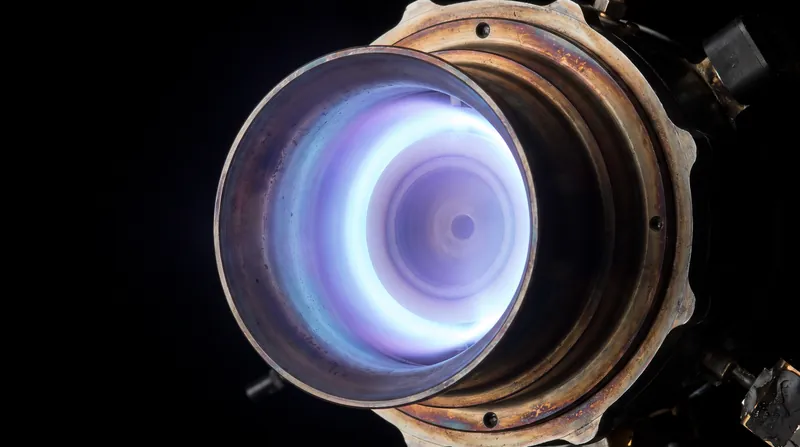

Hall-effect thrusters operate on an entirely different physical principle, discarding chemical combustion in favor of electrostatic acceleration. Instead of burning a fuel, a Hall thruster uses electrical power generated by the satellite's solar arrays to ionize an inert propellant gas and accelerate it into the vacuum of space.[4]

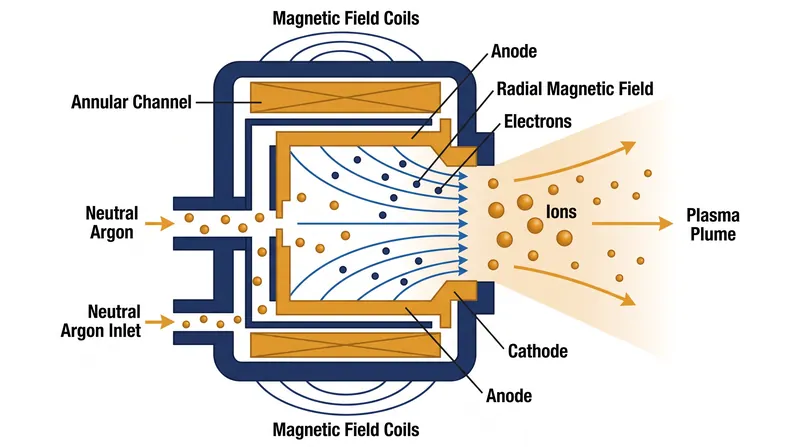

Inside the thruster, a radial magnetic field is established across an annular (ring-shaped) channel. This magnetic field traps electrons, creating a circulating ring of negative charge known as a Hall current. As neutral atoms of the propellant gas are injected into the back of this channel, they drift into the spinning cloud of electrons.[5]

When the neutral atoms collide with the trapped high-energy electrons, they are stripped of their own electrons, becoming positively charged ions. Once ionized, these particles are violently repelled by an electric field established between an anode at the back of the channel and a cathode positioned outside the thruster. The ions accelerate out of the exhaust at extreme velocities, often approaching 30 kilometers per second.[5]

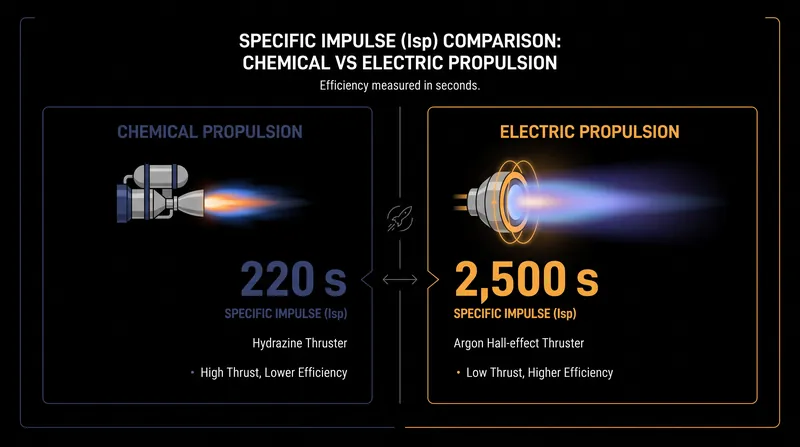

Because the exhaust velocity is so extreme, the thruster extracts vastly more momentum from every gram of propellant. As SpaceX noted when introducing the hardware, the new argon units "have 2.4x the thrust and 1.5x the specific impulse of our first gen thrusters." Where a standard hydrazine thruster achieves a specific impulse of 220 seconds, a modern argon Hall-effect thruster reaches a specific impulse of 2,500 seconds. This order-of-magnitude leap in efficiency completely rewrites the mass constraints of satellite design.[2][3]

The trade-off for this extreme efficiency is a severe reduction in raw thrust. An argon Hall thruster produces roughly 170 millinewtons of force—equivalent to the weight of a few small coins resting in the palm of a hand. It cannot execute rapid maneuvers. An orbital adjustment that a chemical thruster might complete in ten minutes will take a Hall thruster several weeks of continuous, silent operation.[3]

For a mega-constellation, however, time is an acceptable trade for mass. Satellites can spend weeks slowly spiraling up to their operational altitudes, provided the mass savings allow the launch provider to pack dozens of additional satellites into a single payload fairing. The electrical power required to drive the ionization process—often exceeding 4 kilowatts—is readily supplied by the large solar arrays that modern communications satellites already carry.[3][5]

The choice of propellant gas is the final variable in this infrastructure chain. Xenon has historically been the preferred gas for ion engines because its high atomic mass and low ionization potential (12.1 electron volts) make it exceptionally easy to ionize and accelerate. However, xenon is rare in the Earth's atmosphere and prohibitively expensive at the scale required to fuel thousands of satellites.[5]

Krypton offered a cheaper alternative for early constellations, but the 2023 shift to argon demonstrated that solar panel technology had advanced enough to provide the extra electrical power needed to ionize a more stubborn gas. Argon has a higher ionization potential (15.7 electron volts), but it costs a fraction of a percent of xenon's price. By moving from toxic chemical propellants to inert, abundant argon, the aerospace industry has decoupled satellite lifespan from the strict mass limits of chemical energy density, ensuring that the orbital infrastructure of the next decade will be maintained by the silent acceleration of ionized gas.[3][5]
