Graveyard Orbits Require Just 11 m/s of Delta-V Compared With the 1,500 m/s Needed to Deorbit From Geostationary Altitude

When a communications satellite reaches the end of its 15-year design life at 35,786 kilometers above the equator, ground controllers face a strict physics problem. The spacecraft is often perfectly healthy, with functioning transponders and charged solar arrays. However, its propellant tanks are nearly empty, forcing a final decision.[3]

Operators must remove the multi-ton machine from the geostationary belt, a highly regulated and crowded corridor of space. Leaving a dead satellite to drift would create a permanent collision hazard for the active infrastructure that routes global television, weather data, and military communications.[3]

The intuitive solution—dropping the satellite back into Earth's atmosphere to burn up—is physically impossible for high-altitude spacecraft. Instead, controllers execute a precise sequence of thruster firings to push the satellite further out into the solar system, permanently abandoning it in a designated disposal zone.[1]

The Currency of Spaceflight

To understand why satellites are pushed away from Earth rather than pulled down, engineers rely on a metric called delta-v. Written as Δv, it represents the total change in velocity a spacecraft can achieve using its onboard propellant. Delta-v is the fundamental currency of orbital mechanics.[2]

Every maneuver a satellite performs has a specific delta-v price tag. Launching into low Earth orbit costs roughly 9,400 meters per second, while holding a geostationary position against the gravitational pull of the Moon and Sun requires about 50 meters per second annually.[2][3]

Engineers calculate this budget using the Tsiolkovsky rocket equation, which dictates that achieving high delta-v requires an exponentially larger fraction of the spacecraft's mass to be fuel. A geostationary satellite might launch with 15 years of delta-v capacity, carefully metered out in brief, precise bursts.[2]

Once a satellite is in orbit, its delta-v budget is fixed by the mass of the fuel in its tanks. When that budget is spent, the spacecraft is out of maneuverability, regardless of how well its electronics are functioning. Therefore, operators must carefully reserve a small fraction for disposal.[2]

The Physics of Deorbiting

Dropping a satellite from geostationary altitude into the destructive friction of Earth's atmosphere requires a massive retrograde burn. Controllers would need to fire the thrusters against the direction of orbital travel, slowing the spacecraft enough to lower its perigee by tens of thousands of kilometers.[1]

This atmospheric reentry maneuver demands a delta-v of approximately 1,500 meters per second. For a standard 5,000-kilogram communications satellite, executing a 1,500 m/s burn would require reserving thousands of kilograms of propellant exclusively for the disposal phase.[1]

Carrying that much reserve fuel is economically disastrous. It would require launching a significantly heavier spacecraft, displacing revenue-generating transponders, and sacrificing years of operational station-keeping. Consequently, no geostationary satellite carries the propellant necessary to come home.[1][4]

The 300-Kilometer Solution

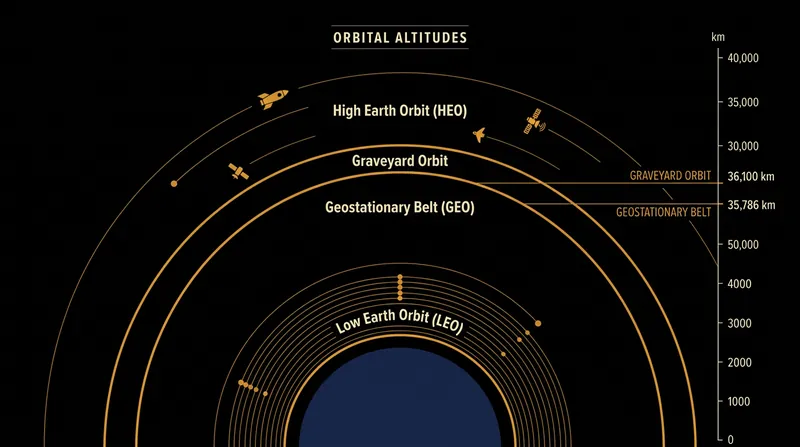

Because coming down is too expensive, the international aerospace community agreed to send retiring satellites up. By firing thrusters in the direction of travel, operators raise the satellite's orbit by roughly 300 kilometers, placing it in a graveyard orbit above the active geostationary belt.[1]

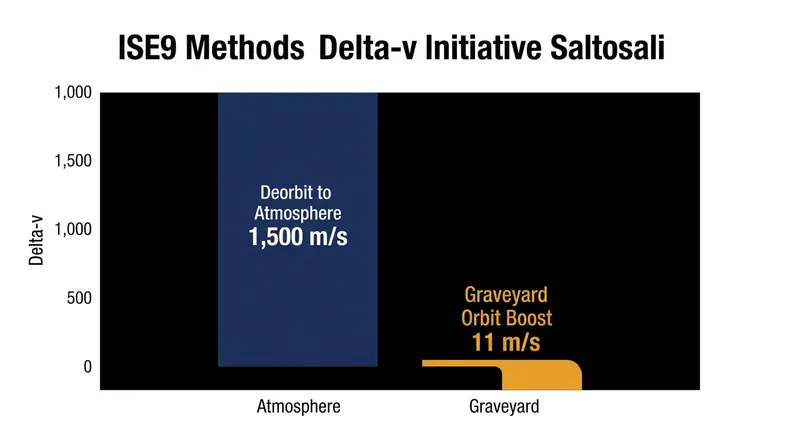

This slight altitude increase requires a delta-v of only 11 meters per second. Compared to the 1,500 m/s needed for a deorbit burn, the graveyard maneuver is more than 130 times cheaper in terms of energy and propellant mass.[1]

Reserving 11 m/s of delta-v equates to sacrificing only about three months of standard station-keeping fuel. This allows commercial operators to squeeze the maximum possible lifespan out of their hardware while still complying with international debris mitigation guidelines.[1][4]

Passivation and the Afterlife

Reaching the graveyard orbit is only the first step in the disposal process. Once the satellite arrives at its new 36,100-kilometer altitude, controllers must ensure it does not inadvertently explode and scatter shrapnel across the orbital plane.[1]

Operators execute a procedure known as passivation. They open the spacecraft's valves to vent any remaining pressurized propellant or oxidizer into space. Simultaneously, they permanently disconnect the solar panels and completely discharge the onboard batteries to eliminate electrical fire risks.[1]

"A spacecraft moved to a graveyard orbit will typically be passivated," notes the Inter-Agency Space Debris Coordination Committee guidelines. Once passivated, the satellite goes completely dark, becoming an inert metallic tombstone drifting in the vacuum.[1]

Because atmospheric drag is virtually nonexistent at 36,000 kilometers, these dead satellites will not experience orbital decay. They will remain in their supersynchronous graveyard orbits for millions of years, silently circling the Earth long after their operators have ceased to exist.[1]

Regulatory Enforcement

The 300-kilometer graveyard rule is not merely a suggestion; it is strictly enforced by global telecommunications regulators. The United States Federal Communications Commission requires all licensed geostationary operators to submit a detailed post-mission disposal plan before a satellite is even launched.[1]

Operators must demonstrate they have the telemetry and tracking capabilities to execute the 11 m/s maneuver. In 2023, the Federal Communications Commission issued its first-ever fine for orbital debris, penalizing Dish Network after the company failed to boost its EchoStar VII satellite to the required graveyard altitude.[1]

The International Telecommunication Union also plays a critical role in coordinating these orbital slots. When a satellite is successfully retired to the graveyard, its highly coveted position in the geostationary arc is officially freed up, allowing a replacement spacecraft to occupy the same longitudinal coordinate.[4]

As the geostationary belt becomes increasingly crowded with new broadband and military infrastructure, the integrity of the graveyard orbit system is paramount. By enforcing the 11 m/s disposal standard, regulators ensure the 35,786-kilometer corridor remains a safe and functional resource for future generations.[1][4]

The Low Earth Orbit Contrast

The physics of disposal look entirely different for spacecraft operating in low Earth orbit. Because these satellites circle the planet at altitudes below 2,000 kilometers, they are already skimming the tenuous upper layers of the atmosphere, making atmospheric reentry highly efficient.[1]

Lowering a satellite's perigee from a few hundred kilometers up requires a delta-v of roughly 100 meters per second. Operators hold back this small propellant margin to ensure the spacecraft burns up within the five-year limit mandated by modern orbital debris regulations.[1][4]
