The 1.025 Specific Gravity and the 20-Foot Draft That Define the Panama Canal's Neopanamax Limits

The outcome of a Panama Canal transit is determined not at the lock gates, but at the loading port weeks earlier, when the cargo is weighed against the specific gravity of the water. This is the step that matters because water density dictates buoyancy; a ship that clears the ocean floor perfectly might scrape the concrete sills of the Canal if loaded without accounting for the transition from saltwater to fresh water.[5]

The Panama Canal Authority (ACP) enforces a strict maximum draft for Neopanamax vessels. Under optimal conditions, this limit is set at 50.0 feet (15.24 meters), though severe drought and the 2023-2026 El Niño cycle forced temporary reductions to 48.0 or 47.5 feet before recovering in late 2026.

But that 50.0-foot limit is not measured in the ocean. It is measured in "Tropical Fresh Water" (TFW), specifically the water of Gatun Lake, the massive artificial reservoir that forms the central 33-kilometer stretch of the Canal.[5]

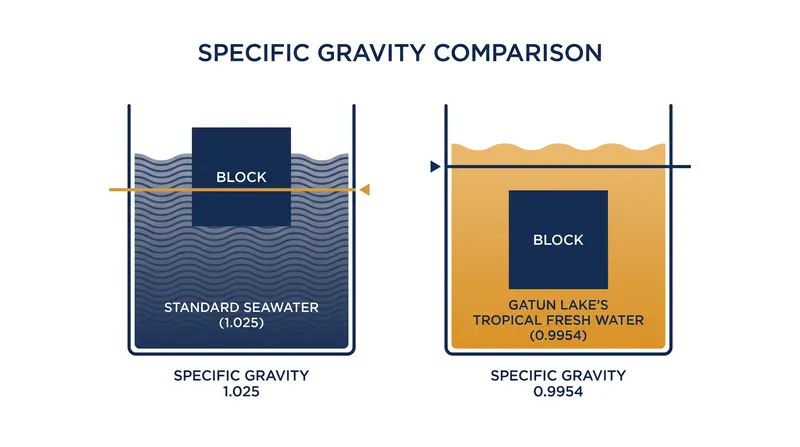

Here is where the physics of specific gravity takes control. Standard ocean seawater has a specific gravity of 1.025, meaning it is 2.5 percent denser than pure water. Gatun Lake, fed by tropical rainfall from the Chagres River, has a specific gravity of 0.9954 at a standard temperature of 29.4 degrees Celsius (85 degrees Fahrenheit).[1][4][5]

Because Gatun Lake is less dense than the ocean, it provides less buoyant force per cubic meter. When a 120,000-ton Neopanamax container ship sails from the Pacific Ocean into the Canal, it displaces the exact same mass of water, but that water now takes up more volume. Consequently, the ship sinks deeper into the water column.[1][5]

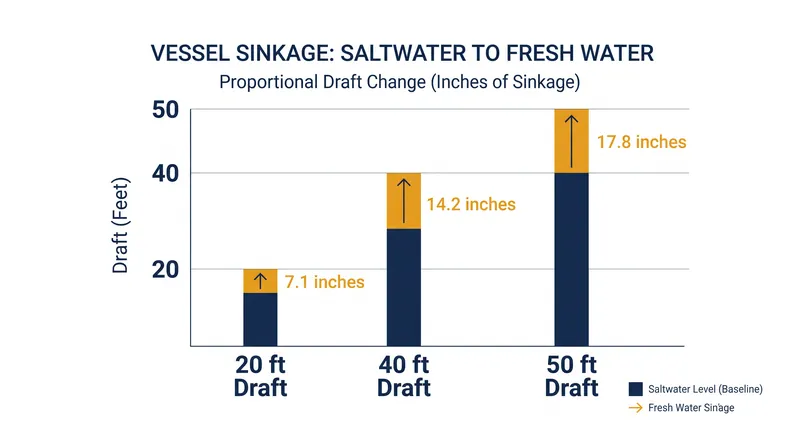

The maritime industry quantifies this sinkage using a baseline scaling ratio, often referred to as the 20-foot draft metric. For every 20 feet of draft a vessel draws in standard 1.025 seawater, it will sink an additional 7.1 inches when it enters the 0.9954 tropical fresh water of Gatun Lake.[5]

This mathematical relationship scales linearly. A smaller vessel with a 20-foot draft in the ocean will draw 20 feet and 7.1 inches in the Canal. But for a Neopanamax behemoth pushing the absolute physical limits of the infrastructure, the stakes are magnified.[5]

If a Neopanamax vessel is loaded to a 50.0-foot draft at a saltwater port like Shanghai or Los Angeles, the transition to Gatun Lake will cause it to sink an additional 1.48 feet (nearly 18 inches). It would enter the Canal drawing 51.48 feet—violating the ACP's strict 50.0-foot limit and risking a catastrophic grounding on the lock sills.[5]

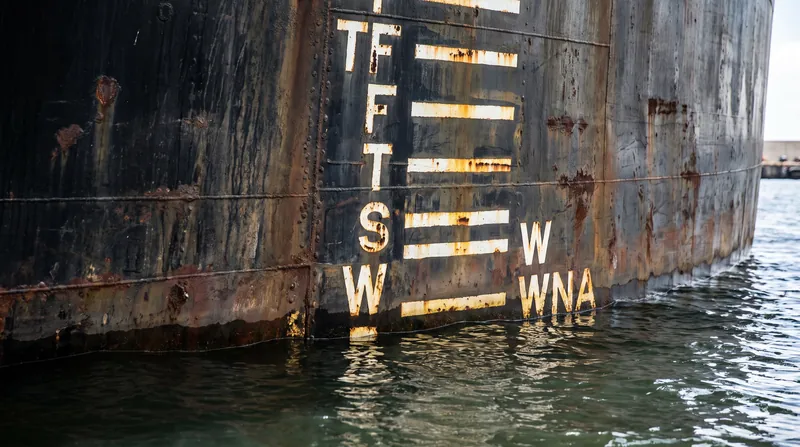

To prevent this, naval architects and loadmasters calculate the Fresh Water Allowance (FWA). The FWA dictates exactly how much "air gap" must be left between the waterline and the maximum draft mark when loading in saltwater.[3]

The 1.025 specific gravity standard was codified in international shipping conventions, including the International Convention for the Safety of Life at Sea (SOLAS), to provide a universal baseline for deadweight tonnage (DWT).[2]

Under these conventions, deadweight is explicitly defined as "the difference in tonnes between the displacement of a ship in water of a specific gravity of 1.025 (corresponding to average density of sea water) at the draft corresponding to the assigned summer freeboard and the light displacement (lightweight) of the ship."[2]

When a shipowner plans a voyage through the Panama Canal, they must cross-reference this 1.025 baseline against the ACP's 0.9954 TFW standard. The difference dictates the vessel's true cargo capacity for that specific route.[3][5]

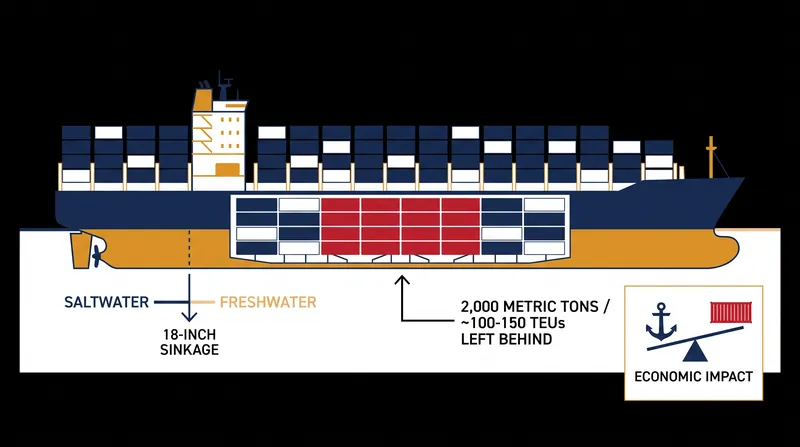

Every inch of draft on a Neopanamax vessel equates to roughly 100 to 120 metric tons of cargo. Therefore, the 18-inch sinkage caused by the specific gravity shift forces operators to leave approximately 2,000 metric tons of cargo behind.[2][5]

In the era of the 20-foot equivalent unit (TEU), that translates to roughly 100 to 150 fully loaded shipping containers that cannot be boarded. The physics of water density directly caps the economics of the voyage.[5]

AI

The situation is further complicated by temperature. The ACP's 0.9954 standard assumes a water temperature of 29.4 degrees Celsius. If the water is warmer, it becomes even less dense, further reducing buoyancy and increasing draft.[1][4]

During severe drought years, Gatun Lake's water levels drop, forcing the ACP to lower the maximum Neopanamax draft from 50.0 feet to as low as 44.0 feet, before recovering to 48.0 feet in late 2026.

At a restricted 48.0-foot TFW limit, the 20-foot draft metric still applies. A vessel can only be loaded to roughly 46.6 feet in saltwater to ensure it does not exceed 48.0 feet when it hits the fresh water of the Canal.[5]

Loadmasters must also account for fuel consumption. A vessel burning 1,000 metric tons of heavy fuel oil while crossing the Pacific will become lighter and rise in the water, partially offsetting the fresh water sinkage. This dynamic calculation is tracked daily.[3]

The engineering marvel of the Panama Canal is not just the concrete locks or the massive steel gates. It is the precise, unforgiving mathematics of fluid dynamics.[5]

The relationship between 1.025 saltwater, 0.9954 fresh water, and the scaling draft metric ensures that global supply chains operate within the literal margins of nature. When the Panama Canal Authority next reviews its draft limits ahead of the 2027 dry season, the baseline mathematics will not change: a fraction of a percent in water density will continue to dictate the movement of millions of dollars in global trade.[5]
