The Superparamagnetic Limit: Why Thermal Stability, Not Manufacturing, Sets the Ultimate Boundary on Hard Drive Storage Density

Ask a hardware engineer what prevents a hard drive from holding more data, and they will point to the physical dimensions of the read-write head. The challenge, in this view, is purely one of manufacturing lithography: if the industry can etch a smaller magnetic pole, it can pack more bits onto a standard 3.5-inch platter.

Ask a solid-state physicist the same question, however, and they will describe a fundamental law of thermodynamics. To the physicist, the manufacturing capability is irrelevant because if a magnetic grain is made any smaller at room temperature, the ambient heat of the room will spontaneously erase the data it holds.[1][2]

This tension between mechanical precision and thermal reality defines the absolute boundary of modern data storage. The phenomenon is known as the superparamagnetic limit. It dictates that as the volume of a magnetic grain shrinks, the energy required to flip its magnetic orientation—and thus change a binary 1 to a 0—drops proportionally.[7][8]

Below a certain volumetric threshold, the magnetic anisotropy energy that holds the grain in its written state becomes weaker than the ambient thermal energy of its environment. When that happens, the bit flips randomly. The data simply vanishes into thermodynamic noise, rendering the storage medium entirely useless regardless of how precisely the bits were initially written.[2][7]

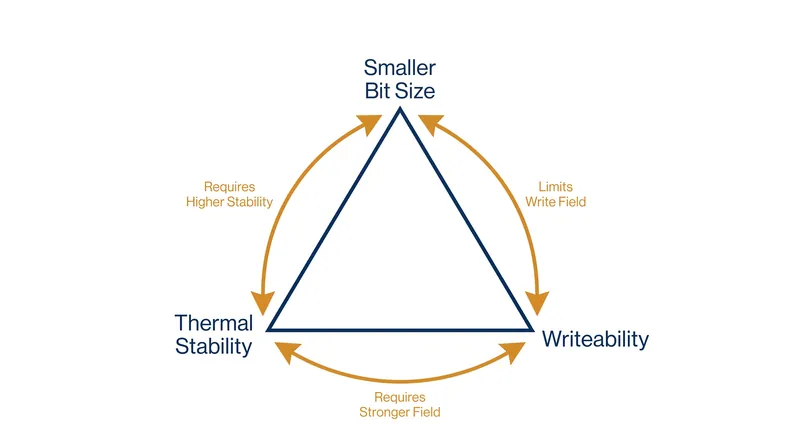

The storage industry has spent the last twenty years navigating a three-sided engineering trap known as the magnetic recording trilemma. To increase areal density, the physical size of the written bits must shrink. To keep those smaller bits from succumbing to the superparamagnetic effect, engineers must use media materials with higher magnetic anisotropy, meaning they are physically harder to magnetize.[1][5]

But that introduces the third leg of the trilemma: writeability. A material that is highly resistant to thermal fluctuations is equally resistant to the magnetic field generated by the drive's write head. As engineers note across the industry, the push to higher areal density involves balancing multiple competing forces to overcome the superparamagnetic limit, a fundamental physical limit that prevents bits from being made smaller without risking data integrity.[3][8]

If the write head itself must shrink to write smaller bits, it inherently produces a weaker magnetic field. The industry thus finds itself trying to flip a stiffer magnetic material using a weaker magnetic tool, all to prevent room-temperature air from erasing the disk.[5][6]

This is not the first time the industry has collided with this thermodynamic wall. Before 2005, hard drives relied on longitudinal magnetic recording, where the magnetic poles of the grains lay flat, parallel to the surface of the platter.[7]

Longitudinal recording hit its own superparamagnetic limit at roughly 100 to 200 gigabits per square inch. The grains were so flat that shrinking them further meant they lacked the volume to maintain thermal stability. The solution, proposed by Shun-ichi Iwasaki at Tohoku University in 1976 but not commercialized until 2005, was perpendicular magnetic recording.[7][8]

Perpendicular recording stood the magnetic domains up vertically. This allowed engineers to pack the bits closer together while maintaining a larger effective grain volume extending deeper into the disk substrate. It was an elegant geometric bypass of the superparamagnetic limit, and it carried the industry for nearly two decades.[5][7]

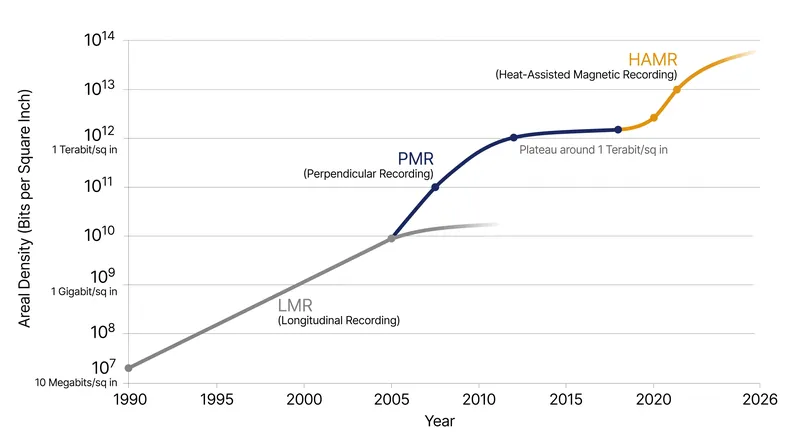

Today, however, perpendicular recording has exhausted its geometric runway. The technology has reached a density of approximately 1 terabit per square inch, a ceiling predicted by researchers as early as 1999. At this density, even vertical grains are too thin to resist thermal degradation unless they are made from alloys so magnetically hard that conventional heads cannot write to them.[1][7]

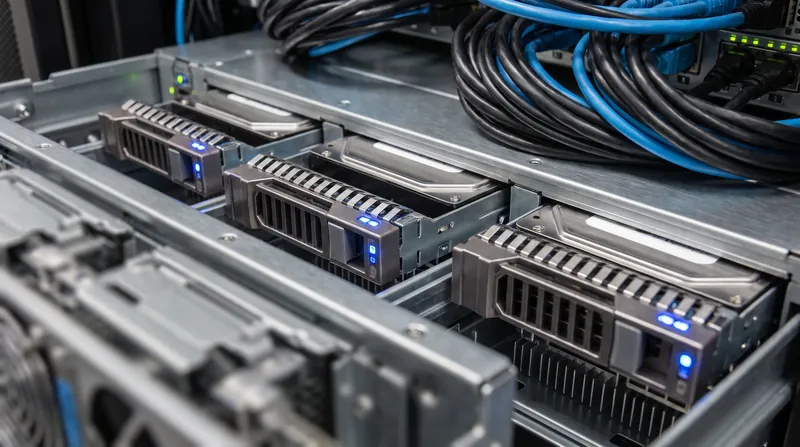

The Advanced Storage Research Council projects that the global data economy, driven heavily by generative artificial intelligence, requires a 20 percent compound annual growth rate in storage density. Stalling at 1 terabit per square inch would force hyperscale cloud providers to build physically larger data centers, multiplying their power and cooling costs to unsustainable levels.[3][8]

The solution requires abandoning the assumption that data must be written at the same temperature at which it is stored. If a material is too magnetically hard to write at room temperature, its coercivity can be temporarily lowered by heating it.[3][5]

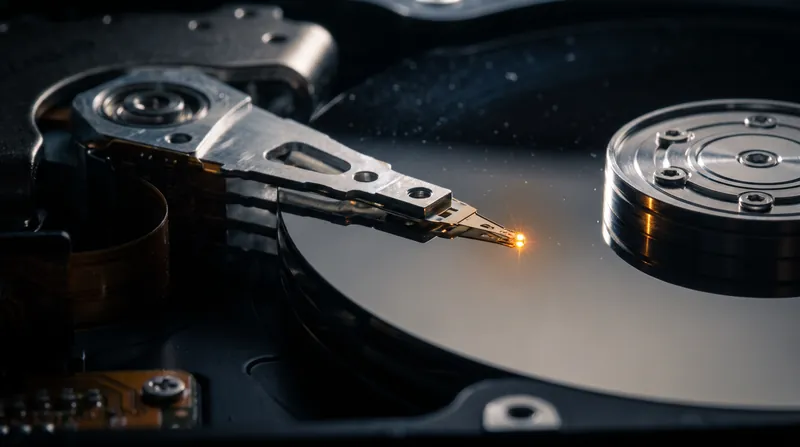

This is the mechanism behind Heat-Assisted Magnetic Recording. A heat-assisted drive integrates a microscopic laser diode and a near-field transducer directly into the recording head. As the platter spins at thousands of revolutions per minute, the laser fires a pulse lasting less than a nanosecond.[3][8]

The laser heats a spot on the disk just tens of nanometers wide to between 400 and 500 degrees Celsius—well above the material's Curie temperature. At this extreme heat, the magnetic anisotropy of the alloy plummets, allowing the weak magnetic field of the shrunken write head to easily flip the bit.[3][4]

The genius of the heat-assisted approach lies in the cooling. The heated spot cools back to ambient temperature in roughly a nanosecond. As it cools, the material's high coercivity instantly returns, locking the newly written magnetic orientation into a thermally stable state that is immune to the superparamagnetic effect at room temperature.[3][5]

Implementing this has required overcoming staggering material science challenges. The environment at the head-disk interface features a gap of less than 15 nanometers, temperatures exceeding 400 degrees Celsius, a thermal gradient of 10 Kelvin per nanometer, and sliding speeds up to 40 meters per second.[4][6]

Despite these hurdles, the decoupling of write temperature from storage temperature fundamentally resets the physical boundary of magnetic data density. The industry has already commercialized heat-assisted drives at densities exceeding 3 terabits per square inch, with laboratory demonstrations pointing toward 50 terabytes per drive and beyond.[3][8]

The superparamagnetic limit remains an absolute law of physics; it cannot be broken. But by dynamically manipulating the thermal environment of the disk at the exact moment of recording, the storage industry has proven that the limit can be continuously redefined.[1][8]
