Subcooled Condensate Implodes Trapped Steam Pockets 1,600-Fold, Shattering Industrial Pipes

On July 18, 2007, a 24-inch steam main beneath Lexington Avenue in New York City ruptured, tearing a crater through the asphalt and fundamentally changing how urban utilities manage thermal networks. The failure was not caused by gradual corrosion or a slow pressure buildup. It was triggered in milliseconds by a thermodynamic phenomenon known as condensate-induced water hammer.[4]

When high-pressure steam rushed into a section of pipe flooded with cooled water, the physics of phase change took over. The resulting explosion forced engineers to confront a flaw in how we treat industrial piping. The industry had to accept that manual valve operation could not outmaneuver a supersonic shockwave.[4]

The argument often advanced by plant managers is that water hammer is an operational error, preventable by simply opening valves slower. That view fundamentally misunderstands the mechanism. Condensate-induced water hammer is not a mechanical flow problem; it is a thermodynamic inevitability when phase boundaries collapse.[1]

To understand the violence of this reaction, one must look at the specific volume of water. At atmospheric pressure, liquid water expands roughly 1,600 times when it flashes into steam. The danger in industrial piping comes from that exact process running in reverse.[3]

The phase-change vacuum

Steam systems transport energy by moving vapor at high temperatures, often exceeding 400 degrees Fahrenheit. As this steam travels through carbon steel pipes, it inevitably loses heat to the surrounding environment. This heat loss causes a fraction of the steam to condense back into liquid water.

If drainage systems fail, this liquid condensate pools in the low points of the piping network. Separated from the active steam flow, this pooled water begins to cool, dropping below the saturation temperature of the system. Engineers refer to this state as subcooled condensate.

The trap is now set. When an operator opens a valve, admitting fresh, high-pressure steam into the flooded section, the steam contacts the subcooled water. The temperature differential causes the steam to condense almost instantaneously, transferring its latent heat into the liquid pool.[3]

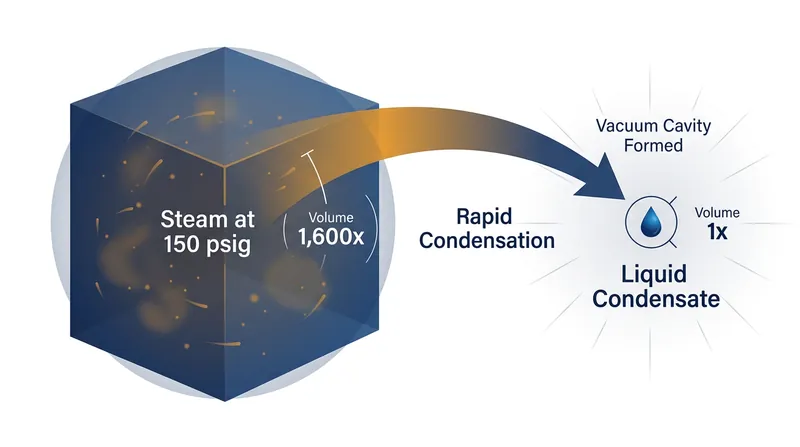

Because steam occupies 1,600 times more space than the liquid it becomes, this rapid condensation creates an immediate, localized void. The steam pocket collapses faster than the surrounding fluid can smoothly fill the space. This instantaneous volume reduction generates a near-perfect vacuum inside the pipe.[1][3]

"The resulting hydrodynamic shock can be severe enough to rupture the piping," the Occupational Safety and Health Administration notes in its definitive 2015 bulletin on the subject. The vacuum does not gently pull the water; it violently accelerates it.

Accelerating the water slug

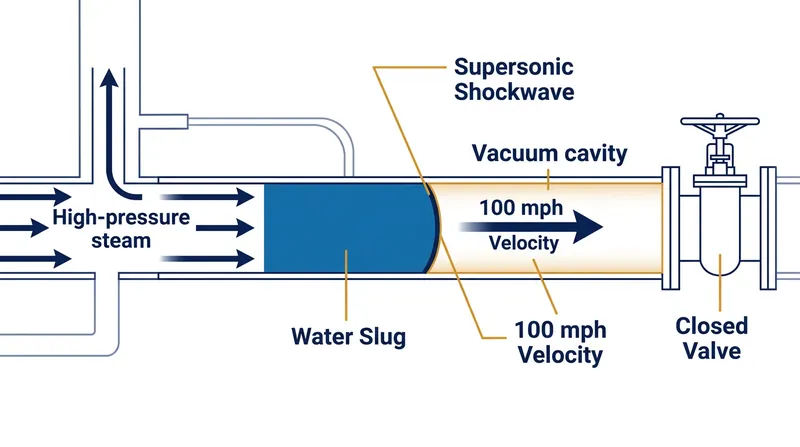

Nature abhors a vacuum, and pressurized industrial systems abhor it violently. The high-pressure steam pushing from behind, combined with the vacuum ahead, accelerates the pooled condensate into a solid slug of water. This liquid mass acts like a piston firing down the length of the pipe.[3]

Water is essentially incompressible, meaning it cannot absorb kinetic energy by shrinking. As the slug accelerates through the vacuum cavity, it reaches velocities exceeding 100 miles per hour in a fraction of a second. It carries the full momentum of its mass with zero elasticity.[1][3]

When this high-speed water slug collides with a change in direction—such as an elbow joint, a closed valve, or another wall of water—the kinetic energy must go somewhere. The fluid stops instantly, converting its velocity directly into a massive pressure spike.

This collision generates a shockwave that travels back through the liquid at the speed of sound in water, roughly 4,800 feet per second. The force of this impact is entirely different from the static pressure the pipe was designed to hold. It is a dynamic, localized hammer blow.[3]

Shattering the static pressure illusion

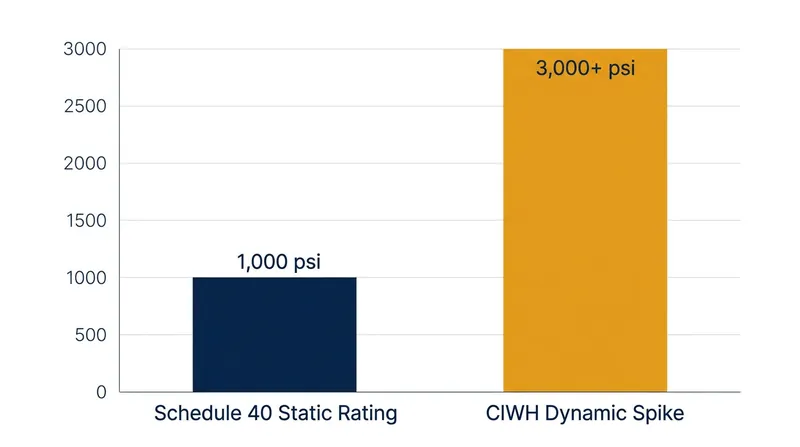

Standard Schedule 40 carbon steel piping is incredibly strong, routinely rated to handle continuous static pressures of 1,000 pounds per square inch. System designers rely on these ratings to ensure safety margins during normal operations. However, static ratings assume a uniform, steady outward force.[2]

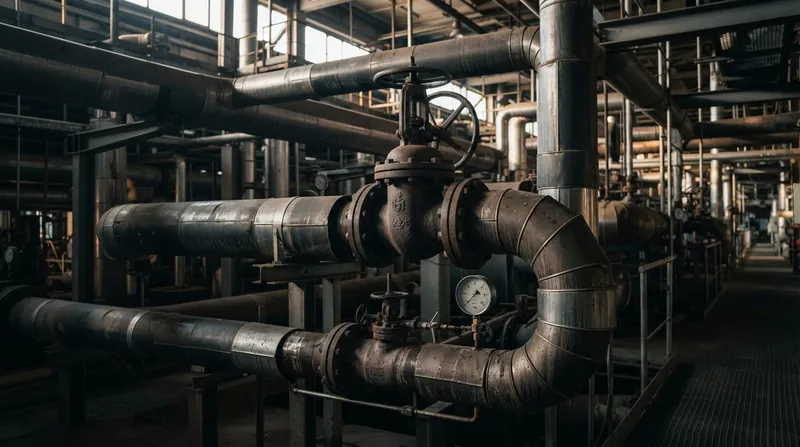

Condensate-induced water hammer ignores static limits. The kinetic collision of a water slug can generate localized pressure spikes exceeding 3,000 psi in less than five milliseconds. This instantaneous shock exceeds the yield strength of the steel, causing brittle fracture rather than ductile stretching.[1][3]

The pipe does not simply leak; it unzips. The initial fracture propagates along the length of the steel, releasing the highly pressurized steam and boiling water behind it. This secondary release causes the remaining liquid to flash-boil, creating a catastrophic volumetric expansion.[4]

This is why the 2007 Lexington Avenue rupture excavated a city street. The initial water hammer shattered the cast-iron fitting, but the subsequent flash-boiling of the pressurized condensate provided the explosive yield. The physics guarantee that the failure will be catastrophic.[4]

The limits of manual intervention

The traditional defense against water hammer relies on operator training. Manuals dictate that technicians must open steam valves incrementally, listening for the telltale pinging sounds that indicate minor condensation shocks. The theory is that slow introduction prevents large vacuum cavities from forming.

This operational counter-argument fails under scrutiny. While slow valve operation is necessary, it cannot stop condensate-induced water hammer once a significant pool of subcooled water exists. The phase change is driven by temperature differentials, not just flow rates.[1][3]

If steam touches a large enough surface area of subcooled water, the 1,600-fold collapse will occur regardless of how narrowly the valve is cracked. The vacuum forms instantly, pulling more steam through the valve and accelerating the slug before the operator can react.[1]

Relying on human hearing to detect the onset of a supersonic shockwave is an engineering failure. By the time an operator hears the pinging of small implosions, the thermal conditions for a massive slug acceleration are already present. The system is already out of control.

Designing for thermodynamic reality

The only reliable defense against condensate-induced water hammer is removing the subcooled water entirely. This requires a fundamental shift from treating drainage as a maintenance afterthought to viewing it as a critical safety system. Steam traps are the primary mechanism for this removal.

A steam trap is an automatic valve designed to discharge liquid condensate and non-condensable gases while holding back live steam. When properly sized and located at every low point and elevation change, traps ensure that steam only ever contacts hot, dry pipe walls.

However, traps fail. According to the Department of Energy, up to 20 percent of the steam traps in a typical industrial facility may be malfunctioning at any given time. A failed-closed trap allows condensate to pool, silently setting the stage for a catastrophic implosion.

Modern engineering standards, such as the ASME B31.1 Power Piping Code, now mandate continuous drip legs and automated warm-up valves that bypass manual control. These systems use temperature sensors to ensure piping is fully heated and drained before main steam isolation valves can physically open.[2]

The transition from manual oversight to automated thermodynamic interlocks represents the only valid path forward. We cannot train operators to outmaneuver phase-change physics. We must design piping networks that refuse to allow steam and subcooled water to occupy the same space.[1][2]

The financial cost of retrofitting legacy systems with automated drip legs and telemetry-monitored traps is substantial. Plant managers frequently push back, citing decades of operation without a major incident as proof that their manual protocols are sufficient.[1]

That reasoning relies on survivorship bias. The physics of the 1,600-fold volume collapse do not care about a facility's safety record. When the thermal conditions align, the vacuum will form, the slug will accelerate, and the steel will shatter.[1][3]
