Single-Crystal Casting Prevents Grain Boundary Sliding, Allowing Nickel Superalloy Turbine Blades to Endure 1,150°C Without Creep Failure

Modern jet engines can now operate at temperatures that would turn conventional steel into a soft, taffy-like state. In the high-pressure turbine section, combustion gases routinely exceed 1,600°C, and the metal blades themselves must endure sustained operating temperatures of 1,150°C.

At these thermal extremes, the primary threat to the engine is not immediate melting, but a slow, time-dependent deformation known as creep. Under the immense centrifugal stress of a spinning turbine rotor, the metal slowly stretches and distorts over thousands of hours.

By eliminating the microscopic borders between crystal lattices, aerospace engineers removed the primary pathways for high-temperature diffusion and structural failure. This single-crystal casting technique allows modern turbine blades to operate in environments that push the absolute limits of materials science, fundamentally changing how we fly.

The engineering challenge stems from the fundamental nature of how metals solidify. In conventional materials, the structure is polycrystalline, forming a mosaic of millions of microscopic crystals, or grains, packed tightly together as the molten metal cools.

At room temperature, the borders between these grains act as structural reinforcements. They halt the movement of microscopic defects in a phenomenon known as the Hall-Petch effect, making fine-grained metals significantly stronger than their coarse-grained counterparts.

The Betrayal of Grain Boundaries

But at high temperatures, this relationship flips entirely, and the boundaries become the material's greatest liability. Above 40 to 50 percent of a metal's absolute melting temperature, thermal energy allows atoms to move freely, and creep deformation begins.[4][5]

"At high temperature they do the opposite: they are the fast diffusion paths and the sites for cavitation and sliding," notes Cambridge University metallurgist H.K.D.H. Bhadeshia. The boundaries essentially act as microscopic highways for atomic vacancies.[1]

This phenomenon is known as Coble creep, where vacancies move along the grain boundaries rather than through the bulk of the crystal lattice. Under the immense centrifugal stress of a spinning turbine, the grains begin to slide past one another.[3]

This grain boundary sliding opens microscopic voids and cavities at the intersections where multiple grains meet. Over time, these cavities link together, eventually leading to a catastrophic intergranular fracture that can tear a turbine blade apart mid-flight, destroying the engine.

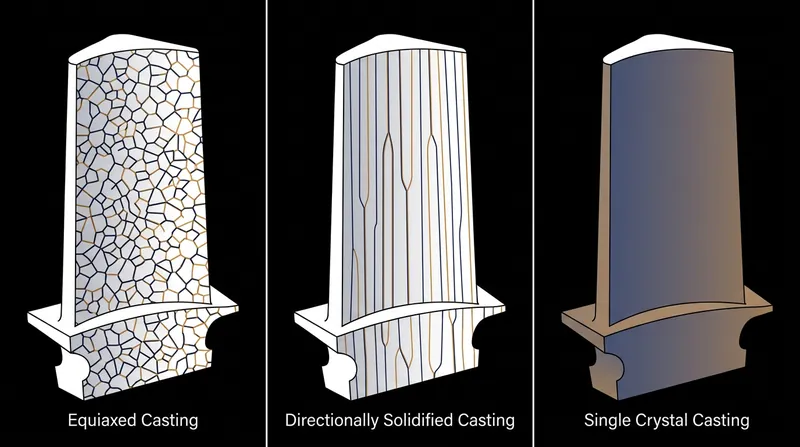

To combat this catastrophic failure mode, engineers at Pratt & Whitney developed a technique called directional solidification in the late 1960s. By chilling the molten metal from the bottom up, they grew columnar grains parallel to the centrifugal stress axis.

The Evolution of Casting

This directional growth removed the transverse boundaries that were most prone to pulling apart under tension. While directional solidification was a massive leap forward, the columnar grains still left vertical boundaries that could facilitate diffusion and oxidation.

The ultimate solution was to eliminate the boundaries entirely, a process that requires growing a single, continuous crystal. Through a delicate investment casting process involving a corkscrew-shaped "pigtail" grain selector, a single crystal is allowed to grow and fill the entire blade mold.

The resulting component is one continuous, uninterrupted metallic lattice with absolutely no internal borders. This completely eliminates the possibility of grain boundary sliding and Coble creep, forcing any deformation to occur through the much slower process of lattice diffusion.

Eliminating grain boundaries did more than just stop sliding; it fundamentally changed the chemistry of the alloy. In polycrystalline alloys, engineers had to add elements like boron, carbon, and zirconium to strengthen the boundaries and prevent them from separating.

These boundary-strengthening additives inadvertently lowered the alloy's melting point, capping the temperatures at which the metal could be processed. With no boundaries to protect in a single crystal, these elements were entirely removed from the chemical composition.

The Hidden Benefit of Purity

Removing those solutes raised the incipient melting temperature of the nickel superalloy. This allowed manufacturers to heat-treat the blades at extreme temperatures—up to 1,330°C—without melting the delicate structures or causing localized chemical segregation.[1]

This intense heat treatment dissolves the coarse gamma-prime precipitates that form naturally during the initial casting process. As the metal cools under strictly controlled conditions, the gamma-prime phase precipitates back out in a fine, uniform dispersion.

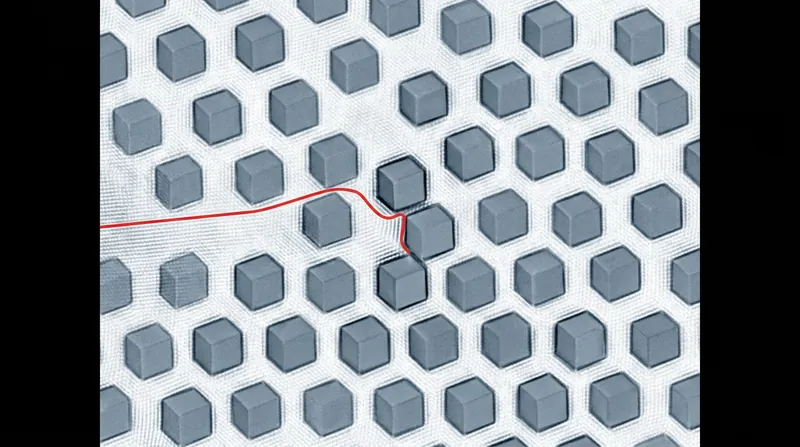

These ordered Ni3(Al,Ti) precipitates form microscopic cubes embedded within the face-centered cubic gamma matrix. They act as microscopic roadblocks, perfectly blocking the movement of dislocations through the crystal lattice and providing the material's extraordinary strength.

Because the lattice misfit between the two phases is tightly controlled, dislocations are forced to move in pairs. This requires immense energy to shear through the precipitates, significantly reducing the mobility of defects and inhibiting dislocation-activated creep.[2]

Today, third-generation single-crystal superalloys like CMSX-4 and CMSX-10 contain heavy elements like rhenium and ruthenium to further stabilize the lattice. These additions make the lattice misfit more negative, which promotes the beneficial "rafting" of the gamma-prime phase under stress.

The Modern Result

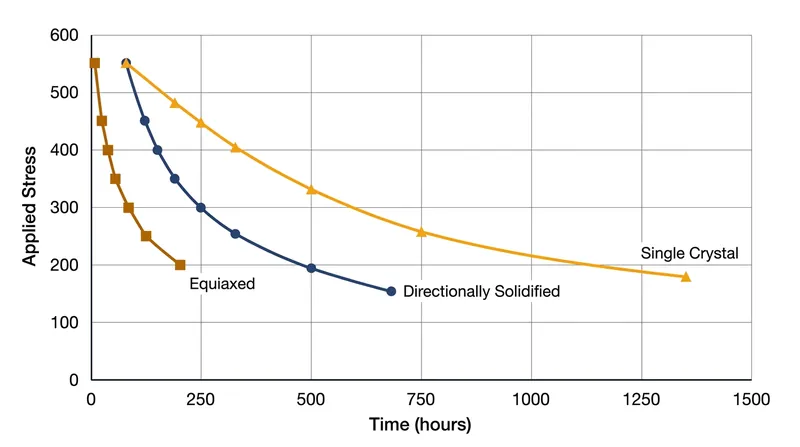

These advanced alloys can endure over 25,000 hours of continuous operation at 1,100°C under stresses of 200 megapascals without failing. This structural integrity is what allows modern turbofan engines to achieve their massive thrust-to-weight ratios.[6]

The first commercial aviation use of single-crystal blades occurred in 1982 on the JT9D-7R4 jet engine, which powered the Boeing 767 and Airbus A310. Since then, the manufacturing yields for these complex castings have improved dramatically.

Foundries now routinely achieve prosecution yields greater than 95 percent when casting single-crystal airfoils for aviation gas turbines. This high success rate helps offset the immense cost of the vacuum casting process compared to traditional equiaxed casting.

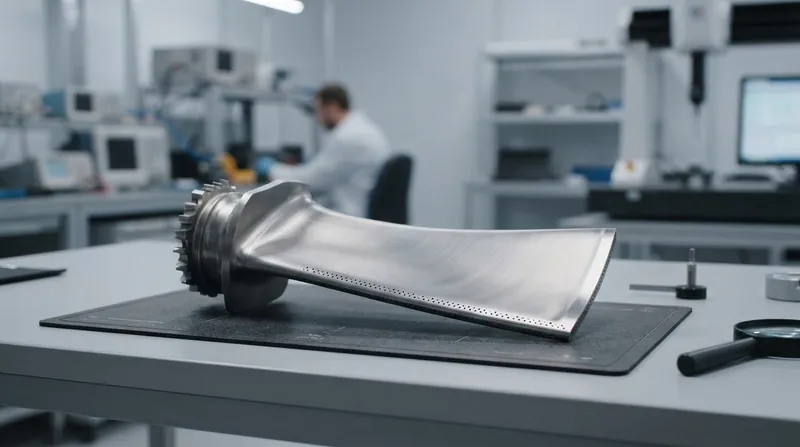

Even with the elimination of grain boundaries, the metal itself cannot survive the 1,600°C gas path temperatures on its own. The single-crystal blades are cast with intricate internal cooling channels that snake through the airfoil.

Compressed air from the engine's compressor is forced through these channels, absorbing heat from the metal before exiting through tiny holes on the blade's surface. This creates a thin film of cooler air that insulates the metal from the direct blast of the combustion gases.

Pushing the Thermodynamic Limits

The combination of internal cooling and thermal barrier coatings drops the actual metal temperature to the survivable 1,150°C limit. At this temperature, the single-crystal structure ensures that the blade will not stretch and strike the engine casing over its operational lifespan.

The development of these materials remains an active frontier in materials science. Researchers are constantly tweaking the elemental composition, balancing the need for high-temperature creep resistance against the risk of forming brittle, topologically close-packed phases over time.

As turbine inlet temperatures continue to rise in pursuit of greater thermodynamic efficiency and lower carbon emissions, the demands placed on these alloys will only increase. Single-crystal casting stands as one of the most significant, yet least visible, engineering triumphs of the modern era.

The technology has become the invisible backbone of global aviation, turning a metallurgical impossibility into a daily reality. Without single-crystal superalloys, the fuel efficiency and reliability of modern commercial air travel would simply not exist.
