Why Rayleigh Scattering and Silica Vibrations Lock Long-Haul Fiber Optics at 1,550 Nanometers

When a photon enters a silica optical fiber, its survival depends entirely on its wavelength relative to the physical dimensions of the glass matrix. If the wavelength is too short, the light scatters off microscopic density fluctuations frozen into the core. If the wavelength is too long, the energy is absorbed by the vibrational resonance of silicon-oxygen bonds.[1][5]

This fundamental thermodynamic trap dictates the architecture of the global internet. Network engineers cannot simply choose an arbitrary frequency for long-haul data transmission. They are forced into a narrow optical window where these two opposing physical phenomena reach their combined minimum, dictating the spacing of submarine repeaters and the design of terrestrial backbones.[4]

The International Telecommunication Union standardizes this optimal transmission corridor around 1,550 nanometers. At this specific frequency, standard single-mode fiber achieves an attenuation of roughly 0.20 decibels per kilometer. Understanding why this exact number emerges requires examining the atomic-level interactions that degrade optical power over distance.[10]

The Rayleigh Scattering Penalty

The dominant source of signal loss in the near-infrared spectrum is Rayleigh scattering. During the manufacturing process, molten silica cools into an amorphous solid, locking in microscopic variations in density and refractive index. These structural imperfections act as scattering centers for propagating light.[5][6]

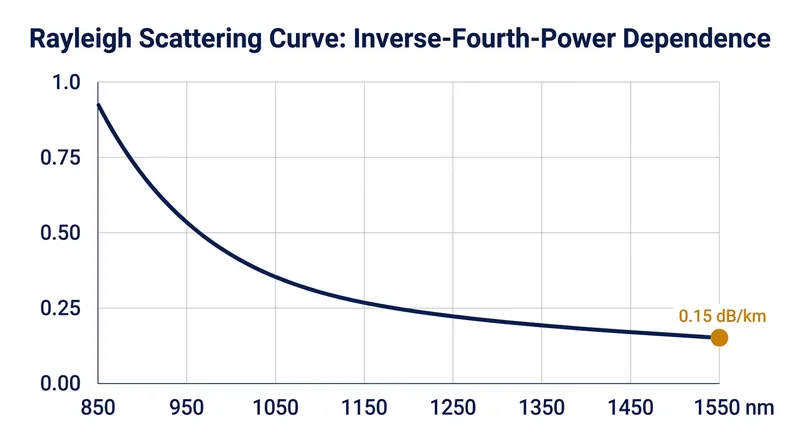

Because these density fluctuations are smaller than the wavelength of the transmitted light, the scattering intensity follows an inverse-fourth-power mathematical relationship. This means that as the wavelength increases, the scattering penalty drops precipitously. A signal transmitted at 850 nanometers experiences a massive scattering loss of about 2.5 decibels per kilometer.[1]

Moving to a longer wavelength dramatically improves signal retention. At the legacy 1,310-nanometer telecom window, Rayleigh scattering drops to approximately 0.35 decibels per kilometer. Pushing the wavelength further to 1,550 nanometers reduces the scattering floor to just 0.15 decibels per kilometer, allowing the signal to travel significantly farther before requiring amplification.[2][10]

The Infrared Absorption Wall

If Rayleigh scattering were the only factor, engineers would simply push transmission wavelengths deeper into the infrared spectrum to achieve near-zero attenuation. However, a second intrinsic physical barrier emerges at longer wavelengths. The silica glass itself begins to absorb the optical energy.[2]

This absorption is driven by the molecular resonance of the silicon-oxygen bonds that form the fiber's structural lattice. When the frequency of the passing light approaches the natural vibrational frequency of these bonds, the photons transfer their energy into the lattice as heat. This phenomenon is known as infrared absorption.[1][5]

While the primary absorption peaks for silica lie far out in the mid-infrared region beyond 7,000 nanometers, their harmonic tails extend backward into the near-infrared telecom bands. At 1,550 nanometers, infrared absorption contributes a negligible 0.015 decibels per kilometer to the total signal loss.[3][5]

As the wavelength extends past 1,600 nanometers into the L-band and U-band, this vibrational absorption curve turns sharply upward. By 1,700 nanometers, the silica lattice absorbs light so aggressively that the glass becomes effectively opaque for long-haul transmission. The infrared wall permanently blocks any further wavelength extension.[1][4]

The 1,550-Nanometer Intersection

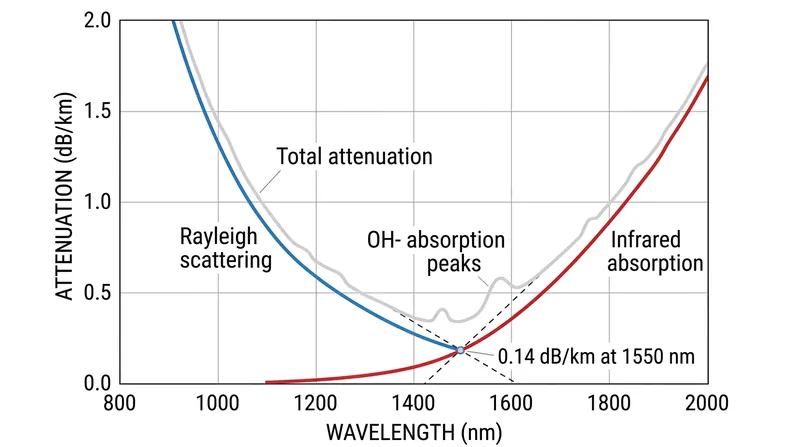

The absolute minimum attenuation for any silica-based optical fiber occurs exactly where the descending Rayleigh scattering curve intersects the rising infrared absorption curve. In pure fused silica, this thermodynamic valley sits squarely at 1,550 nanometers. The theoretical loss limit at this intersection is approximately 0.14 decibels per kilometer.[1][2]

Modern manufacturing techniques have pushed commercial fiber incredibly close to this physical boundary. Standard ITU-T G.652 single-mode fiber, the workhorse of global telecommunications, routinely achieves 0.20 decibels per kilometer in the field. Ultra-low-loss variants featuring pure silica cores can reach 0.16 decibels per kilometer.[5][7][10]

At an attenuation of 0.20 decibels per kilometer, an optical signal loses exactly half of its power every 15 kilometers. This predictable decay rate governs the physical layout of the internet, dictating that transoceanic cables must feature inline optical amplifiers spaced roughly every 80 to 100 kilometers to prevent the data from fading into thermal noise.[4]

The Chromatic Dispersion Trade-Off

While 1,550 nanometers offers the lowest absolute attenuation, early fiber optic networks primarily operated at 1,310 nanometers. This historical preference was driven by a different optical phenomenon called chromatic dispersion. Because a pulse of light contains a narrow spread of wavelengths, different parts of the signal travel at slightly different speeds through the glass.[4][10]

In standard ITU-T G.652 fiber, this chromatic dispersion drops to exactly zero at 1,310 nanometers. Operating at this wavelength ensured that high-speed digital pulses remained crisp and distinct over long distances, even though the signal suffered a higher Rayleigh scattering penalty of 0.35 decibels per kilometer.[10]

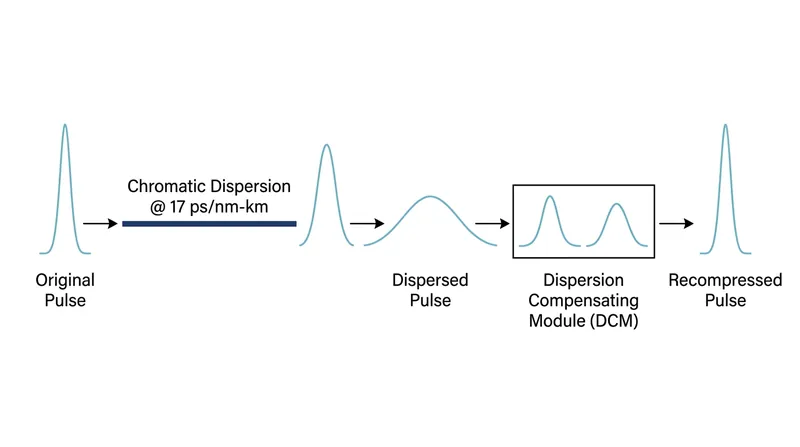

At the 1,550-nanometer attenuation minimum, standard single-mode fiber exhibits a significant chromatic dispersion of about 17 picoseconds per nanometer-kilometer. Without correction, a 10-gigabit signal transmitted at 1,550 nanometers would smear into an unreadable blur after just 60 kilometers, negating the benefits of the lower signal loss.[7][10]

Network operators solved this dilemma by deploying dispersion-compensating fiber modules at amplifier sites. These specialized spools feature a negative dispersion coefficient that precisely reverses the pulse spreading. This engineering compromise allowed the industry to exploit the 1,550-nanometer attenuation minimum while maintaining the signal integrity required for terabit-scale transmission.[4]

The Hydroxyl Ion Contamination

While Rayleigh scattering and infrared absorption represent intrinsic limits, early fiber optic engineers faced a severe extrinsic barrier. During the 1970s and 1980s, water vapor trapped during the glass sintering process left trace amounts of hydroxyl ions embedded within the silica core.[2]

These hydroxyl impurities exhibit a massive absorption resonance at exactly 1,383 nanometers. This contamination created a massive attenuation spike known as the water peak, which effectively split the usable optical spectrum into two distinct windows: the 1,310-nanometer band and the 1,550-nanometer band.[1][2]

Advanced dehydration chemistry eventually solved this problem. By flowing chlorine gas through the porous glass soot during manufacturing, modern fabrication facilities reduce hydroxyl concentrations to below one part per billion. This process flattens the water peak, opening the entire spectrum from 1,260 to 1,625 nanometers for multiplexed transmission.[1][2]

The Erbium Amplifier Coincidence

The physical supremacy of the 1,550-nanometer window was permanently cemented by an extraordinary coincidence in quantum mechanics. In the mid-1980s, a research team led by David Payne at the University of Southampton invented the Erbium-Doped Fiber Amplifier. This device revolutionized long-haul networks by amplifying light entirely within the optical domain.[8][9]

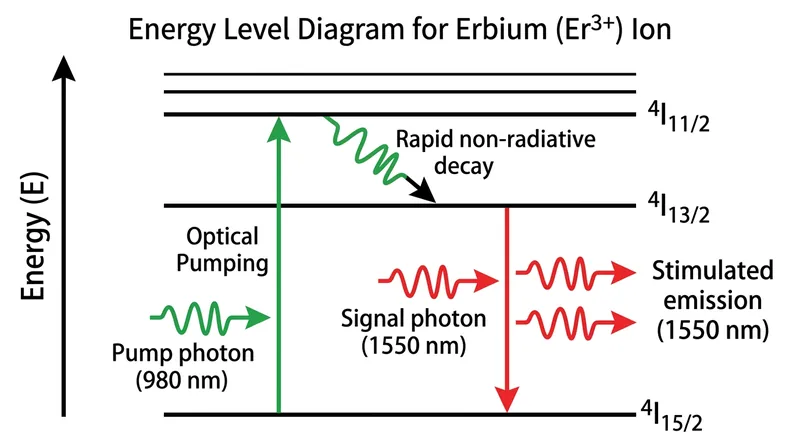

Engineers dope a short section of silica fiber with erbium ions and pump it with a secondary laser operating at 980 or 1,480 nanometers. The erbium ions absorb the pump energy and jump to an excited state. When the weak 1,550-nanometer data signal passes through, it triggers stimulated emission, causing the erbium ions to release identical photons.[8][9]

By pure physical chance, the stimulated emission spectrum of the erbium ion perfectly overlaps the 1,550-nanometer attenuation minimum of silica glass. This alignment allows a single amplifier to boost dozens of multiplexed wavelengths simultaneously across the entire C-band without converting the signal back into electricity.[4][8]

The first submarine cable to deploy this technology was the Trans-Pacific Cable 5 Network in 1996. By combining the lowest possible glass attenuation with direct optical amplification, the industry achieved a massive leap in capacity. The 1,550-nanometer standard transitioned from a material science curiosity into an immovable infrastructure mandate.[8]

Pushing the Physical Boundaries

Today, the telecommunications industry has exhausted nearly all available margin in solid silica fiber. With commercial attenuation sitting just fractions of a decibel above the theoretical Rayleigh limit, researchers cannot extract significantly more distance from standard single-mode cores.[6][7]

To increase capacity, engineers now manipulate the effective area of the fiber core rather than its attenuation. Cables like the Z-PLUS Fiber 130 expand the core's cross-section to 130 square micrometers. This larger area reduces the optical power density, delaying the onset of nonlinear distortions and allowing transmitters to launch stronger signals.[7]

The ultimate escape from the Rayleigh scattering floor requires abandoning solid glass entirely. Experimental hollow-core fibers use photonic bandgap structures to guide light through a central air vacuum. Because air exhibits negligible scattering and absorption, these experimental designs threaten to eventually bypass the 1,550-nanometer silica trap altogether.[1]
