Why Shaded Solar Cells Overheat and How Bypass Diodes Prevent Panel Destruction

A single fallen leaf resting on a rooftop solar panel has already shut down a third of its total power output. The leaf did not merely subtract its own small footprint from the panel's generation. It turned a functioning silicon cell into an electrical roadblock, forcing the system to actively sever that entire section from the circuit to prevent the panel from destroying itself.[3]

This disproportionate loss is not a design flaw, but a necessary survival mechanism. Solar panels are built by wiring individual silicon cells together in a continuous series string. The electrical current generated by the panel must flow sequentially through every single cell to reach the exit terminals.[1]

When sunlight hits the panel uniformly, every cell produces roughly the same amount of current, and the flow is smooth. A standard 60-cell panel typically generates about 0.5 to 0.6 volts per cell, adding up to a total output of around 30 to 36 volts. The cells act as tiny pumps, pushing electrons forward in unison.

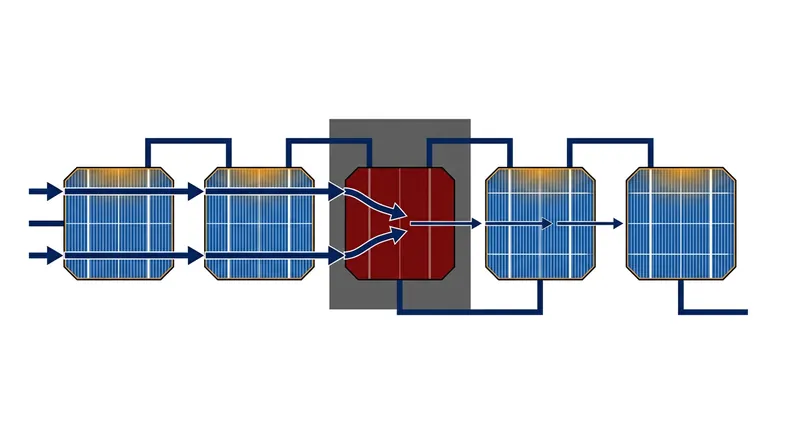

But shading fundamentally breaks this cooperative flow. When a cell is covered by a shadow, dirt, or a chimney profile, it stops generating its share of the current. Because the cells are wired in series, the shaded cell immediately becomes a bottleneck for the entire string.[1]

The unshaded cells, still bathed in full sunlight, continue to generate high current and attempt to push it through the circuit. They encounter the shaded cell, which now acts as a high-resistance barrier rather than a pump. The current has nowhere else to go, so the active cells force it through the blocked cell anyway.[2]

The Threat of Reverse Bias

Forcing current through a non-generating solar cell fundamentally changes its electrical state. The combined voltage of the active cells pushes against the shaded cell, driving it into a condition known as reverse bias. In this state, the cell's normal operation is inverted.[1]

Instead of converting incoming photons into electrical power, a cell in reverse bias consumes the electrical power generated by its neighbors. It acts as a concentrated resistive load. The energy produced by the rest of the string is dumped directly into the shaded silicon.[1]

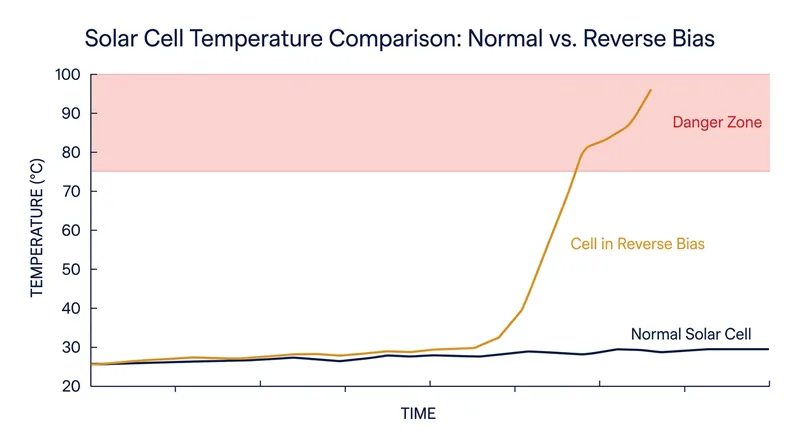

This localized energy dumping manifests entirely as heat, creating what engineers call a hot spot. The thermal load is immense: a single shaded cell might be forced to dissipate the combined wattage of twenty active cells. The temperature in that specific square of silicon spikes rapidly.[1][3]

Left unchecked, hot spot heating causes catastrophic physical damage to the module. The concentrated thermal energy can easily melt the metallic solder joints connecting the cells. It scorches the protective polymer backsheet and can cause the tempered glass covering the panel to shatter from thermal shock.[1][2]

In extreme cases, chronic reverse bias heating can initiate direct electrical arcing, posing a severe fire risk to the underlying roof structure. The panel is effectively cannibalizing itself, using its own generated power to burn through its weakest link.[3]

The Antiparallel Shunt

To prevent this self-destruction, manufacturers integrate a dedicated protective component into the rear junction box of every commercial solar panel: the bypass diode. A diode is a simple semiconductor device that acts as a one-way valve for electricity, allowing current to flow freely in one direction while blocking it entirely in the other.

These bypass diodes are wired across groups of solar cells in an antiparallel configuration. This means they are installed in the reverse direction of the normal current flow. Under standard, unshaded conditions, the voltage generated by the solar cells keeps the diode firmly closed, or reverse-biased.[2]

During normal operation, the diode sits dormant, completely invisible to the circuit. The electrical current flows entirely through the active solar cells, ignoring the closed valve of the diode. A standard panel typically divides its 60 cells into three distinct substrings of 20 cells, assigning one bypass diode to protect each group.

The dynamic changes instantly when a cell becomes shaded and enters reverse bias. As the shaded cell resists the flow of current, the voltage across that specific 20-cell substring drops and eventually flips negative. This voltage reversal is the exact trigger the bypass diode is waiting for.

Once the reverse voltage reaches the diode's activation threshold—typically between 0.4 and 0.7 volts for modern Schottky diodes—the valve snaps open. The diode becomes forward-biased, creating a path of least resistance around the entire affected substring.

Sacrificing Output for Survival

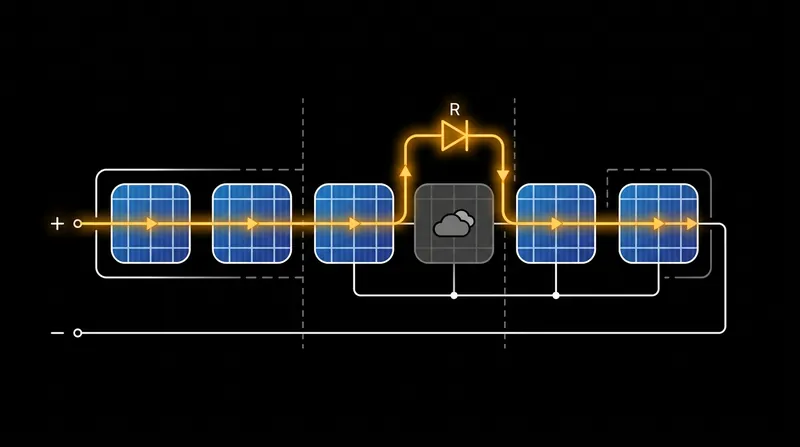

By opening this alternate pathway, the bypass diode shunts the high current generated by the unshaded substrings safely past the bottleneck. The current flows through the diode instead of forcing its way through the shaded, high-resistance cell. The immediate threat of hot spot heating is neutralized.[2]

However, this protection comes at a steep operational cost. Because the diode bypasses the entire 20-cell substring to save the single shaded cell, the power output of all 20 cells is instantly removed from the panel's total generation. The voltage of the panel drops by a full third.[3]

This is why a shadow covering just a few inches of a panel can cause a massive drop in energy production. The system is designed to amputate a limb to save the body. The unshaded substrings continue to operate normally, pushing their current through the bypass diode and out to the inverter.[3]

The system's central inverter plays a crucial role in this dynamic. The inverter constantly sweeps the voltage of the array to find the maximum power point. When a substring is shaded, the inverter senses the restriction and drops the string voltage, actively pulling the current through the forward-biased diode to maintain total wattage.

The diode itself must endure significant stress while conducting this diverted current. As the full amperage of the panel flows through the small component, the diode dissipates a portion of that energy as heat. The junction box on the back of the panel can become noticeably warm during a prolonged shading event.[3]

When Protection Fails

If a panel is subjected to chronic, daily shading—such as a chimney shadow that sweeps across the array every afternoon—the bypass diodes are forced to cycle on and off constantly. This repetitive thermal cycling degrades the semiconductor material inside the diode over time.[3]

Like any electronic component pushed to its thermal limits, bypass diodes eventually fail. A diode failure leaves the solar panel highly vulnerable, and the nature of the failure determines the specific consequence for the array.[3]

If a diode fails in a closed, or short-circuited state, it permanently shunts the current around its assigned substring. The panel will forever operate at a reduced capacity, missing a third of its voltage even in perfect, unshaded sunlight. The homeowner loses generation, but the panel remains safe from fire.[3]

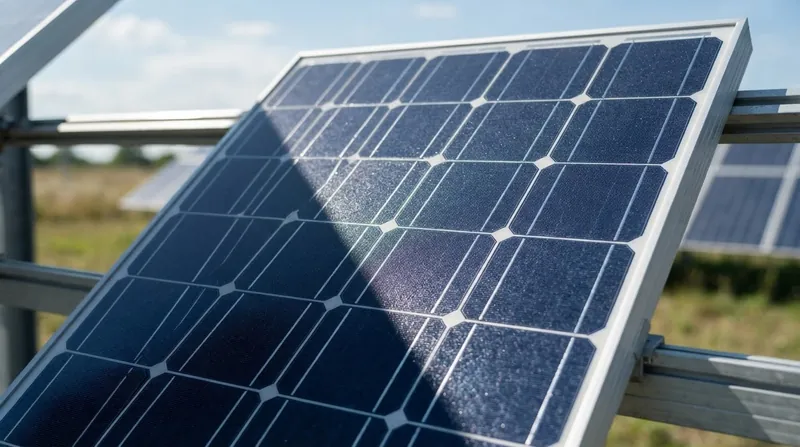

A far more dangerous scenario occurs when a diode fails in an open circuit state. In this condition, the protective valve is permanently jammed shut. If a cell in that substring is subsequently shaded, the current has no alternate path and is forced directly through the shaded cell.[3]

Without the bypass diode to shunt the current, the shaded cell is driven into deep reverse bias. The resulting hot spot heating goes entirely unchecked, rapidly escalating to the point of melting solder, scorching the backsheet, and permanently destroying the module.[1][2]

Modern Mitigations

To mitigate these risks, the solar industry is actively shifting toward more granular protection strategies. Half-cut cell architectures effectively double the number of substrings, allowing the panel to bypass smaller sections of the array during a shading event.

Modern panels increasingly rely on Schottky diodes rather than traditional P-N junction silicon diodes. Schottky diodes feature a lower forward voltage drop, meaning they consume less power and generate less heat when actively shunting current. This minor efficiency gain translates to lower operating temperatures inside the junction box.[3]

Emerging cell-level shadow management technologies attempt to embed micro-routing mechanisms directly into the silicon. By managing resistance at the individual cell level, these designs aim to eliminate the blunt-force amputation of traditional bypass diodes, keeping panels cooler and more productive under complex shading.[3]
