Why Tracking Memory in 64-Byte Cache Lines Causes Independent Threads to Stall

The performance of a multi-threaded application is not decided when the operating system schedules the threads, nor when the compiler optimizes the loops. It is determined the moment the processor's memory controller decides to fetch data from the physical RAM.[1][2]

A modern central processing unit does not read memory one variable at a time. When a program asks for a single eight-byte integer, the hardware retrieves a continuous 64-byte block of memory called a cache line.[1]

That architectural decision—tracking memory in 64-byte chunks rather than individual bytes—is the foundation of modern computing speed. It assumes that if a program needs one piece of data, it will immediately need the data sitting next to it.[2]

But in a multi-core system, that same assumption creates a catastrophic failure mode. When two independent threads attempt to modify two distinct variables that happen to reside within the same 64-byte block, the hardware turns against the software.[1]

The spatial locality bet

This phenomenon is known as false sharing. To understand why it stalls independent threads, we have to look at the mathematical bet hardware architects made when designing the modern cache hierarchy.[2]

In the early days of microprocessor design, fetching data from main memory was relatively fast compared to the speed of the processor. By the late 1990s, CPU clock speeds had vastly outpaced memory access times, creating the industry-wide "memory wall."[2]

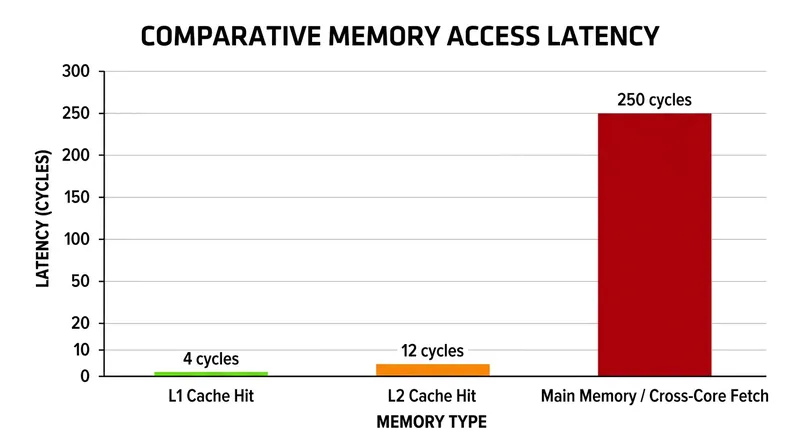

To bridge this gap, engineers placed small, ultra-fast memory banks called caches directly on the processor die. An L1 cache can return data in four to five clock cycles, while reaching out to main memory takes roughly 200 to 300 cycles.[1][2]

Moving data across the system bus is expensive, so the hardware moves it in bulk. The 64-byte cache line became the industry standard for x86 processors, including Intel's Core series and AMD's Zen architecture.[1]

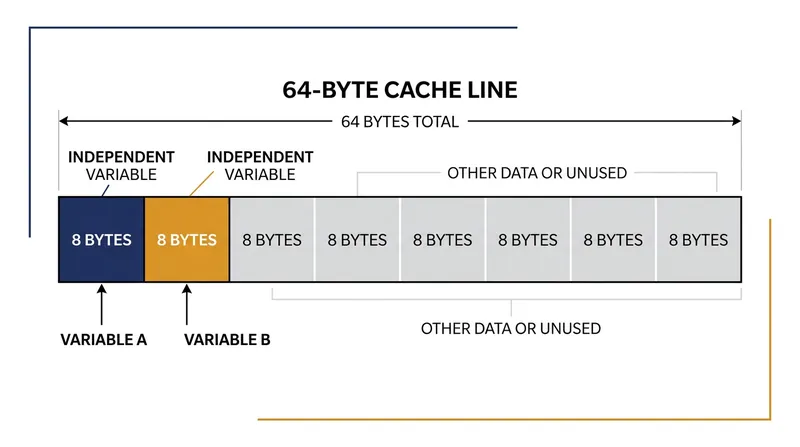

A 64-byte line can hold exactly eight standard 64-bit integers. When a core requests the first integer, it gets the next seven for free. This principle, called spatial locality, is right the vast majority of the time.[1][2]

The coherency protocol

The system works flawlessly until multiple cores begin modifying data simultaneously. When a processor has multiple cores, each core has its own private L1 cache, meaning the system can hold multiple copies of the same memory block.[2]

If Core A modifies its copy of the data, Core B's copy instantly becomes outdated. To prevent the system from processing corrupted information, the hardware relies on a strict cache coherency protocol.[2]

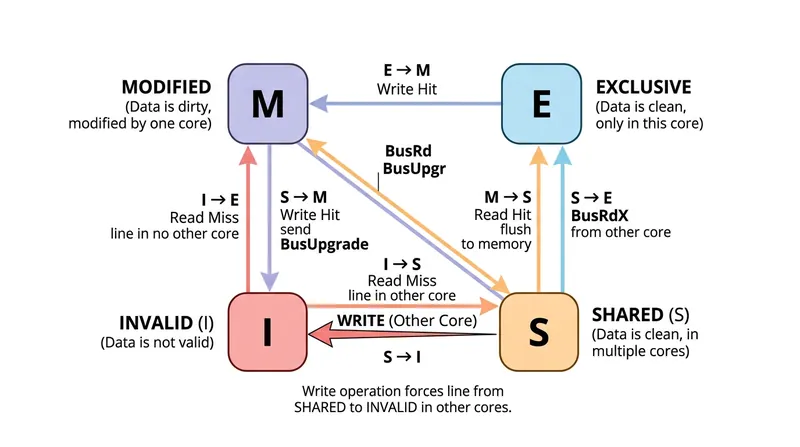

The most common framework is the MESI protocol, first published in 1984 by researchers Mark Papamarcos and Janak Patel. MESI stands for Modified, Exclusive, Shared, and Invalid—the four states a cache line can occupy.[2]

Under the MESI protocol, before a core can write to a cache line, it must claim exclusive ownership of it. If another core holds a copy of that line, the hardware sends an invalidation signal across the system bus.[1][2]

The receiving core must mark its copy as "Invalid." If it wants to read or write to that memory again, it must wait for the first core to flush the updated line back to a shared cache or main memory.[2]

The false sharing collision

This protocol is designed to protect shared data. The fatal flaw is that the MESI protocol tracks ownership at the granularity of the 64-byte cache line, not the individual variable.[1]

Imagine a program with an array of counters, where Thread 1 updates Counter A and Thread 2 updates Counter B. The threads are entirely independent, and the programmer has written no locks or synchronization barriers.

Because Counter A and Counter B are adjacent eight-byte integers, they sit on the exact same 64-byte cache line. The hardware cannot distinguish between a thread modifying the first byte of the line and a thread modifying the ninth byte.[1]

When Thread 1 writes to Counter A, the processor invalidates the entire 64-byte line in Thread 2's cache. When Thread 2 subsequently writes to Counter B, it forces a cache miss, retrieves the line, and invalidates it for Thread 1.[1][2]

The cache line begins bouncing back and forth between the cores in a continuous loop. This is the "ping-pong" effect, and it forces processors capable of billions of operations per second to wait on the system bus.

The invisible performance tax

The resulting performance collapse is severe. A memory access that should have taken four clock cycles in the L1 cache now takes over 100 cycles as the cores fight for ownership of the line.[1][3]

Writing in Dr. Dobb's Journal in 2006, software architect Herb Sutter described the phenomenon bluntly. "False sharing is a stealth performance killer," Sutter wrote, noting that it destroys scalability without leaving any obvious trace in the source code.

Because the threads do not actually share data, standard profiling tools that look for lock contention or race conditions will report that the program is executing perfectly. The stall exists entirely in the hardware layer.[3]

In a benchmark test comparing a falsely shared array against a properly isolated one, the falsely shared version can run up to 50 times slower on a modern multi-core processor. Adding more threads only degrades performance further.[3]

The severity of the stall depends on the physical layout of the processor. On a monolithic die with a shared L3 cache, the penalty is high; across multiple sockets in a server motherboard, the cross-talk latency is catastrophic.[1][2]

Forcing memory alignment

The solution to false sharing requires the programmer to override the compiler's natural memory layout. The most direct method is data padding, which forces variables onto separate cache lines.[1]

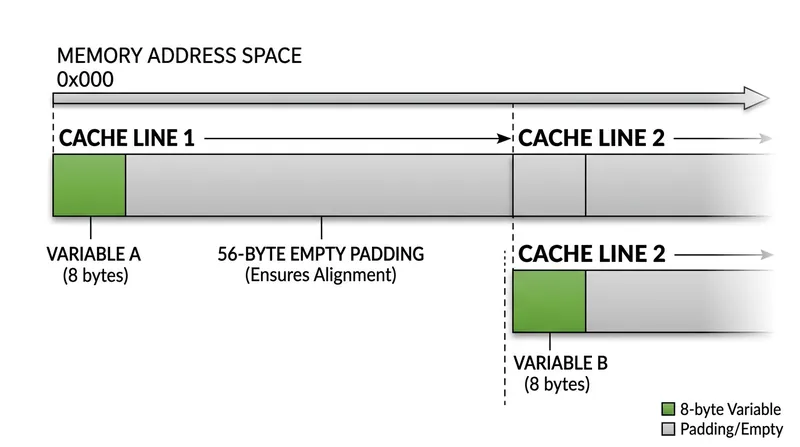

By inserting 56 bytes of dummy data between Counter A and Counter B, the programmer ensures that Counter B begins on the 65th byte—the start of an entirely new cache line.[3]

System programmers use compiler directives to automate this process. In the Linux kernel, developers rely on the `__cacheline_aligned` macro, which instructs the compiler to align critical data structures to the 64-byte boundary.[1][3]

An alternative approach is thread-local storage. Instead of having multiple threads write to a global array, each thread writes to a local variable stored in its own isolated memory space, merging the results only when the computation finishes.

This approach eliminates the coherency traffic entirely. By keeping the working data strictly separated, the L1 caches remain in the "Exclusive" state, allowing the cores to operate at maximum theoretical throughput.[2][3]

A calculated architectural compromise

When developers first encounter false sharing, the natural question is why hardware manufacturers do not simply reduce the cache line size to eight bytes to match the size of a standard variable.[3]

The answer is that the coherency protocol itself requires memory. Every cache line must store metadata—tag bits, state flags, and error-correcting codes. If cache lines were smaller, the metadata overhead would consume an unacceptable percentage of the silicon.[2]

Furthermore, smaller cache lines would cripple the performance of single-threaded applications. The spatial locality bet—fetching 64 bytes at a time—provides a massive speedup for sequential memory access, which represents the vast majority of computing workloads.[1][2]

False sharing is not a bug in the hardware; it is the inevitable friction of a calculated compromise. The architecture optimizes for the common case, leaving it to the software engineer to navigate the edge cases where the abstraction leaks.[3]
