The 1-in-10,000,000 Impurity: How Doping Transforms Silicon From an Insulator to a Controllable Conductor

Technology marketing frequently describes the modern processor as a triumph of 'pure silicon,' implying that the element itself is the engine of computation. The physical evidence contradicts this entirely: a wafer of 100% pure silicon is essentially a glass-like insulator, incapable of conducting the electrical signals required for logic gates. The foundation of the $500 billion semiconductor industry is not the purity of the silicon, but the precise, intentional contamination of it.[3][7]

In its intrinsic, undoped state, a silicon atom shares its four valence electrons with four neighboring silicon atoms, forming a perfect crystalline lattice. At absolute zero, every electron is locked tightly into these covalent bonds. Because electrical current requires the free movement of electrons, this perfect structure is entirely useless for computing. Even at room temperature, the thermal energy is only sufficient to break a minuscule fraction of these bonds, leaving intrinsic silicon highly resistive.[2][3]

To transform this insulator into a controllable conductor, fabrication facilities introduce specific impurities into the crystal lattice—a process known as doping. By replacing a tiny fraction of the silicon atoms with elements from neighboring groups on the periodic table, engineers can radically alter the material's electrical properties. The process is so sensitive that the required concentration of impurities is almost unfathomably small.[1][5]

As researchers on ResearchGate frame the fundamental question: "In semiconductors, why and how could doping at such a low content (e.g. 1/1000000) affect the conductivity of the whole system?" The answer lies in the structural mismatch between the silicon lattice and the introduced dopant atoms. When a single impurity atom is embedded, it disrupts the perfect symmetry of the surrounding 10 million silicon atoms, introducing either a surplus or a deficit of electrons.[1][6]

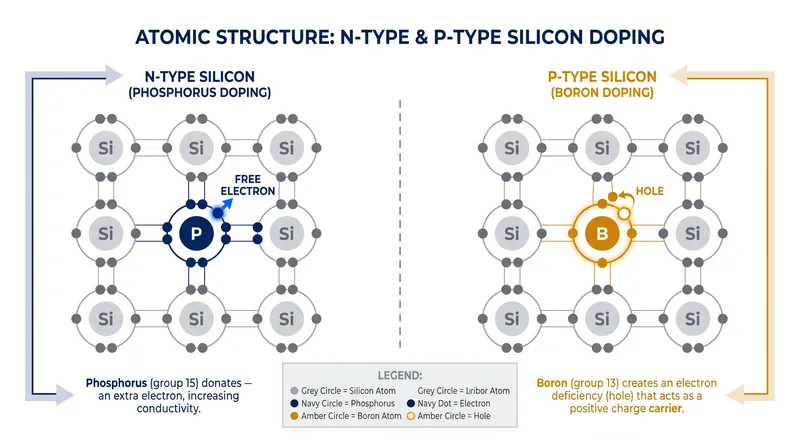

When engineers inject elements with five valence electrons—such as phosphorus or arsenic—into the lattice, four of those electrons form bonds with the surrounding silicon. The fifth electron is left unbonded and free to roam the crystal. This creates an N-type (negative) semiconductor. Because this extra electron requires very little energy to detach from its parent atom, it readily contributes to an electrical current when a voltage is applied.[2][4]

Conversely, introducing elements with only three valence electrons, such as boron or gallium, creates a P-type (positive) semiconductor. These atoms lack the fourth electron needed to complete the bonds with their silicon neighbors, leaving a vacancy known as a 'hole.' In the quantum mechanical model of a semiconductor, this hole acts as a positively charged particle. As neighboring electrons jump to fill the hole, they leave a new hole behind, allowing the positive charge to effectively move through the material.[2][5]

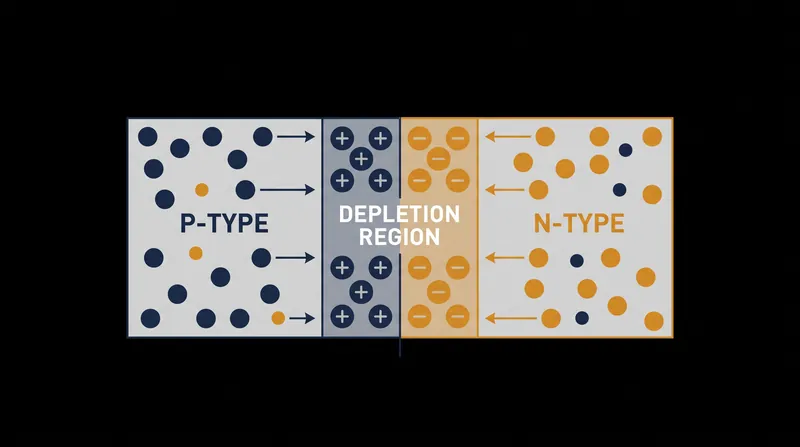

The true power of doping is not just in creating conductivity, but in creating a boundary where N-type and P-type silicon meet: the PN junction. When these two materials are fused, free electrons from the N-type side naturally diffuse across the boundary to fill the holes on the P-type side. This migration creates a 'depletion region' at the interface—a microscopic zone stripped of free charge carriers, which acts as a barrier to further electron flow.[2][4]

This depletion region is the physical mechanism that makes logic gates possible. Without an external voltage, the barrier prevents current from flowing, acting as an open switch (a digital '0'). However, when a positive voltage is applied to the P-type side and a negative voltage to the N-type side, the external electrical field pushes the electrons and holes toward the junction, collapsing the depletion region and allowing current to flow freely (a digital '1').[3][7]

Reversing the voltage pulls the charge carriers away from the junction, widening the depletion region and completely blocking the current. This directional behavior transforms the silicon from a static material into a controllable valve for electricity. By stringing billions of these microscopic valves together, engineers construct the complex logic circuits that execute software instructions.[2][5]

Achieving this precise atomic arrangement requires extreme manufacturing tolerances. In modern fabrication facilities, dopants are not simply mixed into the silicon. Instead, they are accelerated as ions in a vacuum and fired directly into the wafer—a process called ion implantation. This allows engineers to control the exact depth and concentration of the impurities, ensuring that the resulting transistors behave predictably.[4][7]

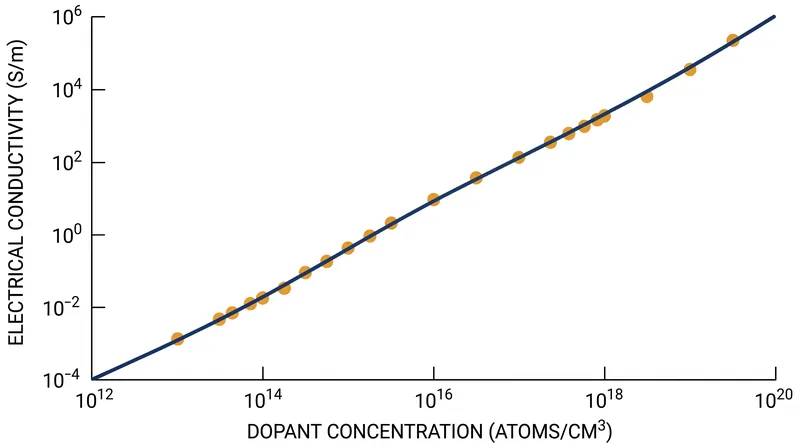

The concentration of dopants dictates the specific electrical characteristics of the region. Lightly doped regions might contain one impurity atom per 100 million silicon atoms, while heavily doped regions—used for the source and drain contacts of a transistor—might contain one impurity per 10,000 silicon atoms. As of 2025, the ability to control these concentrations at the nanometer scale remains the primary differentiator between competing semiconductor foundries.[3][7]

However, the physics of doping is approaching a hard physical limit. As transistors shrink to the 2-nanometer scale, the active region of a device may contain only a few dozen dopant atoms. At this scale, the statistical variation of a single atom's placement can drastically alter the transistor's threshold voltage, leading to unpredictable performance and increased power leakage.[4][7]

To bypass these limitations, the industry is exploring alternative channel materials and novel transistor geometries, such as Gate-All-Around (GAA) architectures, which rely less on heavy doping to control the flow of current. Yet, the fundamental principle remains unchanged: the entire digital economy continues to operate on the precise, calculated contamination of a perfect crystal lattice.[7]
