The 60 Cycles Per Degree Limit: Why Human Visual Acuity, Not Screen Resolution, Sets the Hard Boundary on Display Quality

Consumer electronics manufacturers and retail marketers insist that upgrading to an 8K television—a panel packing more than 33 million individual pixels—will fundamentally transform the home viewing experience. The anatomical evidence from human biology dictates otherwise. The hard boundary on image quality is not set by the fabrication limits of silicon foundries or the bandwidth of HDMI cables, but by the microscopic density of photoreceptor cells in the human retina.[8]

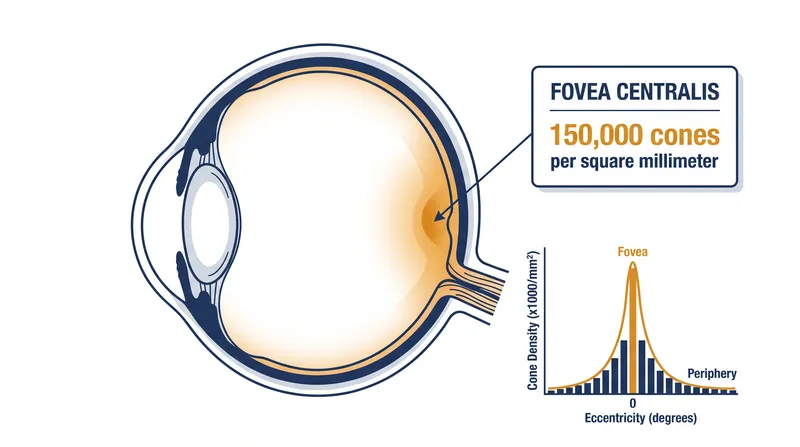

To understand why a 16K display is a biological irrelevancy for the average living room, one must look at the fovea centralis. This small pit at the center of the macula contains the highest concentration of cone cells in the human eye—approximately 150,000 cones per square millimeter. When a person focuses on a screen, the fovea is doing the heavy lifting of resolving fine detail.[1][2]

Vision scientists measure this resolving power not in pixels, but in "cycles per degree" (cpd) of visual angle. A single cycle consists of one dark band and one light band. According to the Webvision manual published by the University of Utah, standard 20/20 vision on the Snellen chart corresponds to an ability to resolve exactly 30 cycles per degree. The absolute upper limit of human visual acuity, often recorded as 20/10 vision in clinical settings, tops out at roughly 60 cycles per degree.[1]

Translating that biological metric into digital terms destroys the marketing premise of ultra-high-definition displays. Because one cycle requires two pixels to render (one for the dark band, one for the light), a maximum biological resolution of 60 cycles per degree means the human eye can perceive a maximum of 120 pixels per degree of visual angle. Any pixel density beyond that threshold is literally invisible to the human nervous system.[4][7]

The mathematics of viewing distance make this limit inescapable. At a standard viewing distance of three meters (about 9.8 feet), a 65-inch 4K television projects roughly 80 pixels per degree into the viewer's eye. This sits comfortably above the 20/20 threshold of 60 pixels per degree, delivering a perfectly sharp image to the vast majority of the population.[5]

Replacing that 4K screen with an 85-inch 8K television at the same three-meter distance pushes the density to approximately 180 pixels per degree. Because the human fovea physically lacks the cone density to sample light at that frequency, the extra 60 pixels per degree are wasted. The brain simply averages the excess information together, rendering the $4,000 8K panel indistinguishable from a standard 4K display.[8]

Researchers at the University of Cambridge confirmed this perceptual plateau in a 2025 study on ultra-HD displays. Measuring the resolution limit of the human eye against modern screens, the Cambridge team demonstrated that the hardware has outpaced the wetware. As the Webvision manual plainly states, "Visual acuity is limited by the diffraction of light at the pupil and the spacing of photoreceptors in the retina."[1][6]

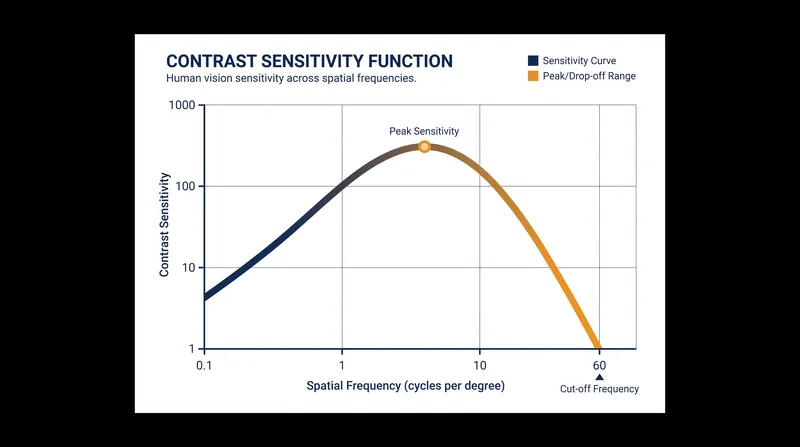

The contrast sensitivity function, detailed in the NCBI Bookshelf, further complicates the manufacturer narrative. Human vision does not treat all spatial frequencies equally. Our eyes are highly sensitive to medium frequencies—broad shapes and high-contrast edges—but our sensitivity plummets as frequencies approach the 60 cpd limit. We are biologically wired to notice a screen's contrast ratio long before we notice its pixel count.[3]

This biological reality explains why the display industry's obsession with resolution is a misallocation of engineering resources. A 2016 analysis published in Ento Key on visual acuity highlights that optical aberrations in the cornea and lens naturally blur incoming light before it even reaches the retina. Even if a display could project 300 pixels per degree, the eye's own optics would smear the image.[2]

The push for 8K and beyond is driven by manufacturing scale rather than perceptual necessity. Panel makers have perfected the lithography required to print smaller pixels, making resolution the cheapest specification to upgrade. It is far more expensive to improve a panel's peak brightness, color gamut, or motion handling—the metrics that actually register on the human contrast sensitivity curve.[8]

There is also a severe computational penalty for ignoring the 60 cycles per degree limit. Driving an 8K display requires rendering 33.1 million pixels 60 to 120 times per second. This demands massive GPU power, increases energy consumption, and limits frame rates, all to generate detail that the human optic nerve physically cannot transmit to the visual cortex.[4][8]

The most significant advancements in display technology now lie entirely outside the realm of resolution. High Dynamic Range (HDR), OLED's infinite contrast ratios, and quantum dot color volumes directly stimulate the eye's peak sensitivity ranges. These technologies look objectively better to the human brain because they operate within the biological parameters of how we actually see.[3][8]

The 60 cycles per degree limit serves as a permanent, anatomical ceiling on the resolution war. Until human beings evolve denser foveas and wider pupils, the pixel count of our televisions has reached its logical conclusion. The next frontier in display technology will not be won by shrinking pixels beyond the threshold of human anatomy, but by mastering the contrast and color that our eyes are actually built to see.[8]
