Descending Propeller Blades Lengthen the Thrust Moment Arm, Making Left-Engine Failures Far More Destabilizing on Twin Aircraft

When an engine fails on takeoff, the pilot of a twin-engine aircraft has seconds to apply rudder and maintain directional control. The party that decides the aircraft's fate is the pilot, relying entirely on the aerodynamic authority of the flight controls to prevent a catastrophic roll.[4]

But not all engine failures present the same aerodynamic challenge. On most conventional twin-engine aircraft, losing the left engine is significantly more dangerous than losing the right, a reality dictated by the geometry of the spinning blades.[4]

The Federal Aviation Administration defines this specific hazard in its certification standards. "The critical engine is the engine whose failure most adversely affects the handling and performance of the aircraft," the agency states in its Airplane Flying Handbook.[1]

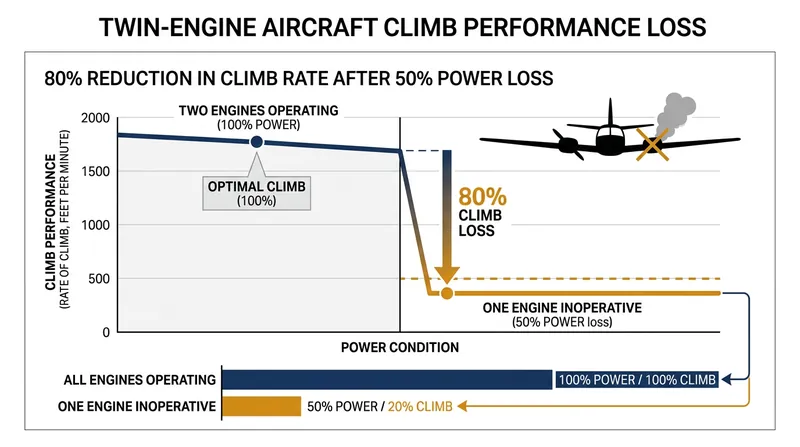

The stakes during such an emergency are incredibly high. When a multi-engine aircraft experiences a 50 percent power loss, it immediately loses about 80 percent of its climb performance, leaving virtually no margin for uncoordinated flight.[1]

The Physics of Propeller Thrust

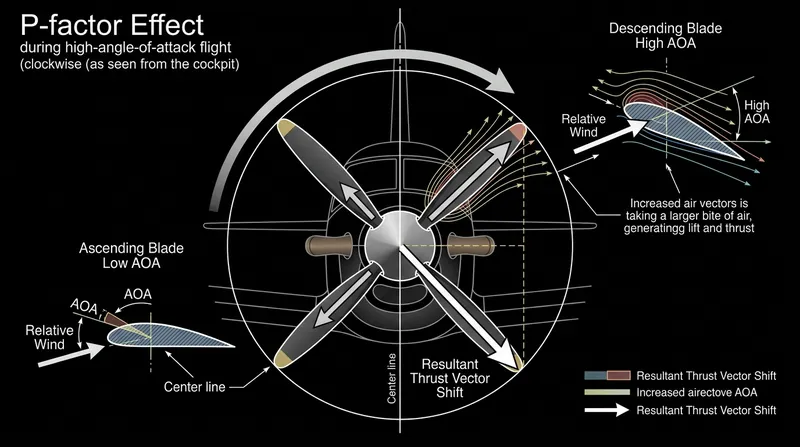

The root cause of this directional instability lies in the physics of spinning propellers. As an aircraft pitches up to establish a positive rate of climb, the propeller disk no longer meets the oncoming relative wind at a perpendicular angle.[4]

Instead, the propeller blades slice through the air at an incline. In a conventional twin-engine design, such as the widely flown Beechcraft Baron, both engines rotate clockwise when viewed from the pilot's seat.[2]

Because of the aircraft's pitch angle, the descending blade on the right side of the spinner takes a bigger aerodynamic "bite" of air than the ascending blade on the left. This descending blade operates at a noticeably higher angle of attack.[2]

This phenomenon is known as P-factor, or asymmetric blade effect. "The engine with the down-moving blades towards the wingtip produces more yaw and roll than the other engine," notes Wikipedia's aerodynamic breakdown of P-factor.[2]

As a result, the aerodynamic center of thrust shifts away from the physical center of the propeller hub. The thrust effectively pulls from the right half of the propeller arc on both the left and right engines.[3]

The Thrust Moment Arm

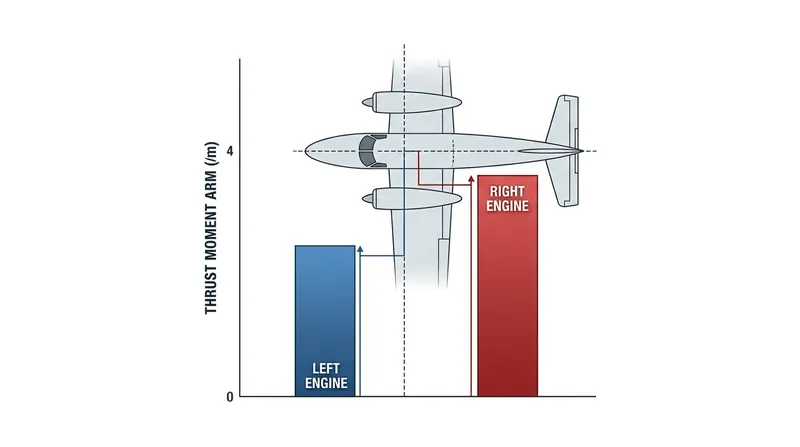

This rightward shift of thrust creates a severe geometric imbalance across the aircraft's wingspan. The distance from the aircraft's longitudinal centerline to the center of thrust is known in physics as the moment arm.[4]

Because both engines rotate clockwise, the right engine's center of thrust shifts further outboard, away from the fuselage. This geometric reality gives the right engine a remarkably long moment arm.[2]

Conversely, the left engine's center of thrust also shifts to the right. This places its thrust vector closer inboard, tightly hugging the side of the fuselage and creating a much shorter moment arm.[2]

In aerodynamics, leverage is calculated by multiplying the thrust force by the length of the moment arm. The longer the arm, the greater the turning force, or yawing moment, exerted on the airframe.[4]

Therefore, even if both engines produce the exact same amount of total horsepower, the right engine possesses significantly more leverage over the aircraft's directional heading than the left engine does.[4]

The Left Engine Failure Scenario

This leverage disparity becomes a matter of survival during an engine failure. If the right engine fails, the aircraft must rely entirely on the left engine to maintain flight and clear terrain obstacles.[3]

Because the left engine's thrust center is shifted inboard, its short moment arm generates a relatively mild yawing force. The pilot can typically counteract this left-turning tendency with moderate right rudder pressure.[3]

However, if the left engine fails, the situation reverses violently. The aircraft is now propelled solely by the right engine, which boasts a massive moment arm due to its outboard thrust center.[2]

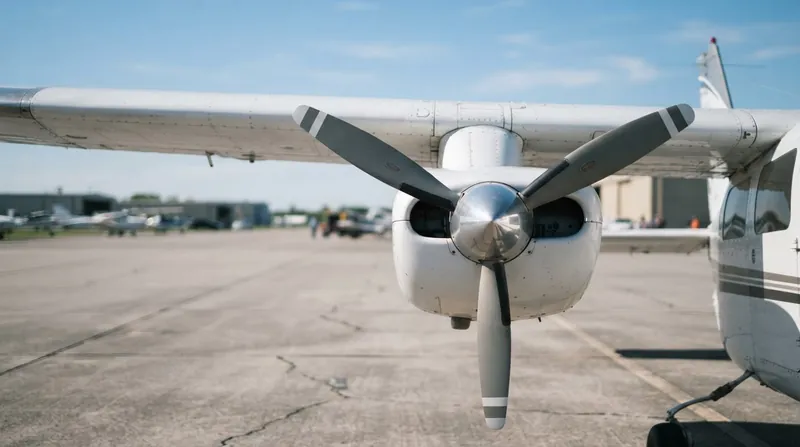

This long moment arm creates a severe yawing force, violently twisting the aircraft's nose toward the dead left engine. The pilot must immediately apply heavy right rudder to prevent the aircraft from flipping into an uncontrollable spin.[1]

The left engine is therefore universally designated the critical engine on conventional twins. Its failure leaves the aircraft at the mercy of the right engine's extreme leverage, demanding the maximum possible aerodynamic correction from the flight crew.[3]

Beyond P-Factor: The Full Aerodynamic Stack

While P-factor is the primary driver of the critical engine phenomenon, three other aerodynamic forces compound the danger of a left-engine failure. The first is accelerated slipstream, which affects the lift generated by the wings.[4]

Because the descending propeller blade produces more thrust, it also pushes a faster stream of air over the wing directly behind it. On a conventional twin, this accelerated slipstream is shifted to the right side of each engine nacelle.[2]

If the left engine fails, the right engine's outboard slipstream generates excess lift far out on the right wing. This creates a severe rolling moment to the left, compounding the violent yaw already generated by the long thrust moment arm.[4]

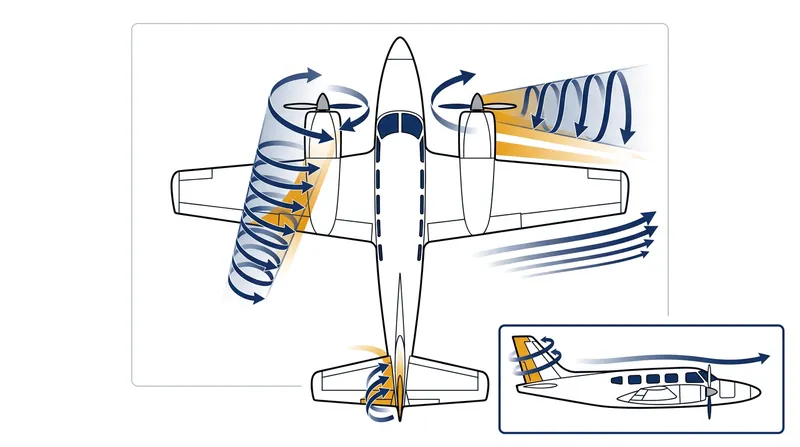

The second compounding force is spiraling slipstream. A spinning propeller creates a corkscrew of air that wraps around the aircraft's fuselage, striking the vertical stabilizer and helping to counteract yaw.[3]

When the right engine fails, the left engine's spiraling slipstream strikes the tail, providing aerodynamic assistance to the pilot. But when the left engine fails, the right engine's slipstream spirals harmlessly away from the tail, offering no help whatsoever.[3]

Finally, torque reaction plays a crucial role. According to Newton's third law, a clockwise-spinning propeller forces the airframe to roll to the left.[2]

If the right engine fails, the left engine's left-rolling torque helps counteract the right-yawing asymmetric thrust. But if the left engine fails, the right engine's left-rolling torque adds directly to the left-yawing asymmetric thrust, making the aircraft even harder to control.[4]

Certification and Minimum Control Speed

Aviation regulators mandate strict flight testing to ensure aircraft remain controllable in this worst-case scenario. Under 14 CFR Part 23, manufacturers must determine the minimum control speed, or Vmc, based specifically on a left-engine failure.[1]

Vmc is the lowest calibrated airspeed at which the rudder still has enough airflow to counteract the asymmetric thrust of the operating engine. Below this critical speed, the rudder loses its aerodynamic authority.[1]

During certification, test pilots intentionally fail the critical engine while maintaining maximum takeoff power on the right engine. They must demonstrate the ability to maintain straight flight with no more than a 5-degree angle of bank.[1]

If a pilot allows the airspeed to decay below Vmc while the right engine is at full power, the aircraft will uncontrollably yaw and roll. Recognizing this threshold is a fundamental requirement for multi-engine pilot certification.[1]

The Counter-Rotating Solution

To eliminate the dangers of the critical engine, some manufacturers design counter-rotating twins, such as the Piper Seminole. In these aircraft, the left engine spins clockwise, while the right engine spins counter-clockwise.[3]

This configuration ensures that the descending blades on both engines are located on the inboard side, closest to the fuselage. The thrust centers shift inward symmetrically during a high-angle-of-attack climb.[2]

With both moment arms kept short and equal, neither engine possesses a leverage advantage. "Aircraft which have counter-rotating propellers rotating toward the cockpit on the top side do not have a critical engine," explains the aviation safety database SKYbrary.[3]

While counter-rotating designs offer superior safety margins, they require manufacturers to produce and stock two completely different types of engines and propellers, significantly increasing maintenance costs for operators.[4]

For the vast majority of conventional light twins flying today, the physics of the descending blade remain an inescapable reality. Pilots must remain constantly prepared to fight the extreme leverage of the right engine if the left one ever falls silent.[4]
