Why Pipeline Valves Closed Faster Than the 2L/a Reflection Time Generate Identical Peak Shocks

Operators facing water hammer often assume that simply slowing down a valve's closure will proportionally reduce the destructive shock. Conversely, hydraulic engineers know that unless the closure time is stretched past a specific mathematical threshold, dialing back the actuator speed does absolutely nothing to soften the blow.[8]

The disconnect stems from a fundamental misunderstanding of how pressure waves propagate through a fluid column. In fluid dynamics, the severity of a hydraulic shock is not dictated by the mere visual speed of the valve stem. Instead, it is governed by a strict race against the speed of sound.[4]

"A shut-off valve can create water hammer when its movement removes flow faster than the pressure wave can travel through the relevant pipe length," notes Tango Valve in a 2026 technical bulletin. The physical mechanism relies entirely on acoustic wave reflection.[3]

The Mechanics of the Joukowsky Surge

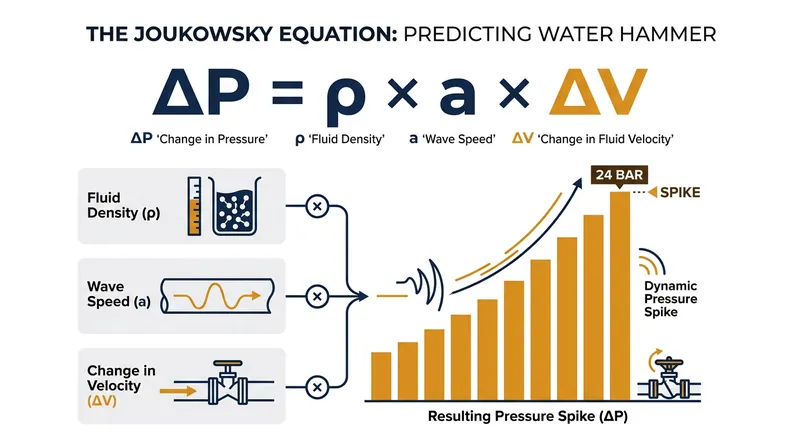

The physics of hydraulic shock, universally known as water hammer, is governed by the Joukowsky equation. When a valve shuts, the sudden halt in fluid momentum converts kinetic energy into a massive, localized pressure spike. This shockwave does not dissipate instantly into the pipe walls.[1]

Instead, it travels upstream through the liquid at the acoustic wave speed of the fluid. For water inside a rigid steel pipe, this pressure wave moves at approximately 1,200 meters per second. This rapid propagation turns the entire fluid column into a high-speed acoustic transmitter.[1][2]

The theoretical maximum pressure this event can generate is calculated by multiplying the fluid's density, the wave speed, and the change in velocity. If water flowing at two meters per second is suddenly halted, the resulting Joukowsky surge can easily exceed 24 bar.[1]

That 24-bar spike, equivalent to roughly 350 pounds per square inch, is added directly on top of the pipeline's normal operating pressure. For many industrial systems, this sudden accumulation of force is more than enough to blow out gaskets or rupture the pipe entirely.[5]

The Critical Reflection Time

The decisive factor in surge mitigation is the time it takes for the initial pressure wave to hit a boundary and return. When the high-pressure wave reaches an upstream reservoir, pump, or larger main, it reflects back toward the closed valve as a low-pressure relief wave.[3][4]

The time required for this round trip is known as the communication time, mathematically expressed as 2L/a, where L is the pipe length and a is the wave speed. In a 500-meter steel pipeline, a wave traveling at 1,200 meters per second completes this round trip in exactly 0.83 seconds.[1]

This 0.83-second window represents the absolute boundary between a controlled fluid deceleration and a catastrophic hydraulic shock. If the valve closes completely before the relief wave returns, the fluid at the valve face absorbs the maximum possible pressure rise.[1][8]

Because the relief wave has not yet arrived to cancel out the rising pressure, the closure is hydraulically identical to an instantaneous shutoff. The system has no physical mechanism to vent the kinetic energy, forcing the pipe walls to absorb the entire impact.[4]

The Plateau of Maximum Destruction

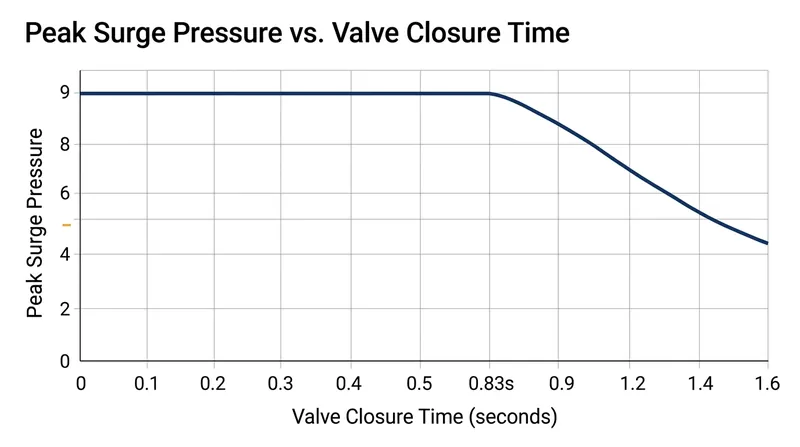

This physical reality creates a dangerous operational illusion for technicians trying to tune their systems. In the 500-meter pipeline example, a valve that slams shut in 0.1 seconds and one that closes in 0.8 seconds will generate the exact same 24-bar peak pressure.[1][8]

The system experiences the full Joukowsky surge in both scenarios, proving that marginal reductions in closure speed below the threshold offer zero structural protection. Until the closure time crosses the 0.83-second mark, the peak shock remains completely flat on a performance chart.[8]

"Applying the full Joukowski equation when the valve closure time exceeds 2L/a is a common mistake," explains EngiCompute's 2026 transient analysis guide. Only a genuinely slow closure, extending well past the reflection time, yields a much smaller surge than the instantaneous formula predicts.[1]

Once the closure time exceeds the communication window, the returning low-pressure wave begins to subtract from the rising pressure at the valve. This active cancellation is the only way a slower valve actually protects the pipeline from fatigue and failure.[4]

Effective Versus Mechanical Closure

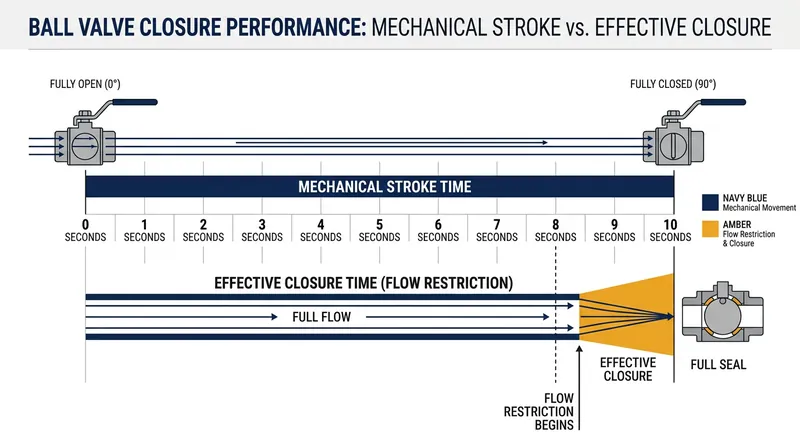

Furthermore, the mechanical closure time printed on a valve's specification sheet rarely matches the hydraulic reality of the pipeline. Many quarter-turn mechanisms, such as standard ball or butterfly valves, allow near-full volumetric flow until the final 10 to 15 percent of their physical stroke.[2][3]

A valve programmed by an actuator to close over a seemingly safe 10-second span might only begin to restrict the water flow in the final second. This non-linear flow characteristic plunges the system back into the instantaneous-closure danger zone.[2]

Despite the slow mechanical movement of the actuator, the fluid experiences a sudden, violent halt. To accurately predict surge, engineers must isolate the valve's effective closure time, which is the specific window where flow is actually reduced, rather than the total stroke duration.[4]

Equal percentage valves tend to control flow earlier in their stroke, making them safer for surge mitigation. Conversely, quick-opening designs only restrict flow in the final moments, practically guaranteeing a full Joukowsky shock regardless of how slowly the motor turns.[4]

The Role of Pipe Elasticity

The acoustic wave speed, and therefore the critical reflection time, is heavily influenced by the elasticity of the pipe wall. In rigid steel pipelines, the pipe walls barely yield to the pressure, keeping the wave speed high and the critical closure window extremely narrow.[6][7]

Flexible materials like high-density polyethylene expand slightly under pressure, absorbing a fraction of the kinetic energy. This elasticity drops the wave speed in a polyethylene water line to roughly 300 meters per second, significantly widening the reflection time window.[6]

While the lower wave speed proportionally reduces the peak Joukowsky surge, it also means the valve must take much longer to close to avoid being classified as instantaneous. A 500-meter polyethylene pipe would require a closure time longer than 3.3 seconds to see any pressure reduction.[6][8]

Engineers must calculate these variables precisely, as relying on generic wave speeds often leads to catastrophic underestimations. The presence of entrained air or gas bubbles in the liquid can also drastically lower the wave speed, altering the entire transient profile.[7]

Column Separation and Vacuum Collapse

When operators fail to respect the critical threshold, the pipeline faces threats beyond just the initial high-pressure spike. As the pressure wave reflects back and forth, it creates alternating cycles of extreme high and low pressure throughout the fluid column.[7]

If the downsurge drops the local pressure below the fluid's vapor pressure, the liquid boils instantly. This creates a localized vapor pocket in a destructive phenomenon known to hydraulic engineers as column separation.[2][7]

When the pressure inevitably rises again, these vapor pockets collapse with explosive force. Documented cases show that reunion shocks can generate secondary pressures reaching six to seven times the pipeline's normal operating pressure, easily exceeding the yield strength of the steel.[2]

These secondary cavitation shocks are often the actual cause of catastrophic pipe ruptures, far exceeding the initial Joukowsky prediction. Preventing them requires keeping the entire transient pressure envelope within safe margins, which is impossible if the initial closure is too fast.[1][7]

Engineering the Mitigation Strategy

To genuinely mitigate hydraulic shock, the effective flow-reduction time must be deliberately extended far beyond the reflection threshold. This allows the reflected low-pressure wave to arrive at the valve while it is still closing, actively canceling out the rising pressure before it peaks.[4]

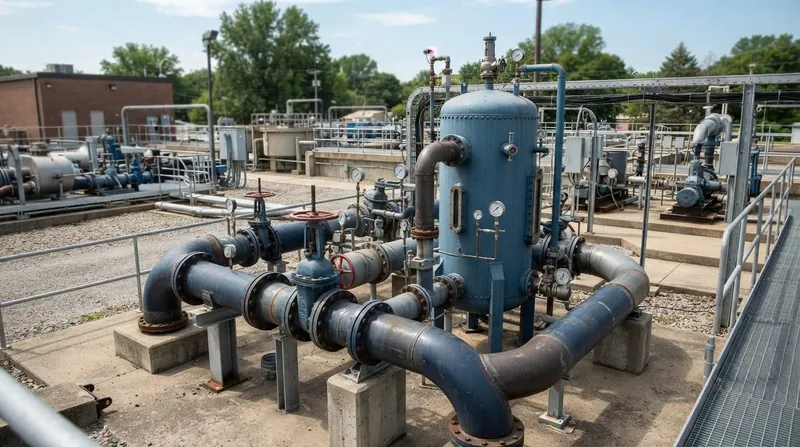

When extending the closure time is operationally impossible, engineers must rely on physical infrastructure to absorb the kinetic energy. Surge vessels, hydro-pneumatic accumulators, and variable speed pump drives are deployed to cushion the blow before it reaches the pipe walls.[5]

Ultimately, defeating water hammer requires respecting the rigid mathematics of wave propagation. Relying on intuitive but mathematically ineffective adjustments to valve speed only leaves the infrastructure vulnerable to the exact same destructive forces.[8]
