Intermediate Reheating Caps Steam Moisture Below 10 Percent to Prevent Turbine Blade Erosion

Inside the low-pressure casing of a modern power plant, the final row of steam turbine blades spins at 3,000 revolutions per minute. At that rotational frequency, the outer tips of the largest titanium blades travel at 750 meters per second, which is more than twice the speed of sound.[7]

At those extreme velocities, the physical state of the steam driving the turbine becomes a matter of structural survival. If the expanding vapor cools enough to condense into liquid water, the resulting droplets do not act like a harmless mist.[6]

Instead, they strike the advancing metal blades like a continuous barrage of supersonic sand. To prevent this catastrophic liquid droplet impingement, engineers rely on intermediate reheating to artificially cap the steam's moisture fraction below a strict 10 percent threshold.[1]

The Thermodynamics of Expanding Steam

A steam turbine extracts kinetic energy by allowing high-pressure, high-temperature vapor to expand across successive rows of aerodynamic blades. As the steam pushes against the metal, it loses both pressure and thermal energy, steadily cooling as it travels down the turbine shaft.[1]

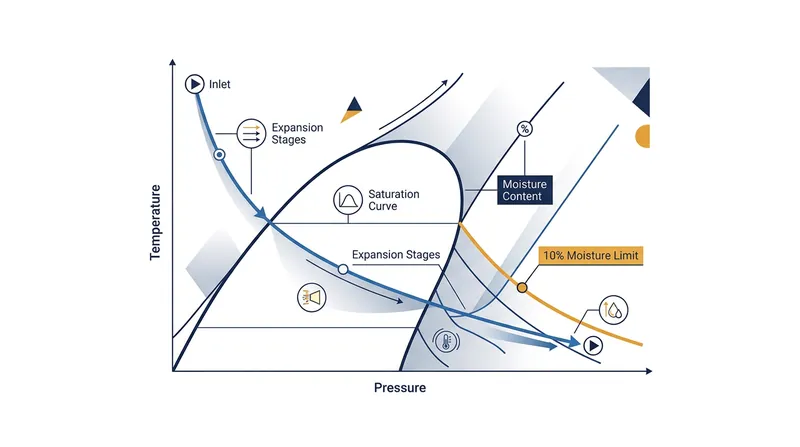

In a supercritical coal or nuclear plant, the steam enters the high-pressure turbine at temperatures exceeding 500 degrees Celsius. By the time it reaches the massive low-pressure exhaust stages, the temperature has plummeted, forcing the vapor toward its saturation point.[2][3]

"Because of the low pressure and temperature in the last stages of the turbine, a small percentage of the steam falls below the saturation line," notes the International Association for the Properties of Water and Steam in its 2013 technical guidance.

This thermodynamic reality creates microscopic primary water droplets, often measuring just 0.1 microns across. While these initial fog droplets are too small to cause immediate structural damage, they coalesce on the stationary stator vanes to form a flowing liquid film.[6]

The high-velocity steam shears this film off the trailing edges of the stationary vanes, atomizing the water into much larger secondary droplets. These secondary projectiles, which can reach 800 microns in diameter, are then hurled directly into the path of the spinning rotor blades.[6][7]

The Mechanics of Droplet Impingement

The destructive potential of these secondary droplets scales exponentially with the turbine's size. Manufacturers like Siemens, Alstom, and GE Power now deploy low-pressure blades measuring up to 56 inches long to maximize power extraction.[7]

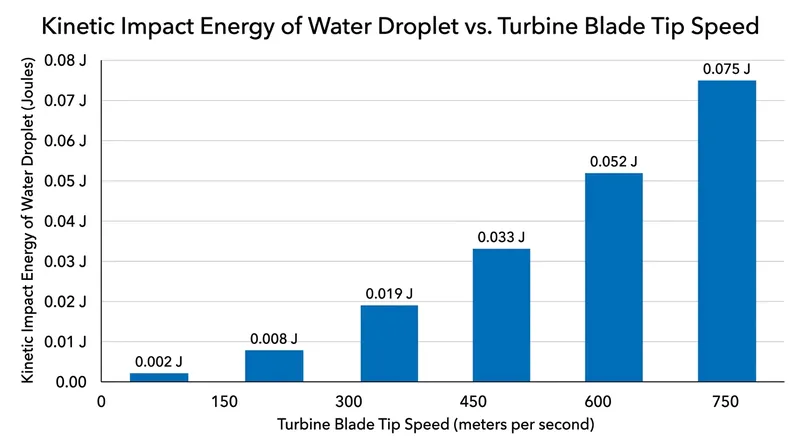

Because the blade tips sit so far from the central rotor, their tangential velocity is immense. When an 800-micron water droplet strikes a titanium alloy blade moving at 750 meters per second, the localized impact energy reaches 0.075 Joules.[7]

While a fraction of a Joule sounds negligible, a single blade endures thousands of these high-energy impacts every second. The repeated shockwaves generate intense localized stresses that rapidly exceed the fatigue limit of standard power generation alloys.[7]

The physics of the impact resemble a micro-explosion. When the droplet strikes the metal, it generates a high-pressure water hammer effect that propagates a shockwave into the titanium lattice, followed immediately by lateral liquid jetting across the blade surface.[6]

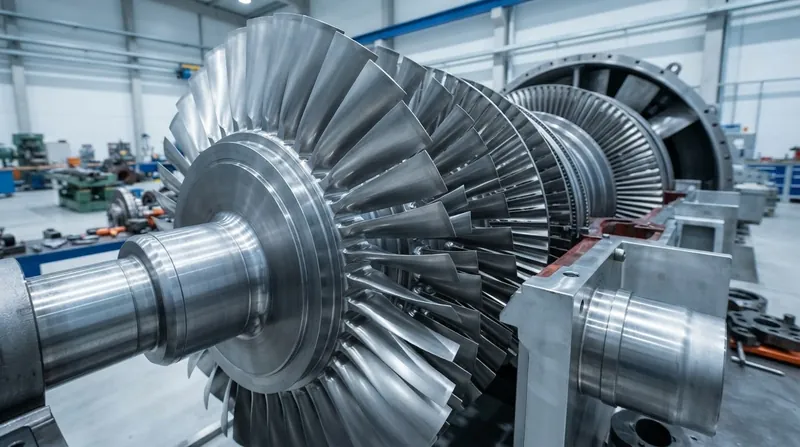

Over time, this continuous bombardment fractures the crystalline structure of the metal, tearing away microscopic fragments in a process known as liquid droplet impingement erosion. The leading edges of the blades become pitted and jagged, destroying their aerodynamic profile.[4][6]

"Despite tremendous developments in low pressure steam turbine moving blade design and blade materials, the water droplet erosion of blades still remains an unsolved problem," researchers at Concordia University concluded in a 2008 metallurgical analysis.[7]

How Intermediate Reheating Works

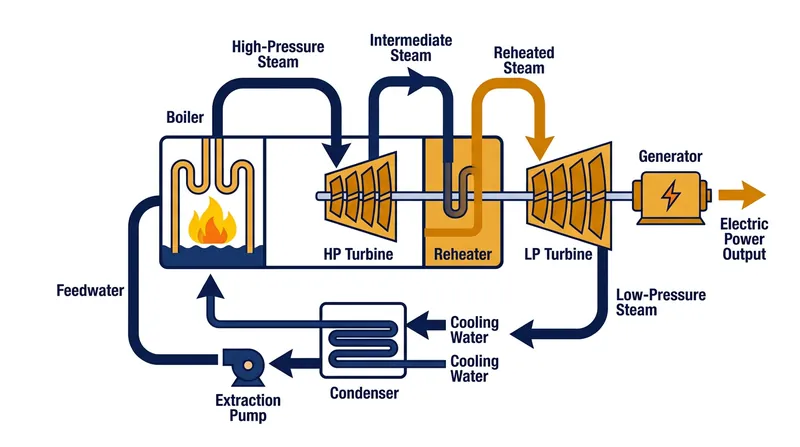

To prevent the steam from crossing the saturation line too early in its expansion, engineers intervene halfway through the process. Rather than letting the vapor expand continuously from the inlet to the condenser, they physically extract it from the turbine casing.[1]

After the steam exits the high-pressure turbine, it is piped back into the primary boiler or routed through a dedicated moisture separator reheater. This secondary heat exchanger injects fresh thermal energy into the partially expanded vapor.[1][5]

This intermediate reheating raises the steam's temperature back toward 500 degrees Celsius without increasing its pressure, shifting its thermodynamic state far away from the saturation curve. When the reheated vapor enters the low-pressure turbine, it has enough thermal buffer to complete its expansion.[1][5]

By resetting the temperature clock, reheating ensures that the steam only begins to form water droplets in the very last stages of the low-pressure turbine, rather than halfway through the assembly. This limits the total exhaust moisture fraction to a manageable 7 to 11 percent.

If a modern supercritical plant attempted to run without this reheating step, the exhaust moisture would easily exceed 15 percent. At that density, the sheer volume of water droplets would erode the final blade rows to the point of mechanical failure within months.[2]

Material Defenses and Suction Slots

Even with intermediate reheating capping the moisture fraction below 10 percent, the final blade rows still face a hostile operating environment. To survive the residual wetness, the largest low-pressure blades are forged from high-strength titanium alloys like Ti6Al4V rather than standard steel.[7]

Metallurgists further harden the leading edges of these blades using high-power diode lasers. The rapid heating and cooling of the laser treatment alters the metal's microstructure, creating a fine-grained martensitic phase that significantly improves erosion resistance.[7]

Turbine designers also employ mechanical extraction techniques to physically remove water from the steam path. The stationary guide vanes in the final stages are often hollow and feature narrow suction slots machined into their surfaces.[6][7]

As the primary fog droplets coalesce into a liquid film on the stator vanes, a vacuum system pulls the water through the suction slots before it can be sheared off and atomized into destructive secondary droplets.[6]

This extraction process requires precise aerodynamic engineering. If the suction slots are too wide, they disrupt the steam flow and reduce the turbine's power output; if they are too narrow, they fail to capture enough of the liquid film to protect the downstream rotor.[6]

In some advanced designs, the stationary vanes are actively heated using extracted steam. This internal heating evaporates the liquid film directly off the metal surface, proving to be one of the most effective remedial cures for droplet erosion.[6]

The Efficiency Bonus

While intermediate reheating is fundamentally a structural protection mechanism, it also provides a massive boost to the plant's overall thermal efficiency. The modification fundamentally alters the mathematics of the Rankine cycle that governs steam power.[1][3]

By adding heat at a lower pressure, the plant increases the average temperature at which thermal energy is transferred into the working fluid. According to the laws of thermodynamics, a higher average heat addition temperature directly translates to a higher theoretical efficiency limit.[1]

The economic implications of this efficiency gain are staggering. For a 1,000-megawatt baseload power plant, a single percentage point increase in thermal efficiency saves millions of dollars in fuel costs annually while proportionally reducing carbon emissions.[3]

This dual benefit explains why virtually every large-scale fossil and nuclear power plant built since the mid-20th century incorporates at least one reheating stage. In ultra-supercritical coal plants, engineers often utilize double reheating to push efficiencies past 45 percent.[2][3]

However, the mechanical constraints of the low-pressure turbine always dictate the cycle's boundaries. Operators must carefully monitor their steam chemistry and condenser vacuum levels, as running too cold can inadvertently pull the saturation line forward and spike the moisture fraction.

Ultimately, the longevity of a multi-million-dollar turbine rotor depends on a delicate thermodynamic balancing act. By keeping the steam just dry enough, engineers ensure that their supersonic titanium blades are pushing vapor, rather than colliding with water.[4][7]
