Unbalanced Rotor Torque Stalls Single-Phase Induction Motors Without Auxiliary Phase Splitting

For an induction motor to turn, its stator must generate a magnetic field that physically rotates across the air gap, dragging the rotor behind it. That is the binding constraint of induction mechanics. A single alternating current cannot satisfy it.

When fed into a single stator coil, standard household alternating current does not rotate. It merely pulses along a single stationary axis, swelling to a peak, collapsing to zero, and reversing direction exactly 120 times per second on a standard 60-hertz grid.

Because the magnetic field breathes in and out rather than sweeping in a circle, it exerts no directional pull on a stationary rotor. The motor is physically locked at zero revolutions per minute, humming loudly as it converts electrical power entirely into heat.

To break this stall, engineers cannot simply increase the voltage or add more copper to the primary coil. They must artificially fabricate a second, out-of-phase magnetic field to simulate the rotating sweep of a multi-phase industrial grid, forcing the rotor to choose a direction.

The Physics of the Double Revolving Field

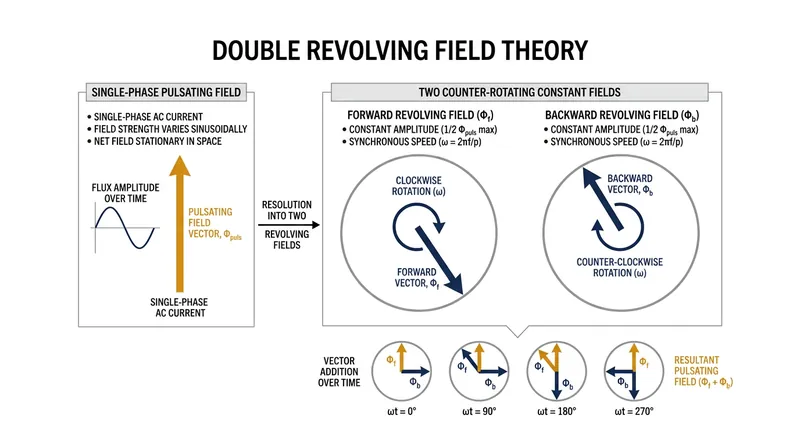

The mechanics of this stall are best explained by the double revolving field theory, formulated by Italian physicist Galileo Ferraris in 1888. Ferraris demonstrated that a stationary, pulsating magnetic field is mathematically and physically equivalent to two distinct rotating fields.

These two phantom fields are equal in magnitude, each possessing exactly half the peak amplitude of the pulsating stator field. Crucially, they rotate in perfectly opposite directions—one clockwise, the other counterclockwise—at the motor's synchronous speed, which is typically 1,800 or 3,600 revolutions per minute.

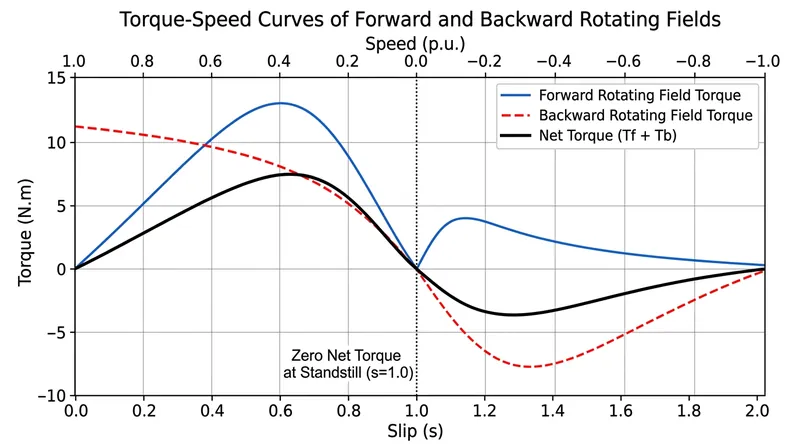

When the rotor is at a dead stop, its relative speed to both the forward and backward rotating fields is identical. The slip, which dictates how much current is induced in the rotor bars, is exactly 1.0 for both directions.

Consequently, the forward field induces a clockwise torque, and the backward field induces an identical counterclockwise torque. The two forces collide within the rotor cage, canceling each other out with mathematical precision and leaving a net starting torque of exactly zero.

According to the double revolving field theory, a stationary pulsating magnetic field resolves into two rotating fields of equal magnitude, explains an engineering analysis from TutorialsPoint. When the rotor is stationary, the two torques produced are equal and opposite, locking the motor in place.

Breaking Symmetry With Phase Splitting

To initiate rotation, the motor must break this perfect symmetry. It requires a secondary magnetic vector that peaks at a different time and operates on a different physical axis, creating an unbalanced torque that heavily favors one direction over the other.

This is achieved through a technique called phase splitting. Engineers install an auxiliary winding, also known as a starting winding, into the stator slots alongside the primary coil. This secondary coil is physically offset from the main winding by exactly 90 electrical degrees.

However, spatial separation alone is insufficient. If the exact same single-phase current flows through both windings simultaneously, their magnetic fields will pulse in unison. The net field will still merely pulse, albeit along a new, diagonal axis, leaving the rotor stalled.

The current in the auxiliary winding must be delayed or advanced in time relative to the main winding. By altering the electrical impedance of the secondary circuit, engineers force its current to peak a fraction of a second before or after the primary current.

Resistance Versus Capacitor Starting

The simplest method is resistance phase splitting. The auxiliary winding is wound with fewer turns of significantly thinner wire, giving it a high resistance-to-reactance ratio compared to the thick, highly inductive main winding. This creates a natural electrical bottleneck.

This impedance mismatch causes the auxiliary current to lead the main current by roughly 25 to 30 electrical degrees. The resulting magnetic field is lopsided, but it possesses enough of a rotational sweep to drag the rotor into motion against light loads like small fans.

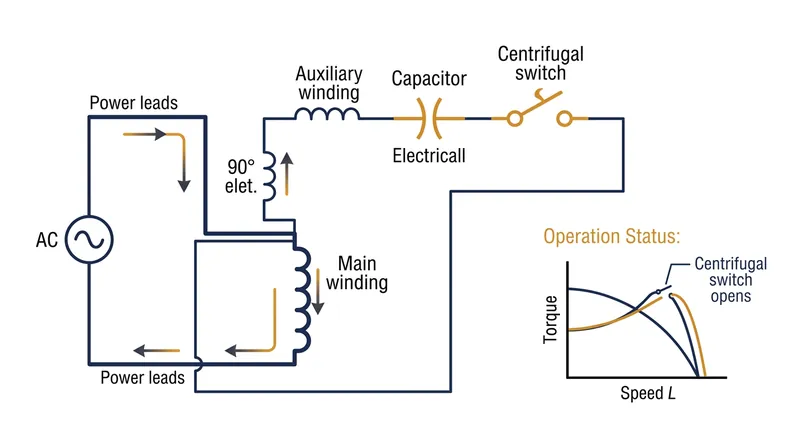

For heavy-duty applications like air compressors or water pumps, a 30-degree shift is far too weak. Instead, a capacitor is wired in series with the auxiliary coil. The capacitor drastically alters the circuit's reactance, forcing the auxiliary current to lead the main current by nearly 90 degrees.

A capacitor connected in series with the starting winding creates a phase shift of approximately 80 degrees, notes an engineering review from All About Circuits. This massive shift provides more than double the starting torque with one-third less starting current than a standard split-phase motor.[2]

With a 90-degree spatial offset and a near-90-degree temporal offset, the single-phase motor briefly mimics a true two-phase industrial machine. The forward rotating field overwhelmingly dominates the backward field, delivering a massive starting jolt that breaks the static friction of the load.

The Centrifugal Disconnect

Once the rotor begins spinning, the physics of the machine fundamentally change. The rotor's physical motion alters the relative slip between the forward and backward magnetic fields, permanently breaking the standstill symmetry that previously locked the motor in place.

As the rotor accelerates in the forward direction, its slip relative to the forward field drops toward zero, while its slip relative to the backward field approaches 2.0. The forward torque naturally amplifies, and the backward torque collapses into a negligible drag force.

By the time the motor reaches 75 to 80 percent of its synchronous speed, the auxiliary winding is no longer necessary. The pulsating field of the main winding alone is now sufficient to sustain rotation, as the spinning rotor essentially carries the magnetic field past the dead zones.

A centrifugal switch drops the auxiliary winding out of circuit once the motor has reached about 75 to 80 percent of synchronous speed, explains a technical breakdown from Electrical4U. Leaving the starting winding energized would only generate excessive heat and waste electrical power.[4]

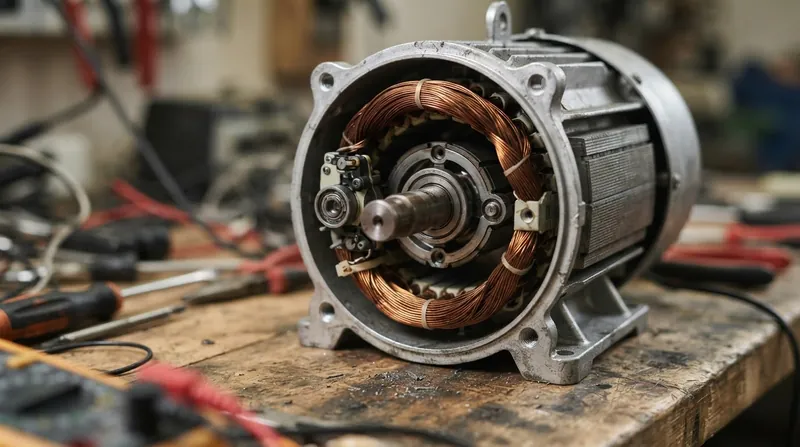

Therefore, a mechanical centrifugal switch, mounted directly on the motor shaft, flies open under centrifugal force. This physically severs the auxiliary circuit, leaving the motor running strictly on its primary coil and relying on the rotor's momentum to bridge the magnetic pulses.

Not all single-phase motors use a mechanical switch to disconnect the starting circuit. Permanent split capacitor motors leave a smaller run capacitor engaged continuously, sacrificing some peak starting torque to eliminate the moving parts and improve the motor's running power factor.

Maintaining a constant capacitor connection eliminates the need for a starting switch and enhances efficiency, notes the GeeksforGeeks analysis. This design is highly favored in ceiling fans and HVAC blowers, where long-term reliability outweighs the need for a massive initial jolt.[3]

The Compromise of Residential Power

The obvious counter-argument to this complex mechanical choreography is that it is entirely unnecessary on a three-phase grid. Three-phase power inherently provides three alternating currents, evenly spaced 120 degrees apart, which naturally generate a perfectly smooth rotating magnetic field without any auxiliary tricks.

Three-phase motors require no capacitors, no auxiliary windings, and no fragile centrifugal switches. They deliver massive starting torque from a dead stop and operate with significantly higher efficiency and lower vibration than their single-phase counterparts, making them the standard for industrial machinery.

Yet, the vast majority of the world's residential and light-commercial infrastructure is wired exclusively for single-phase power. Running three separate live wires to every household refrigerator, washing machine, and garage door opener would require a staggering, multi-trillion-dollar overhaul of the global electrical grid.

The auxiliary phase-splitting mechanism is the necessary engineering compromise. It accepts the inherent limitations of a pulsating single-phase supply and uses clever impedance manipulation to fake a rotating field just long enough to get the rotor moving.

Without this electrical workaround, the modern electrified home would be impossible. Every single-phase induction motor would remain permanently stalled, locked in a zero-torque equilibrium by the inescapable physics of the double revolving field, humming uselessly until its coils burned out.
